  • HV DOB DL58   8W dimmable fire rated downlight
  • HV DOB DL58   8W dimmable fire rated downlight
  • HV DOB DL58   8W dimmable fire rated downlight

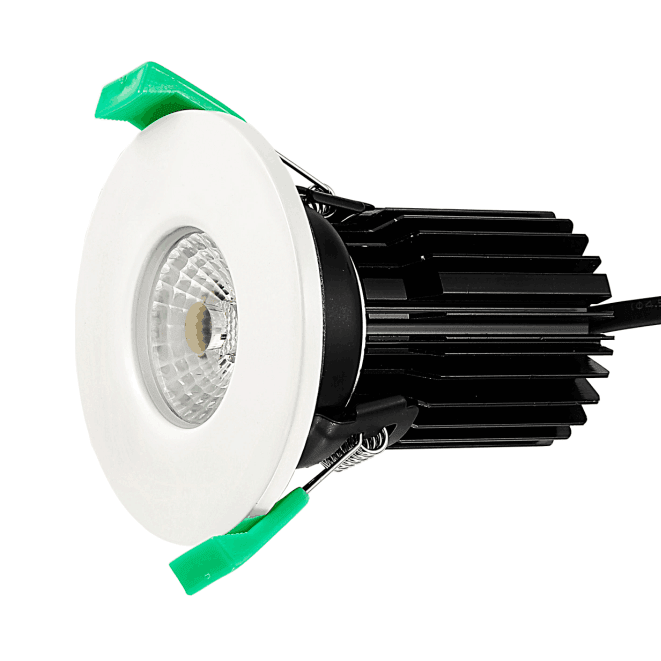

HV DOB DL58 8W dimmable fire rated downlight

    1. Bezel interchangeable, more color options.

    2. he HV technology makes the driverless led down light work at AC220-240V or AC 110V directly without any driver

    3. IP65 waterproof, can be used in bathroom zone 1, 2&3, or above the shower.

    4. 30,60,90mins fire rated, to prevent the fire spread through the ceiling.

    5. Complies with BS EN6059, BS5250, BS476 Parts 20, 21&23.

    6. Dimmable available.

    7. Pure aluminum heast sink.


PRODUCT DESCRIPTION

Advantage:

●Gobright High power HV Driverless 8W AC COB LED Fire rated Down light was adopted high lumen Epistar led chips with HV IC, The HV IC is a kind of solid state components and life can reach more than 5 years. The regular led products adopt the electrolytic capacitor which in the from of liquid with only 2-3 years lifespan.

●The 8W COB LED down light has no driver inside, it can avoid the failure of driver, as you know, most of led lights broken caused by unstable driver.

●Dimmable function support, matching with triac dimmer.

●The HV technology makes the driverless led ceiling light work at AC220-240V or AC 110V directly without any driver, we call it Driverless, driver-free or DOB(Driver on Board), double insulated wires with input voltage AC220-240V or AC110V.

●High CRI, Large capacity heat sink.


Application: This 8W HV Driverless DOB IP65 LED light downlight fire rated, can be widely used in almost all kinds of public places 1. Residential living room.2. Hotels 3. Showroomn 4. Offices 5. Exhibits, such as galliers, museum, display windows. 6. Comercial: Shopping mall, stores, retails, super markets, etc.Especially, can be used in bathroom and shower.


Bezel interchangeable, more color options


fire rated downlight DL58  HV DOB 8W dimmable


Product   NameCodePowerDimensionCutout sizeVoltageLED Beam Angle LumensColor TemperatureDIM
Fire rated DownlightDL58   8W HV DOB ( signle   color )8W87*90mm65-75mmAC200-240V COB   LED45°/60°600lm-700lm3000K/     4200K/  6000KTraic dim
Fire rated DownlightDL58   6W Build in Driver  ( signle   color )6W87*90mm65-75mmAC200-240V COB   LED45°/60°400lm-500lm3000K/     4200K/  6000KTraic dim
Fire rated DownlightDL58   6W Build in Driver  (  Color     chagne by switch )6W87*90mm65-75mmAC200-240V COB   LED45°/60°400lm-500lm3000K/     4200K/  6000KTraic dim
Fire rated DownlightDL58   8W Build in Driver  ( signle   color )8W87*90mm65-75mmAC200-240V COB   LED45°/60°600lm-700lm3000K/     4200K/  6000KTraic dim
Fire rated DownlightDL58   8W Build in Driver ( Color   chagne by   switch8W87*90mm65-75mmAC200-240V COB   LED45°/60°600lm-700lm3000K/     4200K/  6000KTraic dim
Fire rated DownlightDL58   10W External Driver ( signle   color )10W87*90mm65-75mmAC200-240V COB   LED45°/60°800-900lm3000K/     4200K/  6000KTraic dim
Fire rated DownlightDL58   10W External Driver(Color   chagne by switch)10W87*90mm65-75mmAC200-240V COB   LED45°/60°800-900lm3000K/     4200K/  6000KTraic dim
Fire rated DownlightDL58   10W Smart 10W87*90mm65-75mmAC200-240V COB   LED45°/60°800-900lm3000K/     4200K/  6000KAPP   and remote
Fire rated DownlightDL58   10W Smart 10W87*90mm65-75mmAC200-240V COB   LED45°/60°800-900lm3000K/     4200K/  6000KAPP   and remote


fire rated downlight DL58  HV DOB 8W dimmable
