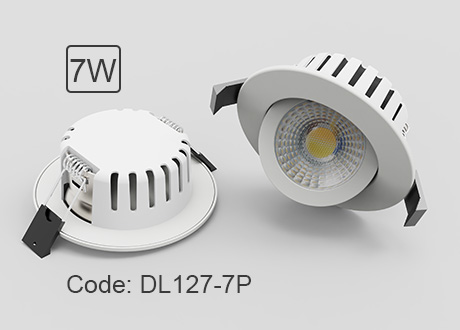

CCT Tiltable Fire-Rated Downlight Dimmable 7W 770lm DL127-7P

The 3CCT Tiltable Fire-Rated Downlight combines essential safety, adaptability, and wet-area resilience. Its 30/60/90 min fire rating ensures compliance, while the IP65 rating makes it perfect for bathrooms and kitchens. Easily switch between warm, neutral, or cool white light (selectable CCT ranges) and adjust beam direction with the tiltable design—delivering versatile, safe, and stylish lighting for any modern space.The manufacturer with 17 years of experience will provide innovative lighting solutions.

Dimensions：

Ø90 x H36.5mm,cut-out 68-75mm

Power：

Color temperature：

3CCT 2700K-3000K-4000K or 3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

downlight brightness

High LM Output

110lm/W, delivering up to 770lm at 7W

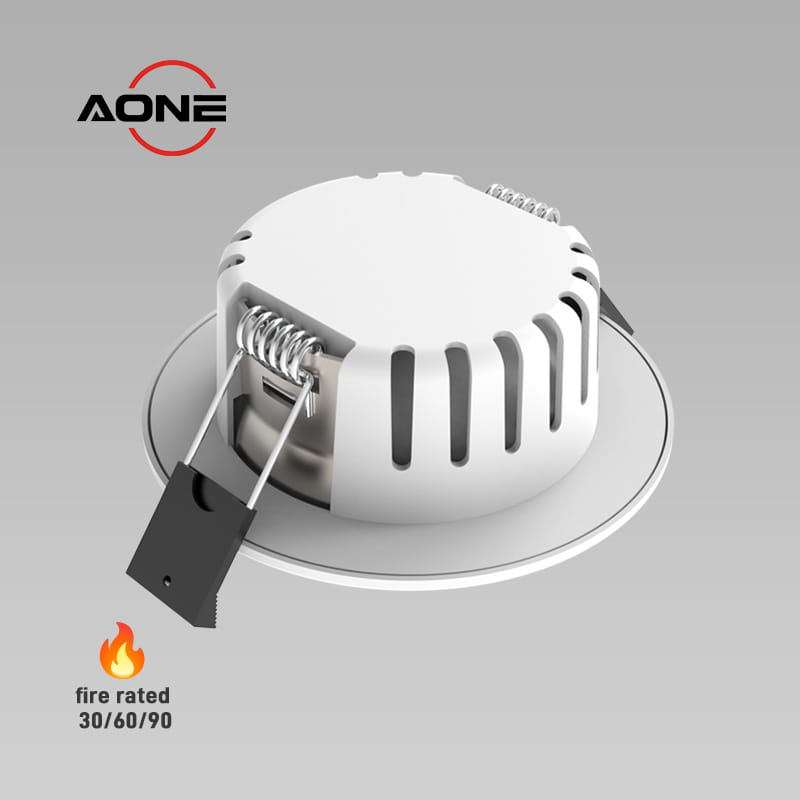

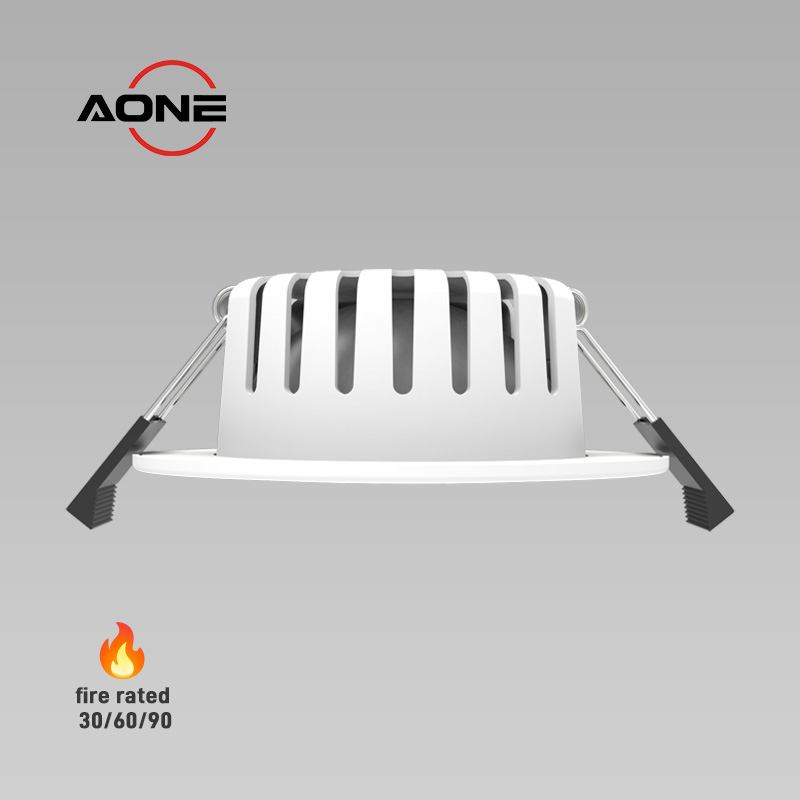

downlight fire rated, spotlight coverable

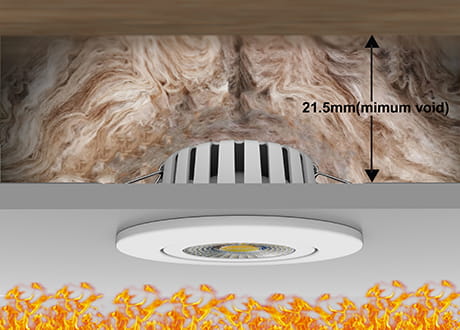

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 21.5mm

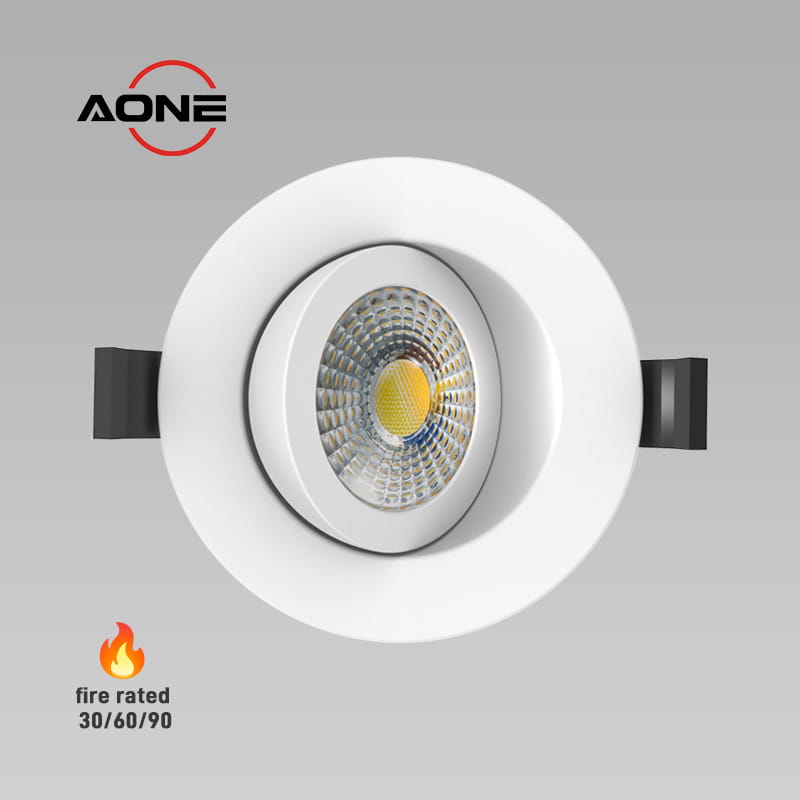

tiltable downlight/spotlight

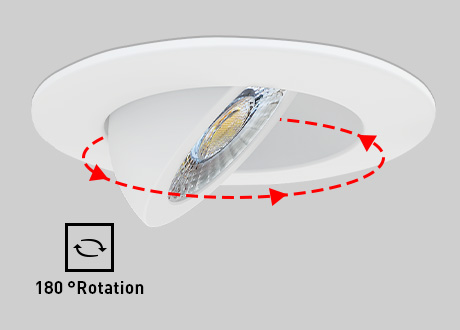

180° Rotation

Tiltable design greatly expands the coverage of the light

downlight spotlight 7 Wattage

Die-cast Aluminum Material

It can quickly dissipate heat to ensure the service life and stability of the lamp

connector for downlight spotlight

Fast Installation

Loop in/out terminal can reduce installation time by 50%

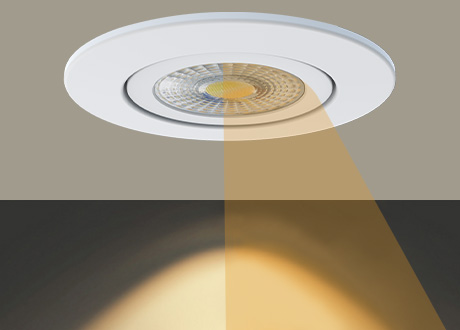

downlight spotlight beam 38 or 60 degree

38° or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Technical Specifications

Model	DL127-7P	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	7W	Finish Color	Black, White, Polished Chrome, Matt Brass, Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K or 3000K/4000K/5700K
Lumen	770	Size	Dia90mm, Cutout: 68-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

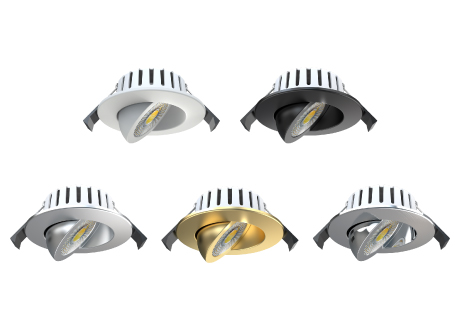

downlight color

Finish color: white, black, polished chrome, matt brass, brushed nickel

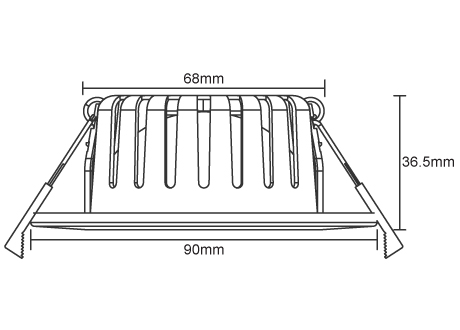

downlight diameter 90mm, cutout 68mm, height 36.5mm

Diameter 90mm, height 36.5mm, hole opening range 68-75mm， recessed depth 21.5mm.

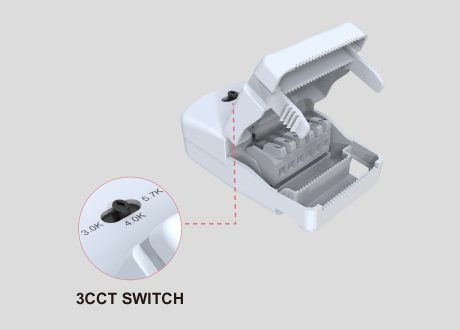

downlight junction boxes

7 choice of junction boxes, 1st- 4th fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

living downlight

Living

Smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

downlight, shopping area

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

kitchen downlight spotlight

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

bathroom downlight spotlight IP65

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

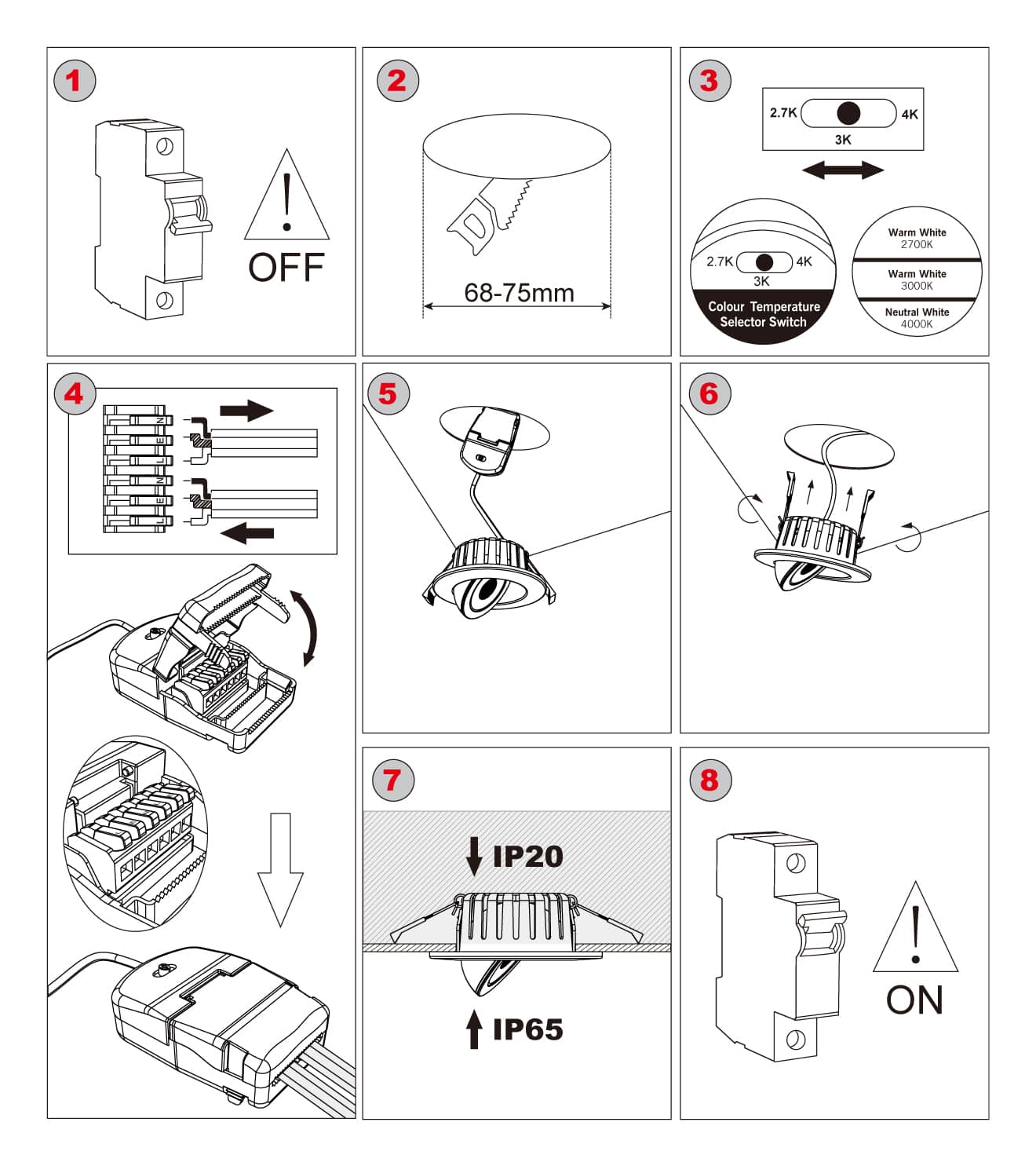

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K or 3000K/4000K/5700K from warm white to cool white, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight spotlight installation steps
