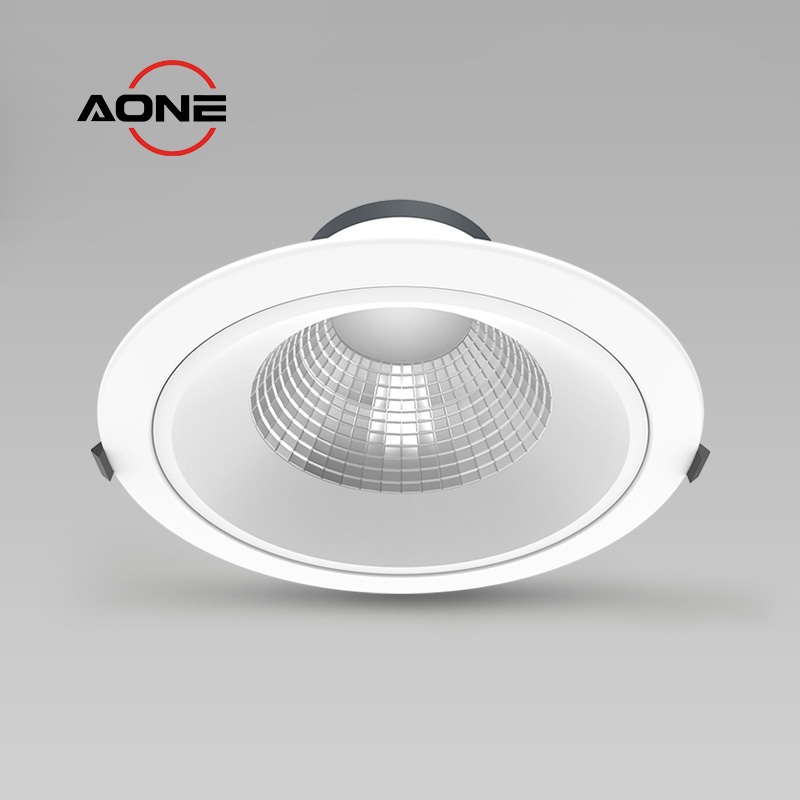

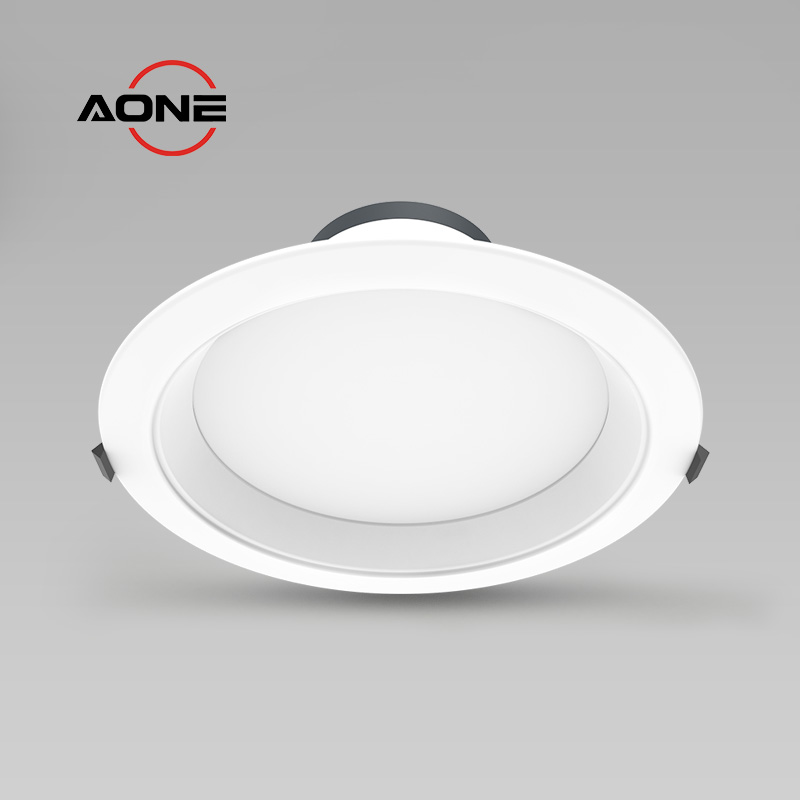

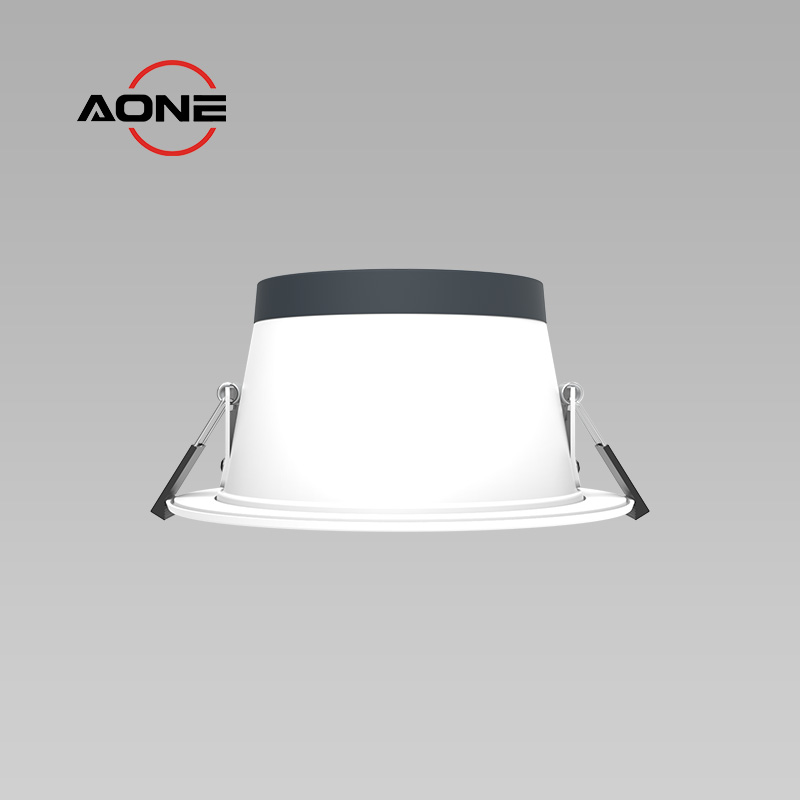

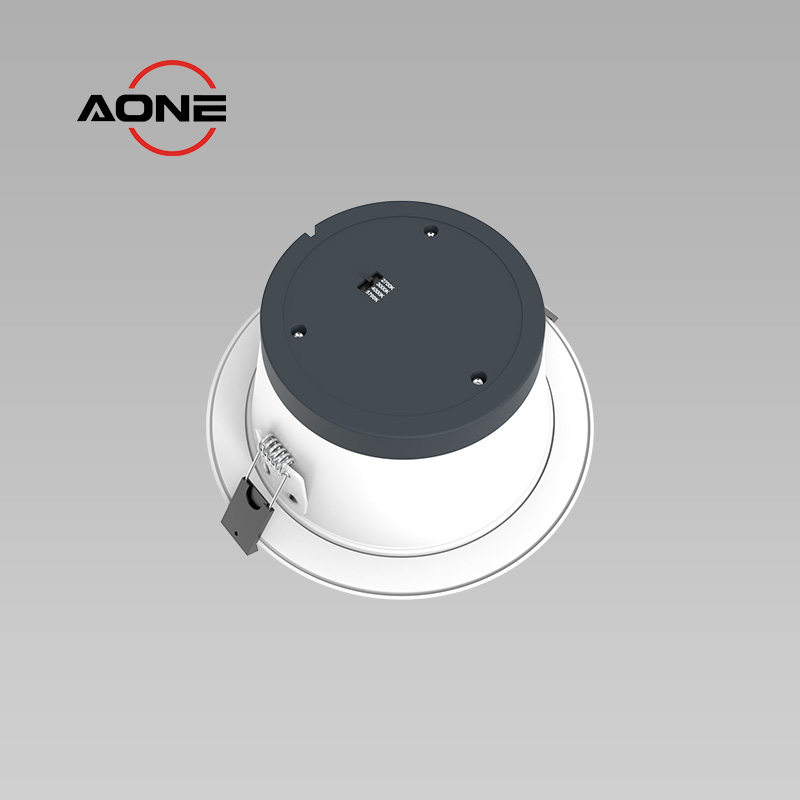

4CCT 20W-25W-30W Selectable Domestic&Commercial Downlight DL46

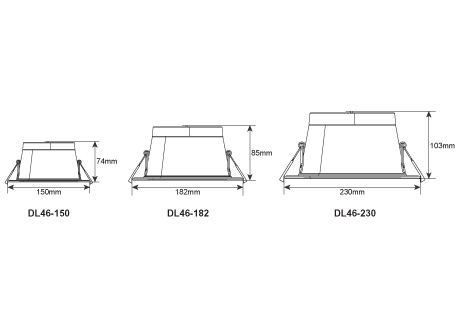

Dimensions：
Ø150 x H74mm; Ø182 x H85mm; Ø230 x H103mm;
Power：
20W-25W-30W selectable
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, Non dimmable
Beam angle：
60° or 120°
Rated voltage：
AC220-240V
Key Features & Benefits

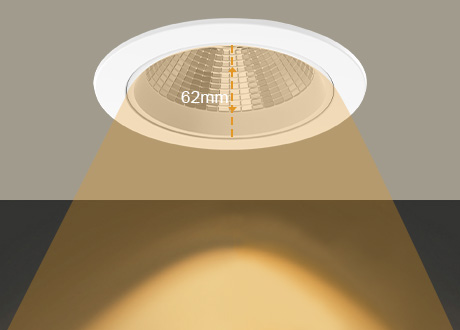

Anti-glare design UGR＜19

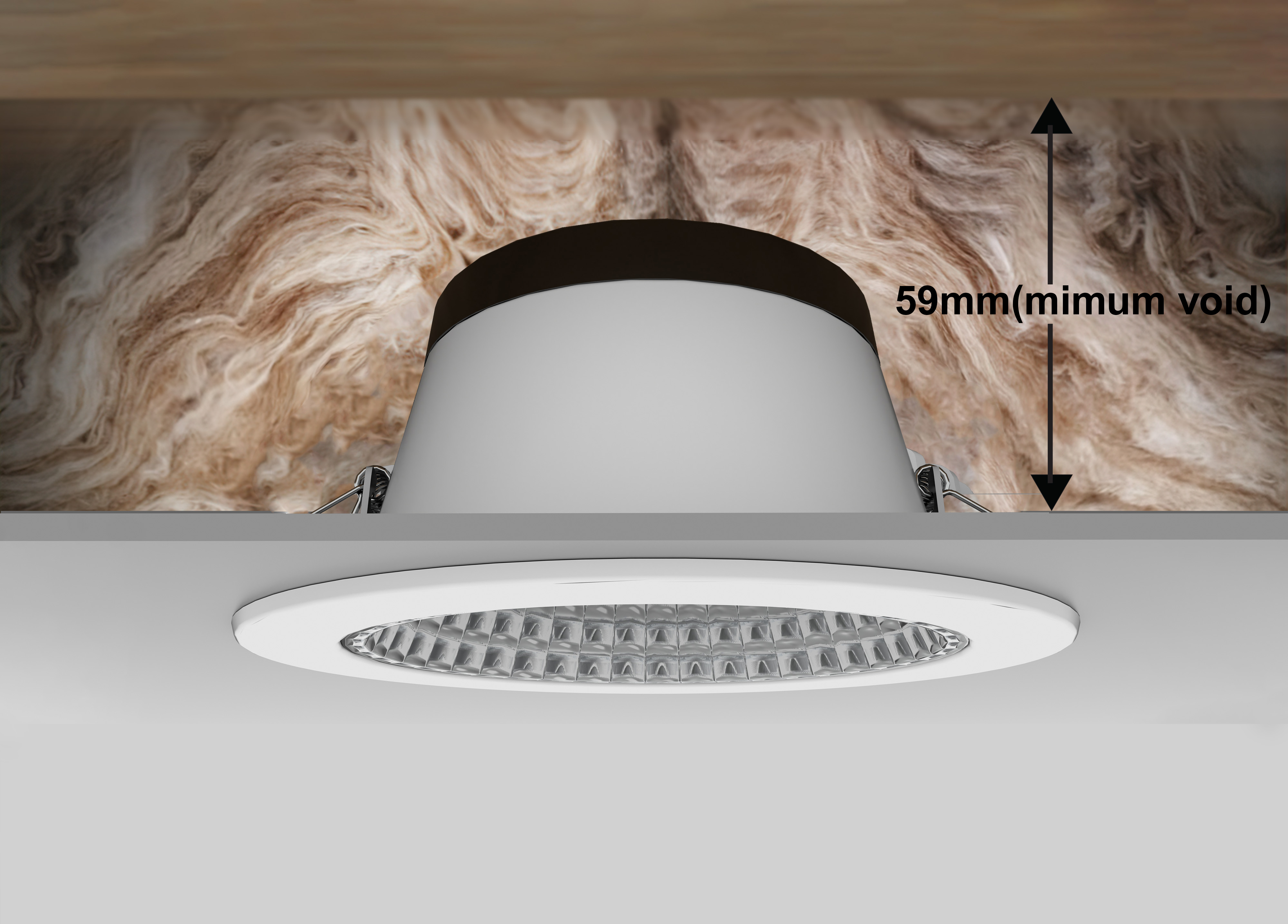

Aluminum die-cast housing with excellent heat dissipation, compatible with blanket and blown-type insulation materials.

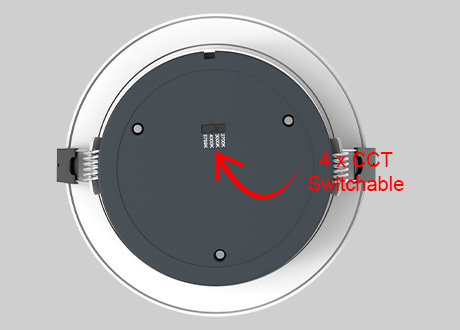

Changeable color temperature (CCT) with patented trailing edge: 2700K/3000K/4000K/ 6000K

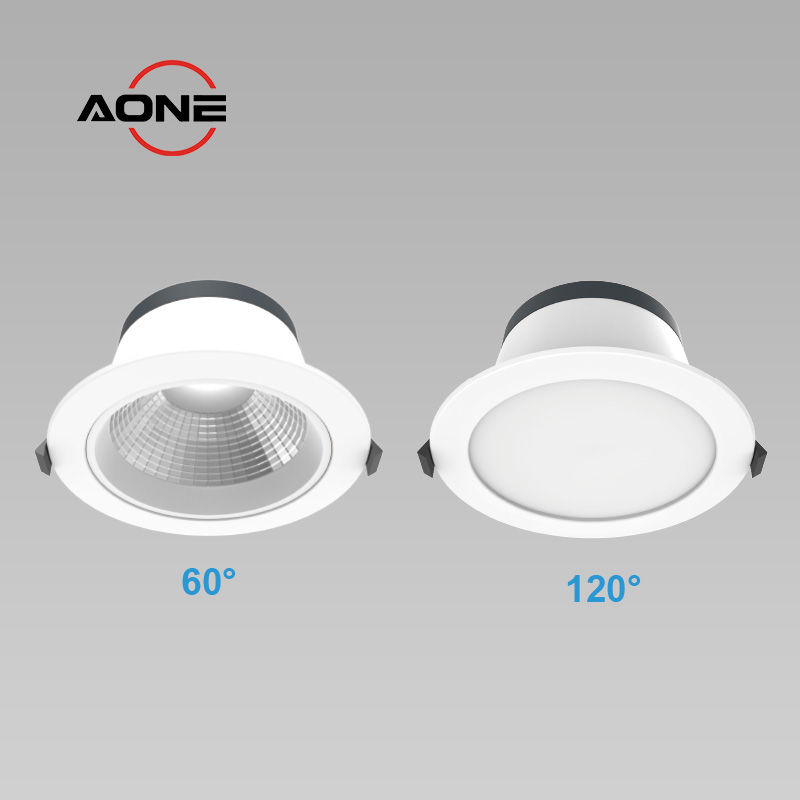

Switch between 60° spot lighting (reflector) and 120° flood lighting (diffuser) in seconds
60° or 120° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 versio
Quick and easy installation thanks to the quick terminal block
Technical Specifications
| Model | DL46 | Beam Angle | 60° or 120° |
| Protection Class | Class II / IP54 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 20W, 25W, 30W Selectable | Color | Black, White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K//5700K |
| Lumen | 2400lm, 3000lm, 3600lm | Size | Three size options |
| Efficiency | 120lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

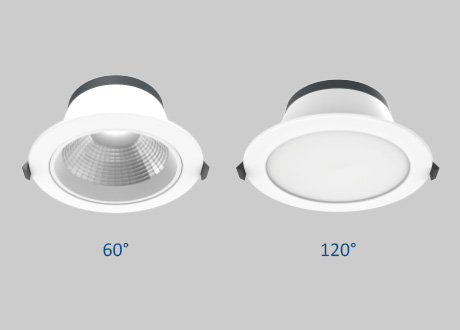

Reflector cup and diffuser option

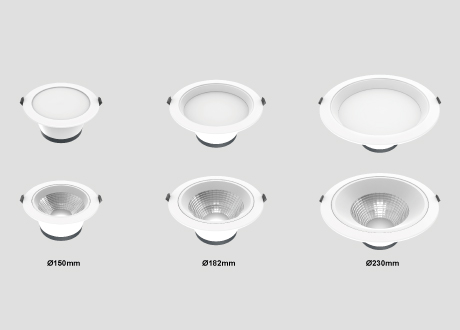

Three different sizes are available.

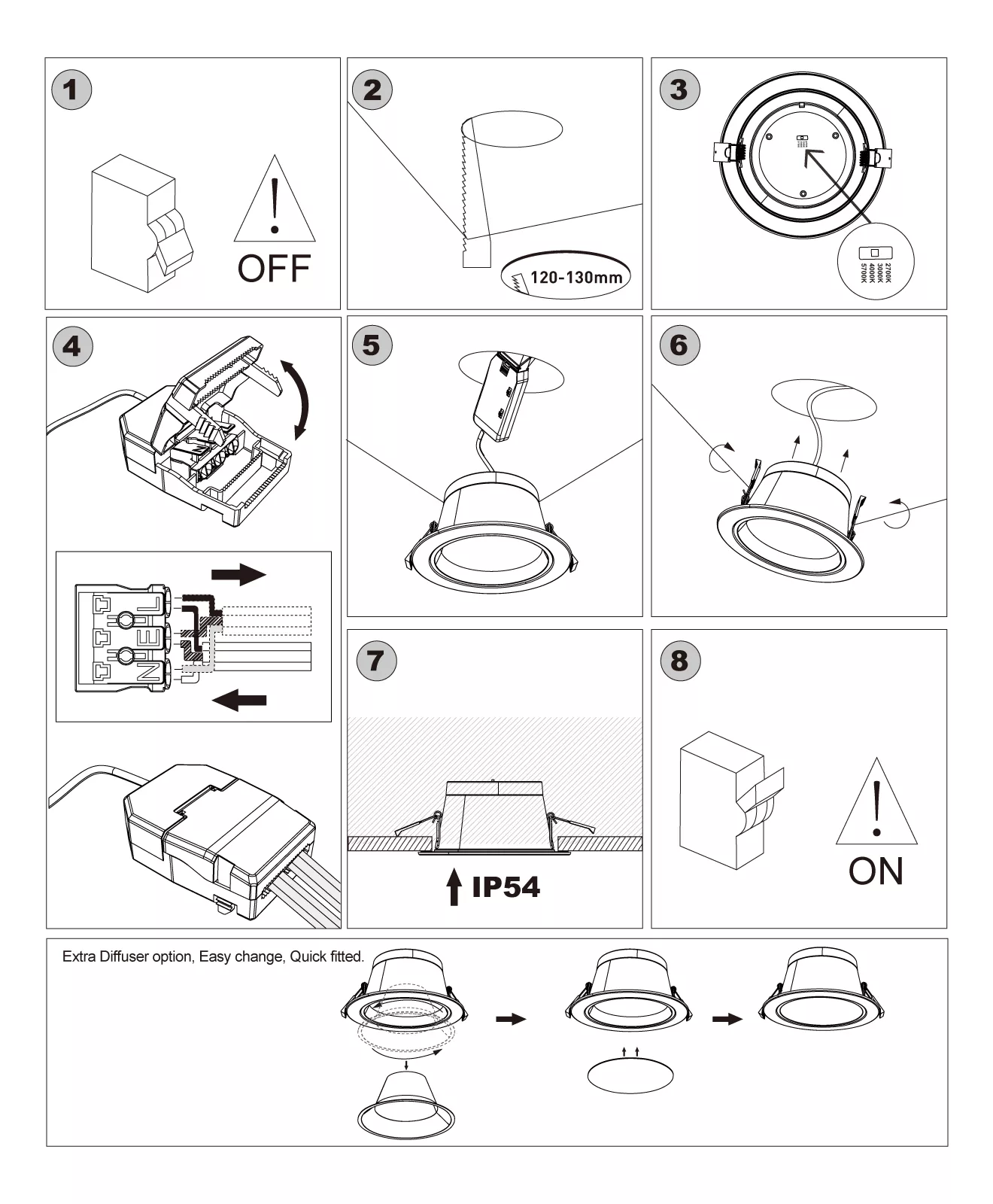

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

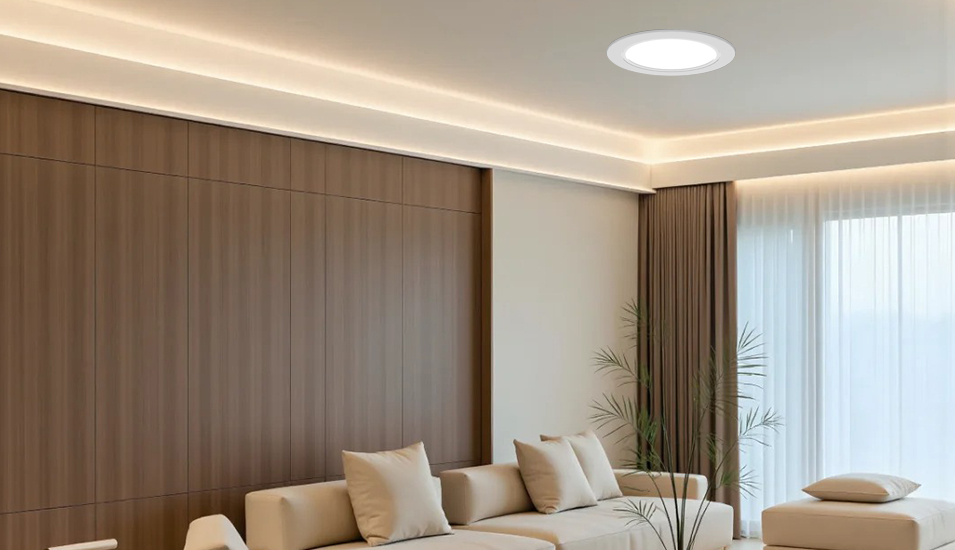

Large luminous surface with smooth 10%-100% dimming creates an artistic ambiance, enabling custom design of LED recessed lighting.

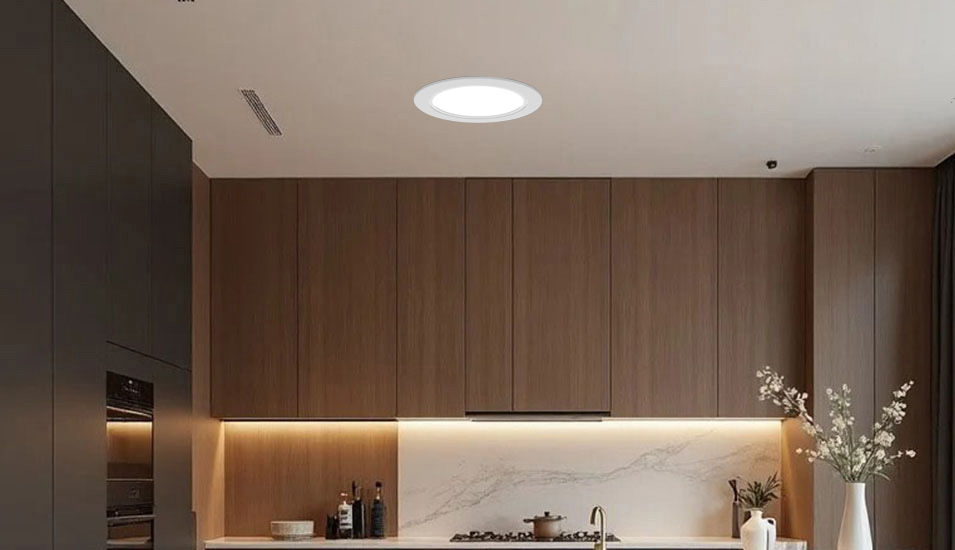

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

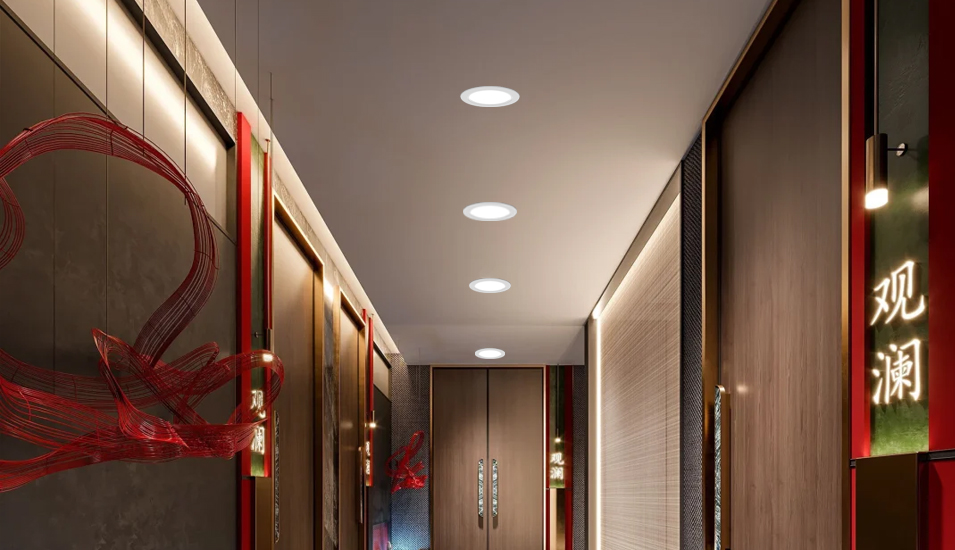

Concentrated lighting enhances restaurant decor and serves as an aesthetic element, while also saving space thanks to its compact design.

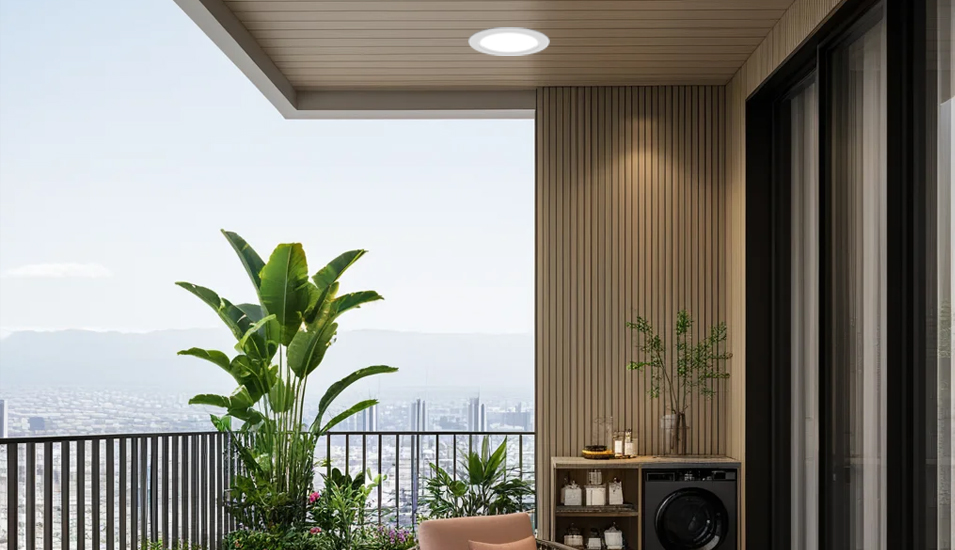

Waterproof design withstands wind and rain. Ideal for drying clothes or evening relaxation, it offers cozy lighting to brighten your balcony moments.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Installation Display
