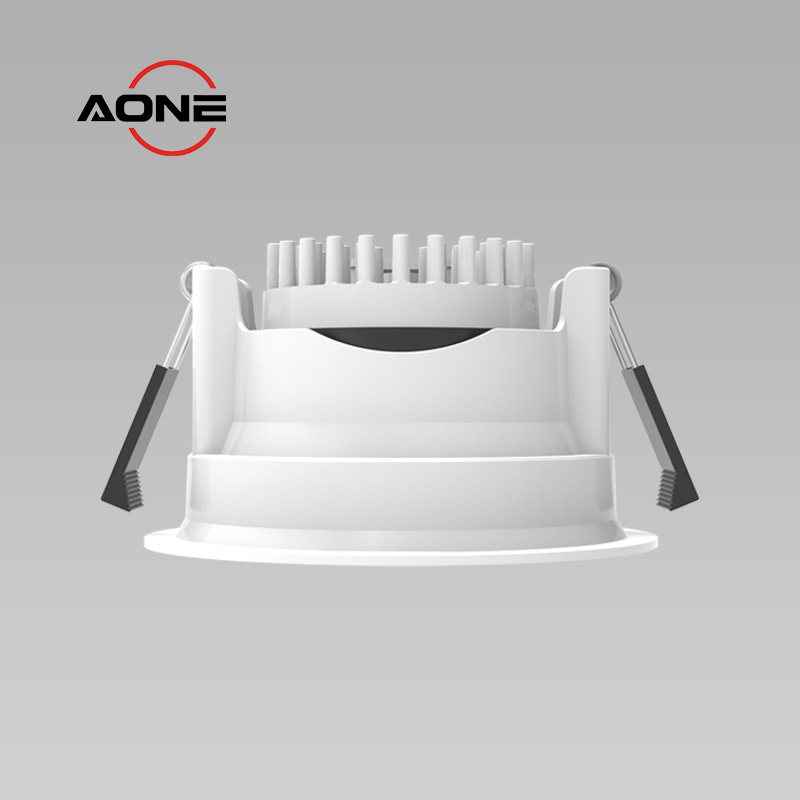

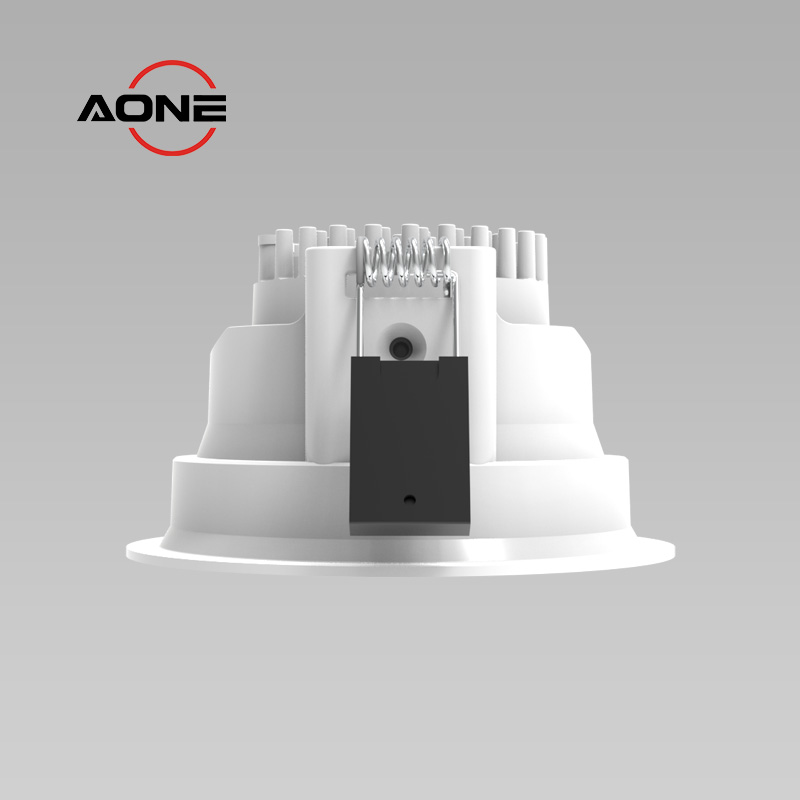

5W-8W Tiltable Dimmable Low-Glare Downlight with 3CCT Selectable Function DL91
Dimensions：
Ø90 x H52mm,cut-out 80-85mm
Power：
5W-8W selectable
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
Low glare UGR<19 design to create visual comfort.

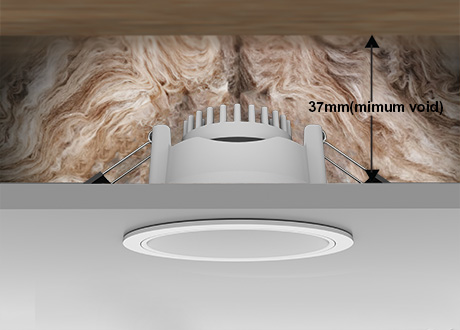

Can be covered blanket & blown type insulation material

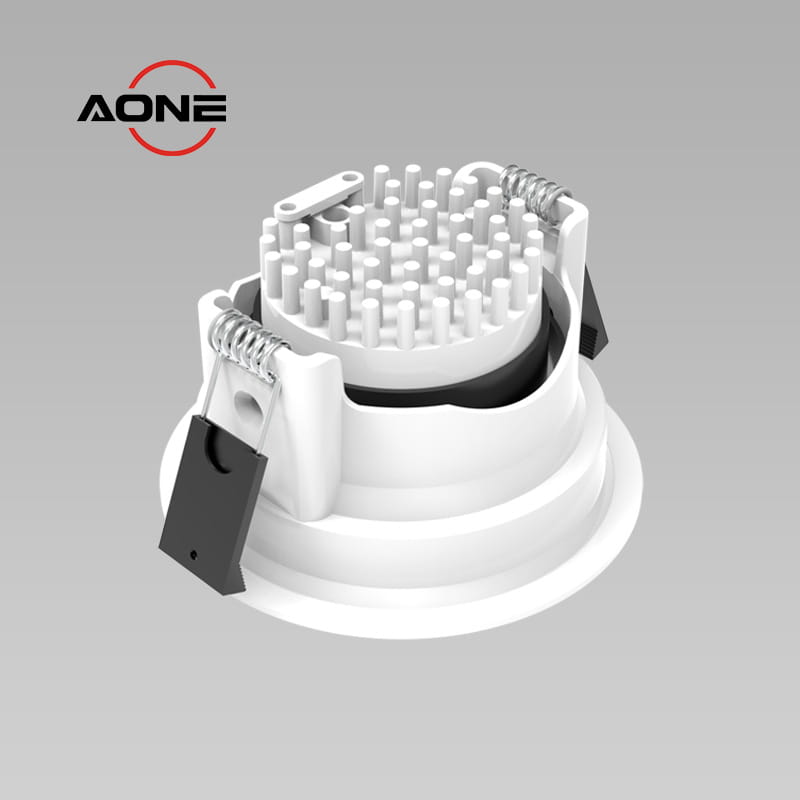

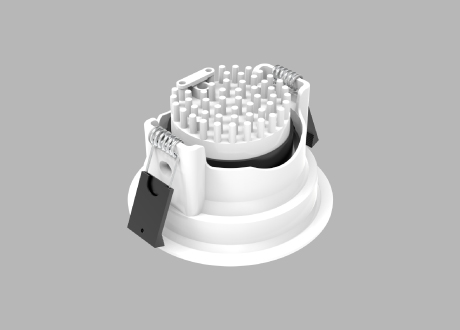

Aluminum die-cast housing with good heat dissipation
25° Adjustable Tilt for Flexible Positioning
38° or 60° beam optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

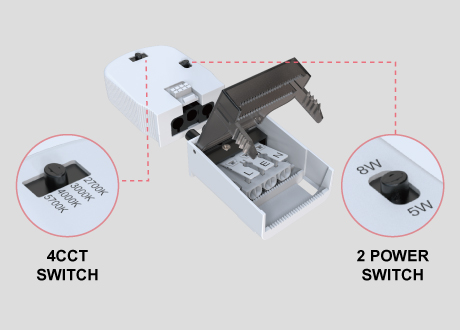

4CCT & 2 Power switch
Fast installation via Loop in/out terminal
Technical Specifications
| Model | DL91 | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 5W/8W Switchable | Color | Black, White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 500lm/800lm | Size | Dia90mm, Cutout: 80-85mm |
| Efficiency | 100lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

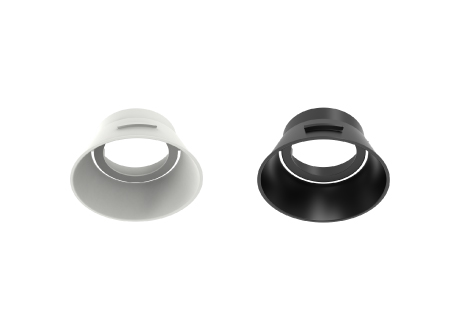

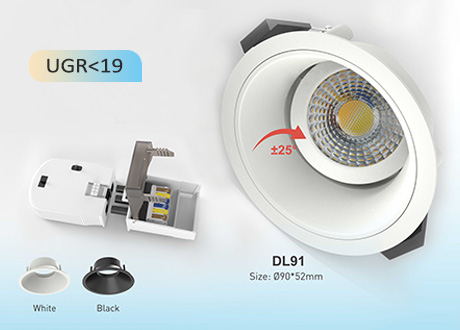

Interchangeable White & Black Deep Reflective Cups for Customizable Aesthetics.

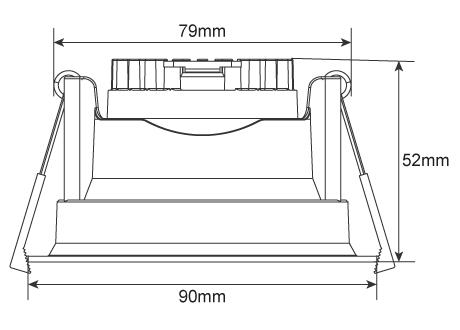

Diameter 90mm, height 52mm, hole opening range 80-85mm.

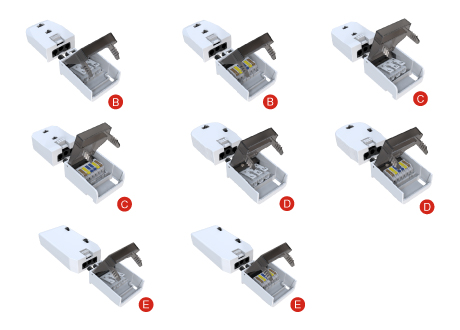

8 choice of driver junction boxes, loop-in & loop-out terminal provides a simple installation.

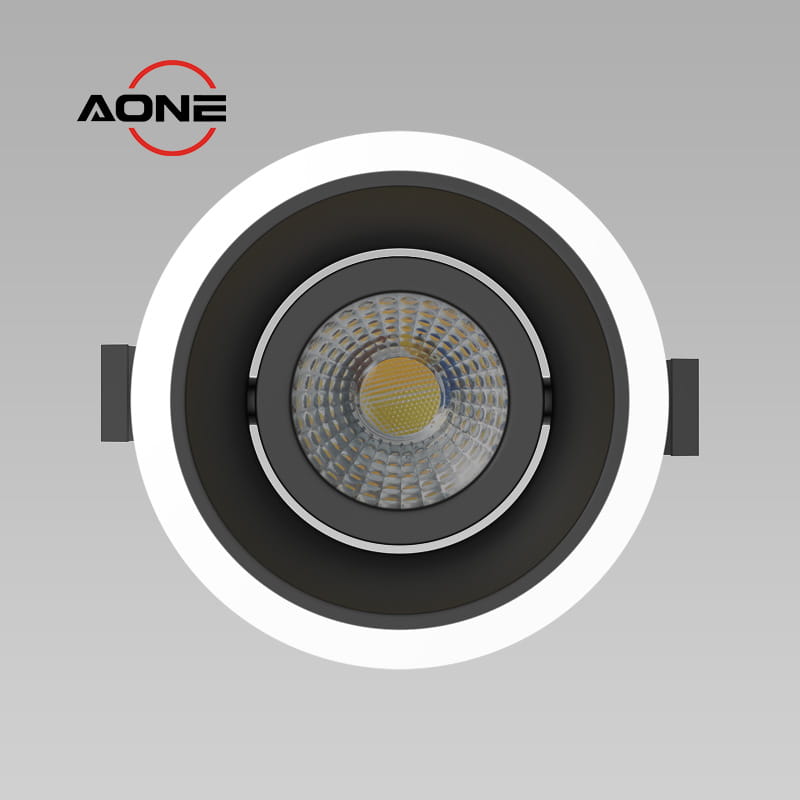

Deep cup anti-glare structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Installation Display

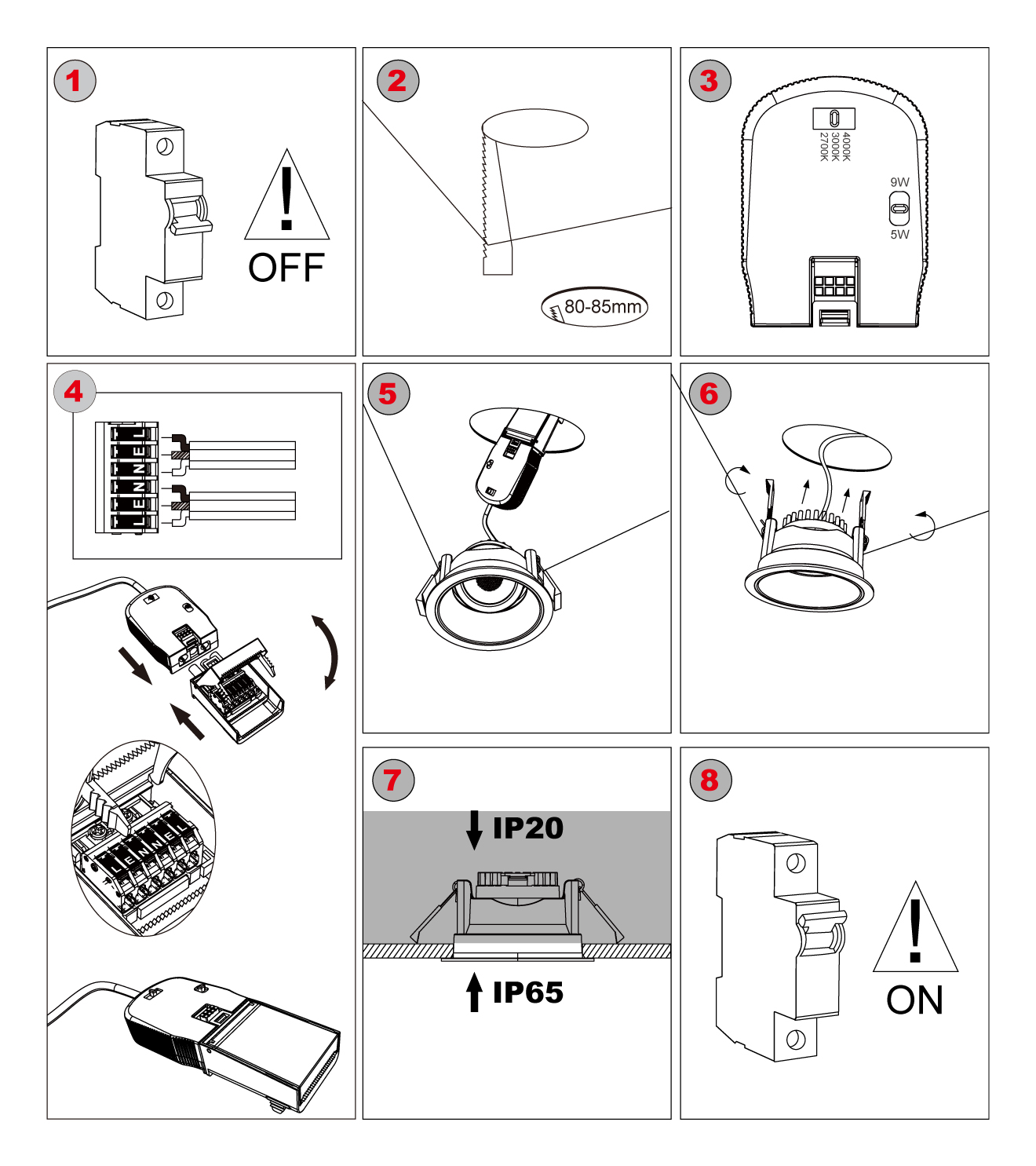

Turn off the power supply before installation, cut a hole (80-85mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
