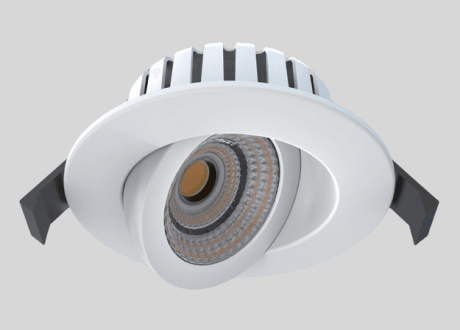

7W 3CCT Tiltable Fire-Rated Downlight Dimmable IP65 White DL127-7P/COB

This 7W Tiltable Fire-Rated Downlight combines essential safety, adaptability, and wet-area resilience. Its 30/60/90 min fire rating ensures compliance, while the IP65 rating makes it perfect for bathrooms and kitchens. Easily switch between warm, neutral, or cool white light (selectable CCT ranges) and adjust lighting direction with the tiltable design—delivering versatile, safe, and stylish lighting for any modern space. OEM/ODM Manufacturing factory to customize your lighting solutions.

Dimensions：

Ø90 x H37mm,cut-out 68-75mm

Power：

Color temperature：

3CCT 2700K-3000K-4000K or 3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

downlight brightness

High Efficiency

Energy saving, delivering up to 700lm

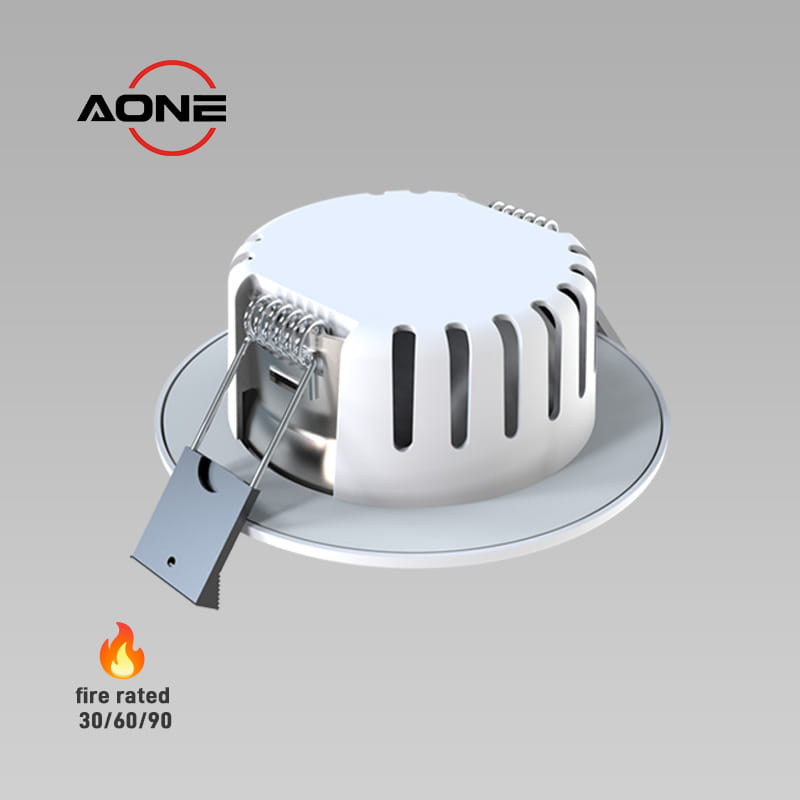

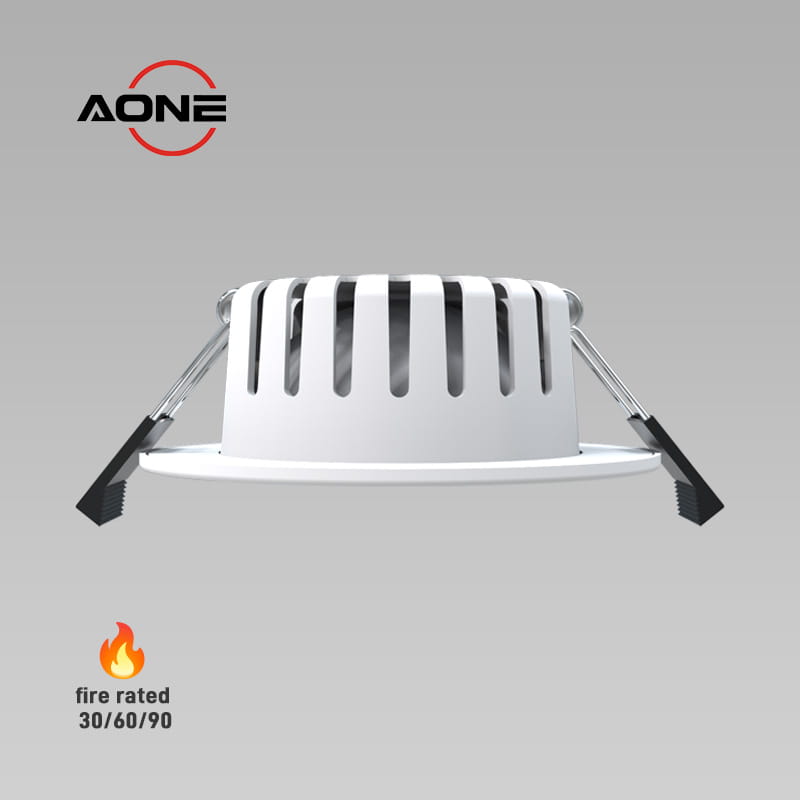

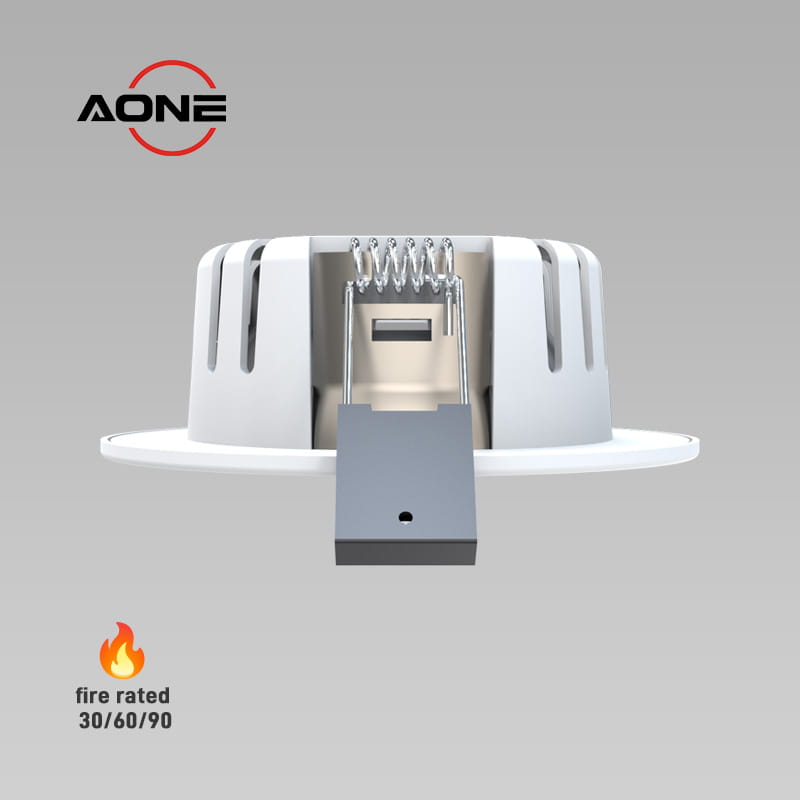

downlight fire rated, spotlight coverable

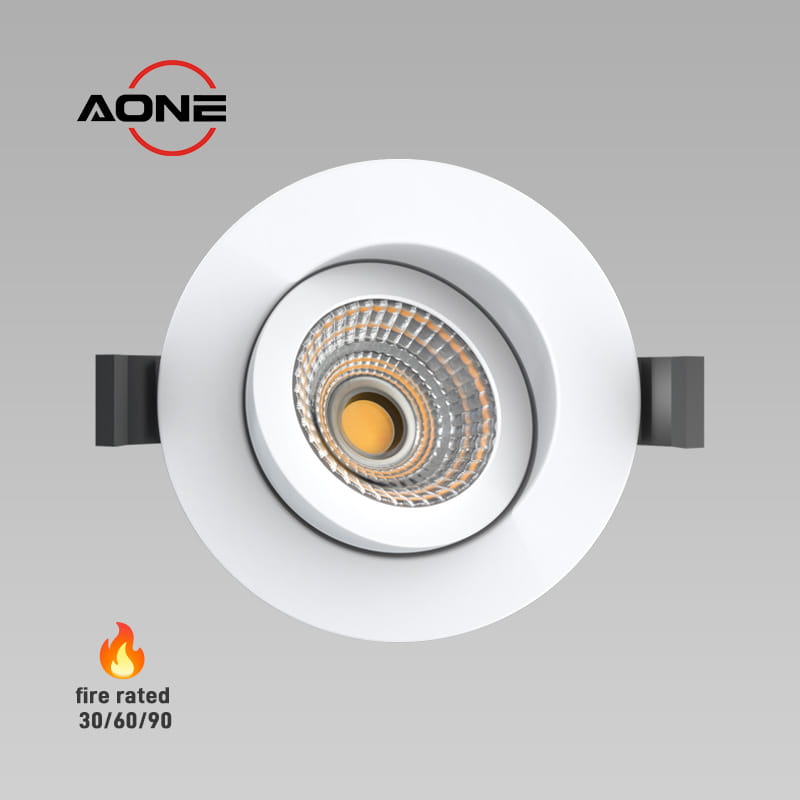

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 22mm

tiltable downlight/spotlight

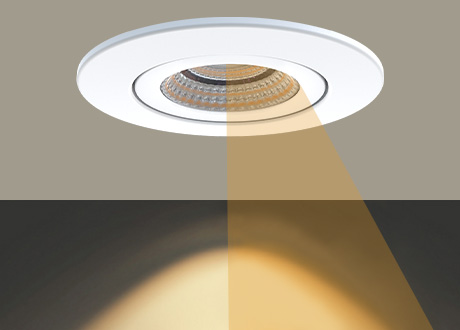

180° Rotation

Tiltable design greatly expands the coverage of the light

downlight spotlight waterproof

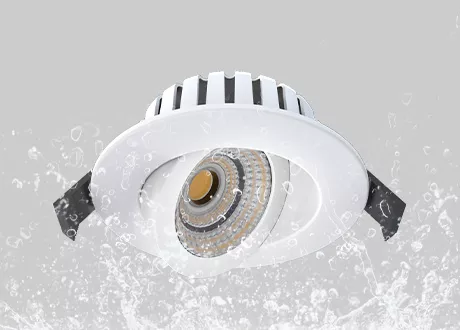

Waterproof Function

IP65 rated from the front making it ideal for bathrooms as well as living spaces

connector for downlight spotlight

Fast Installation

Loop in/out terminal can reduce installation time by 50%

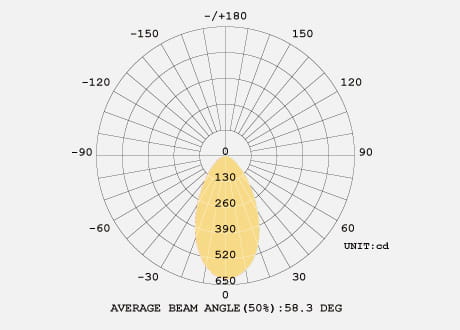

downlight spotlight beam 38 or 60 degree

38° or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Technical Specifications

Model	DL127-7P/COB	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	7W	Finish Color	Black, White, Polished Chrome, Matt Brass, Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K or 3000K/4000K/5700K
Lumen	700	Size	Dia90mm, Cutout: 68-75mm
Efficiency	100lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

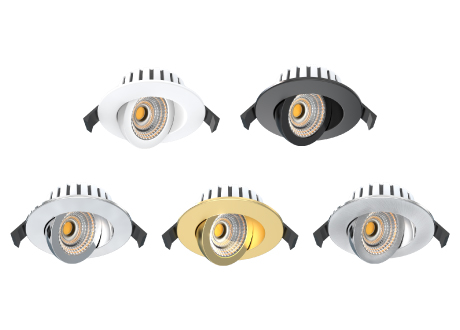

downlight color

Finish color: white, black, polished chrome, matt brass, brushed nickel

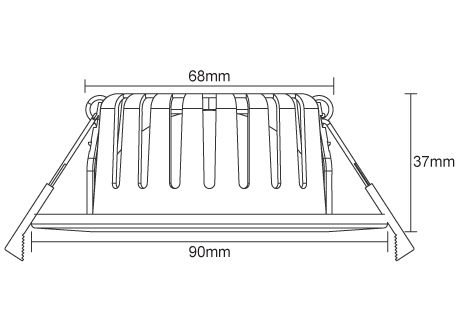

downlight diameter 90mm, cutout 68mm, height 36.5mm

Diameter 90mm, height 37mm, hole opening range 68-75mm

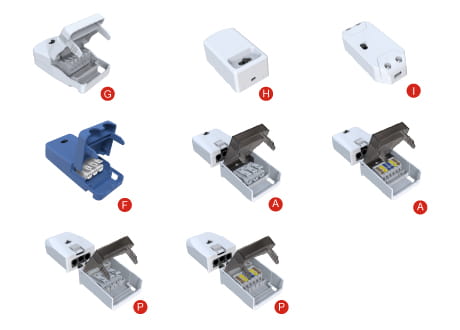

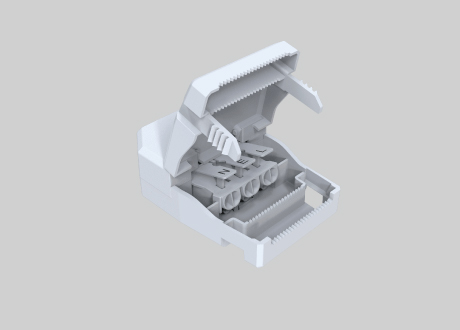

downlight junction boxes

7 choice of junction boxes, 1st- 4th fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

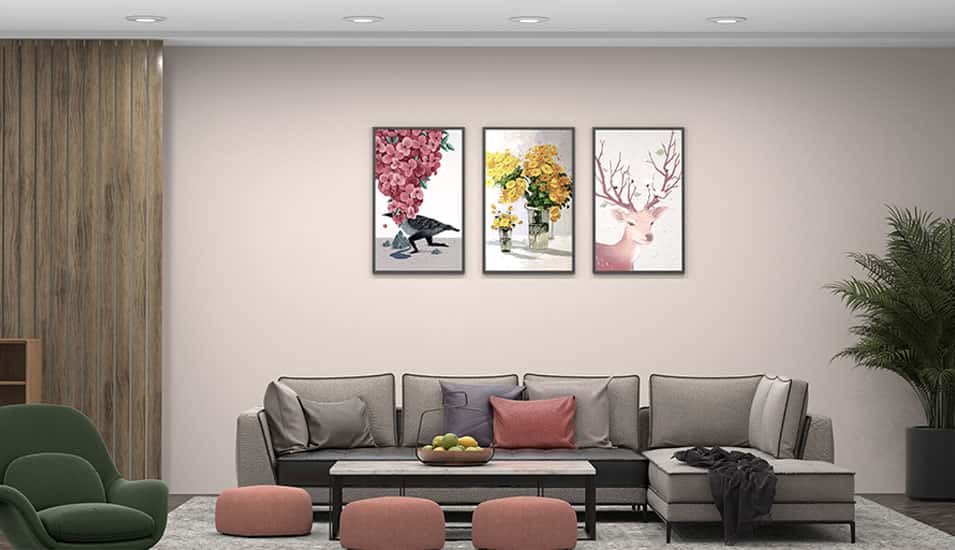

living downlight

Living

Smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

downlight, shopping area

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

kitchen downlight spotlight

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

bathroom downlight spotlight IP65

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

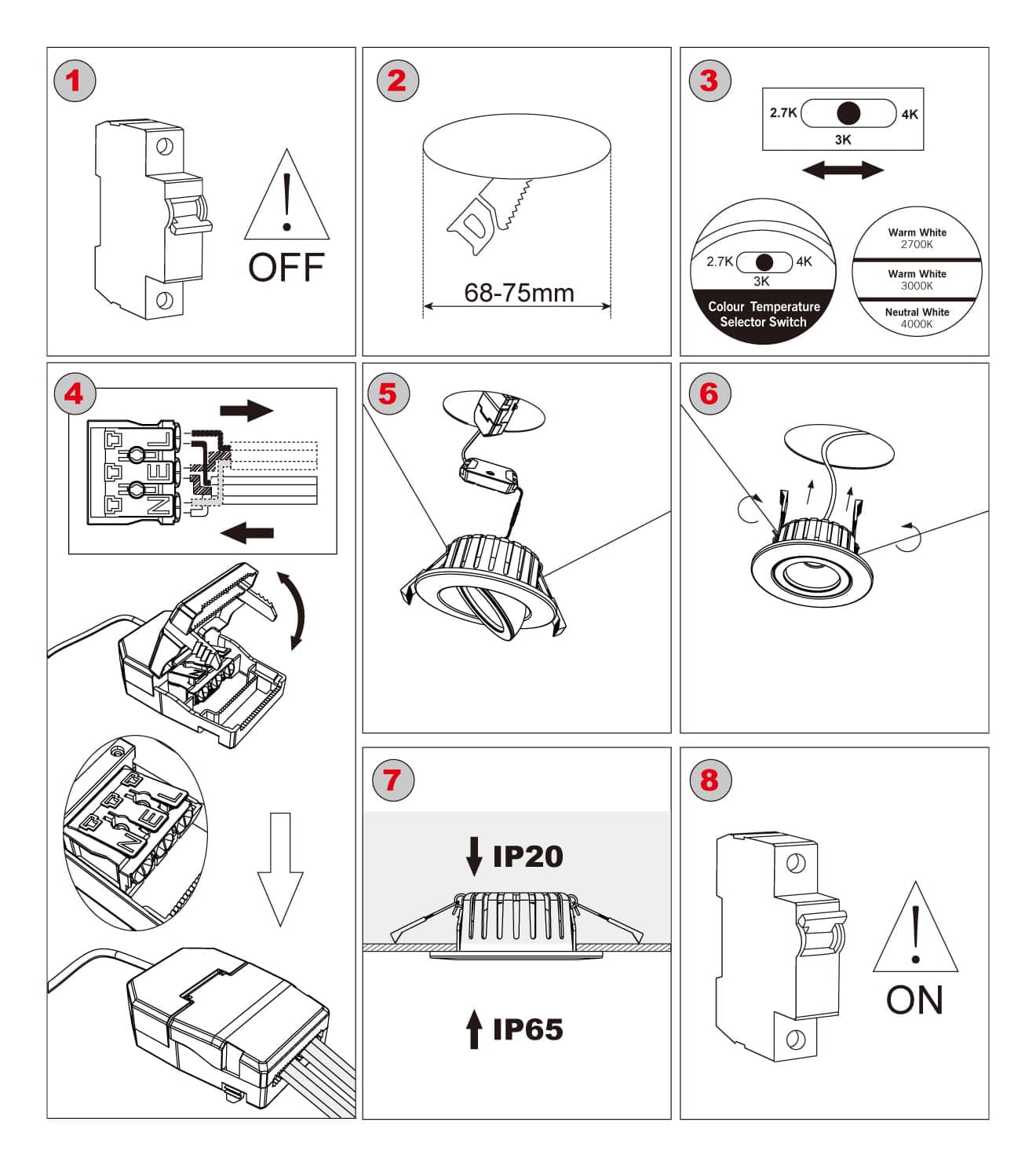

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K or 3000K/4000K/5700K from warm white to cool white, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight spotlight installation steps
