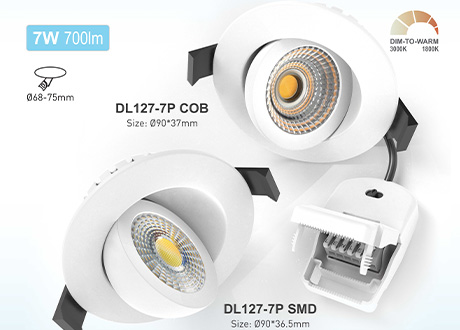

7W COB adjustable fire-rated IP65 professional LED recessed lighting DL127-7P.

Dimmable IP65 waterproof downlight, Power 7W and CCT selectable between 2700K, 3000K, 4000K, Easy-fit connector, White/Black/Polished Chrome/Brass/Brushed Nickel metal surface color options, Fully fire rated tests for 30, 60 and 90 minute approval, Coverable with insulation material, CE UKCA ROHS available, OEM/ODM Manufacturing give customized lighting solutions.

Dimensions：

Ø90 x H37mm,Cut-out 68-75mm

Power：

Color temperature：

2700K-3000K-4000K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Recessed LED Downlight SPOTLIGHT COB High efficacy of 120lm/W.

COB Downlight

Produces soft, uniform light without graininess, sharply focusing to create a clean, rounded spot for natural, comfortable illumination.

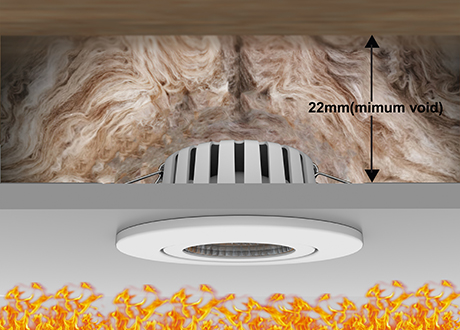

COB Fire-rated DOWNLIGHT SPOTLIGHT / Coverable 30,60,90min for timber, web and staircraft i-joists, coverable, mini void 21.5mm

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 21.5mm

180° Tiltable Tiltable to highlight room features DL127-7P LED DOWNLIGHT SPOTLIGHT

180° Tiltable

Tiltable to highlight room features

Metal Surface , COB style and SMD style LED DOWNLIGHT

Two styles options

SMD Style and COB Style

38° or 60° beam optional High quality of LED chip and lens, offering RA>80 or RA>90 version

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

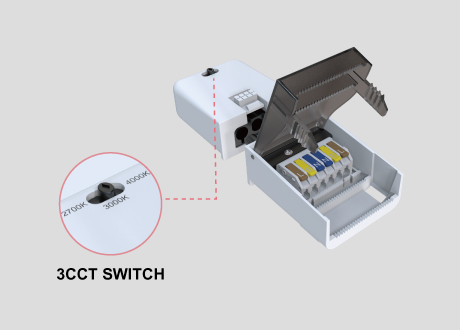

Fast installation via Loop in/out terminal CCT Dip switch, Plug-and-play driver reduces installation time by 50%.

Fast installation via Loop in/out terminal

3CCT Dip switch, Plug-and-play driver reduces installation time by 50%.

Technical Specifications

Model	DL127-7P COB	Beam Angle	38° or 60°
Protection Class	Class II / IP65(Front) / IK08	Dimming	Trailing edge and leading edge
Power	7W	Color	White,Black,Polished Chrome,Brushed Nickel,Brass
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K
Lumen	770	Size	Dia90mm, Cutout: 68-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

LED DOWNLIGHT SPOTLIGHT white, black, polished chrome, matt brass, brushed nickel options

It can finished white, black, polished chrome, matt brass, brushed nickel options

LED DOWNLIGHT SPOTLIGHT Diameter 90mm, height 37mm, hole opening range 68-75mm, recessed depth 21.5mm.

Diameter 90mm, height 37mm, hole opening range 68-75mm, recessed depth 21.5mm.

led downlight spotlight drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

Living

Large tilt angle and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide beautiful lighting to kitchen island or worktops

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

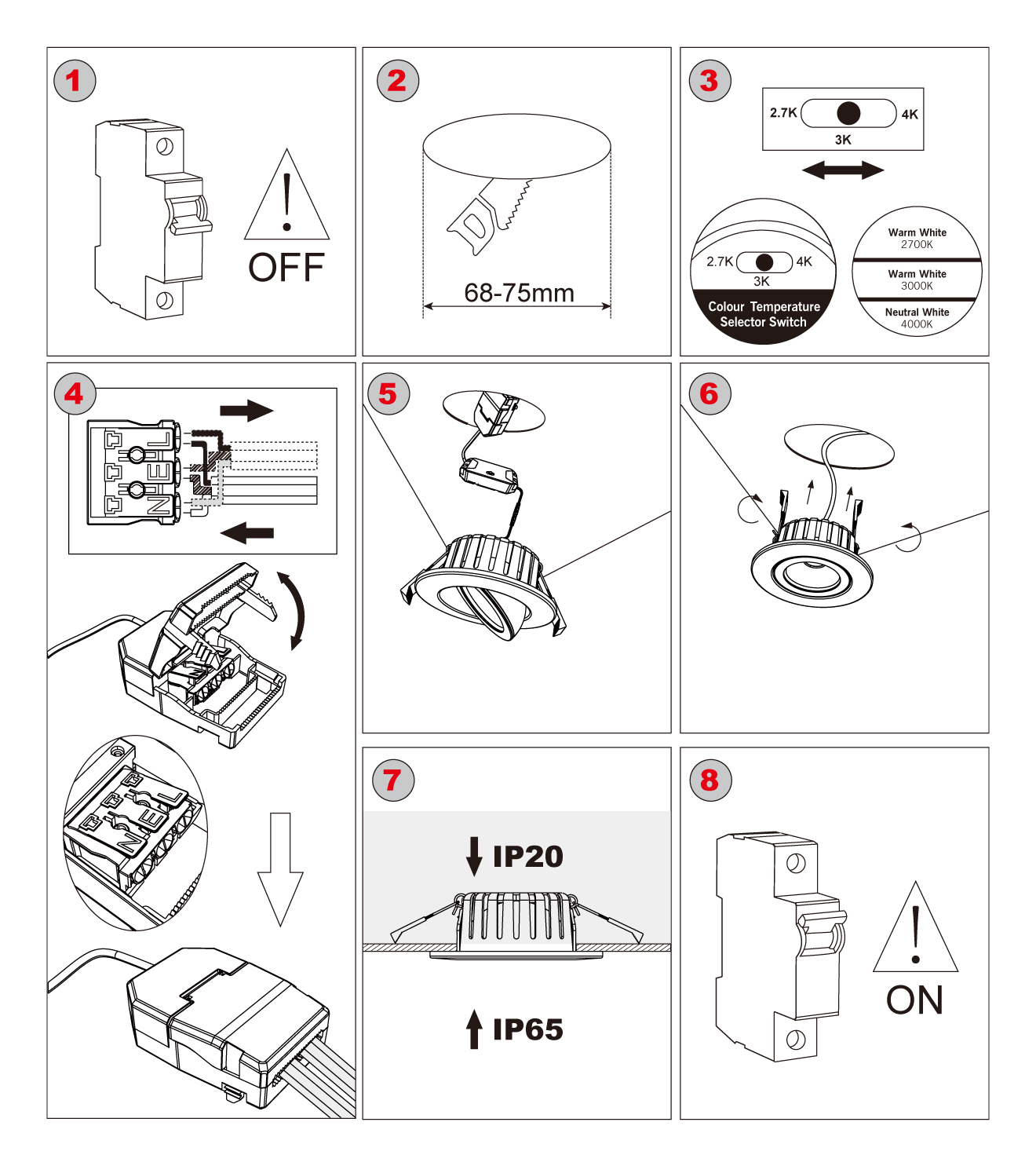

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

LED DOWNLIGHT INSTALLATION MAMUAL DL127-7P COB Spotlight
