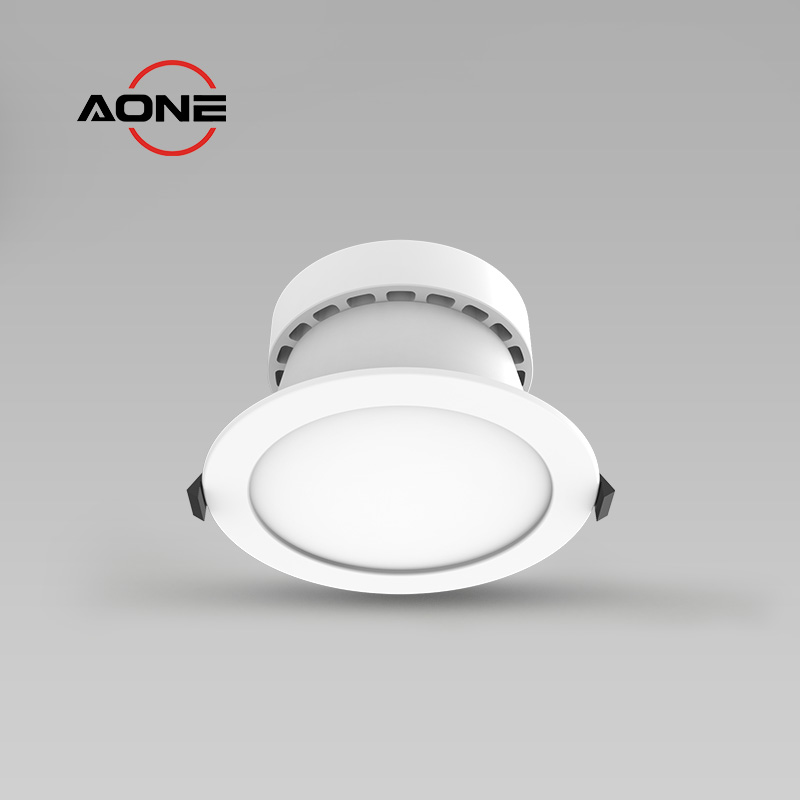

Adjustable Modular downlight - 4/6/8 inch Trims, 60° or 120° Beam, IP54, 120lm/W DL47
Dimensions：
Ø110 x H42mm
Face ring：
Ø150 x H60mm, Ø182 x H73mm, Ø230 x H91mm
Power：
20W-25W-30W-35W
Color temperature：
2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
60° or 120°
Rated voltage：
AC220-240V
Key Features & Benefits
Anti-glare Recessed Modular Downlight
Low glare UGR<19 design to create visual comfort.
Coverable Light Engine

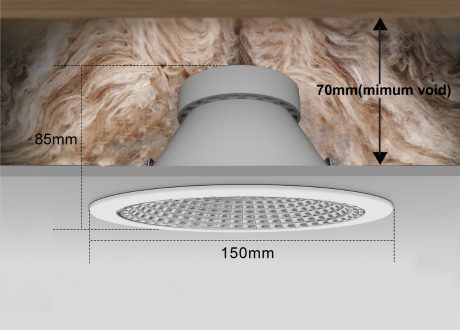

Suitable for large cutout, coverable, mini void 70mm

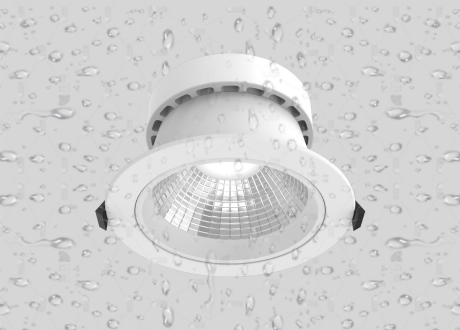

IP54 Rating
P54-rated dust and splash protection ensures safe, maintenance-free performance in humid environments
6 Facing Ring Options

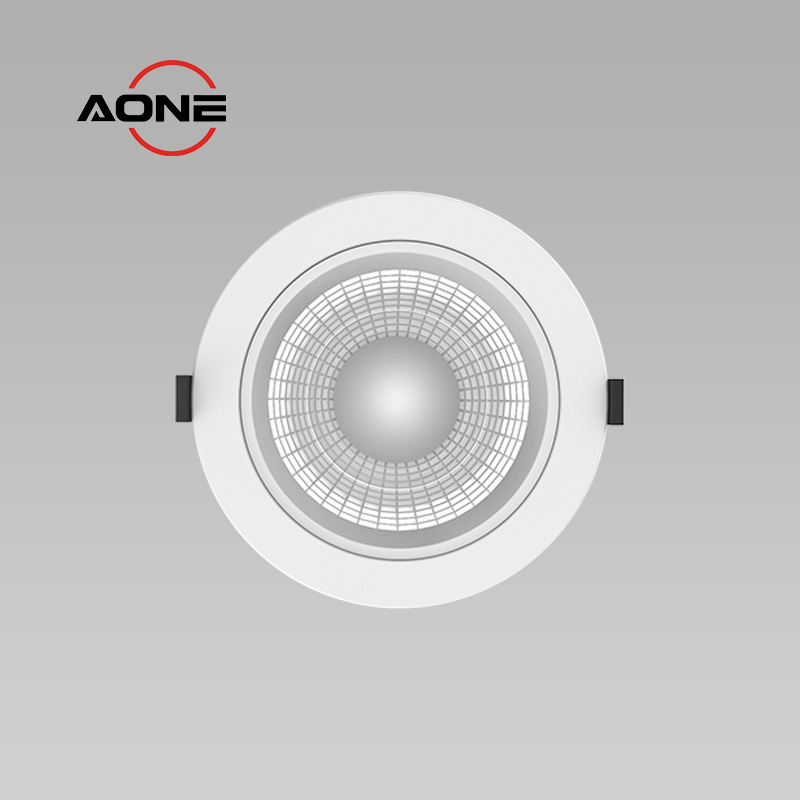

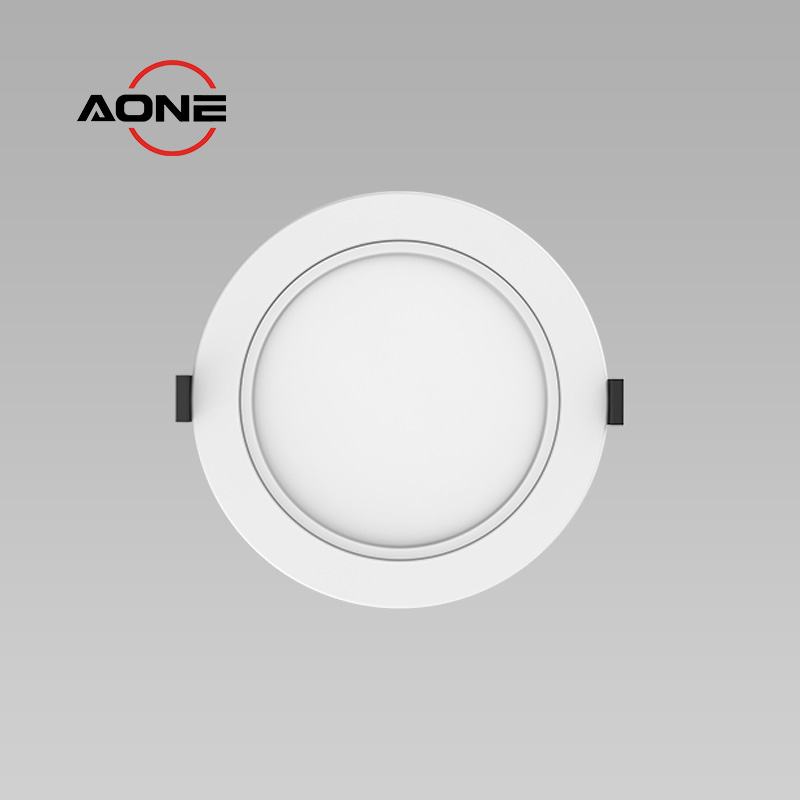

Switch between 60° spot lighting (reflector) and 120° flood lighting (diffuser) in seconds
60° or 120° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

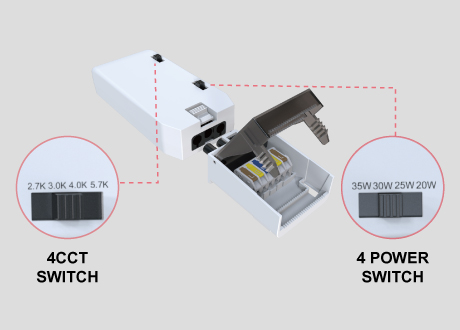

4-Power 4-CCT Setting
Slide the DIP Switch, Tool-free Plug-and-play driver reduces installation time by 50%.
Technical Specifications
| Model | DL47 | Beam Angle | 60° or 120° |
| Protection Class | Class II / IP54 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 20W/25W/30W/35W | Color | White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |

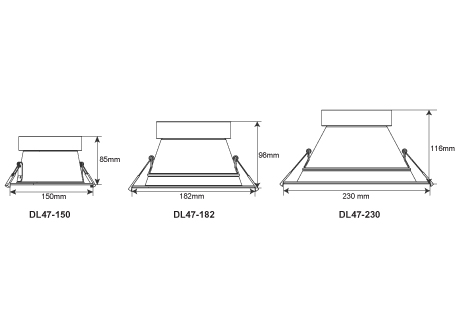

| Lumen | 2400/3000/3600/4200 lm | Facing Ring Size | D150 x H85mm, D182 x H98mm,D230 x H116mm |
| Efficiency | 120lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Modular | Yes | Coverable | Yes |

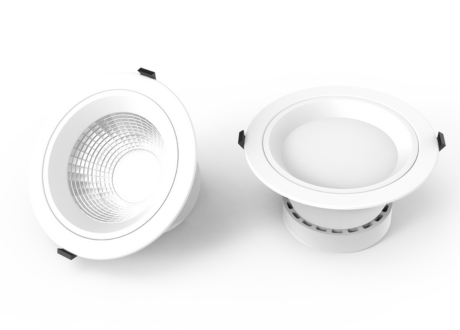

Modular optical control: Switch reflectors/diffusers to reconfigure light effects between two modes (5-second change).

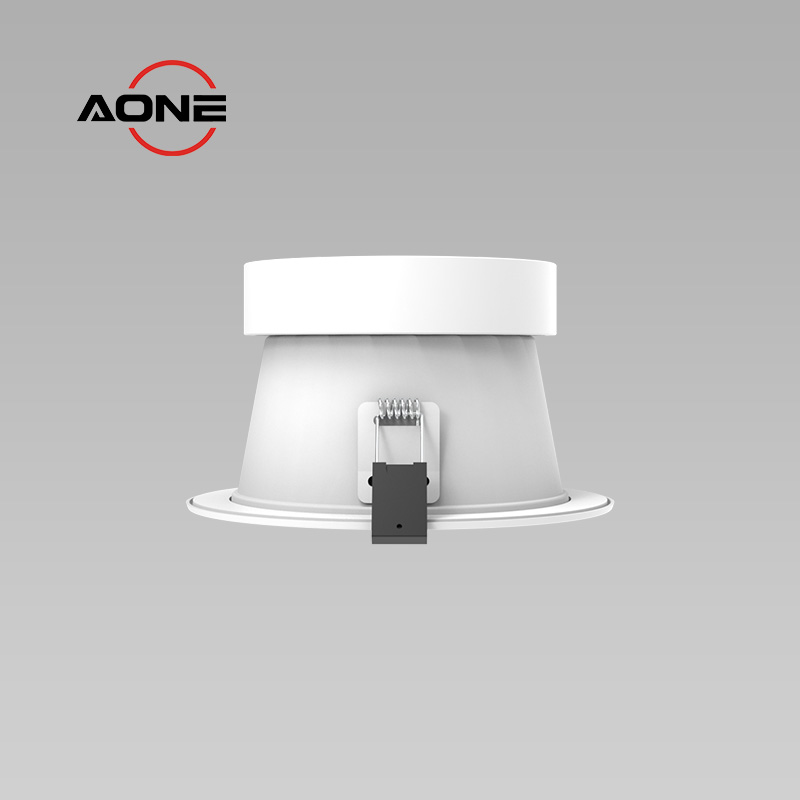

Diameter 110mm, height 42mm, 1 fixture, 3 fit dimensions.

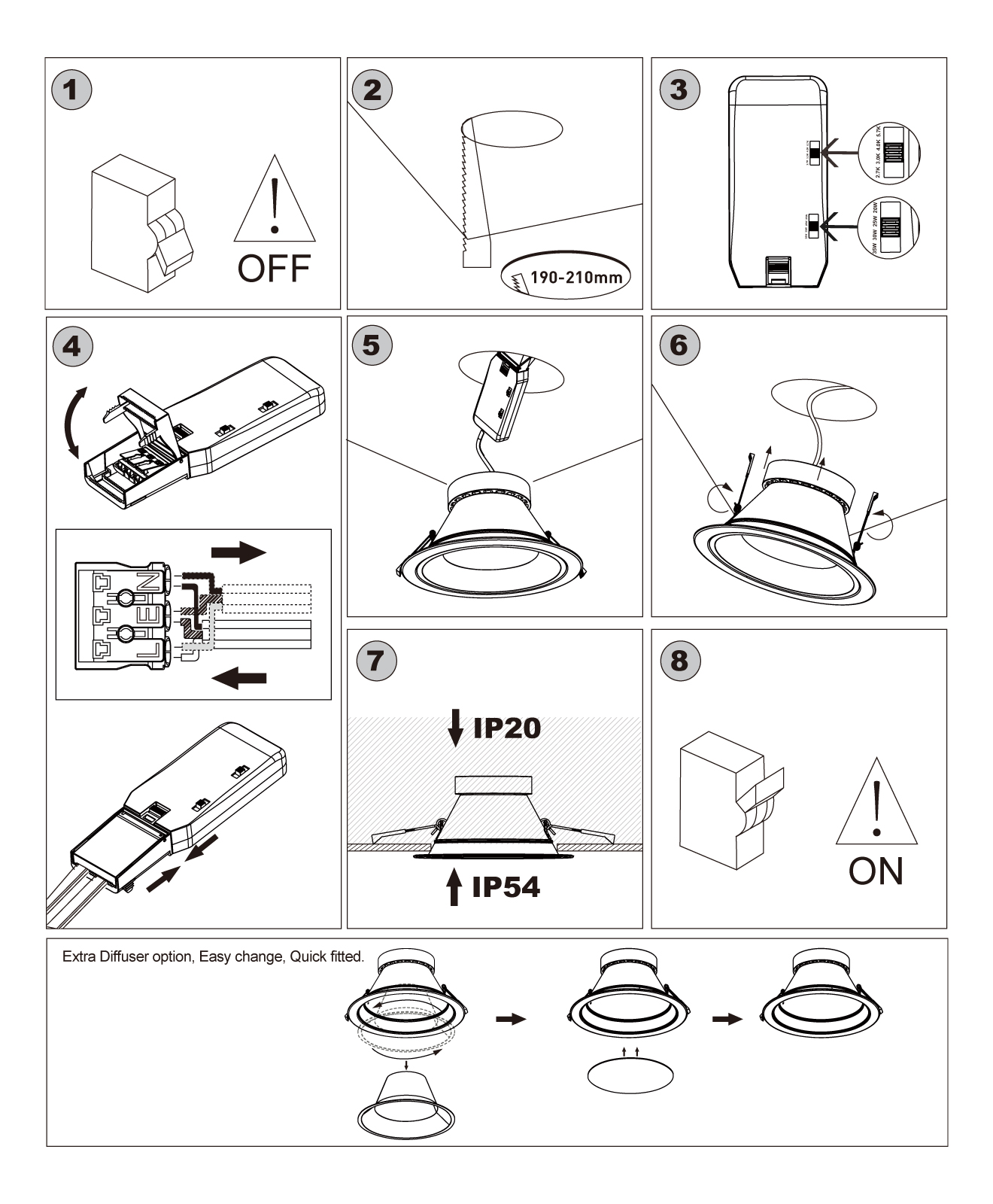

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

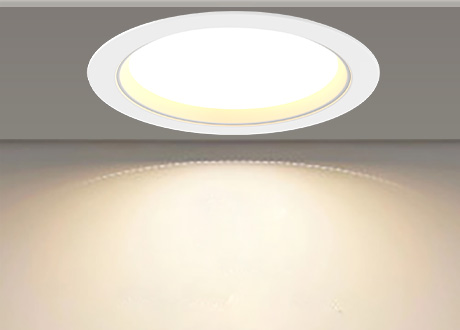

Large luminous surface and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light with large luminous surface, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

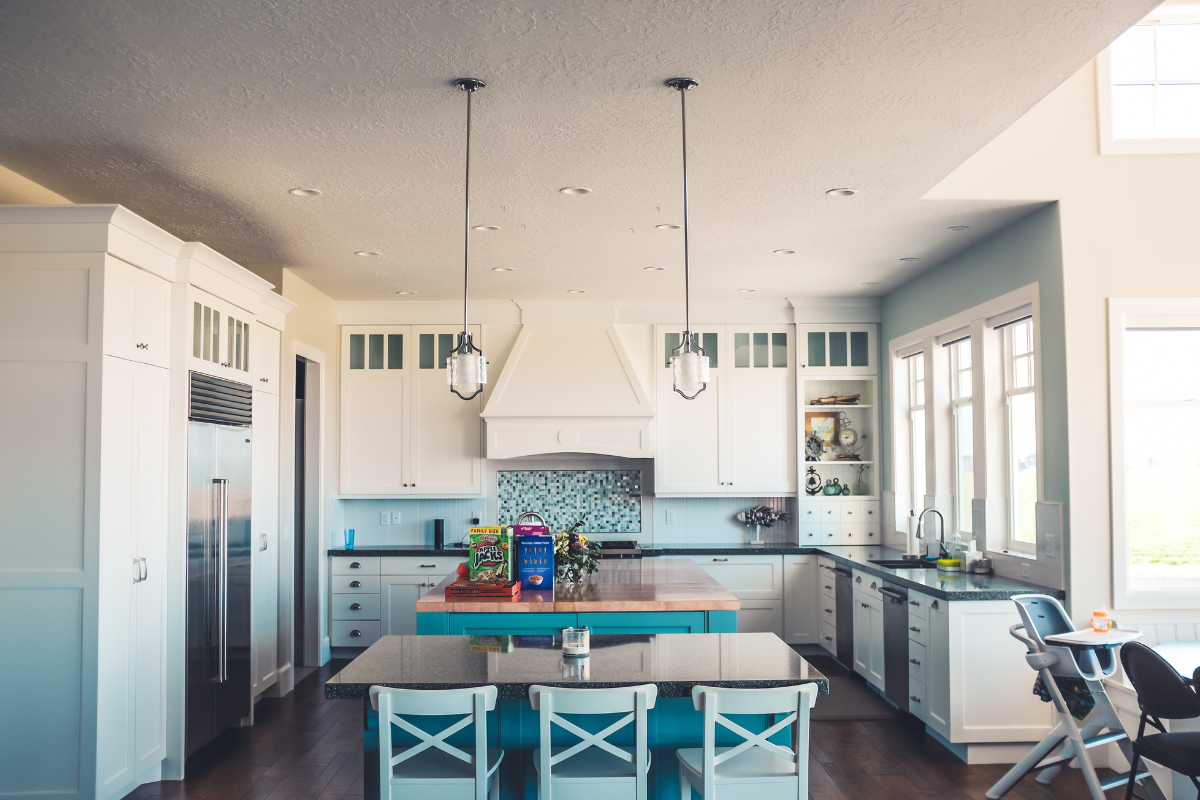

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

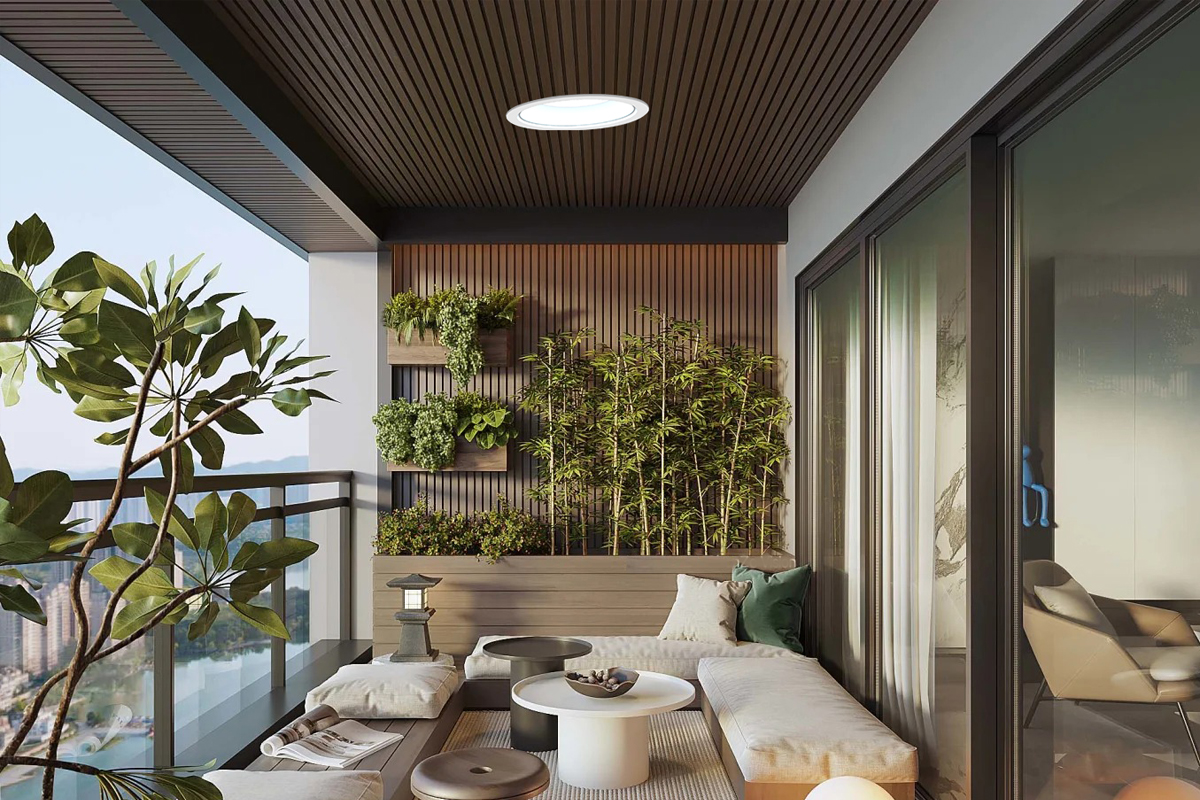

IP54 lights are suitable for covered balconies, protecting against rain splash and dust.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

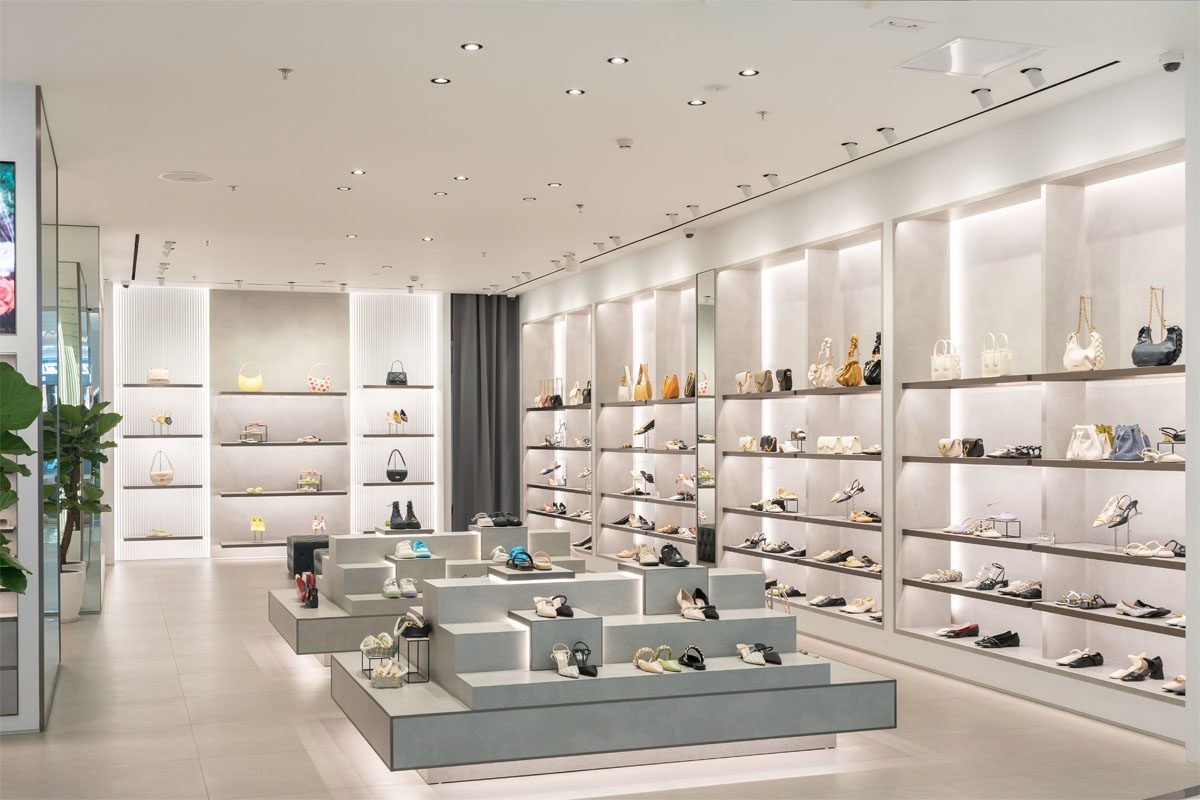

Installation Display
