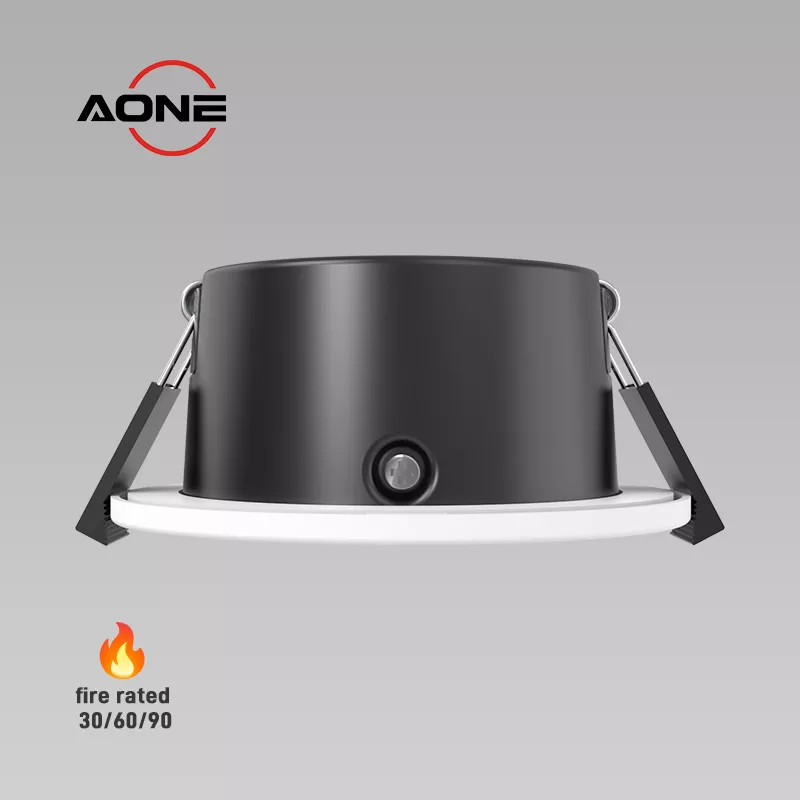

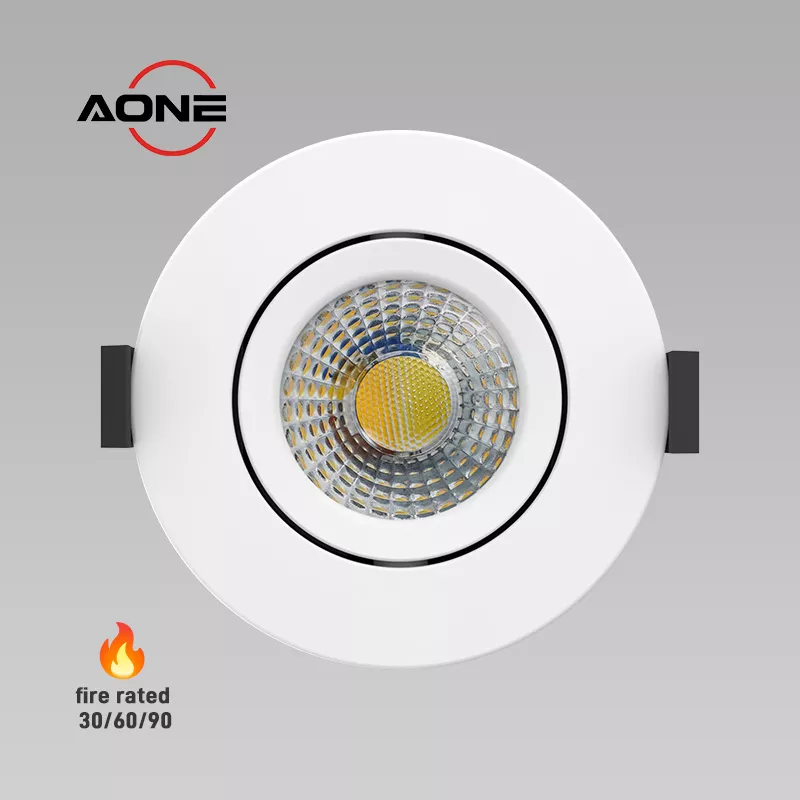

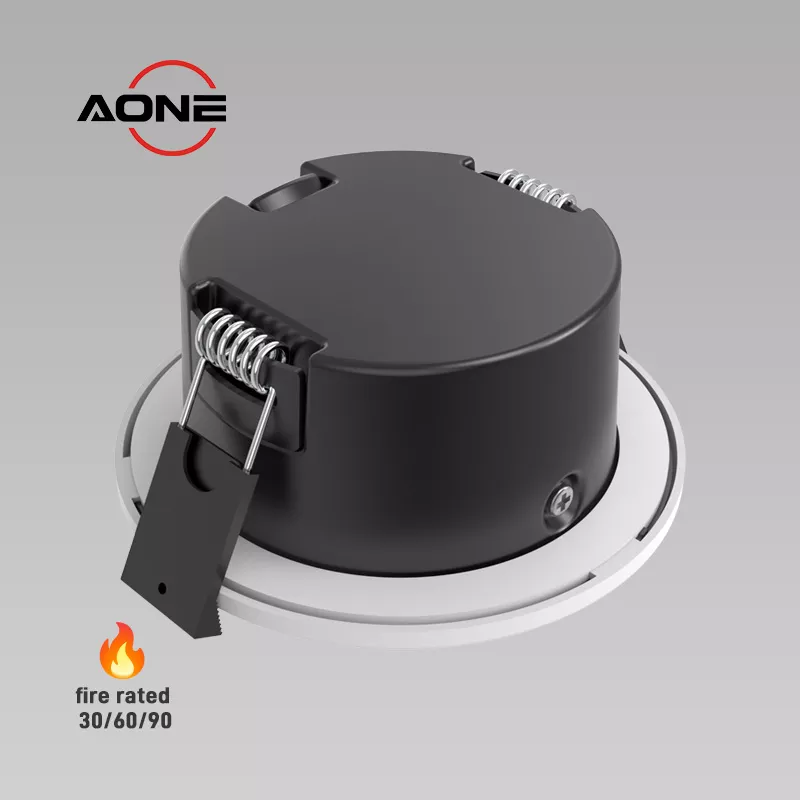

IP65 Air-Tight Fire-Rated Dimmable Recessed Spot DL92 PRO

Triac Dimmable IP65 waterproof spotlight, 110lm/W, power 4W/6W/8W and CCT switch between 2700K, 3000K, 4000K and 5700K. Air Tightness, interchangeable round and square bezels available in White/Black/Polished Chrome/Brushed Nickel, fully fire rated tests for 30, 60 and 90 minutes approval, dim to warm optional, OEM/ODM service customized your lighting solutions.

Dimensions：

Ø88 x H40mm,cut-out 68-75mm

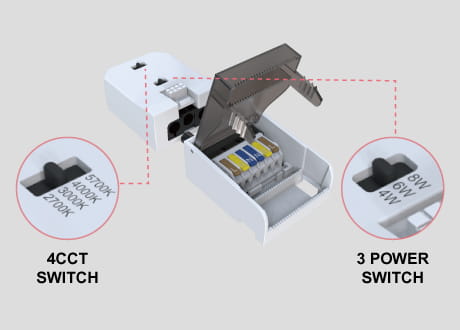

Power：

4W-6W-8W selectable

Color temperature：

4CCT 2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features and Benefits

light

High Output

110lm/W, high efficiency and energy saving.

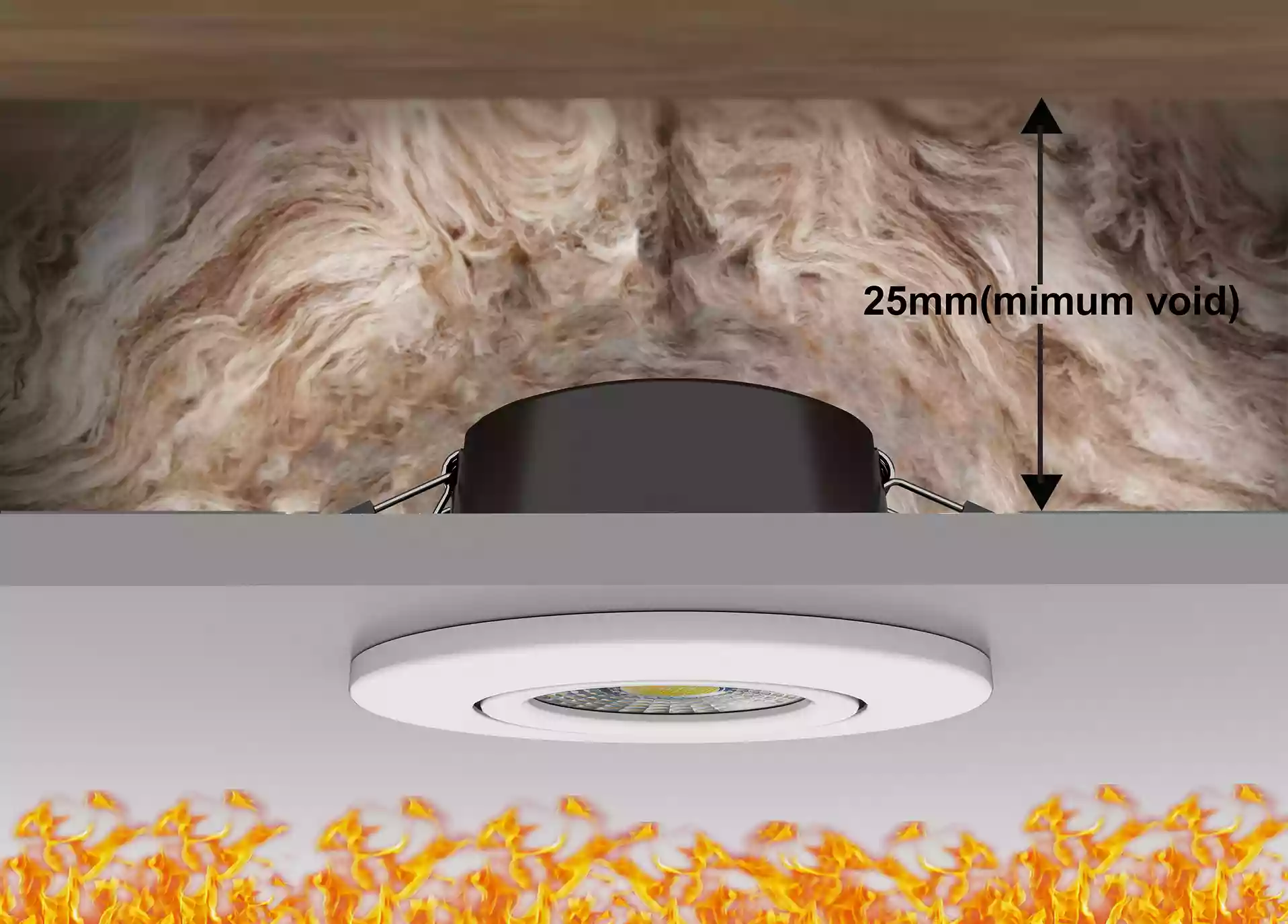

Downlight installation

Fireproof/ Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 25mm

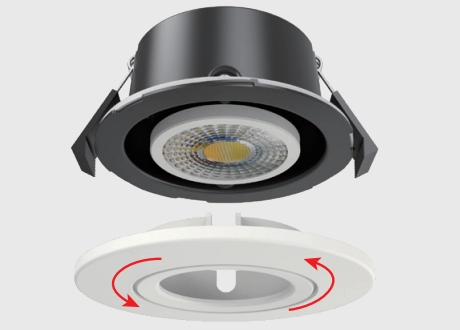

Replaceable frame downlight

Interchangeable Bezel

Interchangeable round and square bezels to suit your needs.

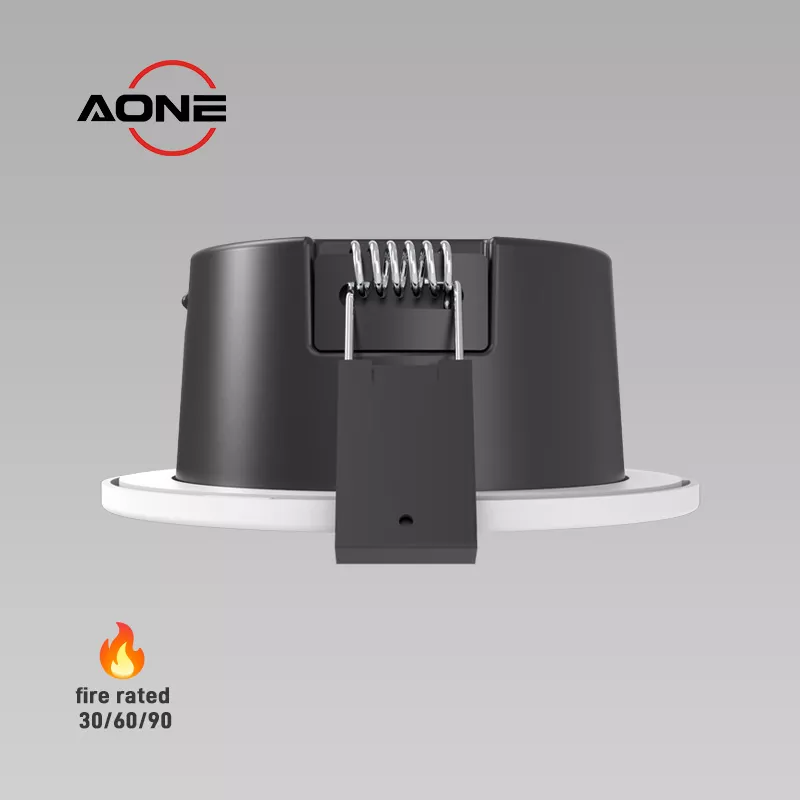

Downlight

Metal Lamp Body

Stable structure, and not easily deformed after long-term use.

Beam Angle

Fast Installation via Loop in/out Terminal

Plug-and-play junction boxes can reduce installation time by 50%.

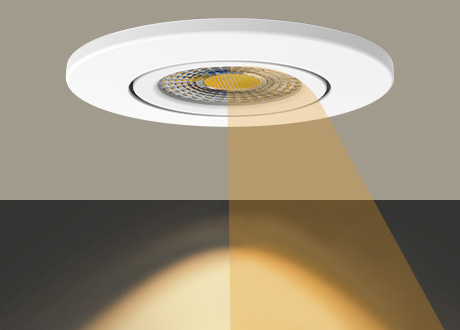

downlight spotlight beam 38° or 60°

38° or 60° Beam Angle Available

High quality LED chips and lenses, RA>80 or RA>90 versions available

Technical Specifications

Model	DL92 PRO	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	4W/6W/8W switchable	Bezel Color	Black, White, Polished Chrome, Matt Brass, Brushed Nickel
Input	AC 220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	440/880/660	Size	Diameter 88mm, opening: 68-75mm
Efficiency	110 lm/W	Certification	CE、UKCA、RoHS
Life Time	>50000 hours	Warranty	5 years
Fire Rated	Yes	Coverable	Yes

Downlight frame

Interchangeable bezel/trim: white, black, polished chrome, matt brass, brushed nickel.

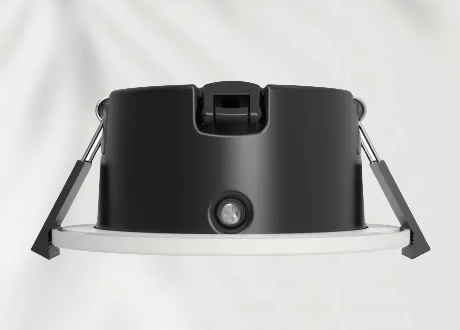

light

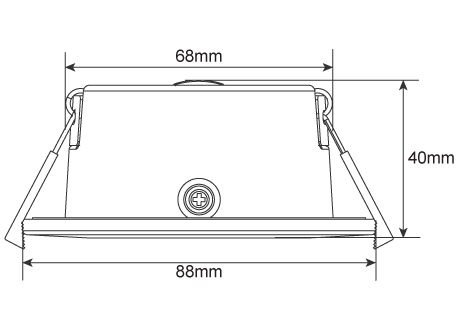

Diameter 88mm, height 40mm, hole opening range 68-75mm, recessed depth 25mm.

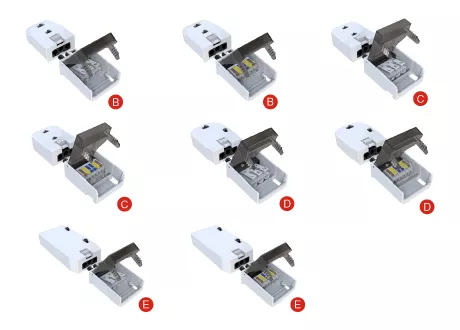

Junction Box

8 terminal block options and loop-in, loop-out terminal provides easy installation.

Applicable Scenarios

Ideal for residential, hospitality, commercial office applications

Indoor lighting

Living

110lm/W, high lumen output ensures sufficient brightness while keep energy-saving.

Indoor lighting

Shopping

Warm to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

Indoor lighting

Kitchen

Waterproof and Dustproof, practical downlight/spotlight can provide directional lighting for kitchen islands or worktops

Indoor lighting

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

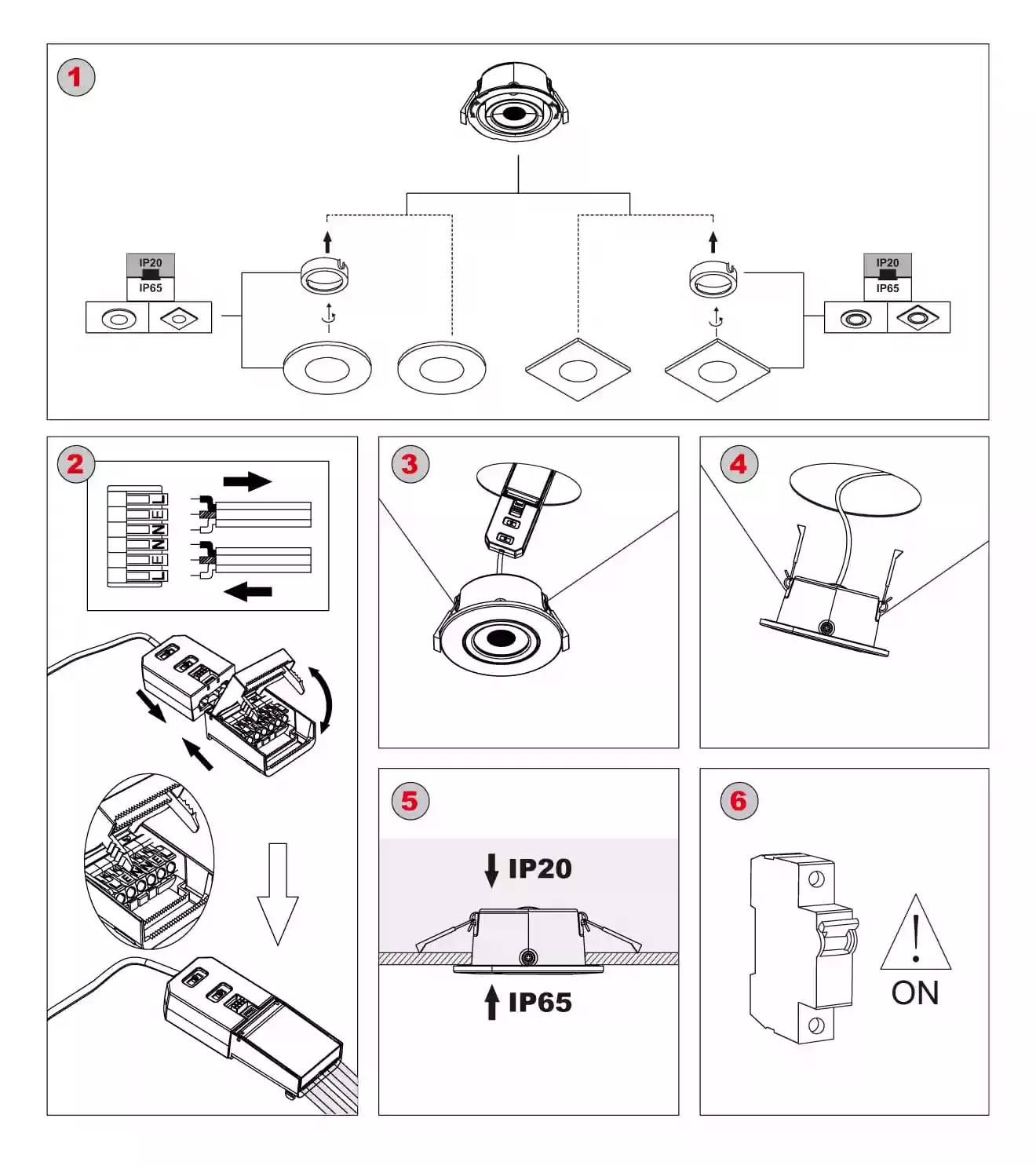

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm white to cool white, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight, spotlight installation steps
