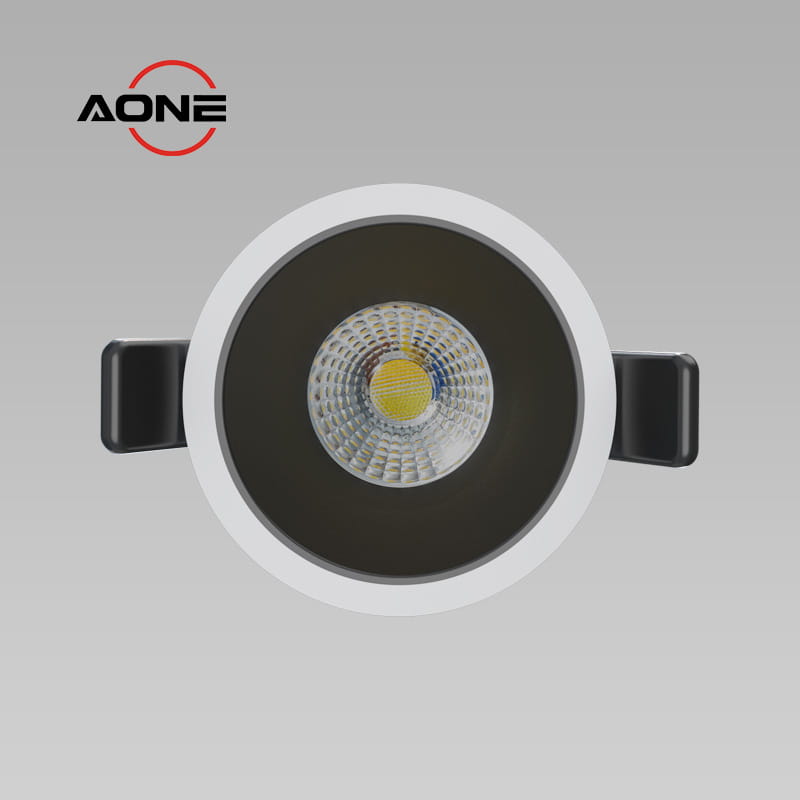

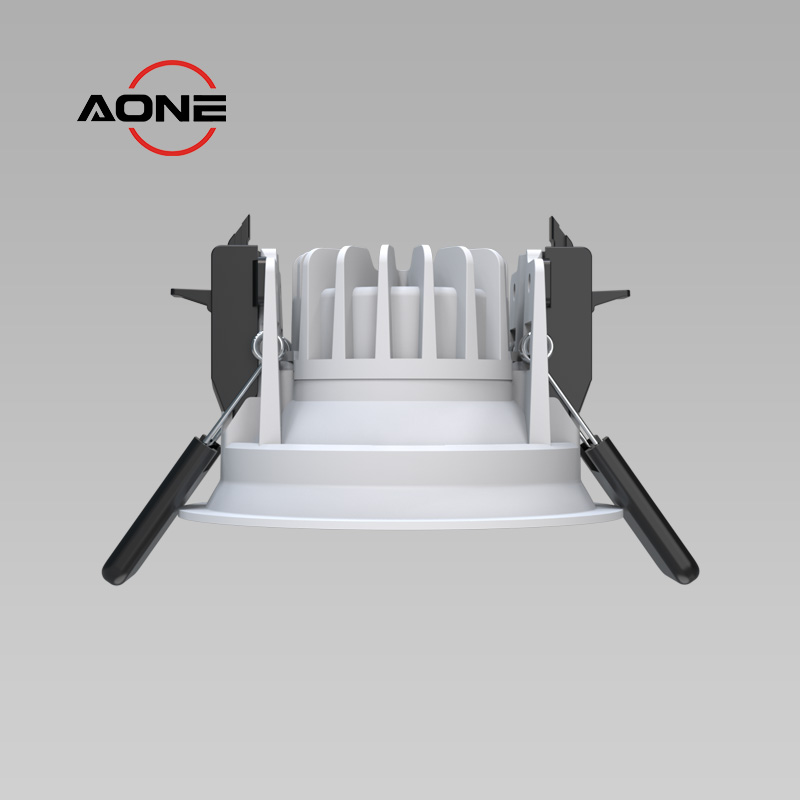

Anti-Glare Dimmable Downlight with 4 CCT Selectable + 3 Power Adjustable Functions DL90
Dimensions：
Ø90 x H54mm,cut-out 80-85mm
Power：
4W/6W/8W
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits

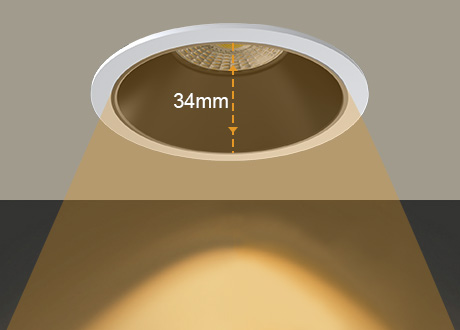

Anti-glare ED Downlight / UGR＜19

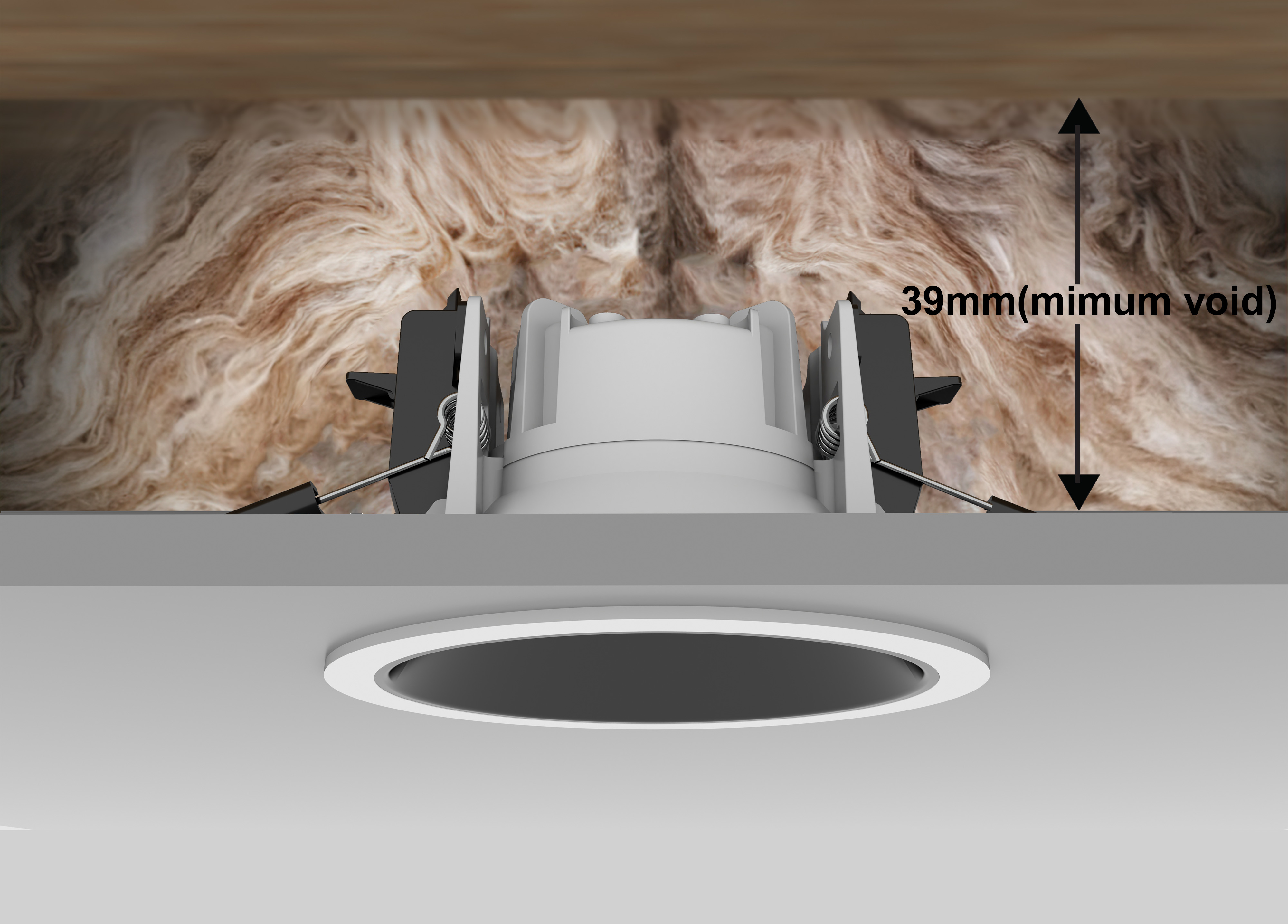

Insulation coverable , can be covered with blanket & blown insulation materials

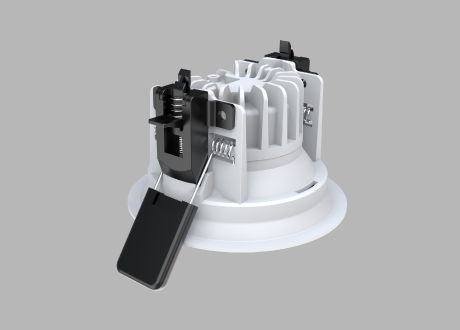

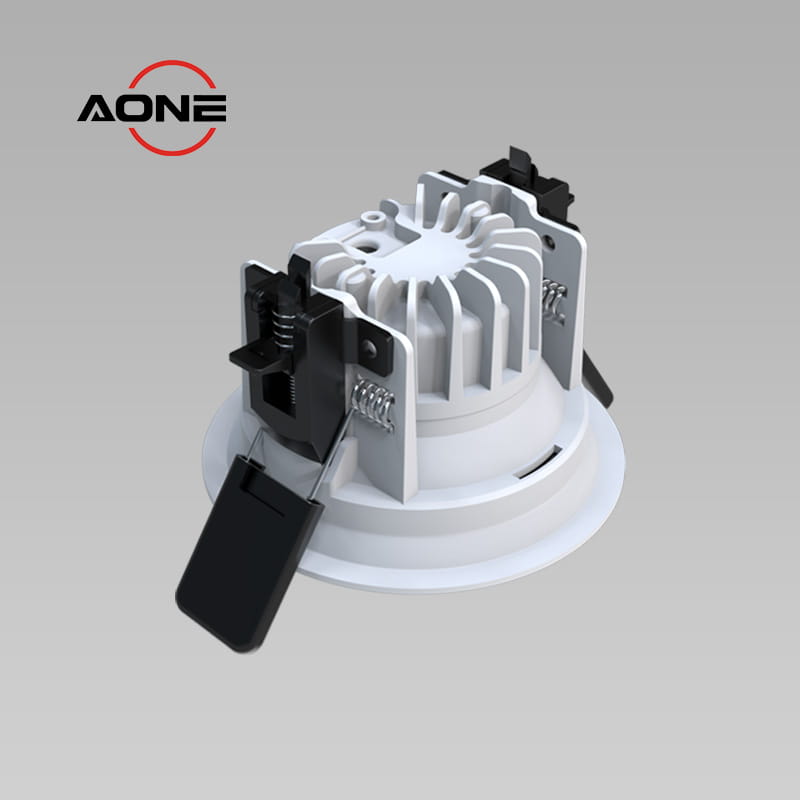

Aluminum die-cast housing with good heat dissipation
Twist & lock interchangeable reflector cup
38° or 60° beam optional
High quality of LED chip and lens, offering RA>80 or RA>90 version
4-CCT/3-power changeable Fast installation via Loop in/out terminal
Technical Specifications
| Model | DL90 | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 4W/6W/8W | Color | Black, White, Chrome, Gold, Brushed nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 400lm/600lm/800lm | Size | Dia 90mm, Cutout: 80-85mm |
| Efficiency | 100lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

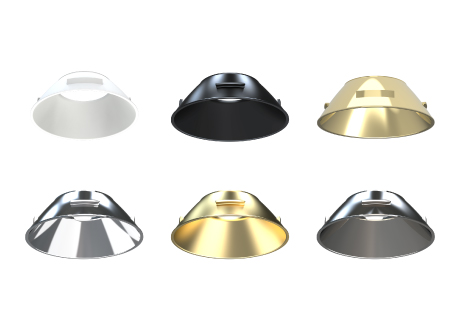

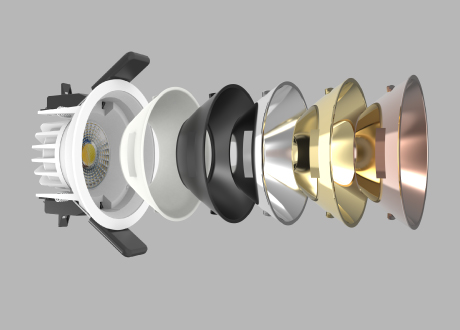

Interchangeable reflective cupdownlights offer effortless customisation. They can match your decor.

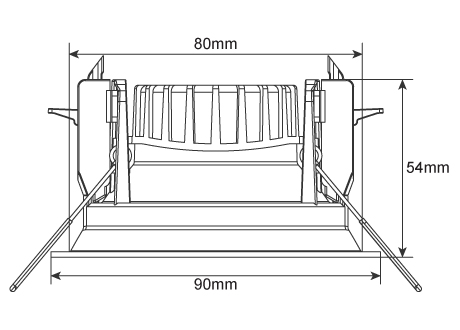

Diameter 90mm, height 54mm, hole opening range 80-85mm

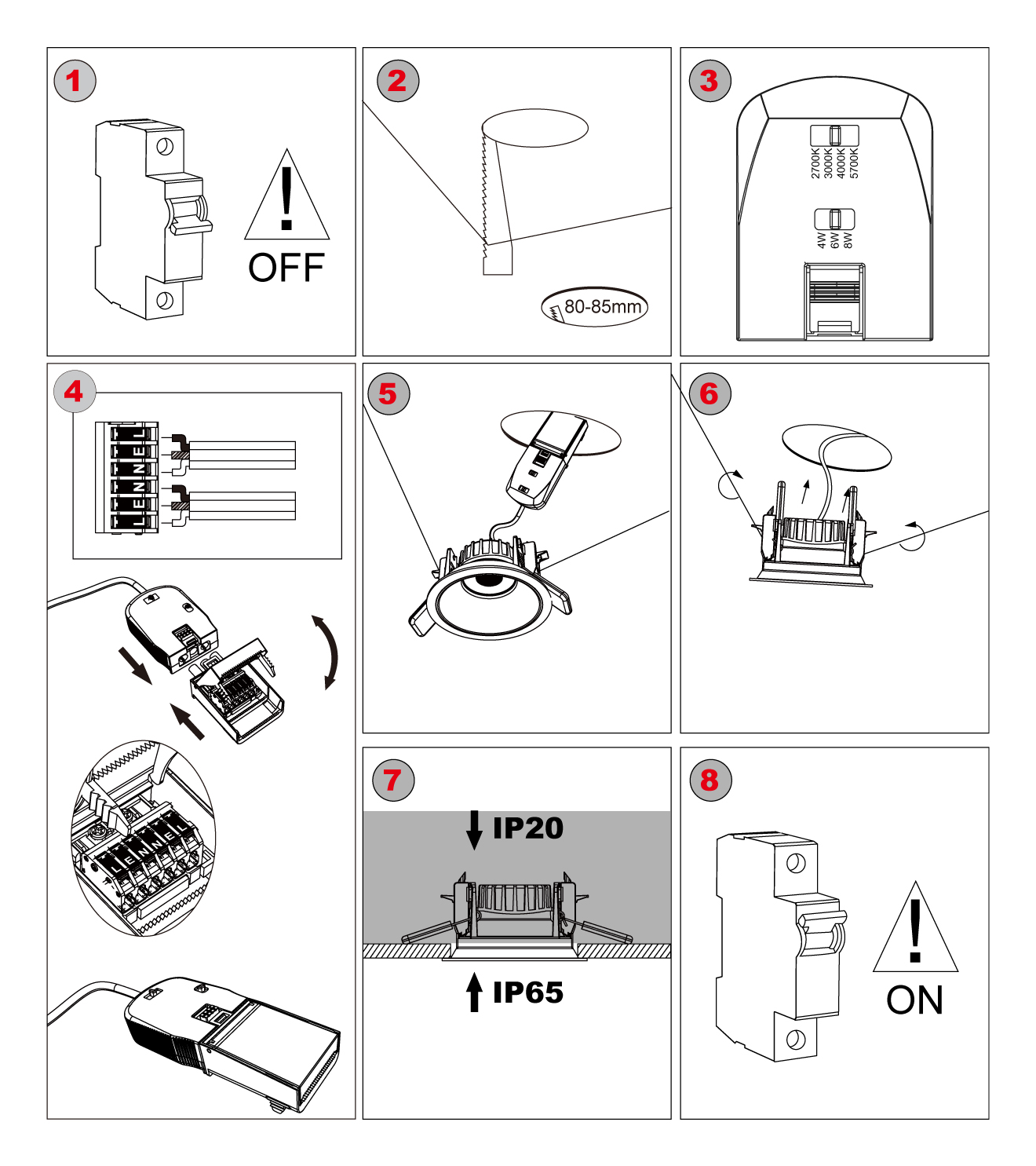

8 choice of driver, loop-in & loop-out terminal provides a simple installation.
4CCT anti glare downlight, UGR＜19 adjustable color temperature downlight, triple color temperature, dimmable LED downlight, smart lighting solution.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Installation Display
