Anti-glare fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable 4cct

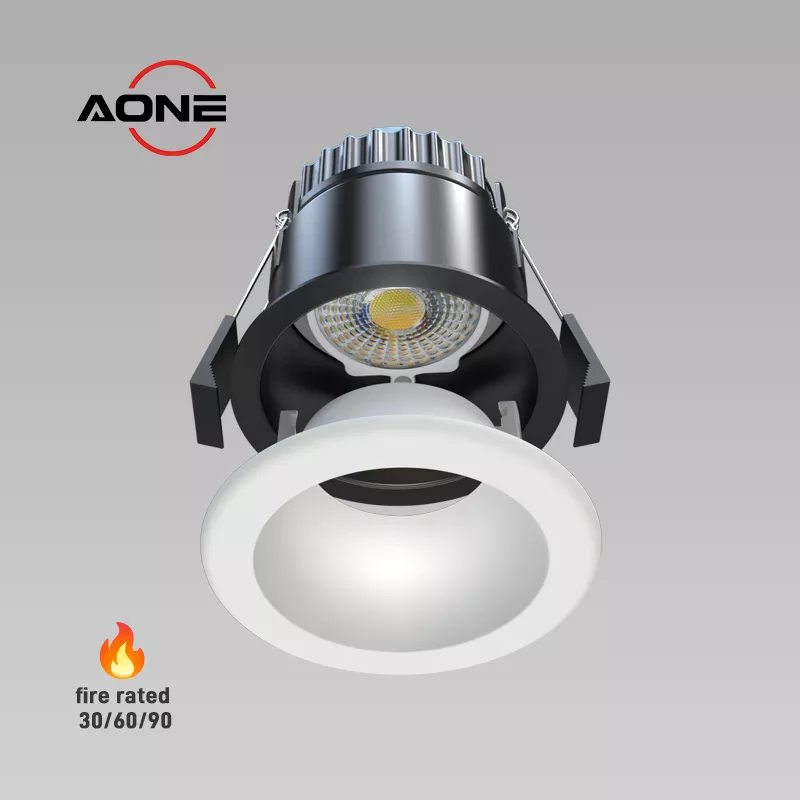

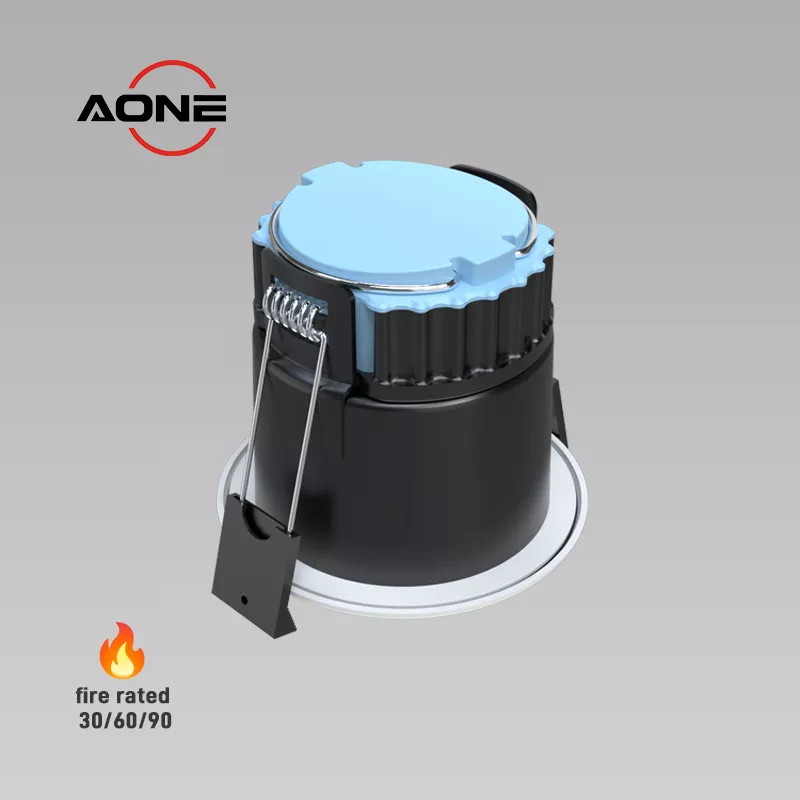

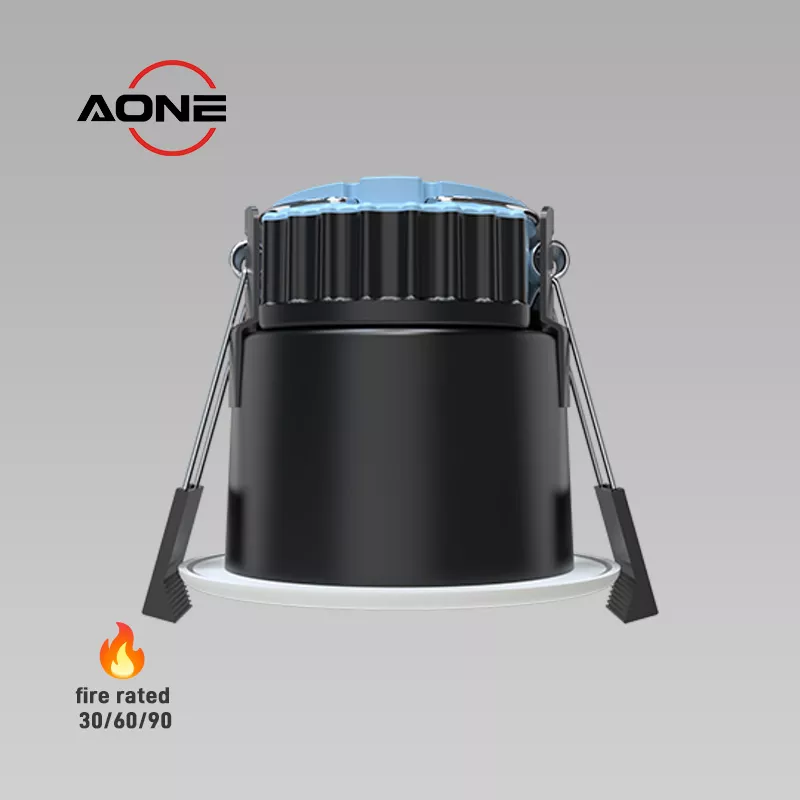

Anti-glare Dimmable Front 4CCT Power Changeable Fire Rated Downlight DL191

Anti glare low UGR dimmable IP65 waterproof downlight, power 4W 6W 8W and 4CCT selectable between 2700K, 3000K, 4000K, 5700K.white/black/chrome/brushe nickel/gold bezels/reflective cup interchangeable, fully fire rated tests for 30, 60 and 90 minute approval, coverable with insulation material, OEM/ODM Manufacturing give customized lighting solutions.

Dimensions：

Ø84 x H74mm,cut-out 68-75mm

Power：

4W/6W/8W

Color temperature：

4CCT 2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Anti Glare Low UGR Dimmable LED Downlights LED Lighting Recessed spotlight

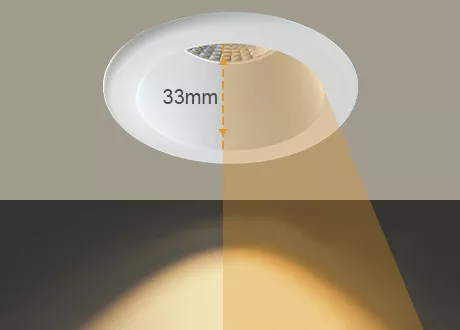

Anti-glare Dimmable LED Downlight

Low UGR UGR＜19

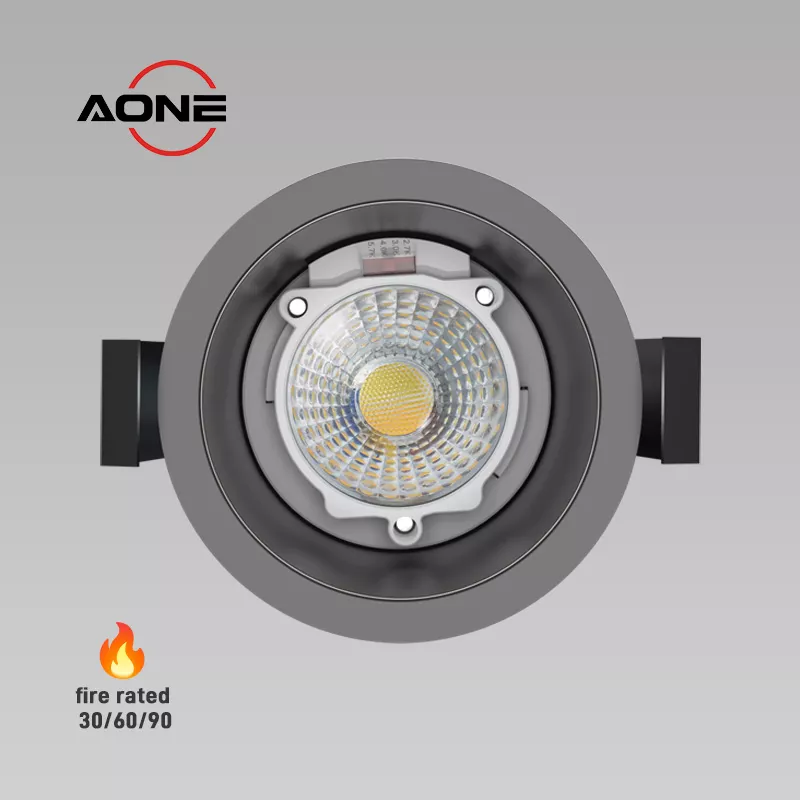

Low UGR Fire Rated LED Downlights Recessed spotlight LED Lighting

Fire-rated / Coverable

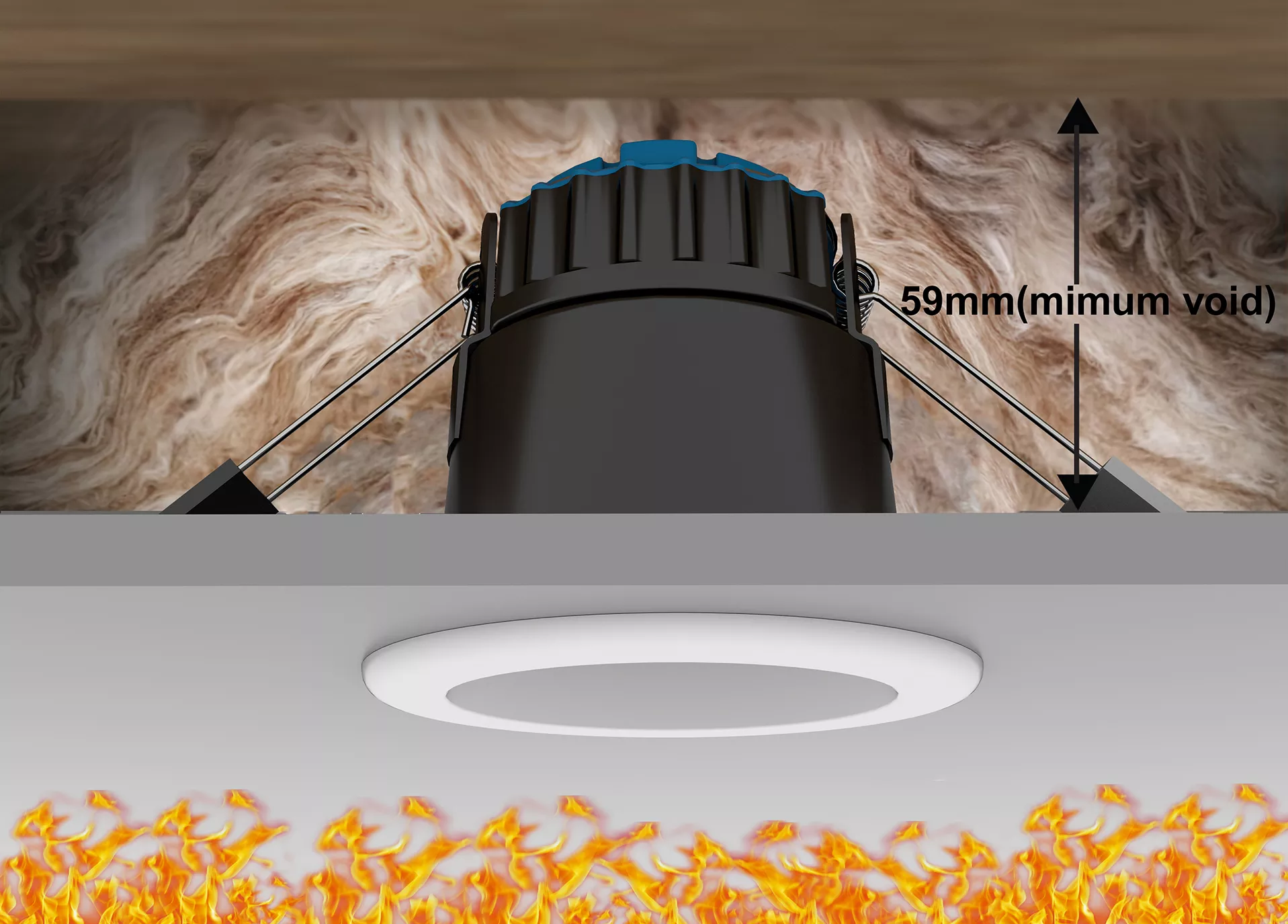

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 59mm

4CCT fire Rated LED Downlights 2700K 3000K 4000K 5700K LED Spotlight

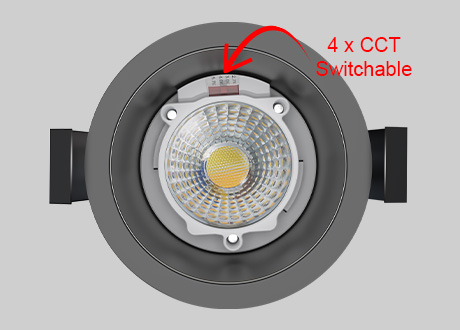

4CCT Switchable

Wattage 4W/6W/8W and 4CCT downlight easily change from front of the led downlight

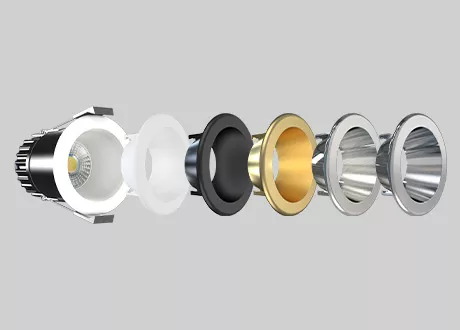

bezel Reflective cup interchangable anti glare fire Rated LED Downlights White/Black/Chrome/Brushed nickel/Gold Bezel

White/Black/Chrome/Brushed nickel/Gold Reflective cup

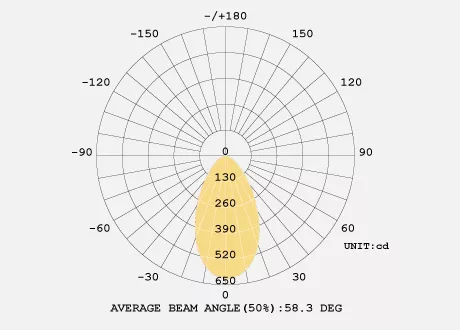

38° 60° beam Angle anti glare fire Rated LED Downlights LED lighting

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

4cct 4W/6W8W driver low ugr Fire Rated LED Downlights LED spotlight lighting

Fast installation via Loop in/out terminal

Plug-and-play 4CCT 4W/6W/8W quick driver reduces installation time by 50%.

Technical Specifications

Model	DL191	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	4W/6W/8W	Color	Black, White, Chrome, Gold, Brushed nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	360lm/540lm/720lm	Size	Dia 84mm, Cutout: 68-75mm
Efficiency	90lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

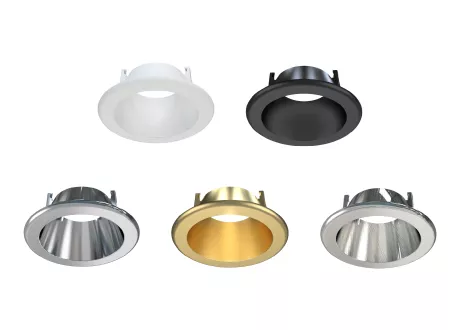

anti glare Interchangeable bezel downlights fire Rated LED Downlight bezel

Twist & lock interchangeable insert reflector: white/black/chrome/satin chrome

68-75mm cutout anti glare fire Rated LED Downlights Recessed spotlight IP65

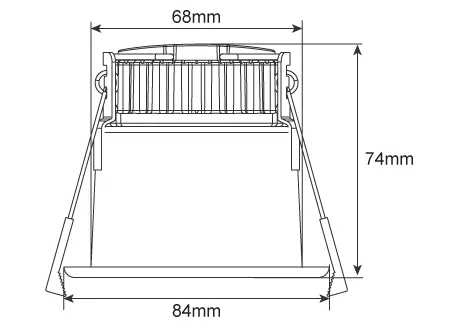

Diameter 84mm, height 74mm, hole opening range 68-75mm, recessed depth 64mm.

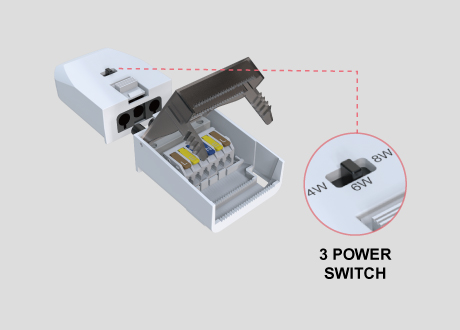

LED driver of LED Lighting spotlight fire Rated LED Downlights plug and play loop in loop out driver

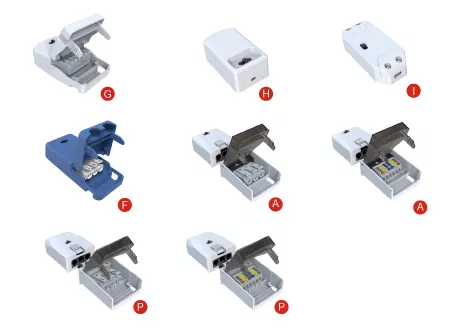

7 choice of driver, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

3CCT downlight, adjustable color temperature downlight for living room

Living

4CCT anti glare downlight, UGR＜19 adjustable color temperature downlight, triple color temperature, dimmable LED downlight, smart lighting solution.

CRI80 CRI90 3CCT downlight, adjustable color temperature downlight for shopping

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

Waterproof & Dustproof, practical downlight/spotlight for kirchen room

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

Front bezel is IP65 waterproof led downlight for bathroom

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

anti glare fire Rated LED downlight spotlight installation steps
