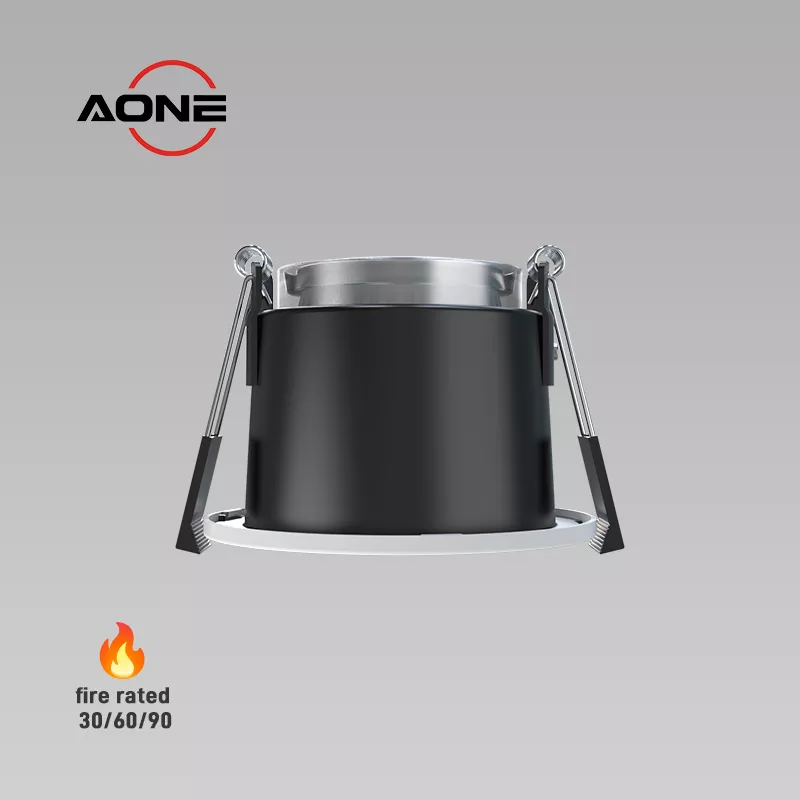

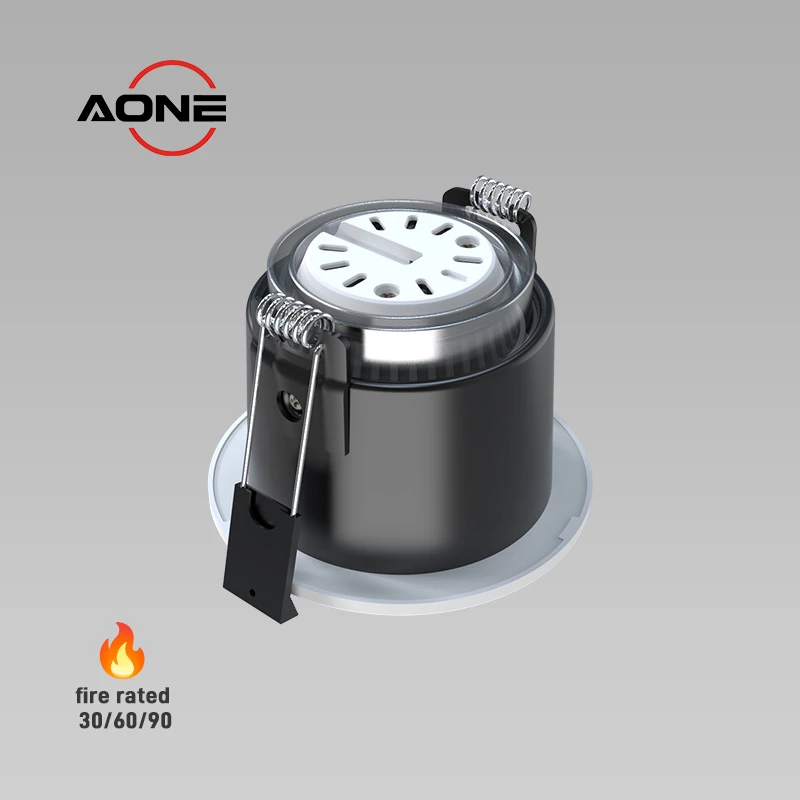

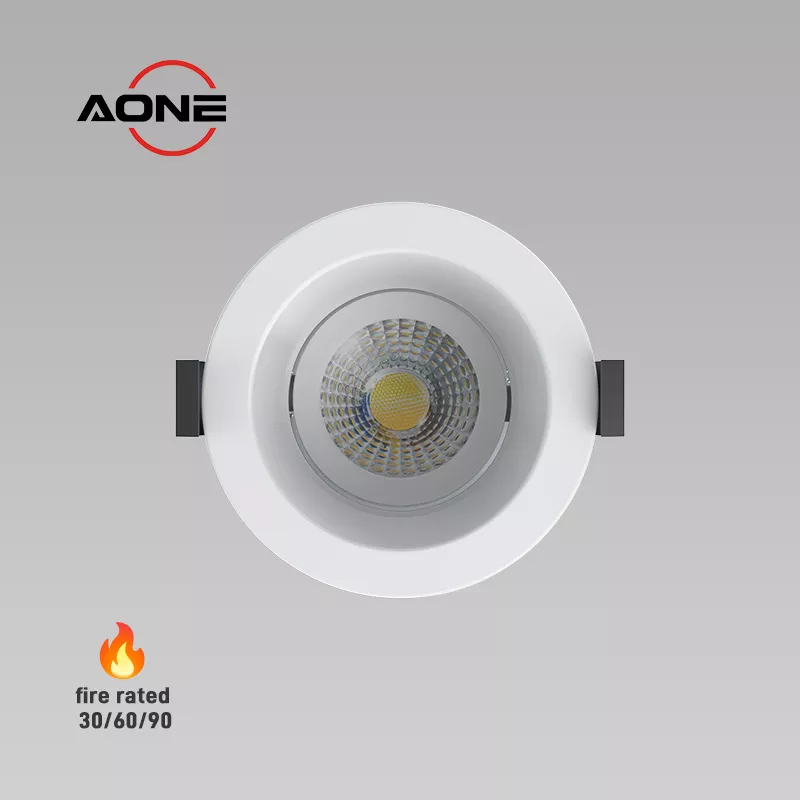

Anti-glare IP65 Downlight Fire Rated Triac Dimmable DL97
Dimensions：
Ø85 x H68mm,cut-out 68-75mm
Color temperature：
CRI>80, 4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Power：
4W/6W/8W
Rated voltage：
AC220-240V
Key Features & Benefits

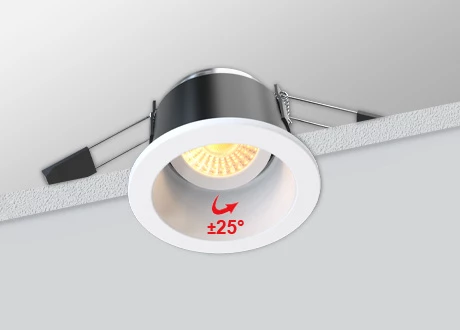

Adjustable Tilt, Anti-glare
Direct the light where it's needed, anti-glare UGR<19

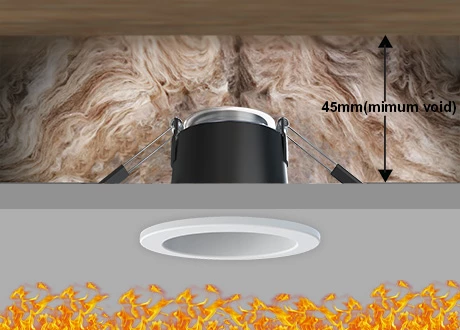

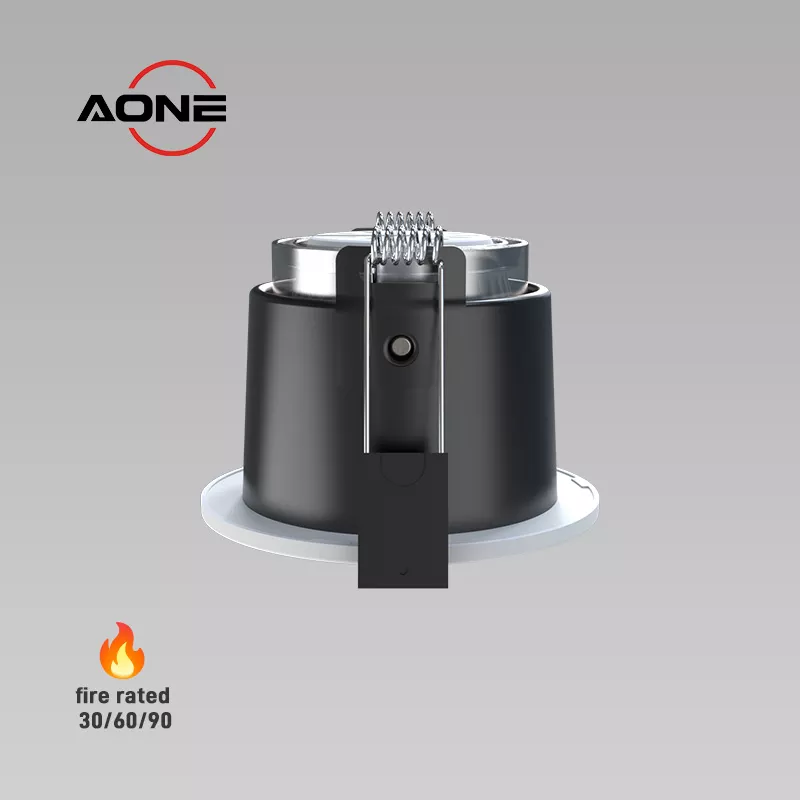

Fire Rated 30/60/90 + Coverable
30/60/90 mins fire rating, >=45mm low ceiling voids

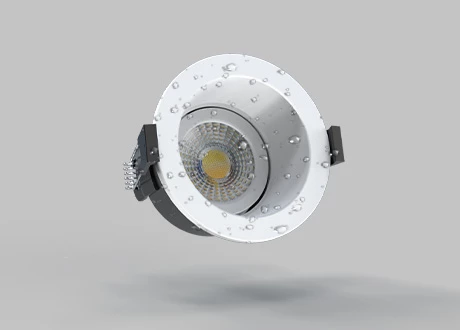

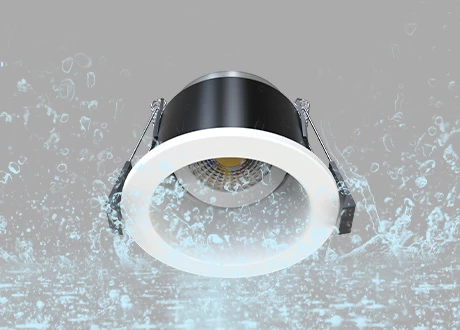

Tiltable IP65 Waterproof
IP65 rated, safe to use for kitchens, bathroom zones 1 and 2

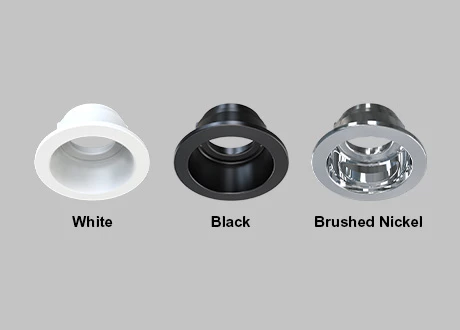

Deffirent Baffe Bezel Optional
Deep anti-glare design, inner/outer rings interchangeable
40 Degree Beam Angle
High quality of LED chip and lens, offering RA>90 version
Triac Dimmable Driver 4W/6W/8W + 4CCT + Quick Junction Box
Fully dimmable, Plug-and-play connector with quick wiring terminals for easy installation
Technical Specifications
| Model | DL97 | Beam Angle | 40° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 4W/6W/8W | Bezel Color | Black, White, Polished Chrome |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K-3000K-4000K-5700K |
| Lumen | 360lm/540lm/720lm | Size | Dia85mm, Cutout: 68-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours L70B10 | Warranty | 5 Years |
| Fixed or tiltable | ±25° Tilt Adjustment | Coverable | Yes |

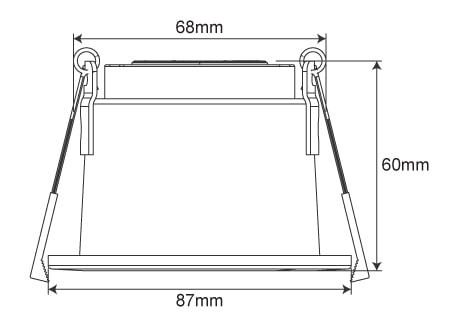

Diameter 85mm, height 68mm, hole opening 68-75mm

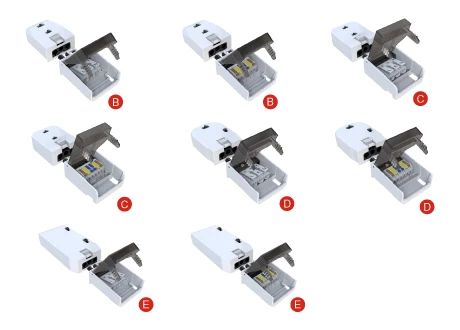

Different Driver Option, 1st-2rd fixing connectors

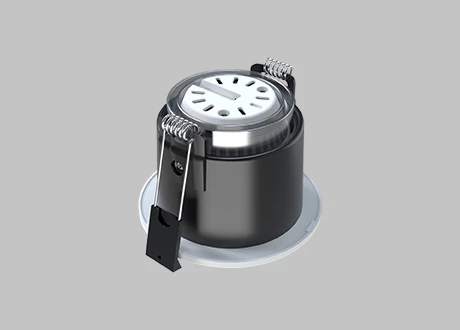

Housing made by Full Steel Material
✔️ Anti-glare: URG<19 reduce glare
✔️ IP65 Waterproof: Resists moisture from below, ideal for bathrooms, kitchens, or covered outdoor areas.
✔️ 90lm/W Efficiency: Bright, uniform light with low energy costs.
✔️ Premium LED Source: Flicker-free, 50,000+ hour lifespan.
✔️ 40°Beam Angle: Focused beam for precise accent lighting (e.g., artwork, retail displays).✔️ Tiltable: Adjustable up to 25° each side.
✔️ Tool-Free Install: Plug-and-play with quick L, E, N, N, E, L terminals for loop-in loop-out wiring.
✔️ Certification : CE, ROHS, UKCA, CB certificated with 5-year warranty
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

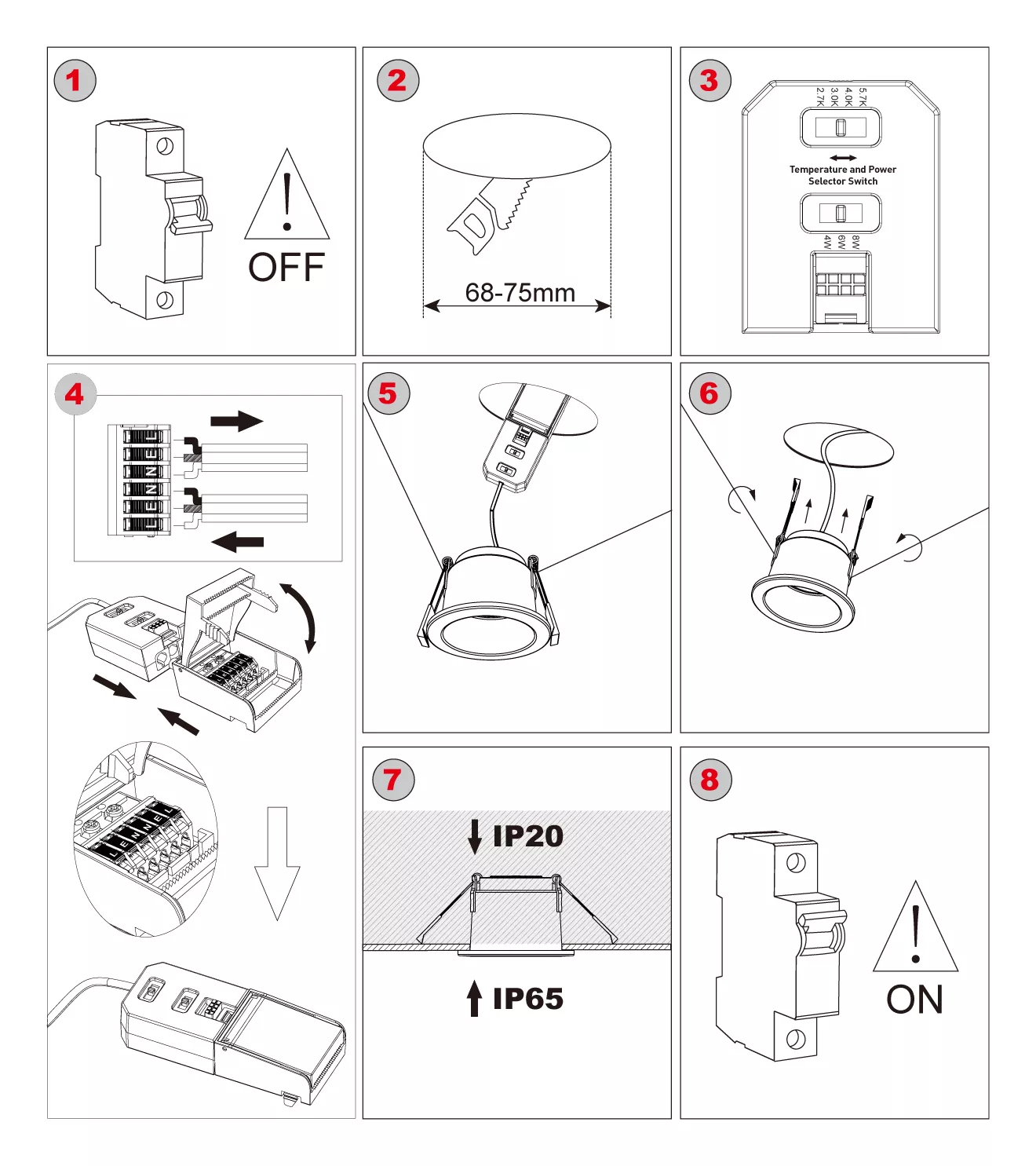

Installation Display
✔️ Why settle for ordinary lighting? Choose this IP65 LED downlight for vibrant, eye-safe illumination that lasts.
✔️ Where can it shine? Perfect for bathrooms, kitchens, retail spaces, or anywhere needing waterproof, high-quality light.
✔️ Who benefits? Homeowners, designers, and businesses seeking energy efficiency and style.
✔️ What sets it apart? Its CRI >92, RG1 safety, and 38° or 60° beam options ensure precision or ambiance, all backed by CE, RoHS, fire-rated certifications, and a 5-year warranty.
✔️ Ready to elevate your lighting? Shop the 8W COB LED Downlight at AoneLED today!
