IP65 Anti-Glare Fire-Rated LED Downlight 4CCT 4W/6W/8W Dimmable LED Spotlight Multi-functional LED Lighting
Dimensions：
Ø84 x H74mm,cut-out 68-75mm
Power：
4W/6W/8W
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
Anti-glare Dimmable LED Downlight
Low UGR UGR＜19 Dimmable downlights, LED recessed lights with adjustable brightness, allowing you to control light levels from soft ambient glow to bright task lighting. Perfect for homes, offices, and commercial spaces.

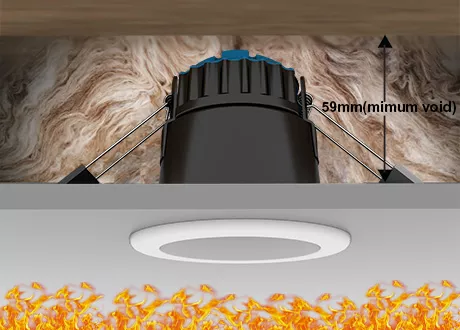

Fire-rated / Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, mini void 59mm
4CCT Switchable
Wattage 4W/6W/8W and 4CCT downlight easily change from front of the led downlight
White/Black/Chrome/Brushed nickel/Gold Reflective cup
Innovative design supports multiple bezel colors-interchangeable for led downlight
38° or 60° beam optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

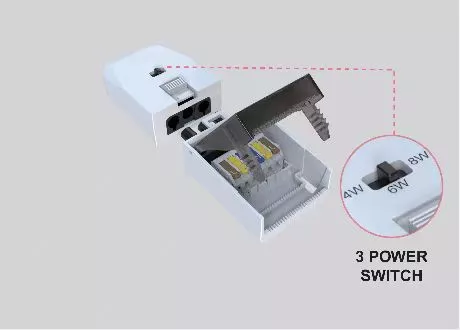

Fast installation via Loop in/out terminal
Plug-and-play 4W/6W/8W quick driver reduces installation time by 50%.
Technical Specifications
| Model | DL191 | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 4W/6W/8W | Color | Black, White, Chrome, Gold, Brushed nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 360lm/540lm/720lm | Size | Dia 84mm, Cutout: 68-75mm |
| Efficiency | 90lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |
Interchangeable reflective cupdownlights offer effortless customization to match your decor, upgrade finishes, or refresh a space without replacing the entire fixture. Simply swap the trim ring (bezel) to change the look: white, black, polished chrome, matt brass, brushed nickel
Diameter 84mm, height 74mm, hole opening range 68-75mm, recessed depth 64mm.
7 choice of driver, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.
4CCT anti glare downlight, UGR＜19 adjustable color temperature downlight, triple color temperature, dimmable LED downlight, smart lighting solution.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Installation Display
