IP65 Anti-Glare Fire-Rated LED Downlight Multi-functional DL08

Dimmable IP65 waterproof downlight, power 5W/7W and CCT selectable between 2700K, 3000K, 4000K and 5700K. Low glare design, white/black reflector and bezels interchangeable, fully fire rated tests for 30, 60 and 90 minute approval, coverable with insulation material, OEM/ODM Manufacturing give customized lighting solutions.

Dimensions：

Ø89 x H68mm,cut-out 68-75mm

Power：

5W-7W selectable

Color temperature：

4CCT 2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Anti-glare

Anti-glare

Low glare UGR<19 design to create visual comfort.

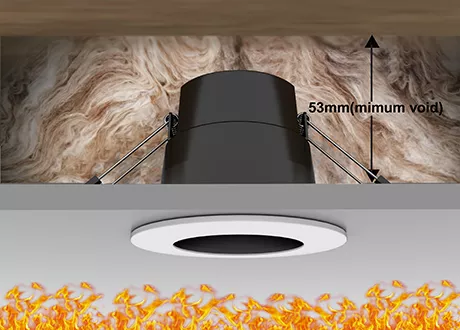

Fire-rated / Coverable

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, min void 53mm

Power & CCT Switchable

Power & CCT Switchable

Wattage 5W/7W and 4CCT easily change from below the ceiling

White & Black Reflector

White & Black Reflector

Innovative design supports multiple bezel colors-interchangeable

38° or 60° Beam Optional

38° or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast Installation Via Loop in/out Terminal

Fast Installation Via Loop in/out Terminal

Plug-and-play junction box reduces installation time by 50%.

Technical Specifications

Model	DL08	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	5W/8W Switchable	Color	Black, White
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	500/800	Size	Dia89mm, Cutout: 68-75mm
Efficiency	100lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

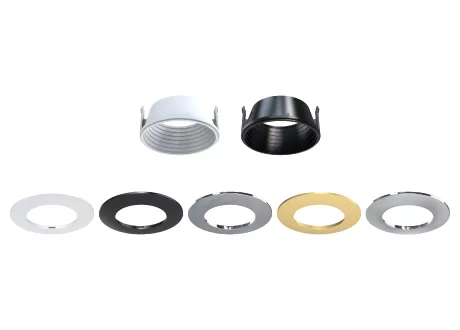

White/black deep reflector,

White/black deep reflector, bezel/trim interchangeable: white, black, polished chrome, matt brass, brushed nickel

size

Diameter 89mm, height 68mm, hole opening range 68-75mm, recessed depth 63mm.

7 choice of junction boxes

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

downlight in living room

Living

Deep cup anti-glare structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

downlight in shopping mall

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

downlight in kitchen

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops.

downlight in bathroom

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

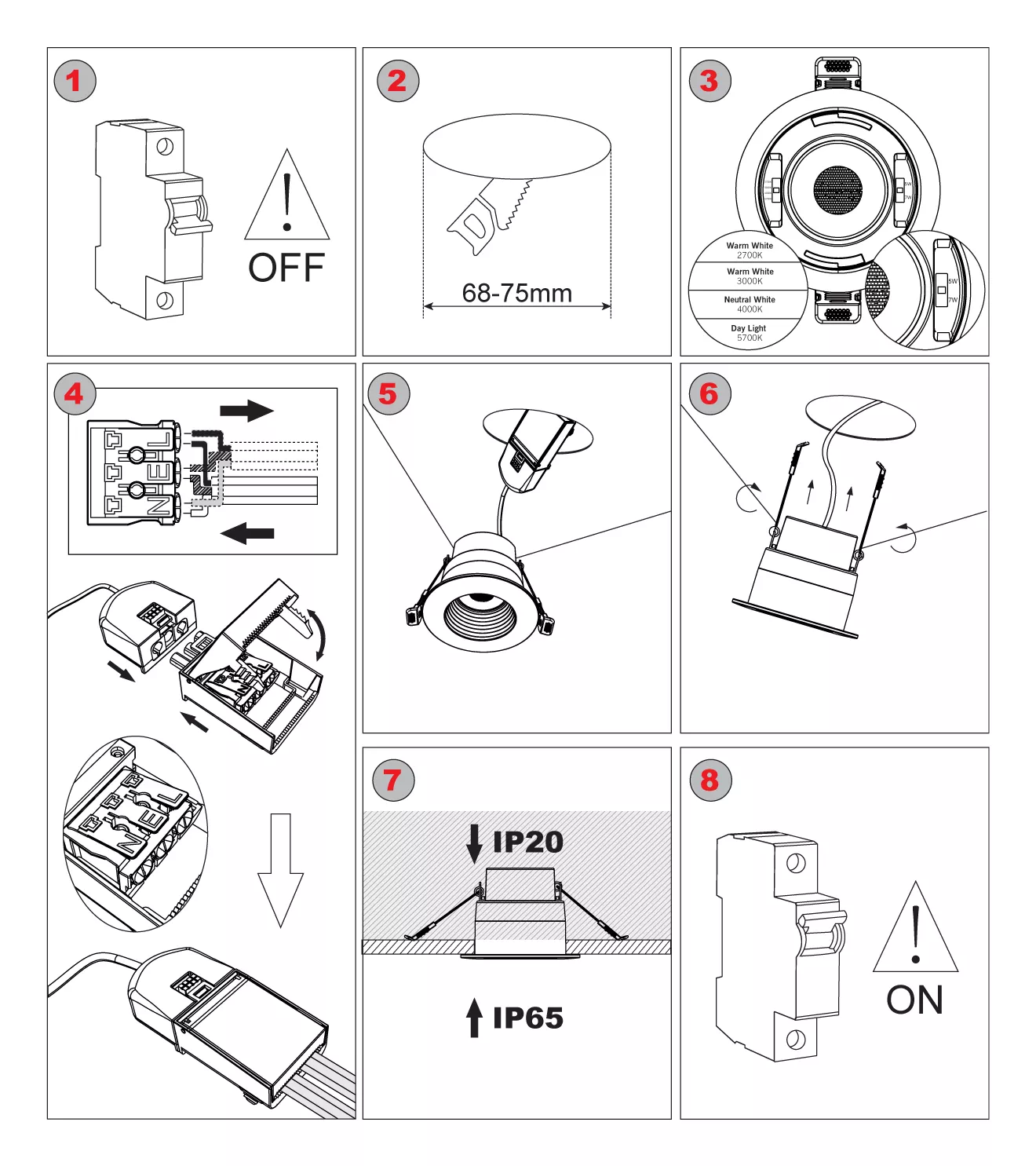

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

Downlight installation steps
