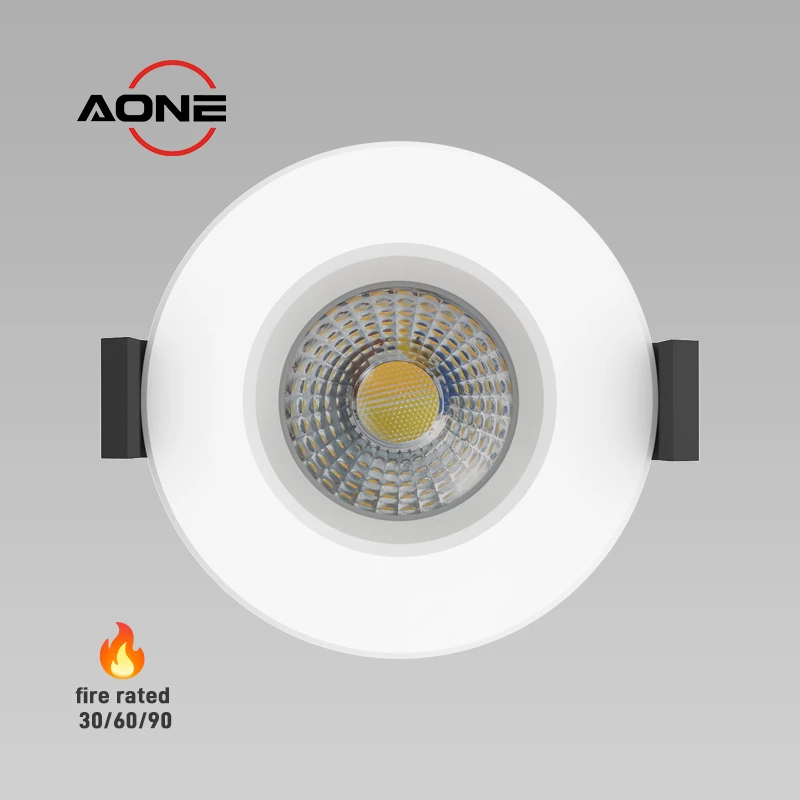

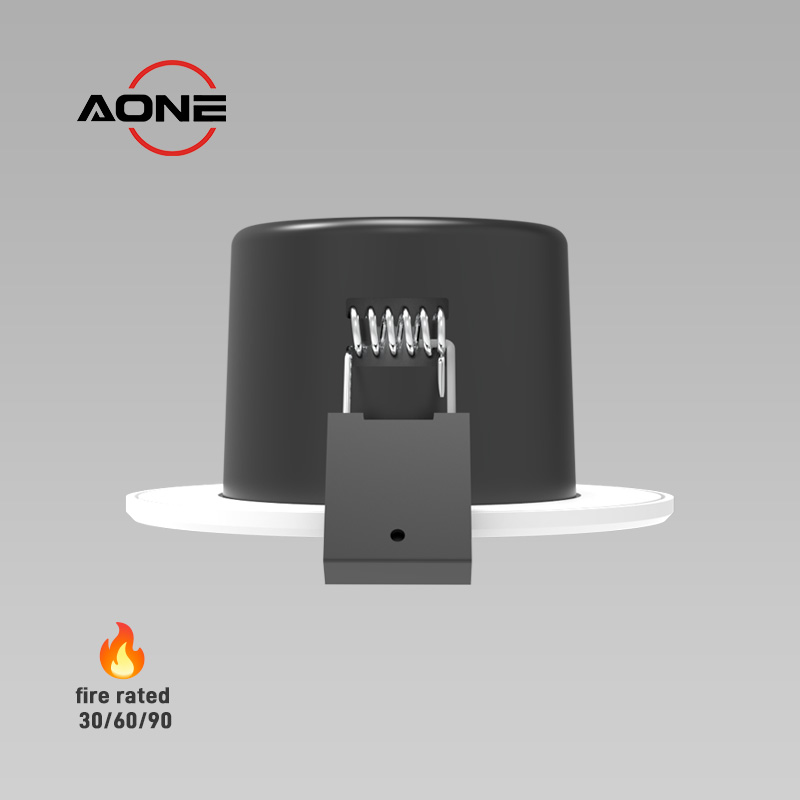

4CCT IP65 Anti-Glare Fire-Rated LED Downlight Multi-functional DL94B
Dimensions：
Ø88 x H48mm,cut-out 68-75mm
Power：
4W-6W-8W selectable
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
Low-glare
Low glare design to create visual comfort.

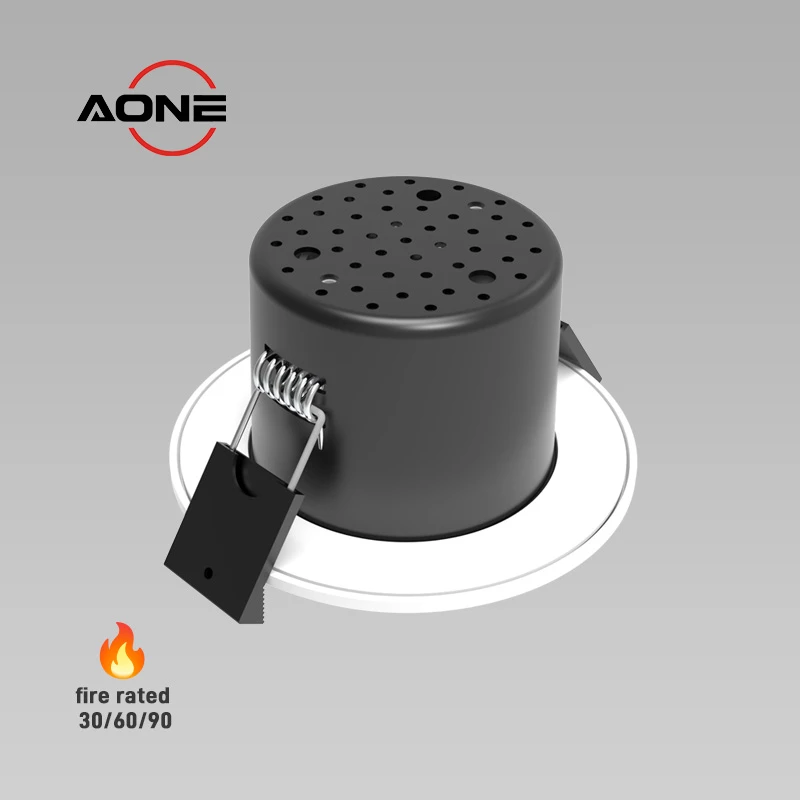

Fire-rated / Coverable

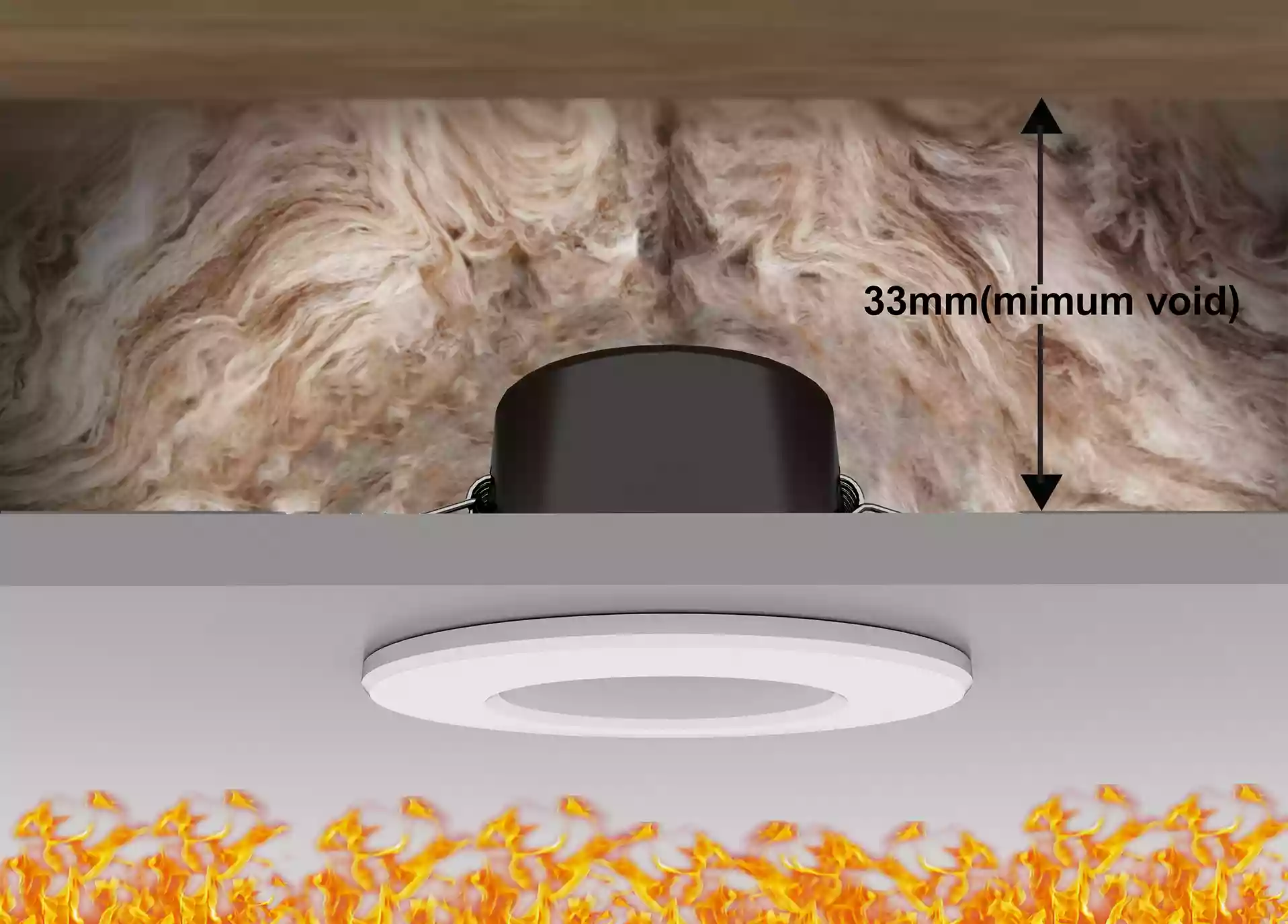

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 33mm

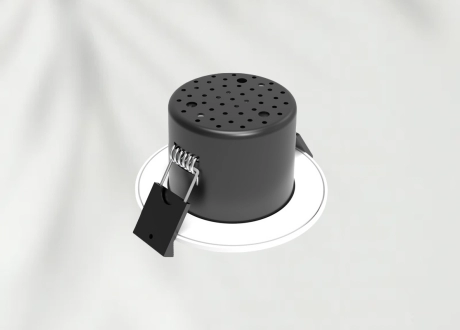

Good heat dissipation performance
Quickly dissipate heat to ensure the service life and stability of the downlight.
IP65 Waterproof Rating
IP65 rating below the ceiling, suitable for bathroom use.
Fast installation via Loop in/out terminal
Plug-and-play junction box reduces installation time by 50%.
38° or 60° beam optional
High quality of LED chip and lens, offering RA>80 or RA>90 version.
Technical Specifications
| Model | DL94B | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 4W/6W/8W Switchable | Bezel Color | Black, White, Brass, Polished Chrome, Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 440/660/880 | Size | Dia88mm, Cutout: 68-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

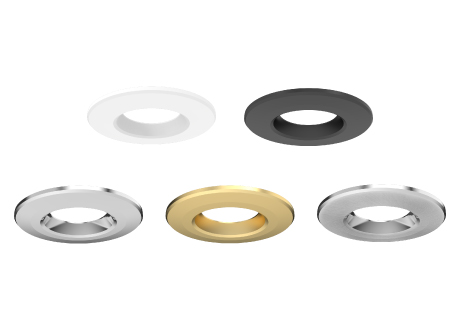

5 color options deep cup design bezel/trim interchangeable: white, black, polished chrome, matt brass, brushed nickel

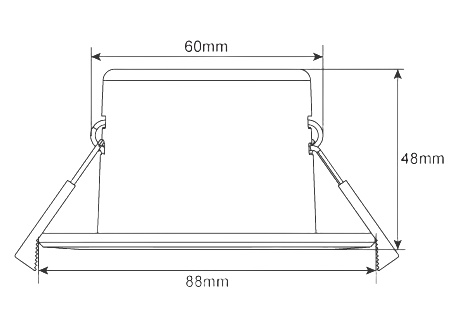

Diameter 88mm, height 48mm, hole opening range 68-75mm.
8 choice of junction boxes, loop-in & loop-out terminal provides a simple installation.

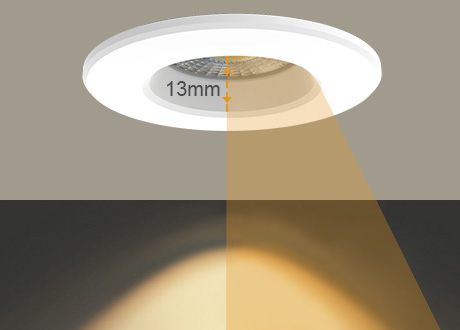

Deep cup anti-glare structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

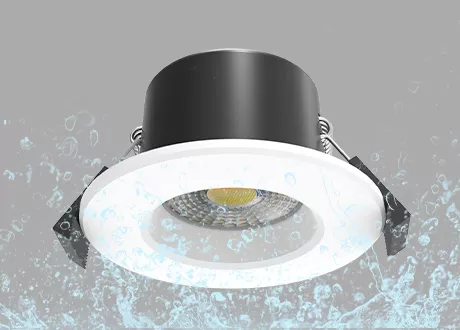

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

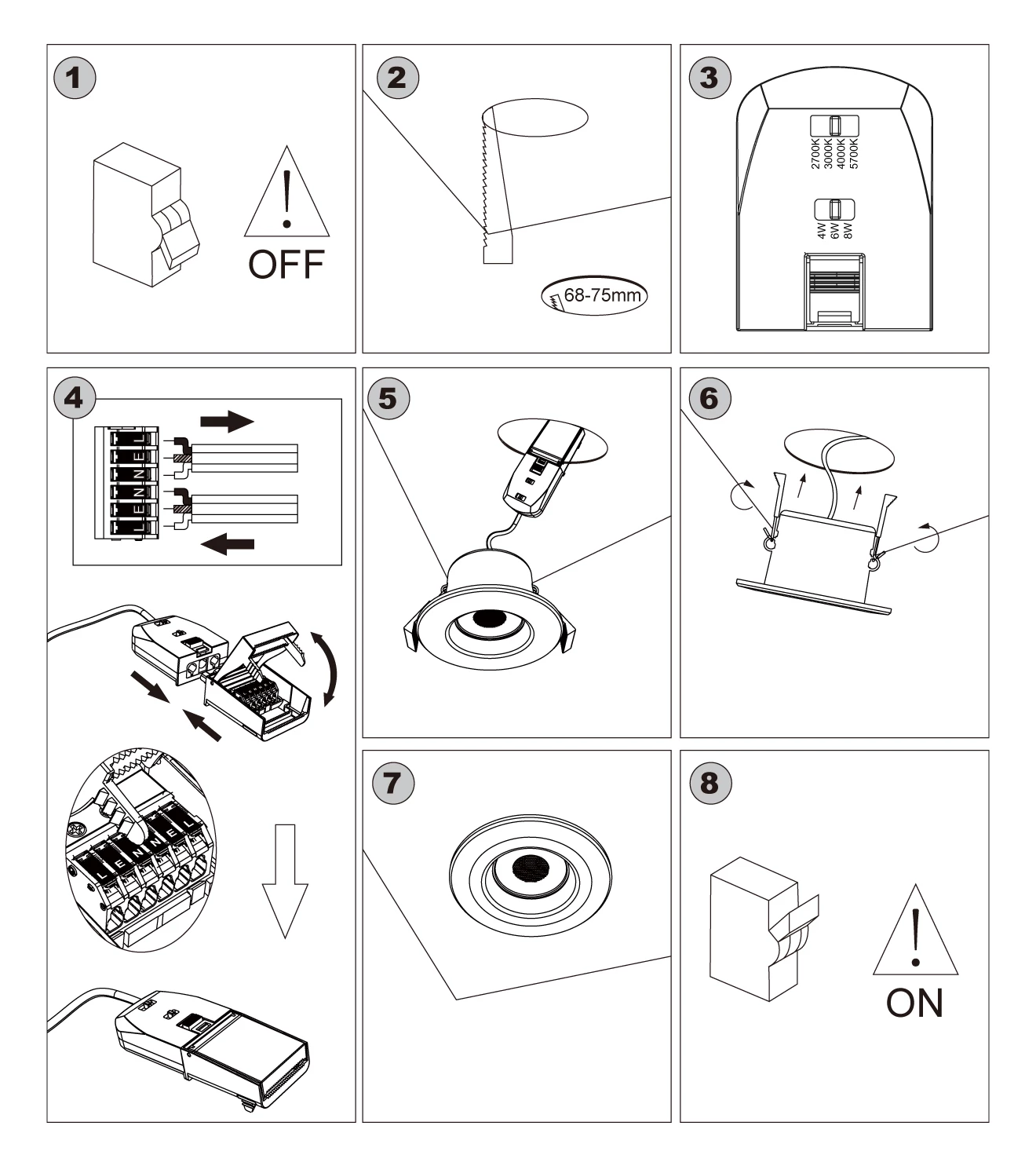

Installation Display
