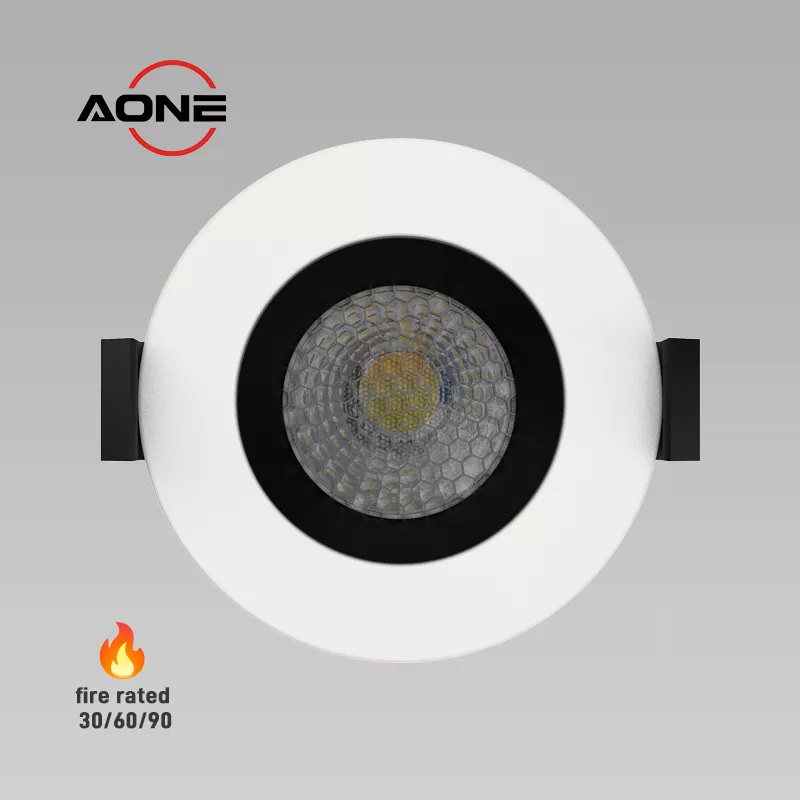

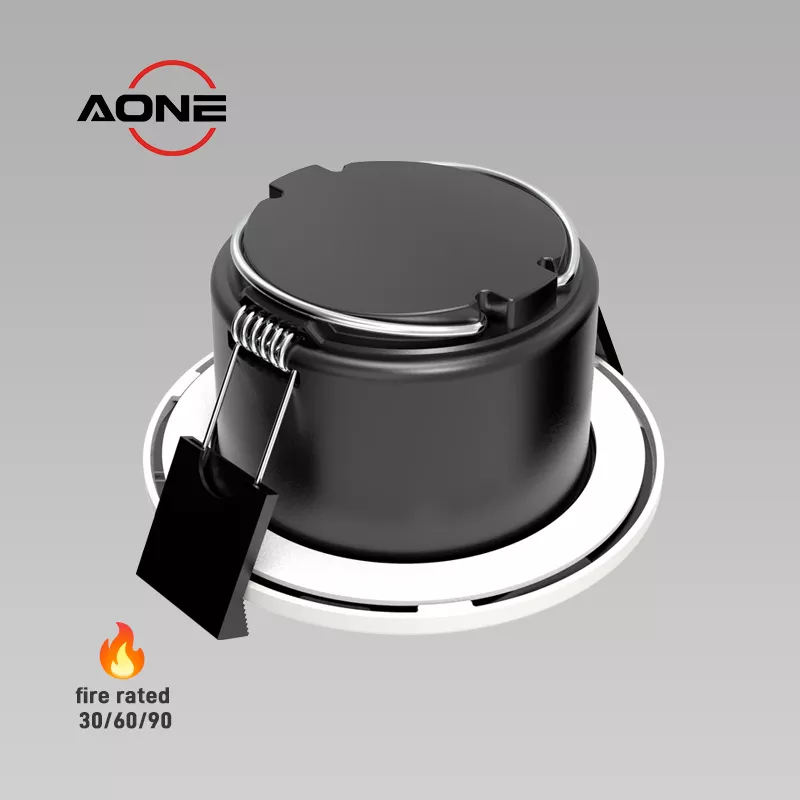

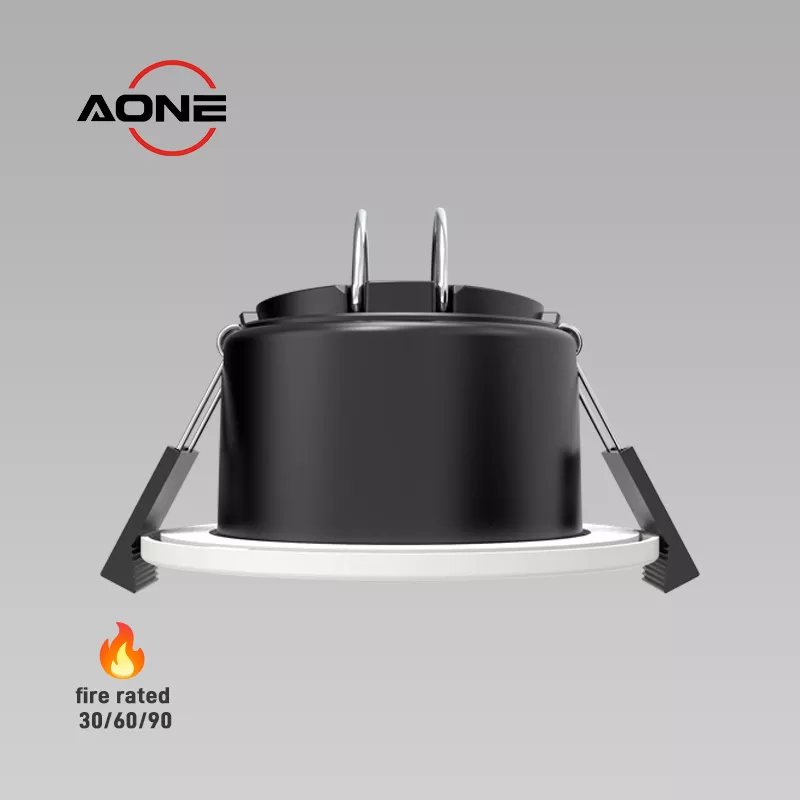

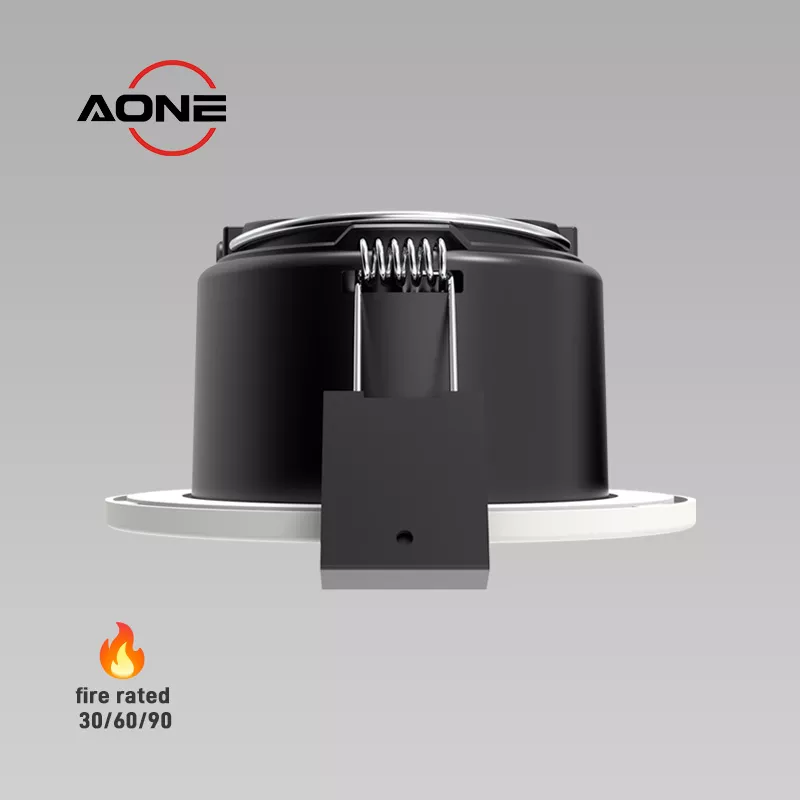

Anti Glare UGR<19 Fire Rated LED Downlights Recessed Spotlight 8W 4CCT Dimmable IP65 DL95UGR

Low UGR<19 Waterproof IP65 Dimmable Fire Rated LED Downlight 8W - 4CCT Selectable (2700K-5700K) with Interchangeable Frames. Factory Wholesale Energy-Efficient Fire Rated 30/60/90min for Safe Commercial LED Lighting. OEM/ODM Solutions Available

Dimensions:

Ø87 x H45mm,cut-out 68-75mm

Power:

8W

Color temperature:

4CCT 2700K-3000K-4000K-5700K

Dimming or not:

Yes, triac dimmable

Beam angle:

38° or 60°

Rated voltage:

AC220-240V

Key Features & Benefits



anti-glare low ugr<19 integrated fire rated LED downlights LED Lighting 8w 4cct recessed spotlight ip65 dimmable

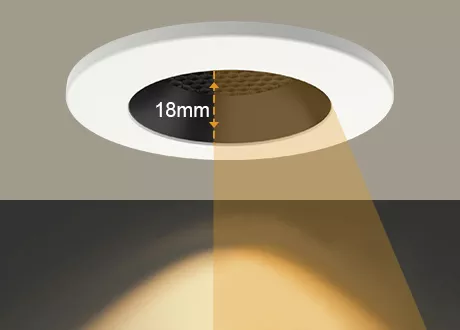

Low UGR LED Downlight

Ultra-Low UGR<19 Fire Rated LED Downlight - IP65 Waterproof & Dimmable. 90min Fireproof, Anti-glare 4CCT Tunable (2700K-5700K). Commercial & Office Lighting Solution

8w 4cct Recessed ugr fire Rated LED Downlights LED Lighting spotlight ip65 dimmable

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, min void 60mm

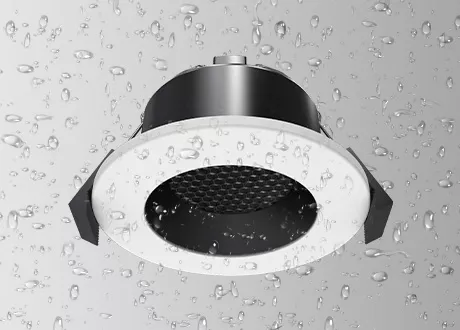

IP65 waterproof 4cct 4w 6w 8W ugr fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

IP65 Waterproof

IP65 Waterproof LED Downlight - Dimmable & 4CCT Adjustable (2700K-5700K). Fire Rated for 90min, Perfect for Bathrooms, Kitchens & Outdoor Lighting.

interchangable bezel low ugr fire Rated LED Downlights 4cct LED Lighting Recessed spotlight ip65 dimmable

White/Black/Chrome/Brushed nickel/Gold Bezel

Innovative design supports multiple bezel colors-interchangeable bezel

38° 60° beam angle fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

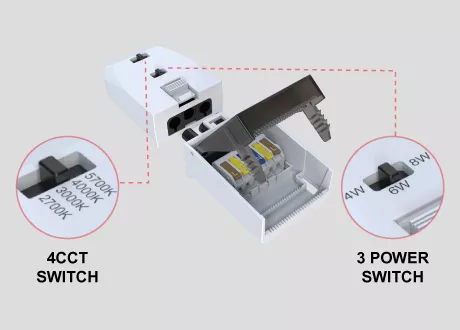

ugr<19  loop in loop out driver fire Rated LED Downlights 4cct LED Lighting Recessed spotlight ip65 dimmable driver

Fast installation via Loop in/out terminal

Plug-and-play driver reduces installation time by 50%.





Technical Specifications



Model DL95UGR Beam Angle 38° or 60°
Protection Class Class II / IP65 / IK08 Dimming Trailing edge and leading edge
Power 4W/6W/8W Color Black, White, Chrome, Gold, Brushed nickel
Input AC220-240V 50/60Hz Color Temperature 2700K/3000K/4000K/5700K
Lumen 320/480/640 Size Dia 87mm, Cutout: 68-75mm
Efficiency 80lm/W Certification CE, UKCA, RoHS
Life Time >50000 hours Warranty 5 Years
Fire Rated Yes Coverable Yes

Bezel of fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable   (3)

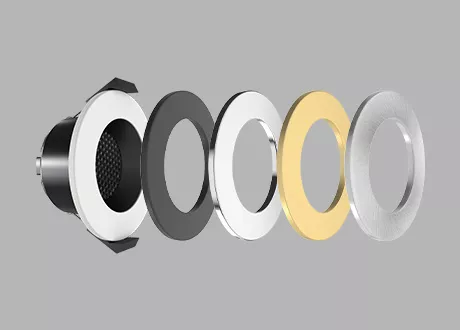

Interchangeable bezel downlights offer easy customization to match your decor, enhance finishes, or refresh a space without replacing the entire fixture. Simply swap out the trim ring (bezel) to change the look: white, black, polished chrome, matte bronze, polished nickel.

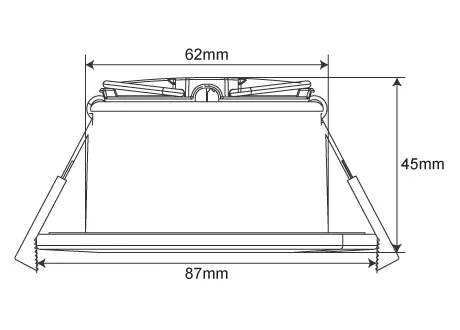

68mm cutout fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable   (3)

Diameter 87 mm, height 45 mm, hole opening range 68-75 mm, recessed depth 35 mm.

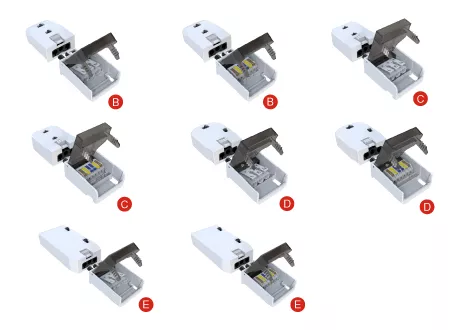

driver 4cct  4w 6w 8w low ugr fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.



Applicable Scenarios
Perfect for residential, hospitality, commercial office applications

For Living room fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Living

4CCT downlight, downlight with adjustable color temperature, triple color temperature, dimmable LED downlight, smart lighting solution.

For shopping fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Shopping

Warm light to cool light, with high efficiency CRI(RA) 80+ or ​​90+ MacAdams<6 best showcases products.

For kitchen room fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Kitchen

Practical waterproof and dustproof spotlight/light that can provide directional lighting on the kitchen island or work surfaces.

For bathroom fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

downlight production process



Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

downlight CE RoHS CB certificate



Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

factory testing equipment



Installation Display

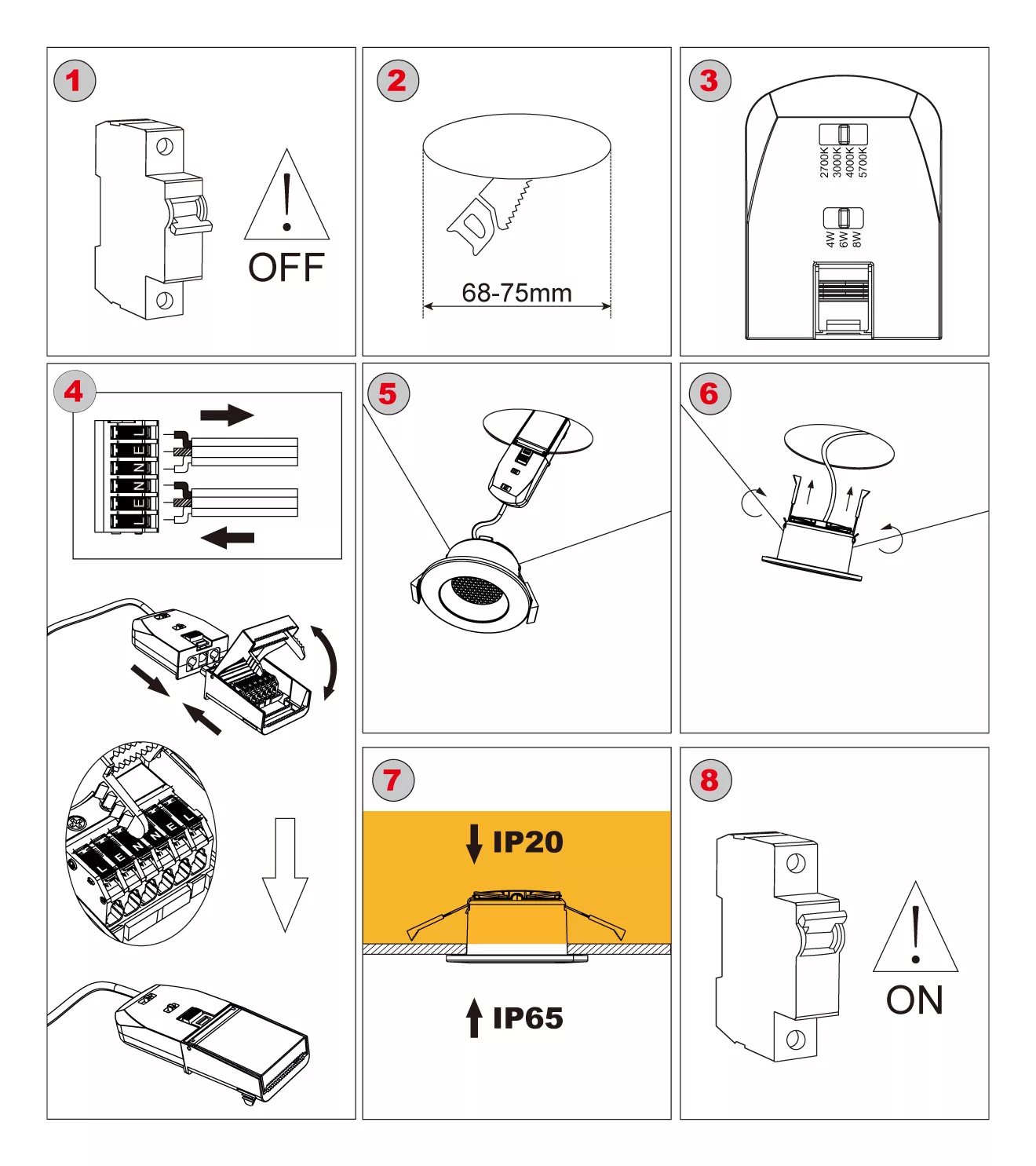

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select the color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires well, insert the light into the hole and fix it, adjust the direction if necessary, check the IP rating for the installation areas, turn on the wall switch and test the light, make sure all steps are followed for a safe and proper installation.





Installation steps ugr<19 anti-glare fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable
