Anti Glare UGR < 19 LED Spotlight IP65 Tiltable ±25° Triac Dimmable 4CCT 2700K-5700K Adjustable 4W/6W/8W DL162
Dimensions：
Ø85 x H60mm,cut-out 68-75mm
Color temperature：
CRI>80, 4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable 10%-100%
Power：
4W/6W/8W
Rated voltage：
AC220-240V
Key Features & Benefits

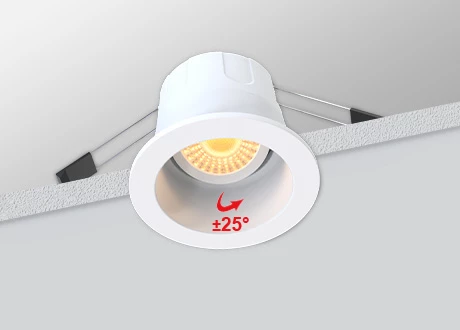

Tilt ±25° Anti-glare URG<19
Soft, eye-friendly lighting with deep anti-glare design

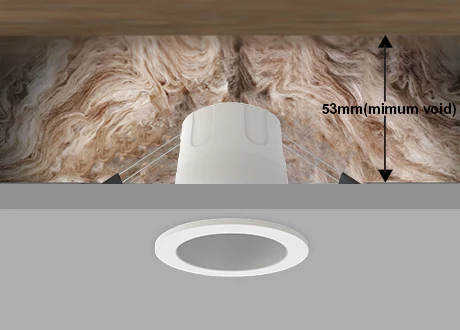

Coverable with Insulation Material
≥45mm Ceiling Voids

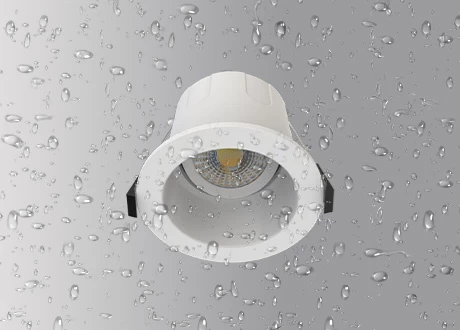

IP65 Waterproof
IP65 rated in the front for kitchens, bathroom zones 1 and 2

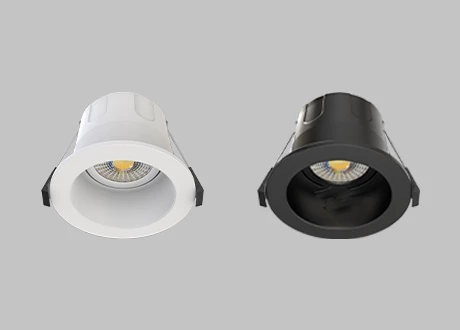

White / Black Baffe Bezel Optional
Inner/outer white/black reflector interchangeable for decoration
40 Degree Beam Angle
High quality of LED chip and lens, offering RA>90 version
Triac Dimmable Driver 4W/6W/8W + 4CCT + Junction Box
Fully dimming, Plug-and-play connector with quick wiring terminals for easy installation
Technical Specifications
| Model | DL162 | Beam Angle | 40° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 4W/6W/8W | Bezel Color | Black, White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K-3000K-4000K-5700K |
| Lumen | 360lm/540lm/720lm | Size | Dia85mm, Cutout: 68-75mm |
| Efficiency | 90 lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours L70B10 | Warranty | 5 Years |
| Fixed or tiltable | ±25° Tilt Adjustment | Coverable | Yes |

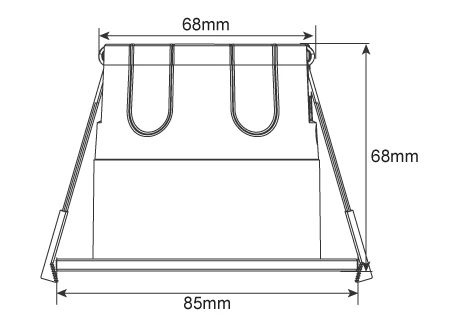

Diameter 85mm, height 68mm, hole opening 68-75mm

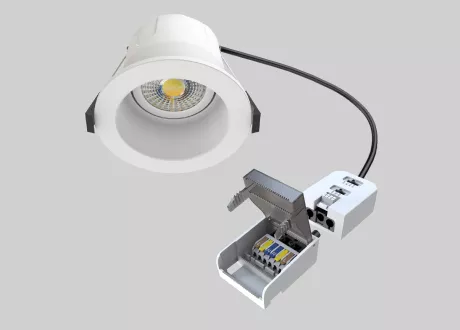

Different Driver Option, 1st-2rd fixing connectors
Plug-and-play loop-in/out terminals, no tools required for recessed
✔️ Anti-glare: URG<19 reduce glare
✔️ IP65 Waterproof: Resists moisture from below, ideal for bathrooms, kitchens, or covered outdoor areas.
✔️ 90 lm/W Efficiency: Bright, uniform light with low energy costs.
✔️ Premium LED Source: 50,000+ hour lifespan.
✔️ 40°Beam Angle: Focused beam for precise accent lighting (e.g., artwork, retail displays).
✔️ Tiltable: Adjustable up to ±25° each side.
✔️ Tool-Free Install: Plug-and-play with quick L, E, N, N, E, L terminals for loop-in loop-out wiring.
✔️ Certification : CE, ROHS, UKCA, CB certificated with 5-year warranty
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

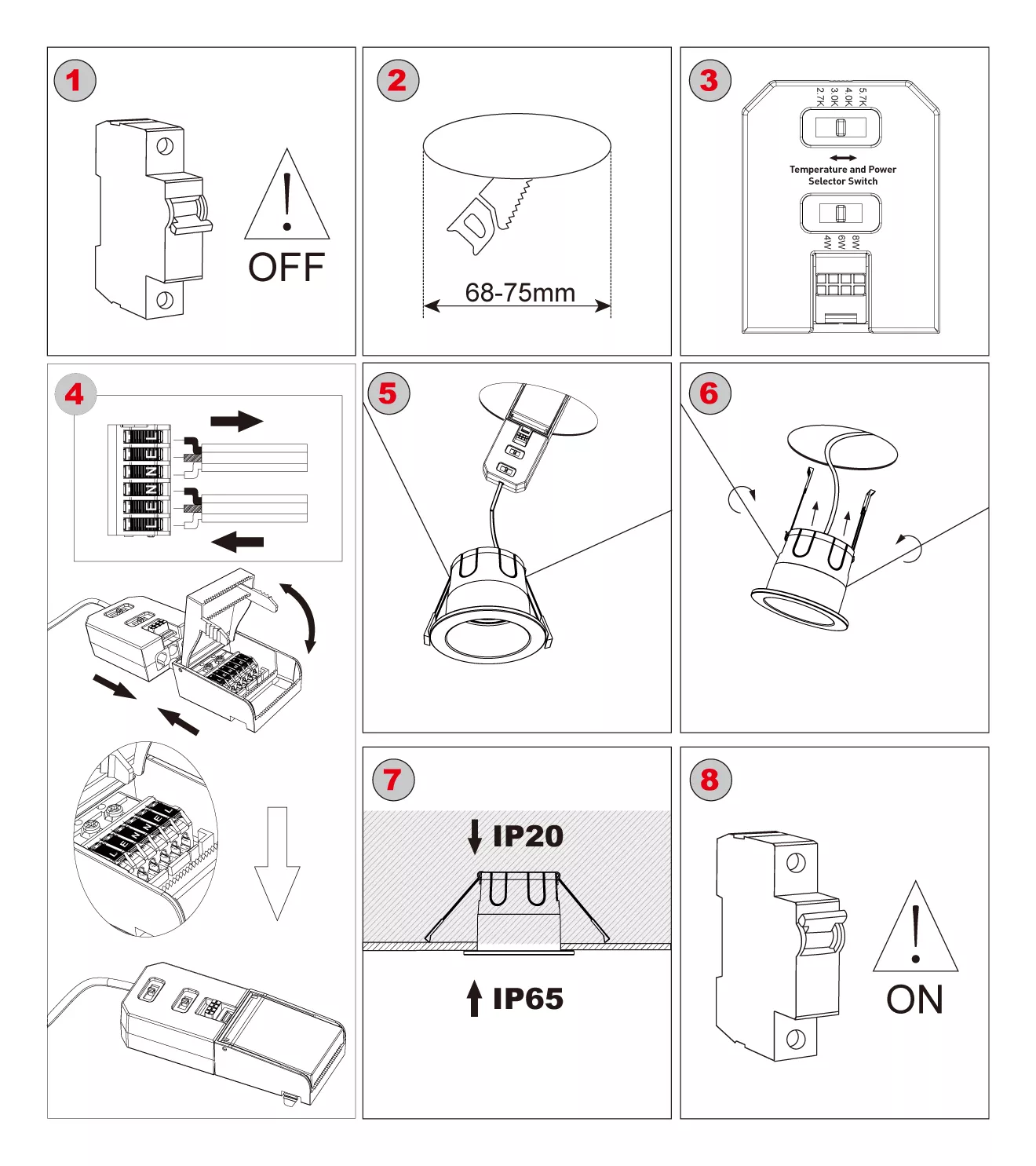

Installation Display
✔️ Why settle for ordinary lighting? Choose this IP65 LED downlight for vibrant, eye-safe illumination that lasts.
✔️ Where can it shine? Perfect for bathrooms, kitchens, retail spaces, or anywhere needing waterproof, high-quality light.
✔️ Who benefits? Homeowners, designers, and businesses seeking energy efficiency and style.
✔️ What sets it apart? 40° beam options ensure precision or ambiance, all backed by CE, RoHS, fire-rated certifications, and a 5-year warranty.
