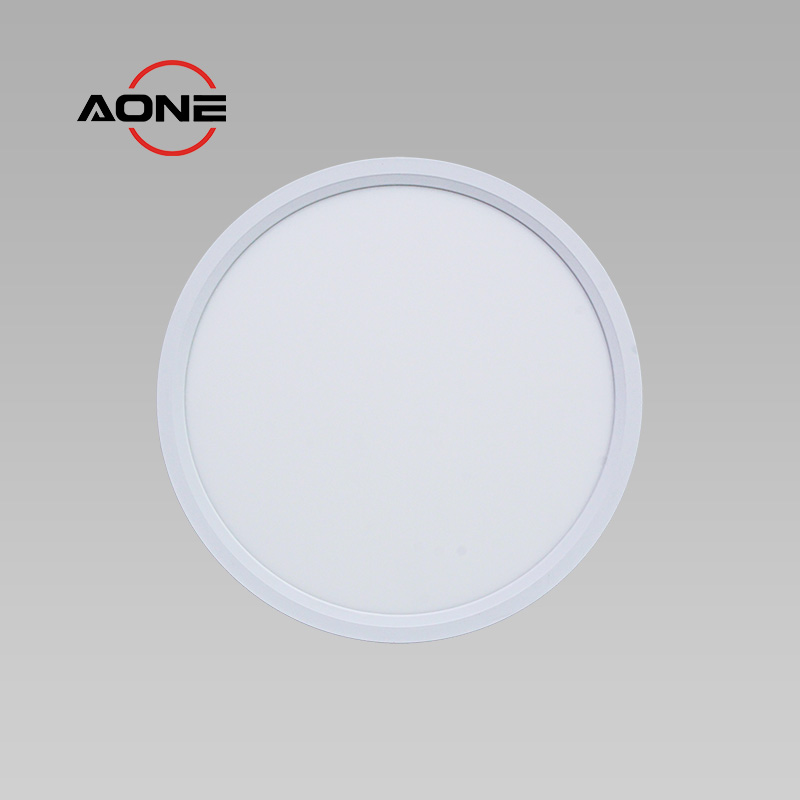

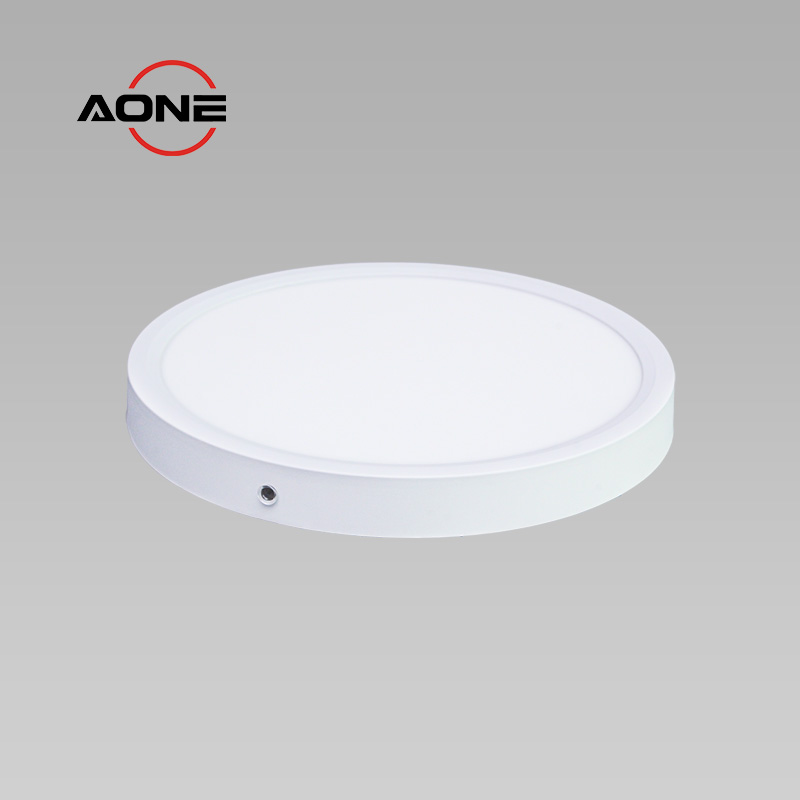

LED Ceiling Light Round Power 12W-18W-24W and 3xCCT Selectable CL86-300
Dimensions：
Ø300 x H25mm
Power：
12W-18W-24W
Color temperature：
3CCT 2700K-3000K-4000K(or 3000K-5700K)
Microwave sensor：
Yes
Beam angle：
120°
Rated voltage：
AC220-240V
Key Features & Benefits
Microwave Sensor Built-in
Up to 110lm/W, energy-efficient and easy to install
Microwave Sensor Instruction

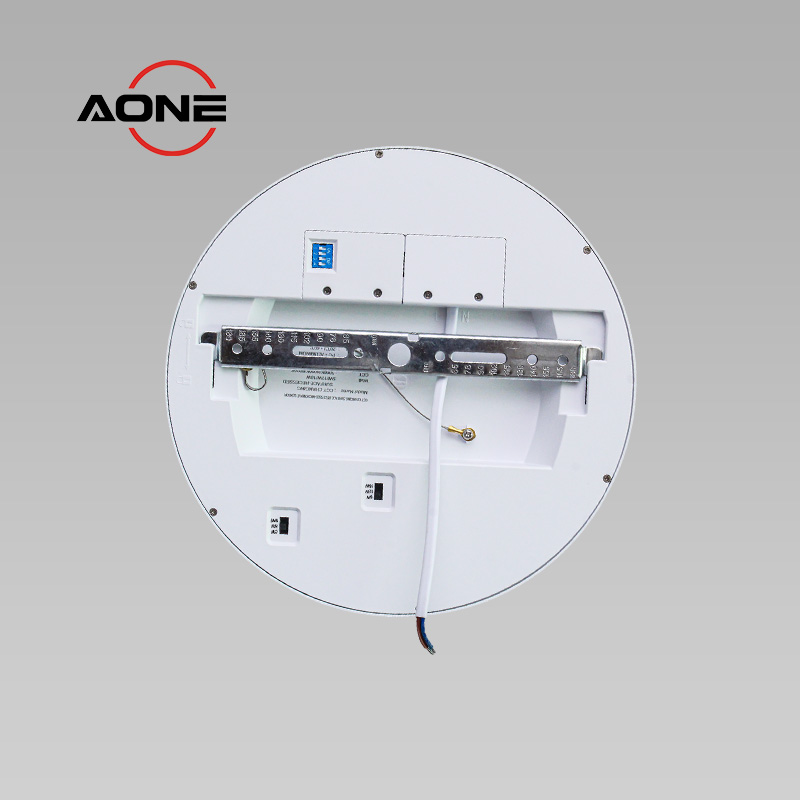

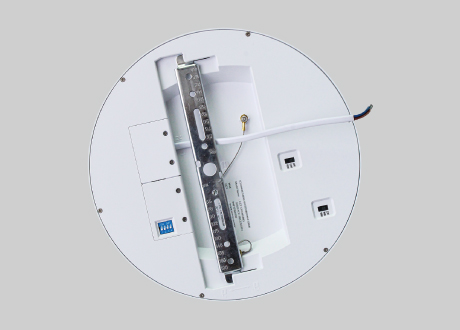

Distance sensitivity and time settings can be configured via the DIP switches
Multi-functional and High Quality
Power 9W-12W-18W and CCT between 2700K, 3000K, 4000K by Dip Switch
Slim Shallow 25mm only
Featuring super slim design and offering 3 different diameters option
Surface Mounting Optional

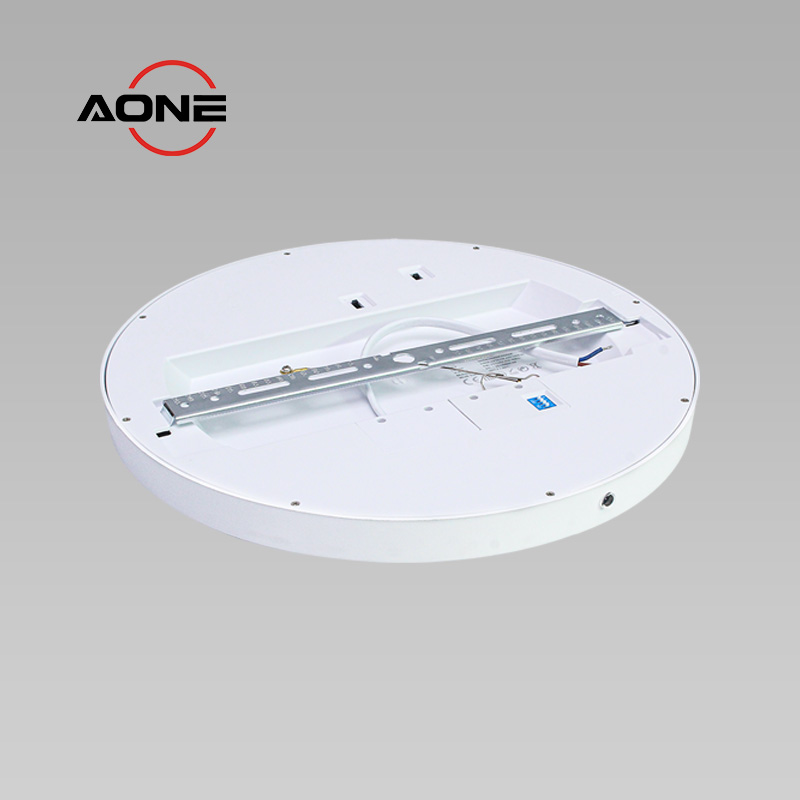

Movable bracket, easy to remove the spring for surface mounting

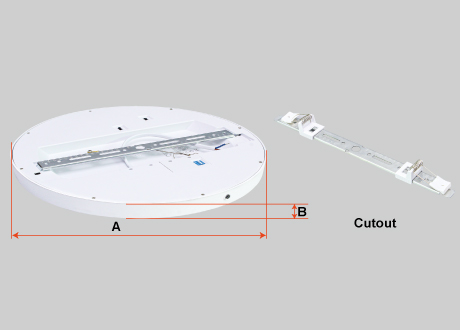

Opening Adjuster for Recessed Panel
With aluminum opening regulator, it becomes recessed ultra-thin panel light
Technical Specifications
| Model | CL86-300 | Beam Angle | 120° |
| Protection Class | Class II / IP20/ IK10 | Dimming | Not applicable |
| Power | 12W-18W-24W | Base Color | White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K or 3000K/4000K/5700K |
| Lumen | 1200lm-1800lm-2400lm | Size | Dia 300mm height 25mm |
| Efficiency | 110lm/W | Certification | CE, ErP, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Not applicable | Coverable | Not applicable |

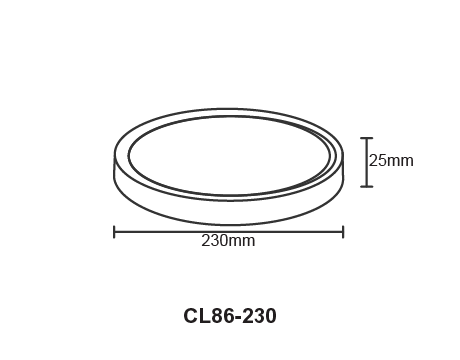

Size 1 ： Diameter 230 x Height 25mm

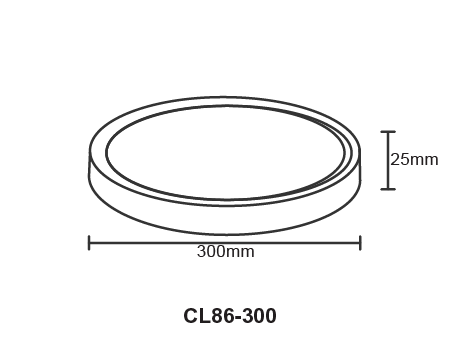

Size 2 ： Diameter 300 x Height 25mm

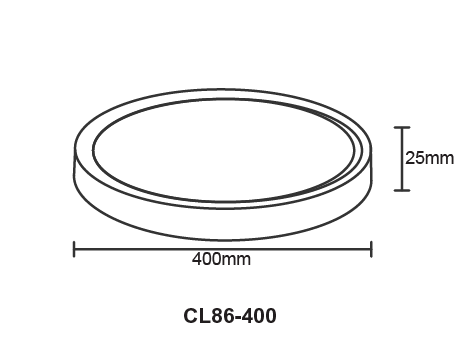

Size 3 ： Diameter 400 x Height 25mm
Triac dimmable, slim IP54 design (CE-certified) crafts tailored ambiance
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 give a perfect lighting for the room.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Upscale thin-profile design with IP54 protection, 3 power/color temp choices
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
