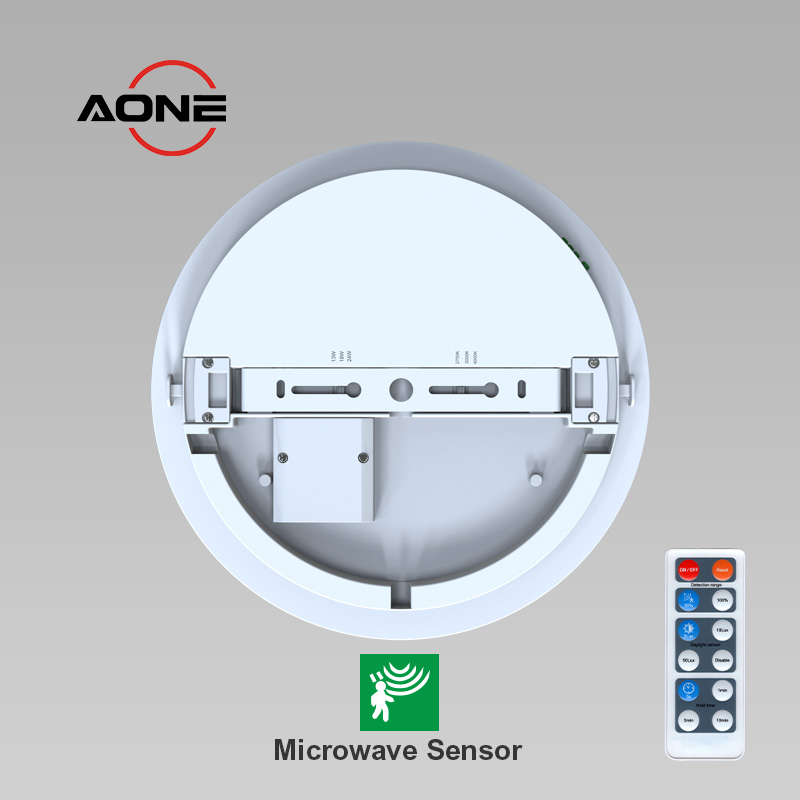

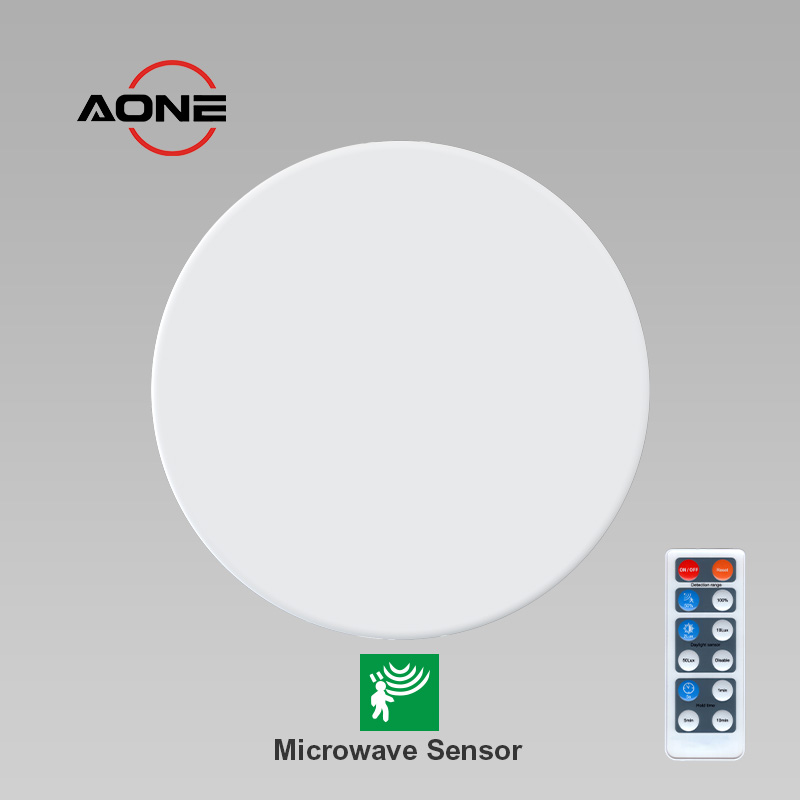

Microwave Sensor Ceiling Light Dia280mm CL88-SN

Microwave Sensor Built-in with Remote to smartly control "Time, LUX, Sens", power 13W/18W/24W and CCT between 2700K, 3000K, 4000K changeable in 1 fixture. Up to 110lm/W, IP54, white base color, CE and ErP certificated, OEM/ODM Manufacturing give customized lighting solutions.

Dimensions:

Ø280 x H48mm

Power:

13W-18W-24W selectable

Color temperature:

3CCT 2700K-3000K-4000K

Dimming or not:

No

Beam angle:

120°

Rated voltage:

AC220-240V

Key Features & Benefits



Emergency > 90 minutes ceiling lights

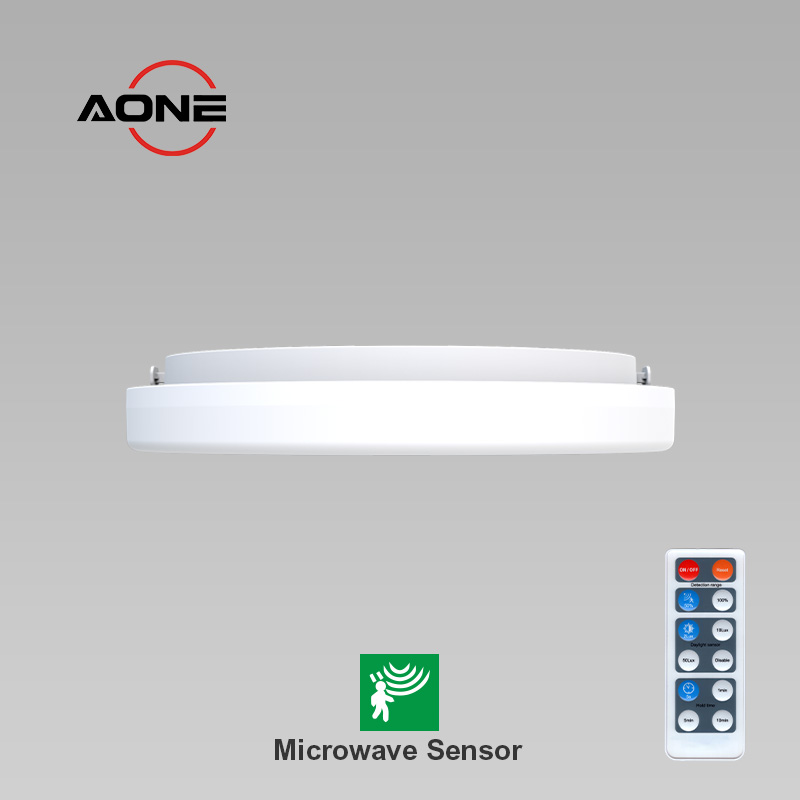

Microwave Sensor Built-in

Certificated sensor, smartly control "Time, LUX, Sens" for your lighting

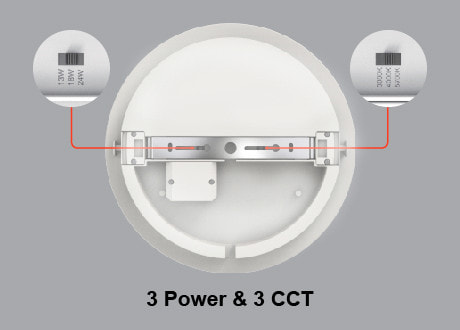

ceiling lights power and CCT changeable

 3 x power and 3 x CCT Changeable by Dip Switch

13W/18W/24W and CCT between 2700K, 3000K, 4000K changeable

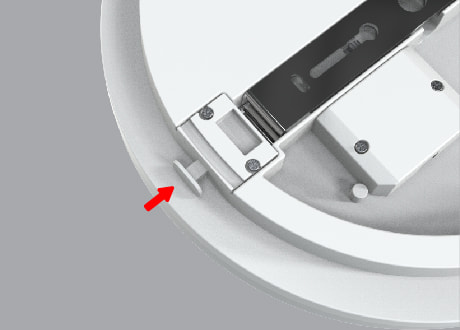

Push buckle ceiling lights

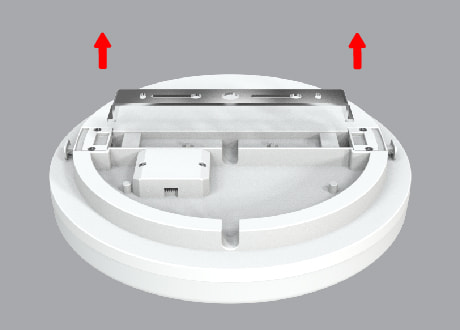

Push Buckle

Easily push buckle to get the aluminum bracket

Aluminum Bracket ceiling light

Surface Mounting Kit

Mount bracket is made of premium aluminum, increasing its durability and stability

Microwave Sensor Version ceiling lights

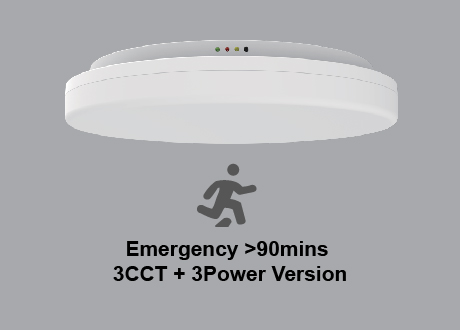

Emergency > 90 minutes Version Optional

High quality and certificated emergency battery > 1.5 hours

Emergency > 90 minutes ceiling lights

Standard Version Optional

Without Emergency or Sensor driver, triac dimmable driver only





Technical Specifications



Model CL88-SN Beam Angle 120°
Protection Class Class II / IP54 / IK08 Dimming Not applicable
Power 13W/18W/24W Switchable Color Black, White
Input AC220-240V 50/60Hz Color Temperature 2700K/3000K/4000K or 3000K/4000K/5700K
Lumen 13W : 1430 lm, 18W: 1980 lm, 24W: 2640 lm Size Dia 280mm
Efficiency 110lm/W Certification CE, ErP, RoHS
Life Time >50000 hours Warranty 5 Years
Fire Rated Yes Coverable N/A

loop-in & loop-out ceiling lights

Junction box, loop-in & loop-out terminal provides a fast installation

downlight junction boxs

3 wire entry holes on the back to reasonably arrange the wiring

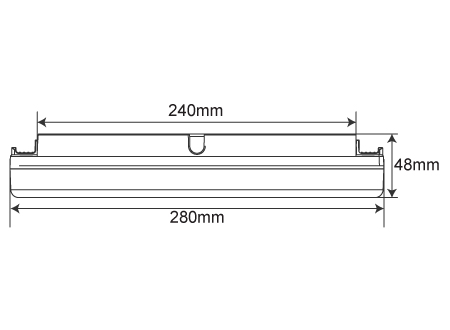

ceiling light diameter 280mm

Diameter 280mm, height 48mm

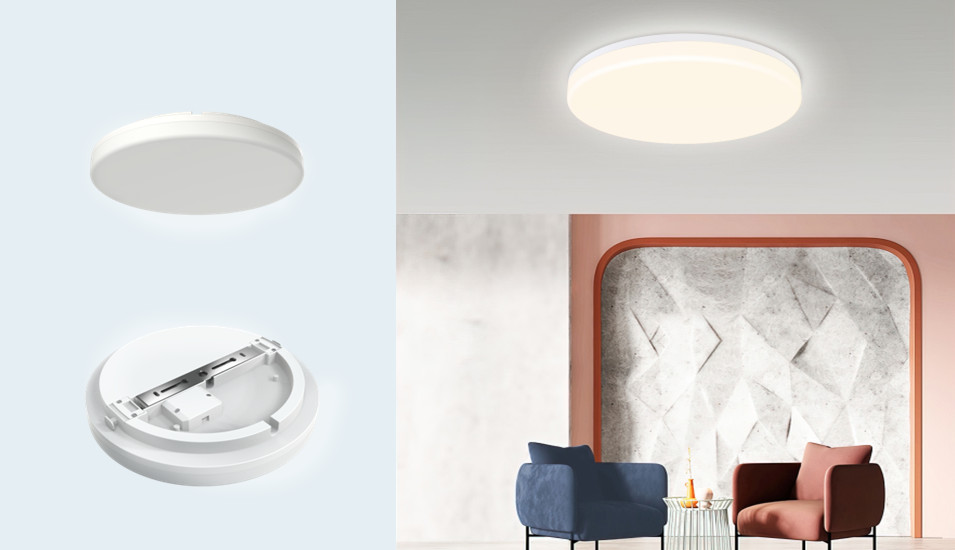

Applicable Scenarios
Perfect for residential, hospitality, commercial office applications

bathroom downlight spotlight IP65

Living

Triac dimming, slim IP54 design (CE-certified) crafts tailored ambiance for living rooms or bedrooms

Bedroom

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 give a perfect lighting for the room.

kitchen downlight spotlight

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

bathroom downlight spotlight IP65

Meeting Room

Upscale thin-profile design with IP54 protection, 3 power/color temp choices

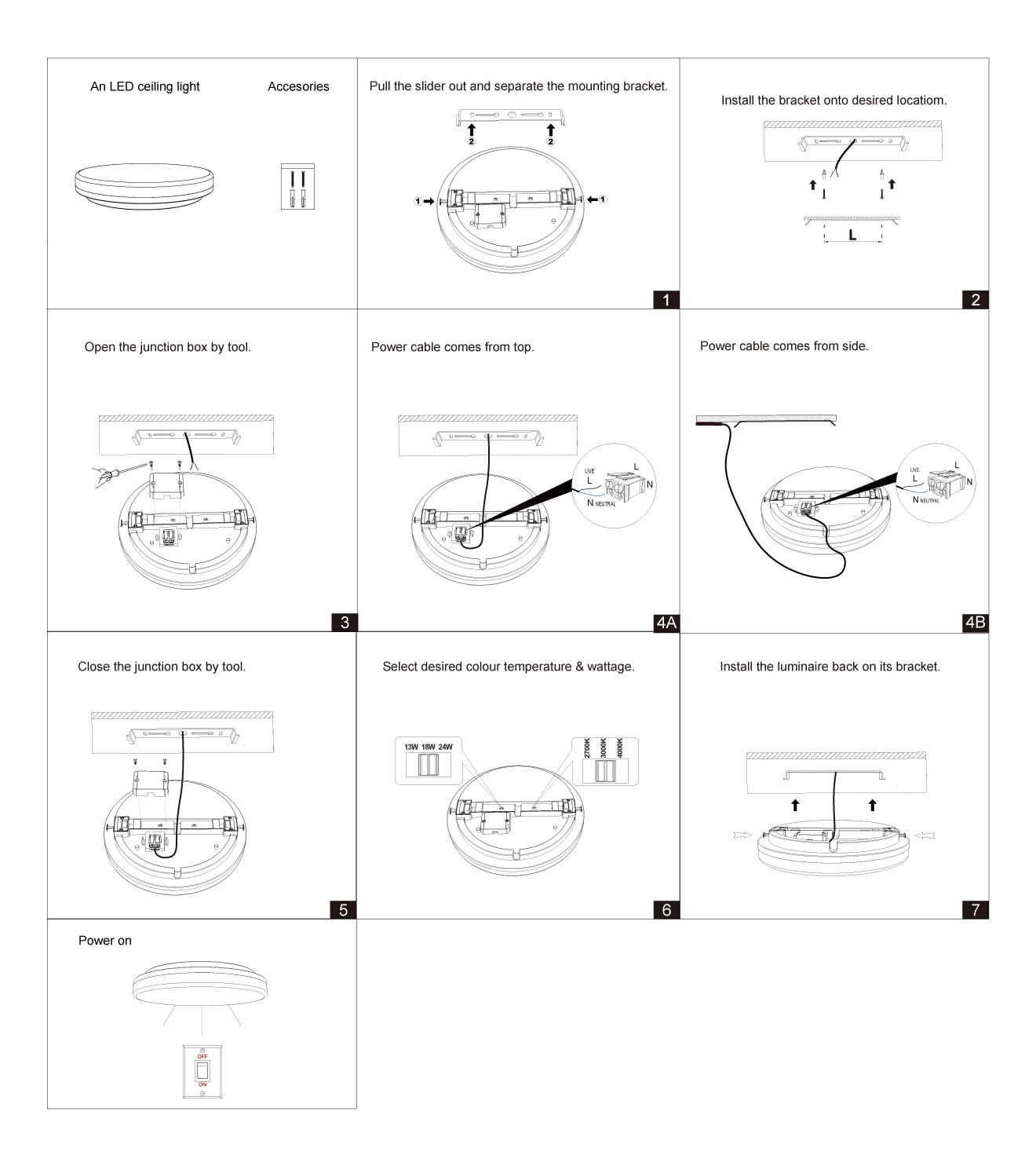

Installation Display

Turn off the power supply before installation, pull the slider out and separate the mounting bracket, install it onto desired location, close the junction box by tool, select colour temperature 2700K, 3000K, 4000K or 5700K  & wattage 13W/18W/24W, install luminaire back on bracket and power on to get perfect lighting.





ceiling lights installation steps
