Modular Downlight Commercial Lighting Multi-functional DL199-M2
Dimensions：
Ø148 x H99mm
Face ring：
Ø190xH45mm, Ø230xH50mm, Ø285xH65mm, Ø305xH65mm
Power：
40W-50W-60W
Color temperature：
2700K-3000K-4000K, 3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
120°
Rated voltage：
AC220-240V
Key Features & Benefits
Recessed LED Modular Downlight
Large luminous surface and high efficiency of 140lm/W.
Coverable Light Engine

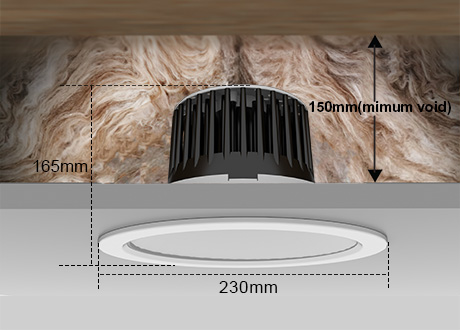

Suitable for large cutout, coverable, mini void 150mm
3-CCT Setting
Adjust Color Temp → Slide the DIP Switch
Interchangeable Metal Facing Ring
Tool-free twist & lock, with strong spring, durable and attractive metal material creates a solid facing ring.
120° Beam Optional
High quality of LED chip and diffuser plate, offering RA>80 or RA>90 version.
Fast Installation via Loop in/out Terminal
Tool-free junction box reduces installation time by 50%.
Technical Specifications
| Model |
DL199-M2 |
Beam Angle | 120° |
| Protection Class | Class II / IK08 | Dimming | Trailing edge and leading edge |
| Power |
40W - 50W - 60W |
Color Temperature |
2700K/3000K/4000K |
| Input | AC220-240V 50/60Hz | Color | White |
| Lumen |
5600lm - 7000lm - 8400lm |
Facing Ring Size |
D190 x H45mm, D230 x H50mm,D285 x H65mm,D305 x H65mm |
| Efficiency | Max 140lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| IP Rate | IP20 | Coverable | Yes |

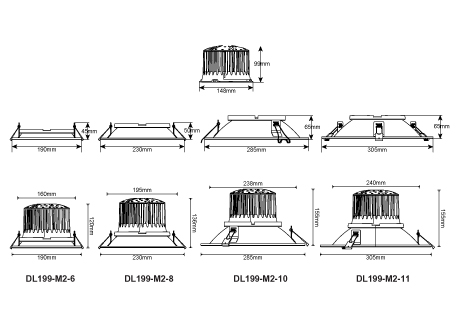

Four sizes of face rings to suit different cutout
Diameter 148mm, height 99mm, 1 fixture, 4 fits.
7 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.
Large luminous surface and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light with large luminous surface, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide beautiful lighting to kitchen island or worktops
Delivering a large luminous range with uniform light effect.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

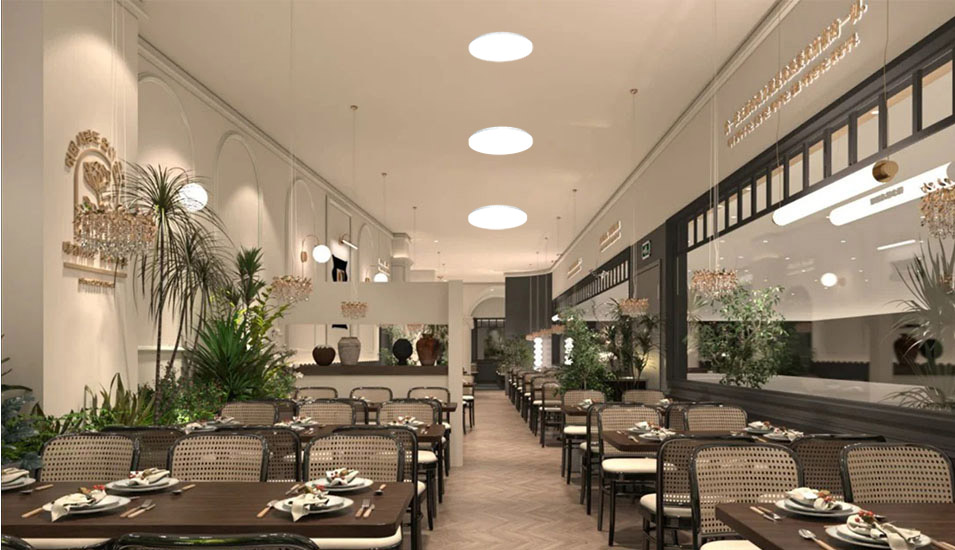

Installation Display
