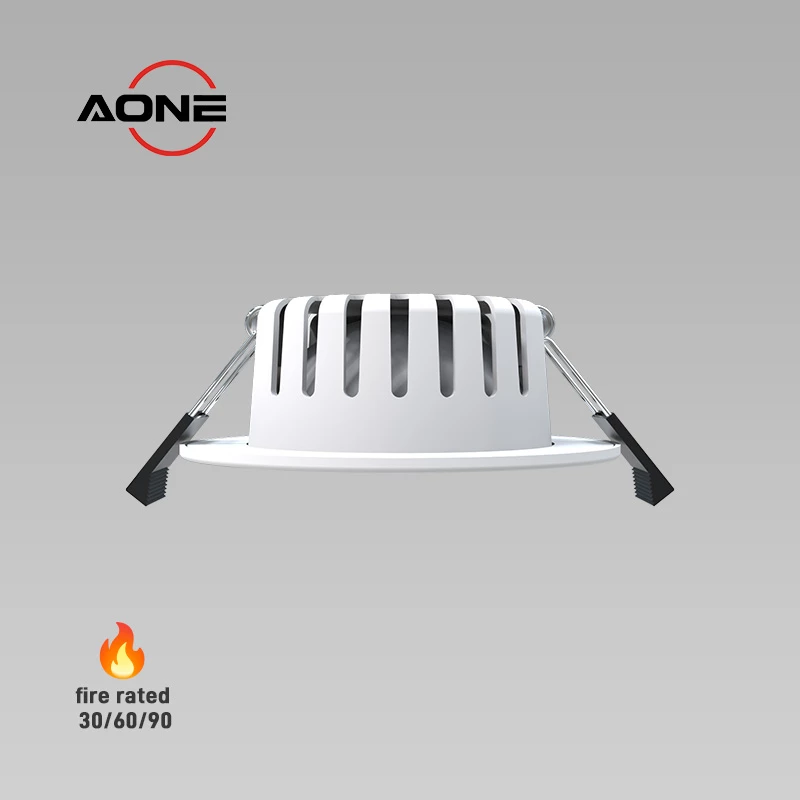

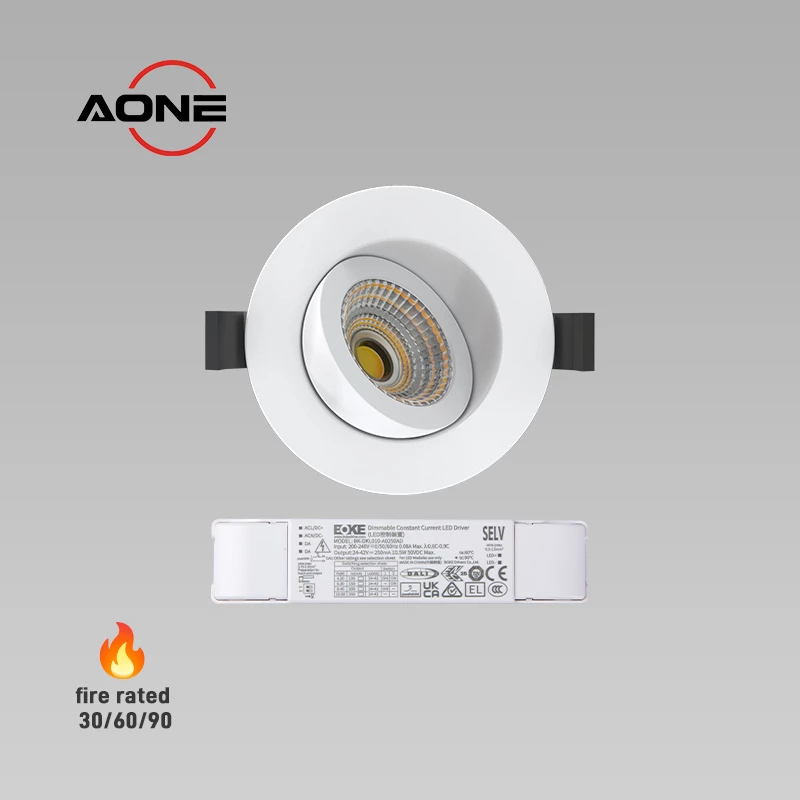

DALI Downlight Adjustable ± 90° Dimmable IP65 Fire Rated COB CRI>90+ DL127-7P

DALI Dimmable Downlight DT6 & DT8 optional, COB Light Source CRI>90+, Power 7W, CCT 2700K-3000K-4000K, Light Adjustable ±90 Degree. IP65 Waterproof for bathroom/kitchen wet areas. Cut-out size: 68–75 mm. White/black/brushed chrome/polished chrome Surface. Easy plug-and-play installation with color loop-in/out terminals. No tools required

Dimensions：

Ø90 x H37mm,cut-out 68-75mm

Color temperature：

CRI>90, CCT 2700K-3000K-4000K

Dimming or not：

Yes, dim DALI-2/push dim/corridor dim

Power：

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

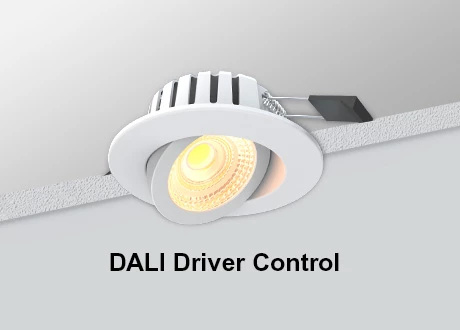

DALI Downlight COB Dimmable

DALI Driver Smart Control

Support DALI-2+push DIM dimming mode

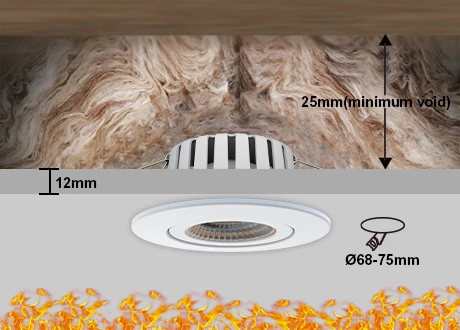

downlight coverable cutout 68-75mm

Coverable with Insulation Material, Hole Size 68-75

Min Recessed Depth ≤ 25mm, DALI Driver included

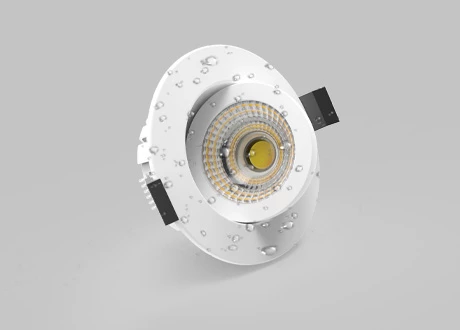

anti-glare downlight IP65 Waterproof

IP65 Waterproof

IP65 rated in the front for kitchens, bathroom zones 1 & 2

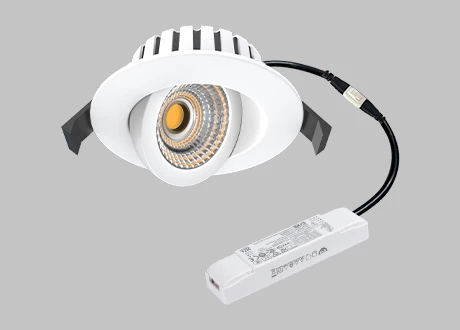

dali downlight dali-2 dimmable driver

Multi-level Current Output, Soft Dimming & Flicker-free

COB, DALI Dimmable Driver with Flex & Plug for Easy Exchange

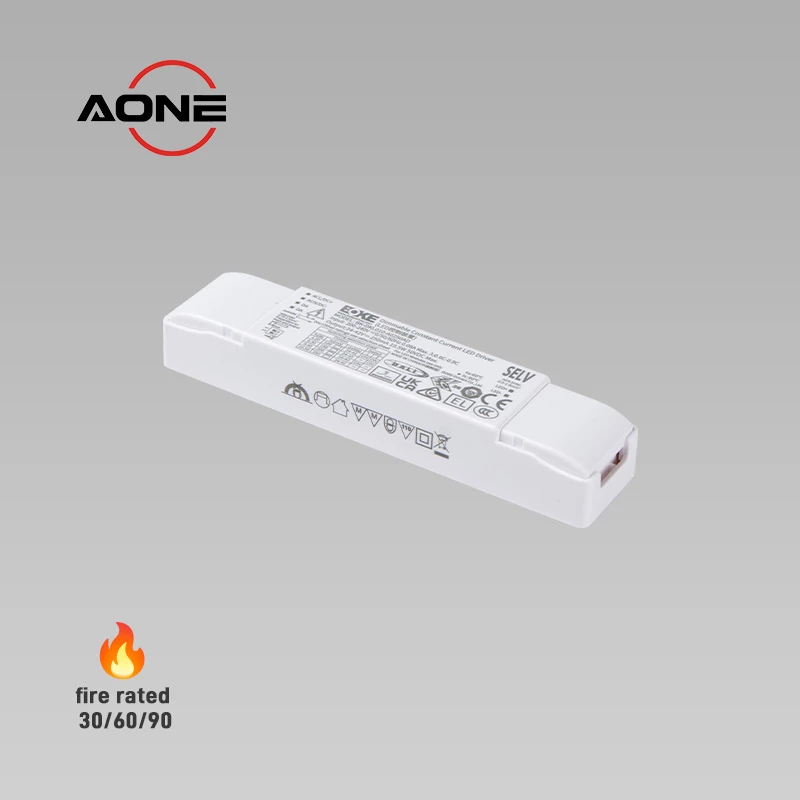

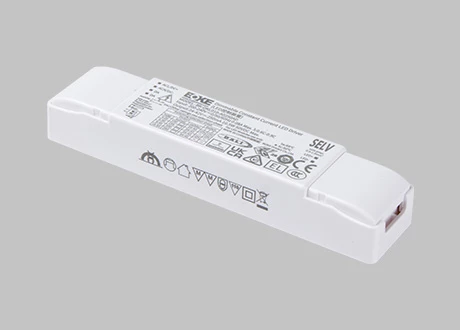

DALI-2 DT6 DT8 Driver

BOKE DALI Driver, 5.5-year Guarantee

High quality DT6/DT8, SELV and Class II, High PF & Efficiency, Low THD

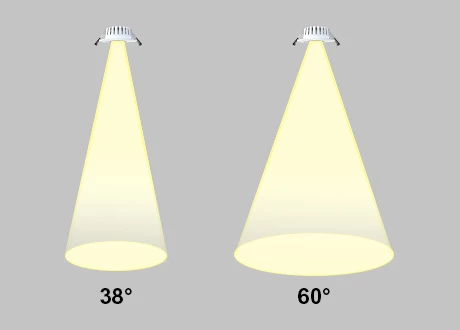

cob downlight 38 or 60 degree

6W~8W Downlight CRI>90 38° & 60° Beam Angle

DALI COB downlight with 38° or 60° lens - CRI>90 for commercial use

Technical Specifications

Model	DL127-7P COB DALI	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	7W	Bezel Color	Black, White
Input	AC220-240V 50/60Hz	Color Temperature	2700K-3000K-4000K-5700K
Lumen	700lm	Size	Dia82mm, Cutout: 68-75mm
Efficiency	100 lm/W	Certification	CE, UKCA, ErP, RoHS
Life Time	>50000 hours L70B10	Warranty	5.5 Years
Fixed or tiltable	Fixed	Coverable	Yes

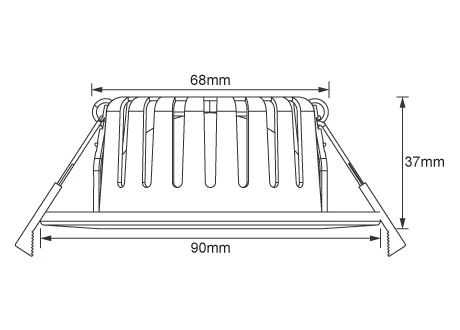

Luminaire Diameter 90mm, height 32mm, hole opening range 68-75mm

Luminaire Diameter 90mm, height 37mm, hole opening 68-75mm

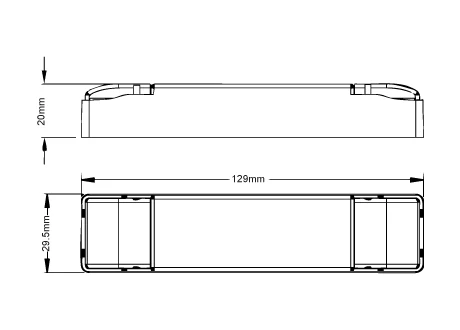

DALI DRIVER SIZE

DALI Driver Size: L129*W29.5*H20

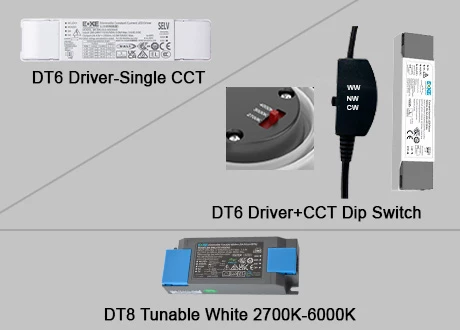

DT6 DT8 Driver Optional

DALI Driver Optional: DT6 Single CCT / DT6+Dip Switch / DT8 Tunable White

Wiring diagram

DALI-2 Driver，Push dim + Corridor Dim, 38°/60° beam, CRI>90 COB for precise lighting control.

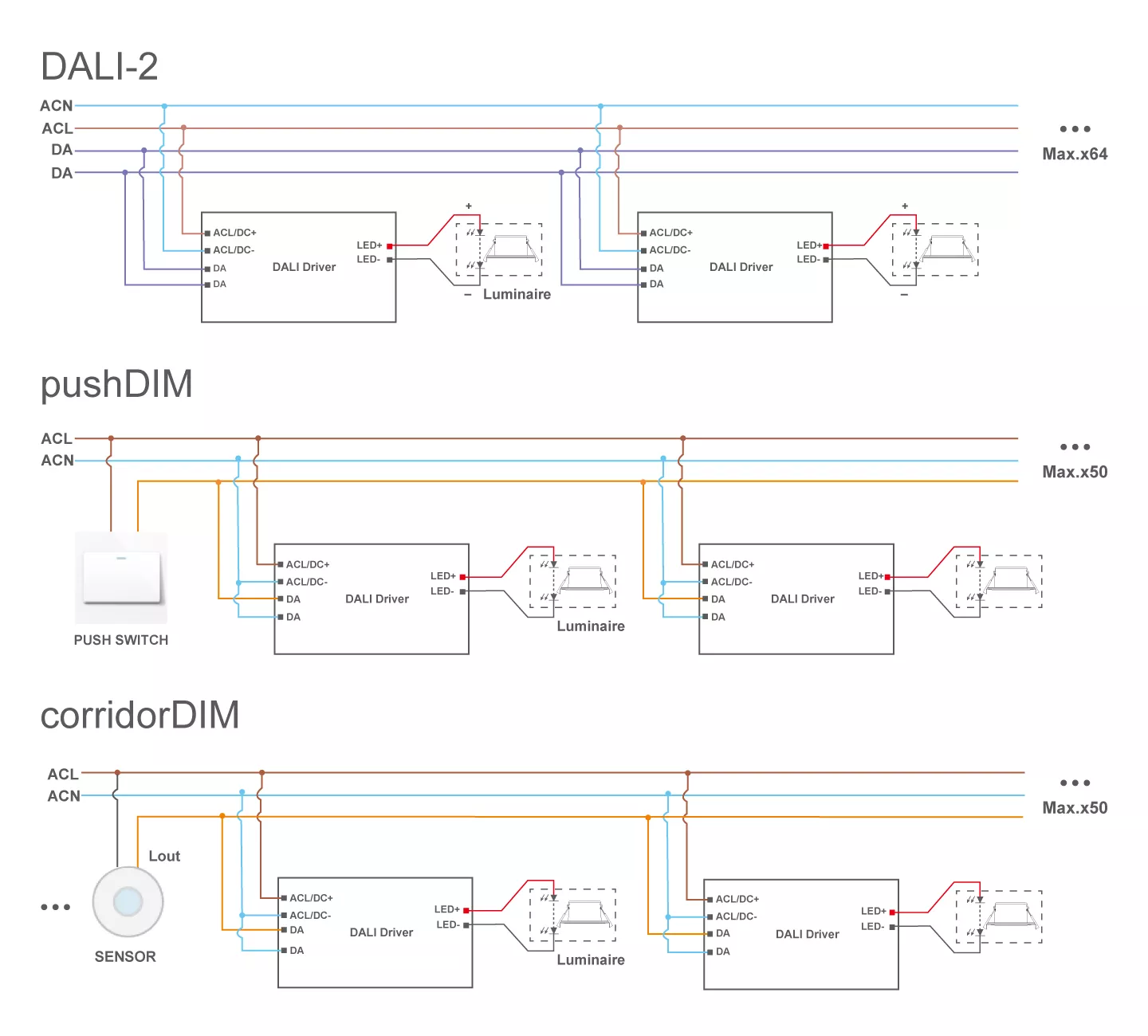

DALI-2+PUSH DIM Wiring diagram

CE TUV DALI DRIVER

✔️ DALI‑2 DT6/DT8 dimming Downlight · CRI>90+ COB · 2700K/3000K/4000K

✔️ ± 90° Adjustable Luminaire · Direct Accent or Wall Wash

✔️ IP65 Front‑Rated · Zone 1 & 2 Bathroom Safe · 7W Low Energy

✔️ Slim Downlight with DALI Driver for Shallow Voids · 68–75 mm cut‑out

✔️ 4 Premium Trims: White | Black | Brushed Chrome | Polished Chrome | Antique Brass

✔️ 6-year Quality Warranty

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

downlights for living areas

Living

Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

downlights for shopping areas

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

downlights for kitchen areas

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops

downlights for bathroom areas

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

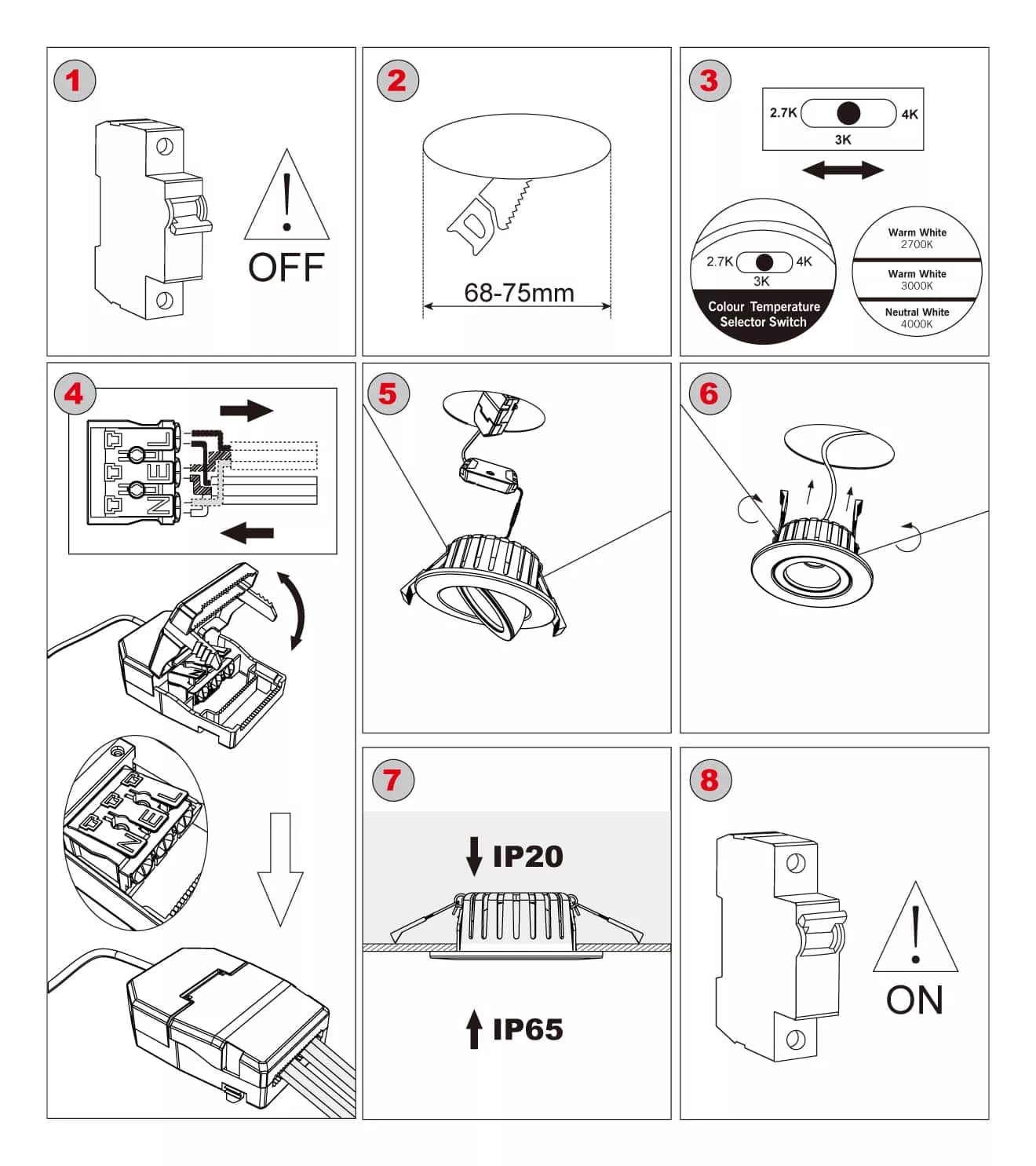

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm white to cool white, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
