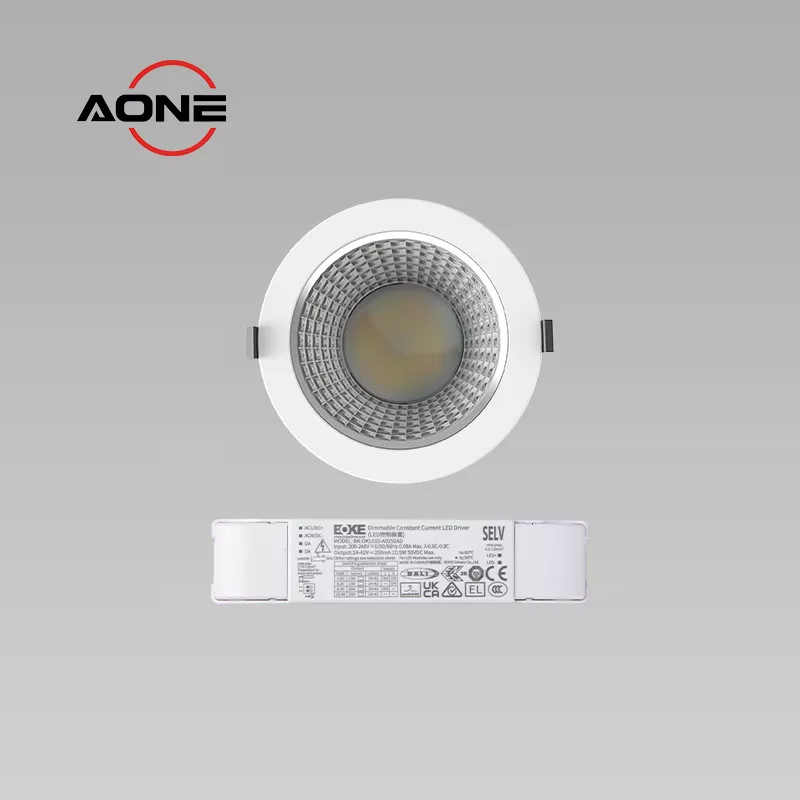

Anti Glare Commercial Downlight with Cutout 120-130mm

Anti Glare UGR < 19 Big Downlight DALI Dimming IP54 SMD Dia150mm DL46

Name: Anti Glare UGR < 19 Big Downlight DALI Dimming IP54 SMD Dia150mm DL46
Brand: A-ONE
SKU: Anti Glare UGR < 19 Big Downlight DALI Dimming IP54 SMD Dia150mm DL46
Availability: InStock

Anti Glare UGR<19 Downlight with Deep Reflector Design, Uniform Lighting Output up to 110lm/W, Compatible with DALI-2 DT6 or DT6 Driver(BOKE Brand) + pushDIM dimming mode, Diameter Available at 150mm-182mm-230mm, 4CCT Dip Switch to change color at 2700K-3000K-4000K-5700K & 60°Beam with SMD light source, IP54 Waterproof for bathroom/kitchen wet areas. Cutout available at 120mm-145mm-195mm, White/Black surface. CE, ErP, ROHS Certificate. OEM / ODM Service.

Dimensions：

Ø150 x H74mm,cut-out 120-130mm

Color temperature：

2700K-3000K-4000K-5700K

Dimming or not：

Yes, DALI-2+pushDIM

Power：

10W / 12W / 14W / 16W

Input：

AC200-240V, Output DC24V-42V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

[email protected]

lnquiry Now

Key Features & Benefits

Diameter 150mm Downlight anti-glare

DALI Smart Control + Anti Glare UGR<19

DALI-2+pushDIM+Low Glare 110lm/W

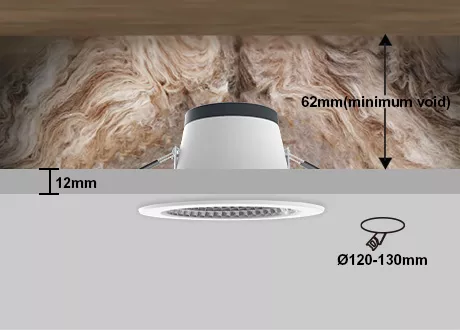

downlight cutout 120-130mm coverable air-tight

Insulation Coverable + BBC RE2020

Installed depth ≥ 62mm, cutout 120-130mm, driver included

anti-glare downlight IP54 Waterproof

IP54 Rating Waterproof

IP54 rated in the front for kitchens+bathroom zones 1 & 2

dali downlight dali-2 dimmable driver

BOKE DALI Driver, 5.5-year Guarantee

SELV Class III, High PF & Efficiency, Low THD

downlight 4CCT switchable

4 CCT Dip Switch

Easily change color to 2700K-3000K-4000K-5700K

COB dali downlight 60 beam

COB LED, CRI>90, 60° Beam Angle

60° Beam for commercial using-office/hotel/home

Technical Specifications

Model	Dali-DL46-150-60	Beam Angle	60°
Protection Class	Class II / IP54 / IK08	Dimming	DT6
Power	10W / 12W / 14W / 16W	Surface Color	White, Black
Input	AC220-240V 50/60Hz	Color Temperature	2700K-3000K-4000K-5700K
Lumen	1100lm-1760lm	Size	Dia 150mm, Cutout: 120-130mm
Efficiency	110 lm/W	Certification	CE, UKCA, ErP, RoHS
Life Time	>50000 hours L70B10	Warranty	5.5 Years
Fixed or tiltable	Fixed	Coverable	Yes

Luminaire Diameter 90mm, height 51mm, hole opening 82-85mm

3 Diameter Available at 150mm-182mm-230mm

DALI DRIVER SIZE

BOKE DALI Driver Size: L129*W29.5*H20

DT6 DT8 Driver Optional

DT6 Driver 2.7K or 3.0K or 4.0K / DT8 driver 2.7K-5.7K

✔️ Eye-Friendly UGR<19—Deep reflector design eliminates glare, ensuring maximum visual comfort for homes and offices.

✔️ High Efficiency 110lm/W—Bright, uniform 60° lighting helps reduce energy use without compromising comfort.

✔️ DALI-2 DT6 / pushDIM—Works with BOKE driver for smooth, flicker-free dimming and easy smart lighting control.

✔️ 4CCT Selectable—Switch between 2700K/3000K/4000K/5700K on-site to suit any space and drastically reduce inventory.

✔️ IP54 Waterproof—Moisture and dust-resistant, making it safe and ideal for bathrooms, kitchens, and wet areas.

✔️ Flexible Installation—Available in 3 cutout sizes (120/145/195mm) and black/white finishes for effortless retrofits or new builds.

✔️ 5.5-year Quality Warranty—Lifespan > 50000hours, Fully CE, ErP, and RoHS certified, backed by full OEM/ODM services for commercial projects.

	Our Product	Industry Average
Glare Control	UGR<19	UGR 19–22
Luminous Efficacy	110 lm/W	80–95 lm/W
Wet-Area Protection	IP54	IP20–IP44
Color Temperature Options	4CCT: 2700K-3000K-4000K-5700K	1–3 CCT options
Dimming Compatibility	DALI-2 DT6 + pushDIM	Triac or non-dimmable

Q1: What is the MOQ and lead time for bulk orders ?
A1: MOQ is 200 pieces, and lead time is 40 days upon order confirmed.

Q2: Why choose an anti-glare downlight for commercial spaces ?
A2: It improves visual comfort by reducing glare and eye strain. With UGR<19, it is ideal for offices, hotels, retail stores, shopping malls, and showrooms.

Q3: Does it support dimming control ?
A3:Yes. It supports DALI-2 DT6 and pushDIM, with a BOKE driver for smooth, flicker-free dimming

Q4: Is it suitable for damp areas ?
A4: Yes. With an IP54 rating, it is suitable for bathrooms, kitchens, washrooms, and other damp indoor areas.

Q5: Can one model suit different project requirements ?
A5: Yes. The 4CCT selectable function — 2700K / 3000K / 4000K / 5700K — offers greater on-site flexibility and helps reduce stockholding.

Wiring Diagram DALI-2 Driver + Downlights

DALI-2+PUSH DIM Wiring diagram

CE TUV DALI DRIVER

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
