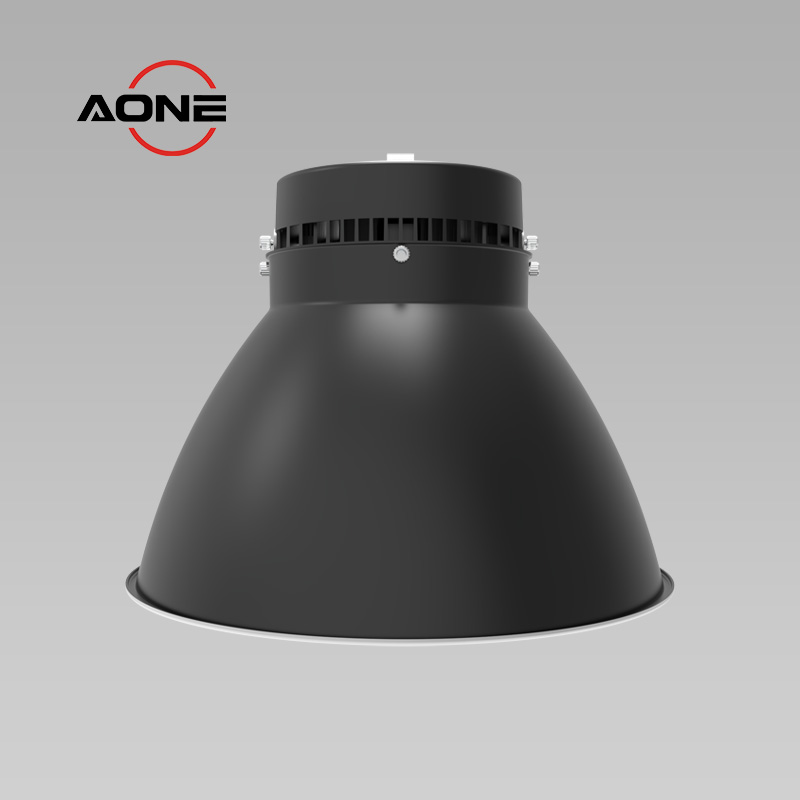

Decorative High/Low Bay Dimmable IP65 Multi-functional LB01

Mini Low Bay power 15W-25W-35W and CCT selectable between 3000K-4000K-5700K. Low glare design, UGR

Dimensions：

Ø302 x H229mm

Power：

15W-25W-35W selectable

Color temperature：

3CCT 3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

120°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

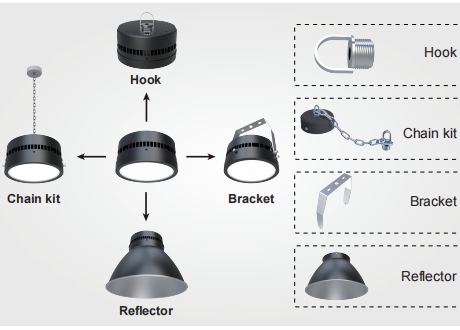

Key Features & Benefits

high/low bay versatile

Versatile

1 light engine with 4 accessories apotional.

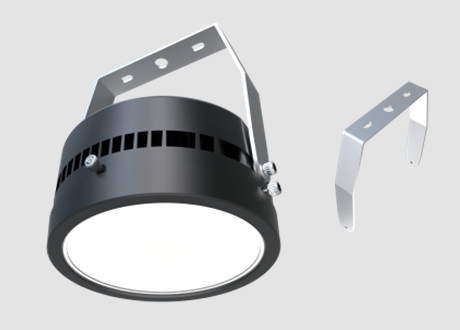

high/low bay bracket

Bracket

Adjustable U-bracket mounting accessory for high/low bay luminaire

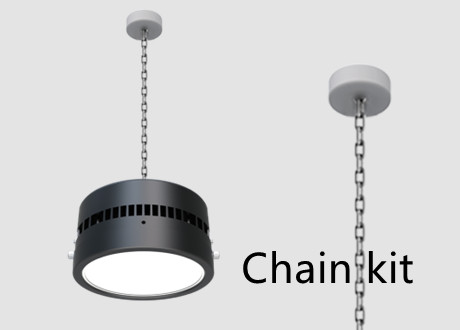

Highbay Suspension Chain 1-1.5m

Suspension Chain

Suspension Chain 1.5m metal chain for hanging High Bay Lights on the ceiling

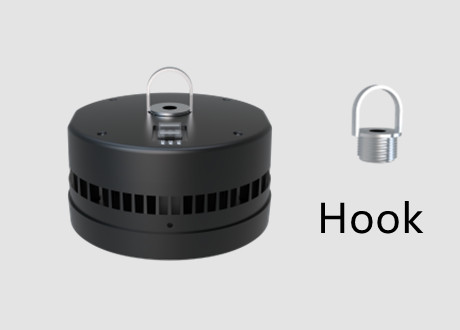

Standard Version Metal Hook Fixture

Hook

Standard version with metal hook fixture

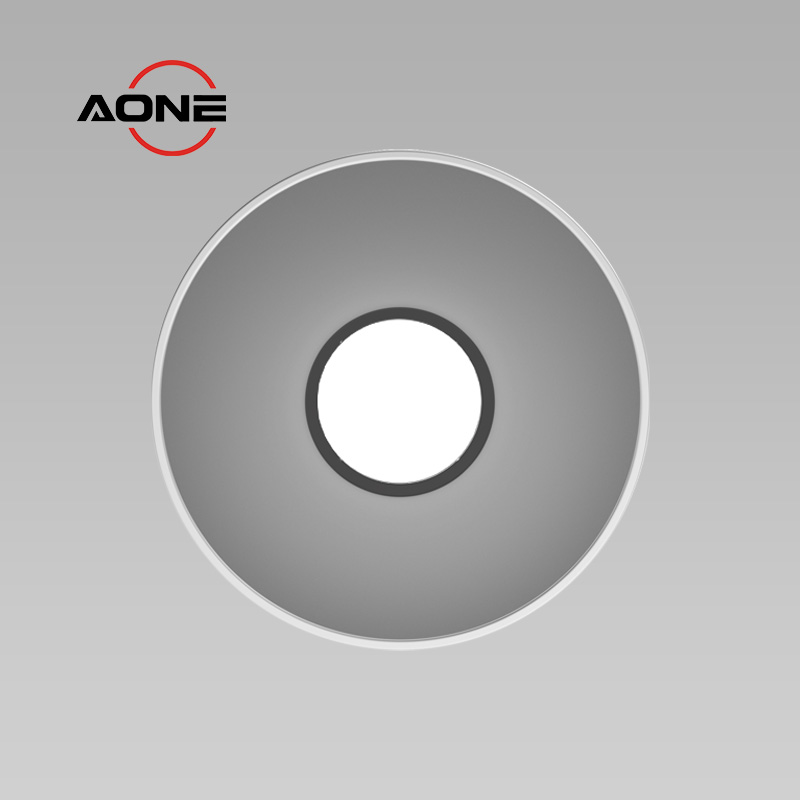

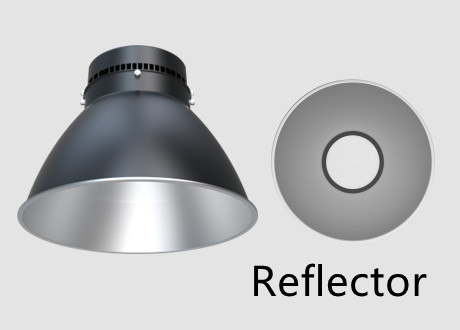

high low bay reflector

Aluminum Reflector

High-quality aluminum reflector, color option white, black, brushed color optional.

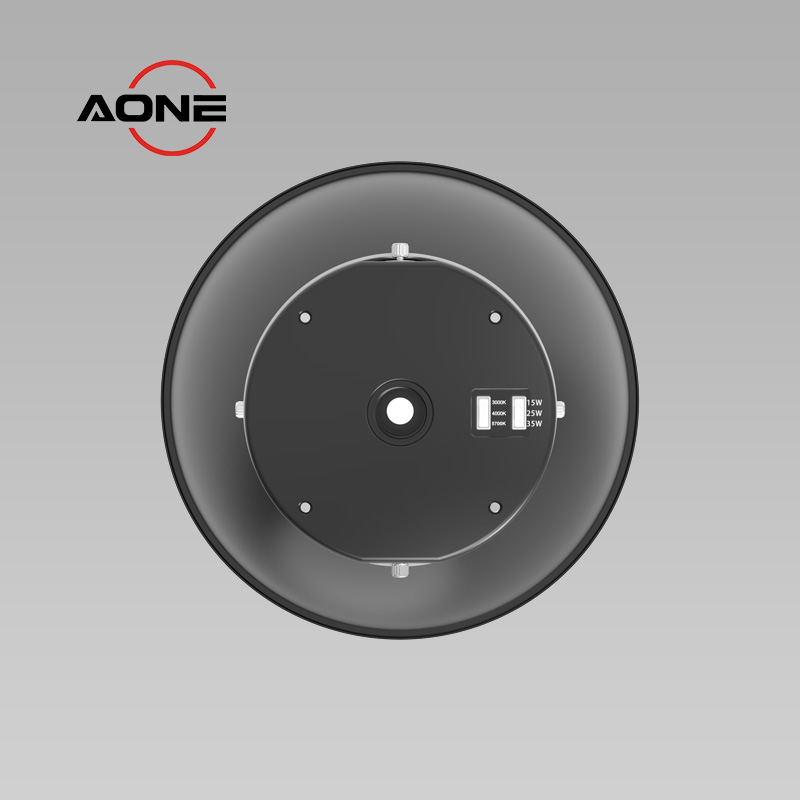

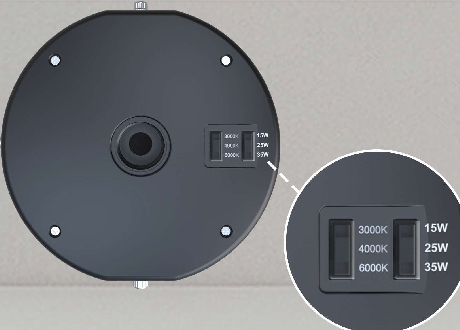

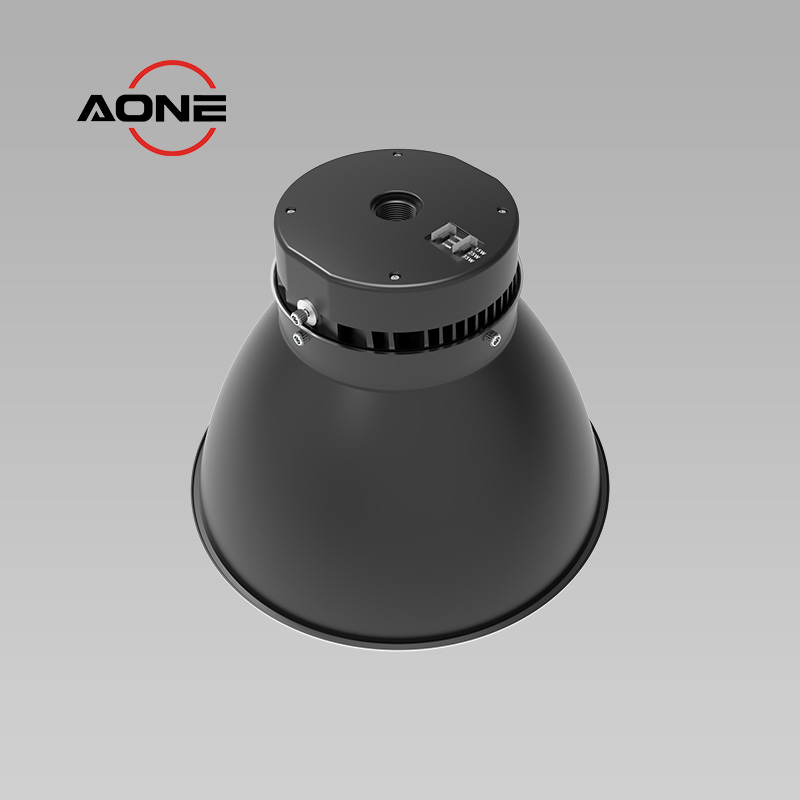

HIGH LOW BAY WATTAGE AND cct SWITCHABLE

Wattage / CCT Dip Switch

Power 15W-25W-35W and CCT 3000K-4000K-5700K selectable

Technical Specifications

Model	LB01	Beam Angle	120°
Protection Class	Class I / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	15W/25W/35W Switchable	Color	Black, White
Input	AC220-240V 50/60Hz	Color Temperature	3000K/4000K//5700K
Lumen	1650lm/2750lm/3850lm	Size	Dia 302 x H 229mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

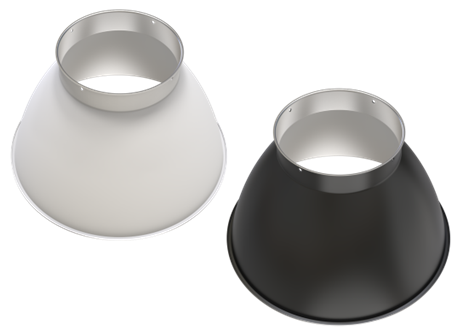

high low bay reflector white black changeable

White/black deep reflector

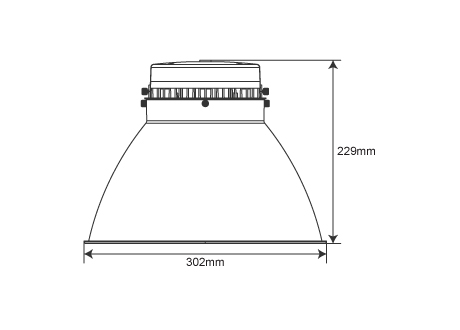

high bay low bay size

Diameter 302mm, height 229mm

high bay low bay junction boxs

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

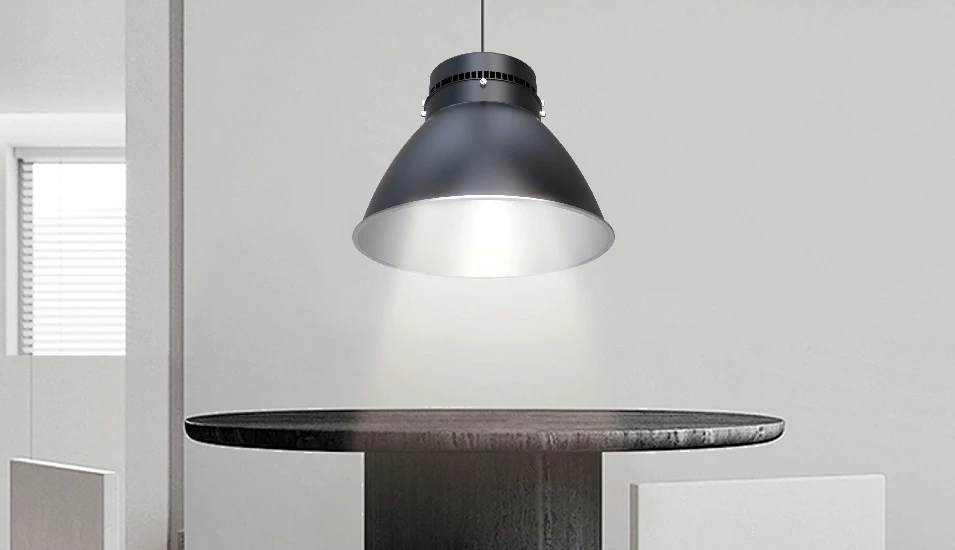

residential high bay application

Living

Residential mini high bay application

kitchen bar high bay

Kitchen Bar

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 for your kitchen

restaurant

Restaurant

Mini or decorative high bay lights in restaurants enhance ambiance with focused lighting, add aesthetic appeal as decorative elements, and save space with compact design

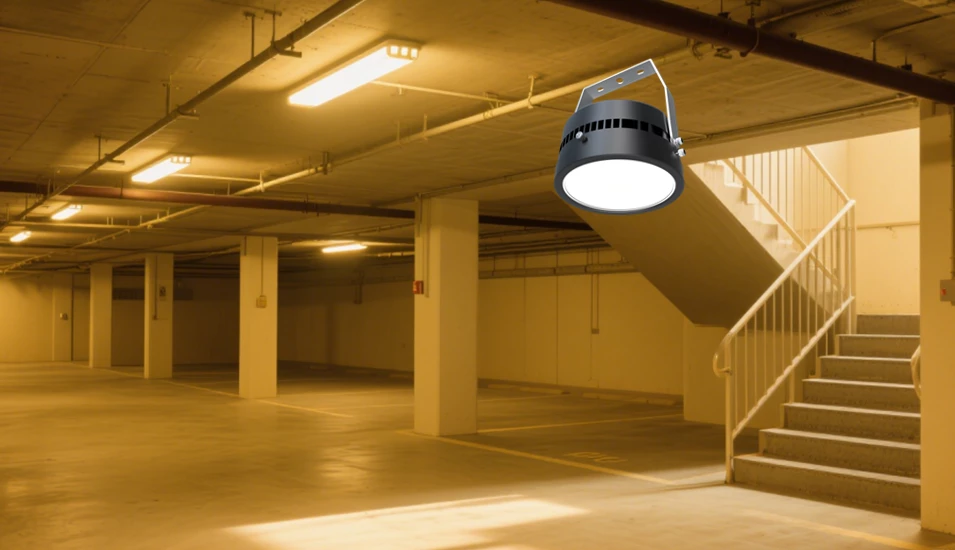

Parking Lots or Corridors

Mini or decorative high bay lights in underground parking lots or corridors offer bright, energy-efficient lighting

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

downlight certificates

Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

Mini High Bay Installation Guide

This decorative mini high bay light includes a free hook as standard version; optional accessories (chain kit, bracket, reflector) let you customize for any space. Fix the free hook to a ceiling (e.g., structural beam) with screws/anchors, hang the light fixture directly on the hook; for chain kit, replace direct hook - to - light connection, adjust length for desired height then attach to the ceiling hook; for bracket, screw it to a wall/vertical surface and snap the light onto it; for reflector, clip onto the light’s bottom to enhance light spread. Cut power at the circuit breaker, wire the light to your electrical supply (match live/neutral/ground), restore power and test. Secure all parts before powering on; use a stable ladder/lift for high - ceiling installs.

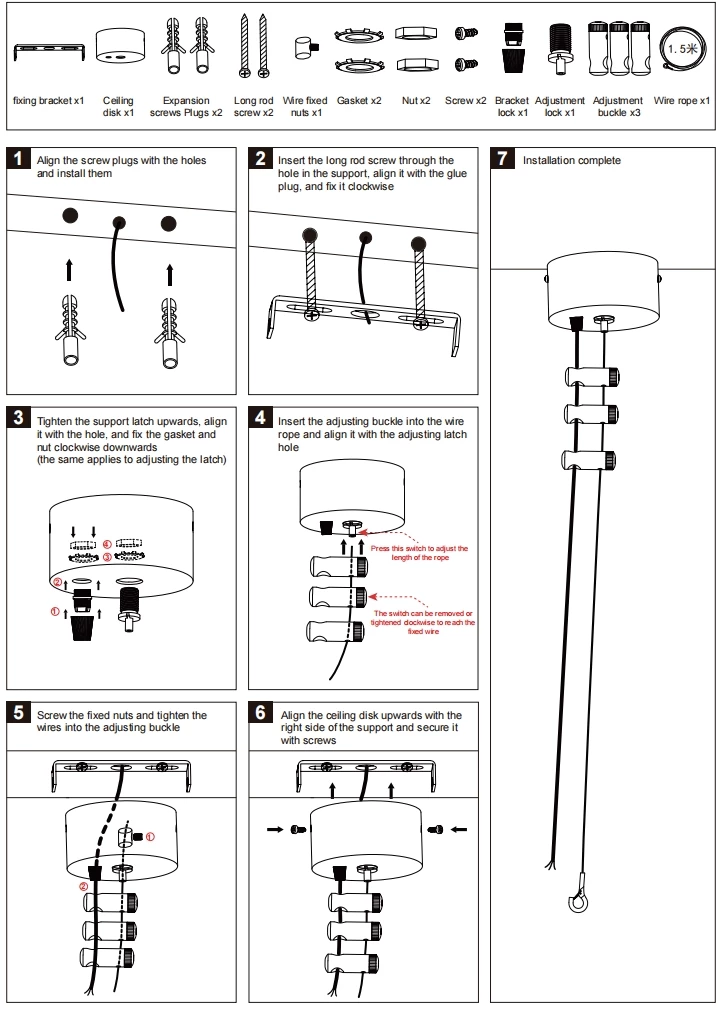

high bay low bay installation steps
