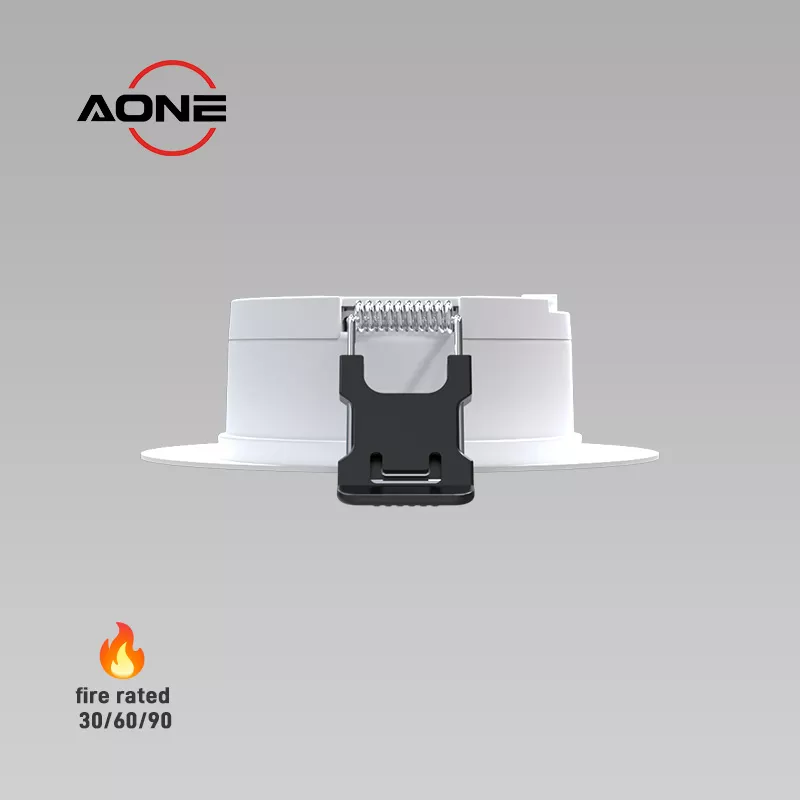

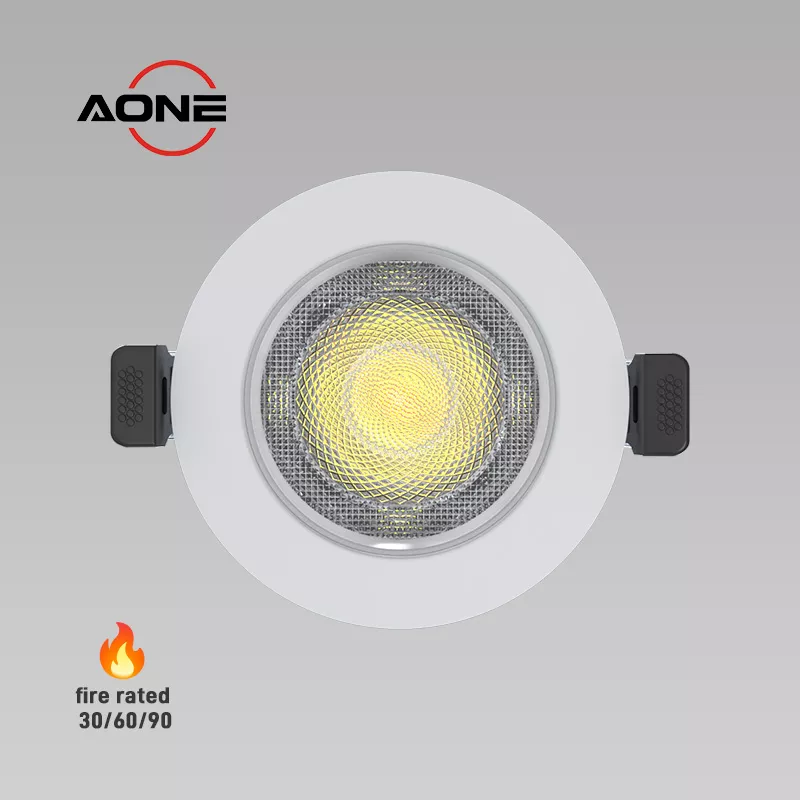

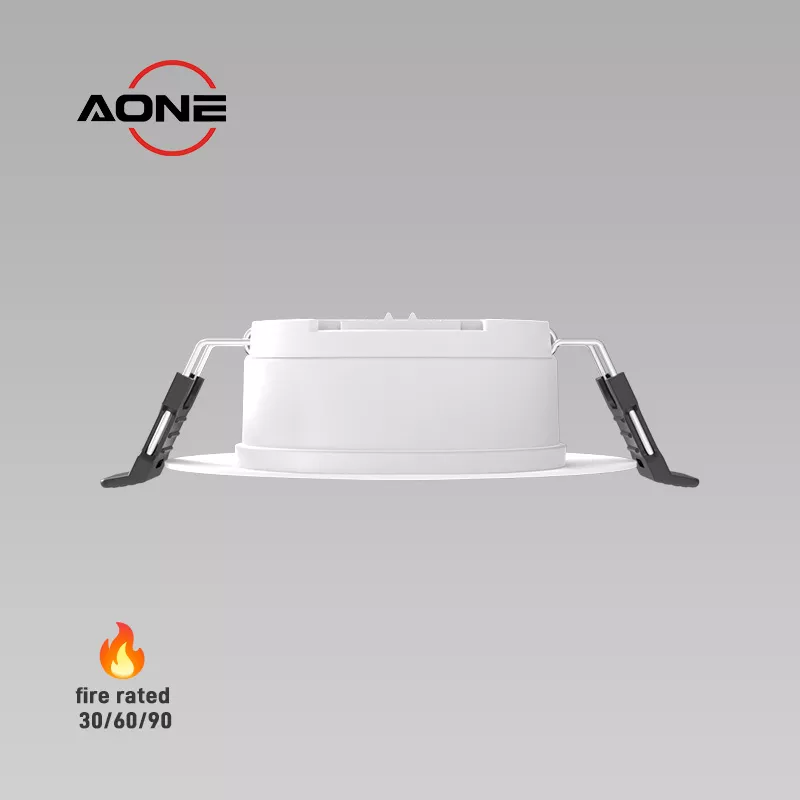

Fire Rated Downlight IP65 120lm/W Dimmable 5W 3CCT Select DL99A

5W fire rated downlight with 3CCT selectable, Triac dimmable, IP65 waterproof, high efficiency 120lm/W, multiple finishes in white/black/brushed chrome/polished chrome, EU compliant, energy-saving, ideal for retrofit and new builds.

Dimensions：

Ø87 x H28mm,cut-out 60-75mm

Color temperature：

2700K/3000K/4000K/5700K

Dimming or not：

Yes, triac dimmable

Power：

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

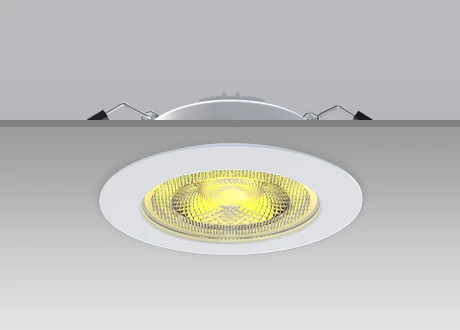

Perfect lighting for any room or mood.

SMD, CRI >80, 120lm/W

High color accuracy CRI>90 optional, Perfect lighting for any room

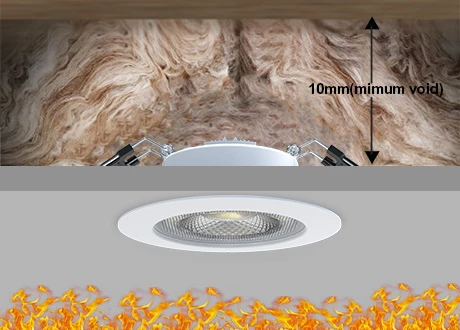

fire rated safety downlight low void

Fire Rated 30/60/90 + Slim + Coverable

High-quality housing, insulation materials coverable, depth void >=10mm

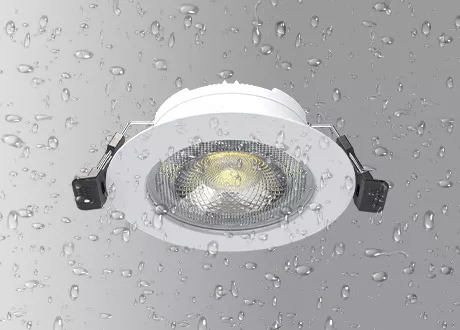

COB downlight IP65 Waterproof

IP65 Waterproof

IP65 rated from below the ceiling, perfect for kitchens, bathrooms, hallways, and more.

3CCT downlight

3CCT Selectable in 1 light

2700K/3000K/4000K/5700K selectable, no need to buy different fittings, saves time and cost.

downlight beam angle 38 or 60 degree

60° Beam Angle

Wider beam for broader coverage

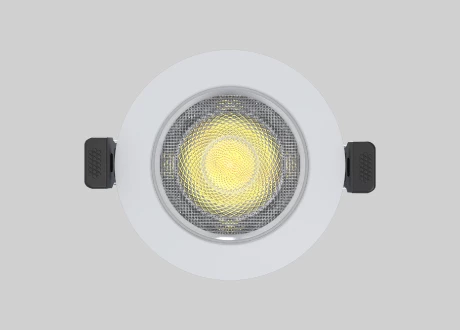

Triac Dimmable & Energy Efficient

Triac dimmable, Prismatic Lens

5W 600 lumen, fully dimmable, flexible lighting control

Technical Specifications

Model	DL99A	Beam Angle	60°
Protection Class	Class I / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	5W selectable	Bezel Color	Black, White, Polished Chrome, Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	600lm	Size	Dia87mm, Cutout: 68-75mm
Efficiency	120lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours L70B10	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

4 surface finishes

4 Surface finishes in white/black/brushed chrome/polished chrome

Diameter 87mm, height 28mm, hole opening range 68-75mm

Diameter 87mm, height 28mm, cut-out 68-75mm

fast connector

Fast connector loop in/out terminal

COB downlight got CE, ROHS, IP65 certificates, 5 years warranty

✔️ 120lm/W Efficiency: Bright, uniform light with low energy costs.

✔️ Fire-Rated Housing: High-quality steel with fire safety certification for durability.

✔️ IP65 Waterproof: Resists moisture from below, ideal for bathrooms, kitchens, or covered outdoor areas.

✔️ Tool-Free Install: Fast patent connector with quick L, E, N terminals for loop-in loop-out easy wiring.

✔️ Triac Dimmable: 5W SMD LED, fully dimmable.

✔️ Certification : CE, ROHS, UKCA, CB certificated with 5-year warranty

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

downlights for living areas

Living

Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

downlights for shopping areas

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

downlights for kitchen areas

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops

downlights for bathroom areas

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

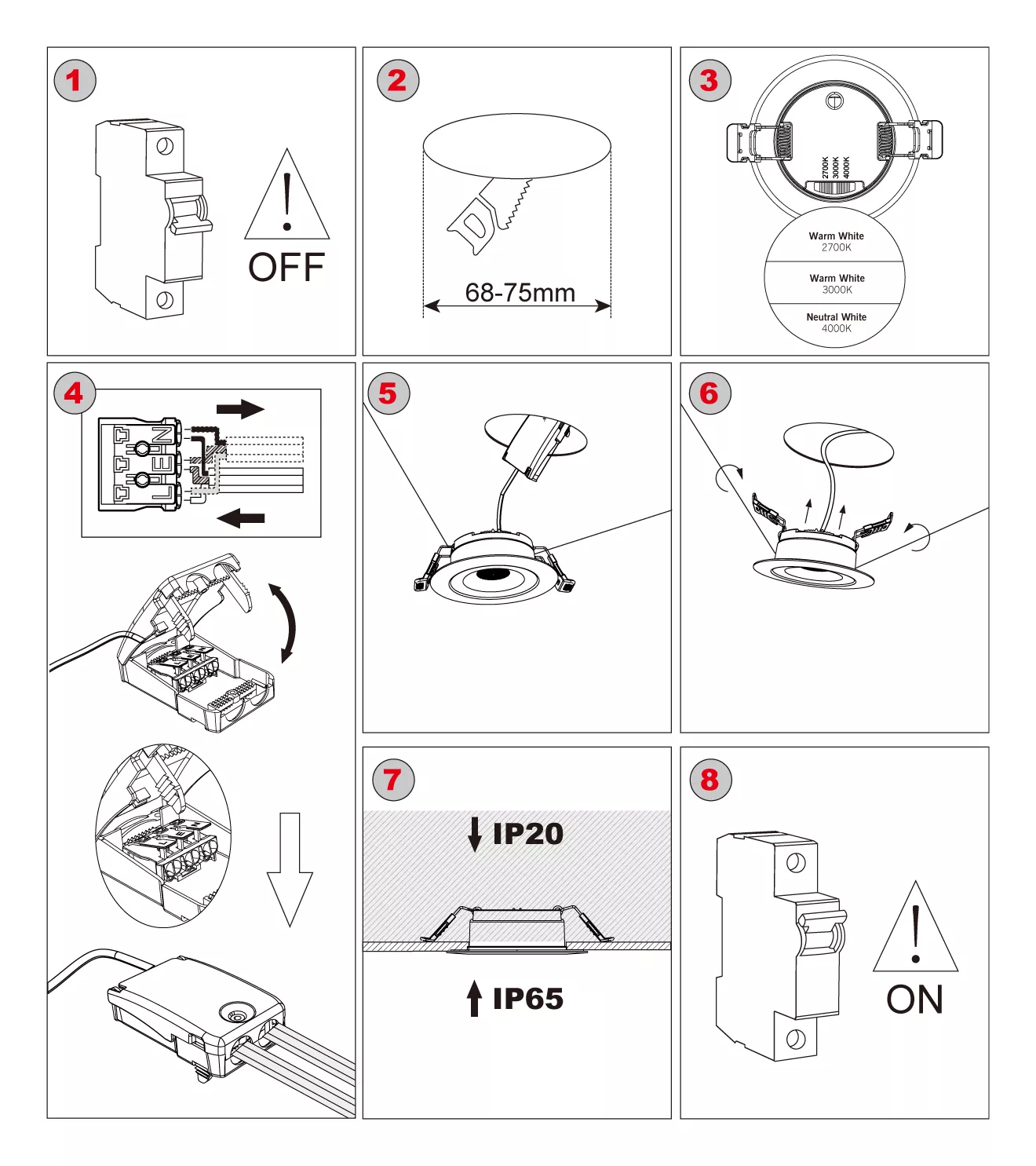

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm white to cool white, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight installation steps

✔️ Why settle for ordinary lighting? Choose this IP65 LED downlight for vibrant, eye-safe illumination that lasts.

✔️ Where can it shine? Perfect for bathrooms, kitchens, retail spaces, or anywhere needing waterproof, high-quality light.

✔️ Who benefits? Homeowners, designers, and businesses seeking energy efficiency and style.

✔️ Ready to elevate your lighting? Shop the 8W COB LED Downlight at AoneLED today!
