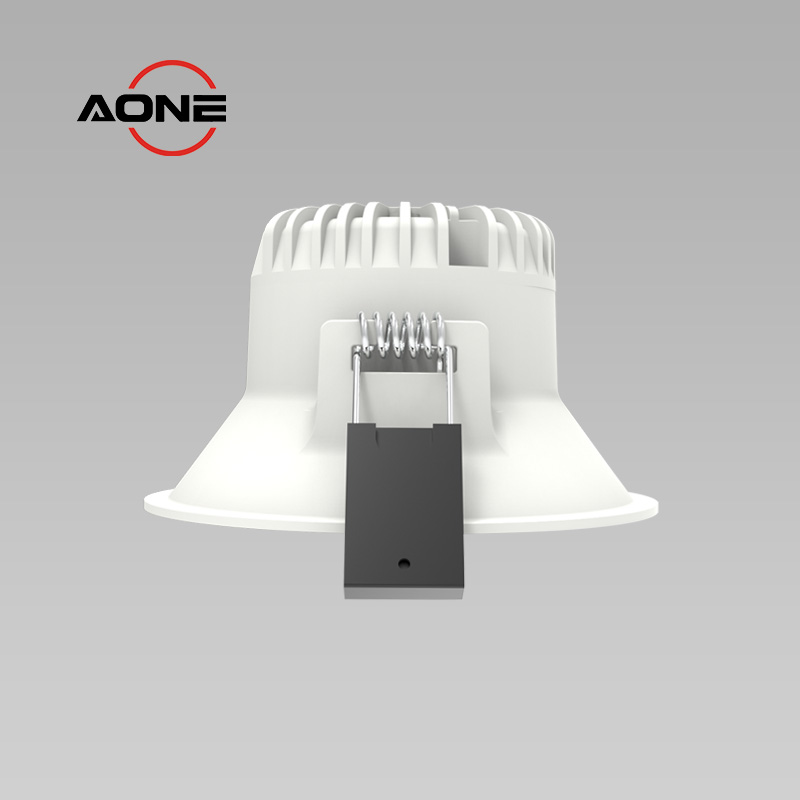

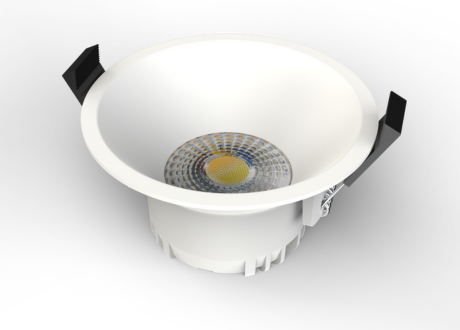

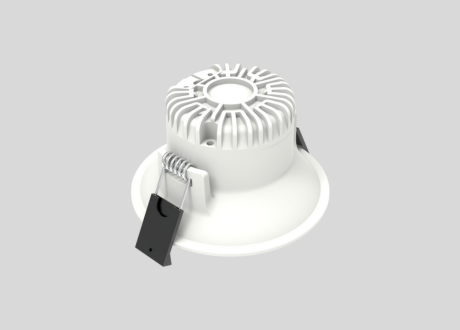

Aluminum surface Anti-glare Downlight 100lm/W,5W,8W 4CCT, IP65, DL87

Aluminum surface Downlight Multi-functional DL87

This dual-wattage (5/8W) dimmable IP65 downlight features selectable CCT (2700K, 3000K, 4000K, 5700K) with precision anti-glare optics; its tool-free easy-fit system integrates loop-in/out terminals for streamlined circuit wiring. Available in White or Black finishes, the insulation-coverable fixture is double-certified to CE, ROHS standards. Supplied factory-direct and tailored OEM/ODM solutions.

Dimensions：

Ø90 x H51mm,Cut-out 82-85mm

Power：

5/8W

Color temperature：

2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

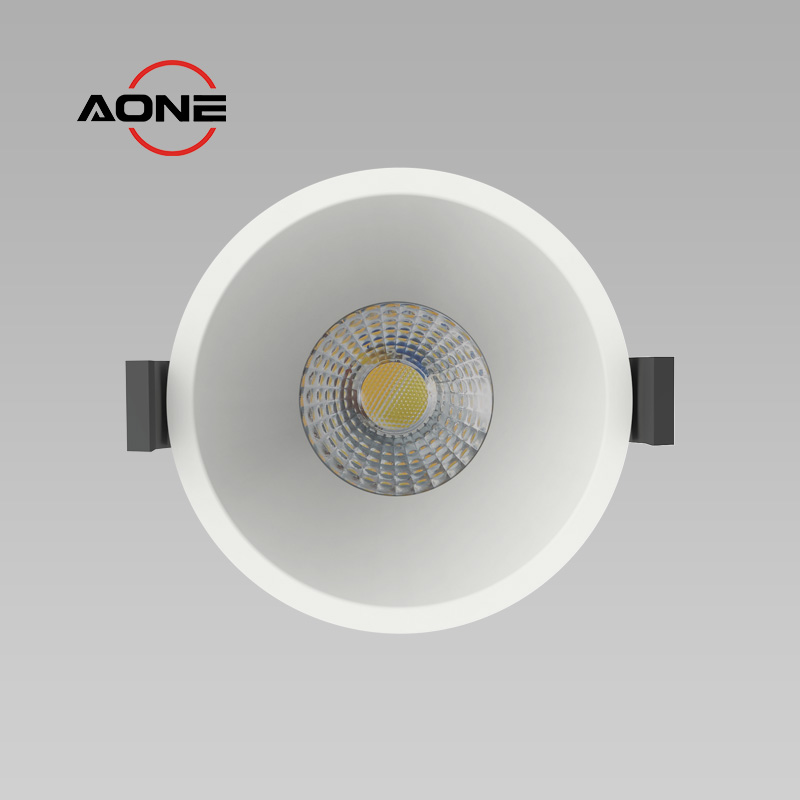

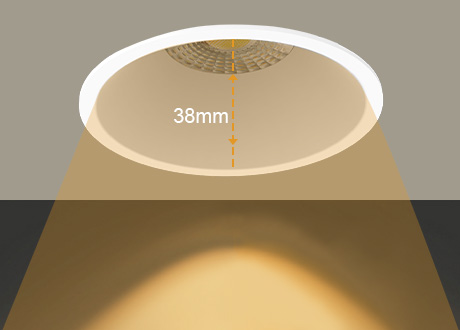

Anti-glare Recessed LED Downlight

Gentle Light Output; Soothing Light Quality

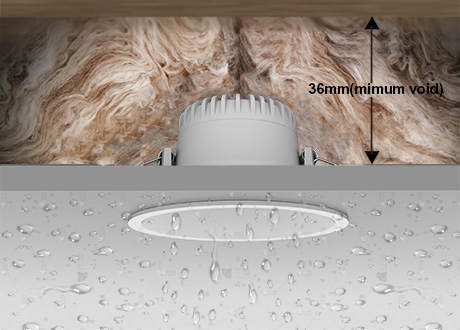

IP65 Rating / Coverable

Specially designed for damp areasoffering complete dust-tight protection and water jet resistance, coverable, mini void 36 mm

Sealed Housing

Sealed housing with matte-finish: Dust-tight, jet-water resistant, and fingerprint-resistant durability

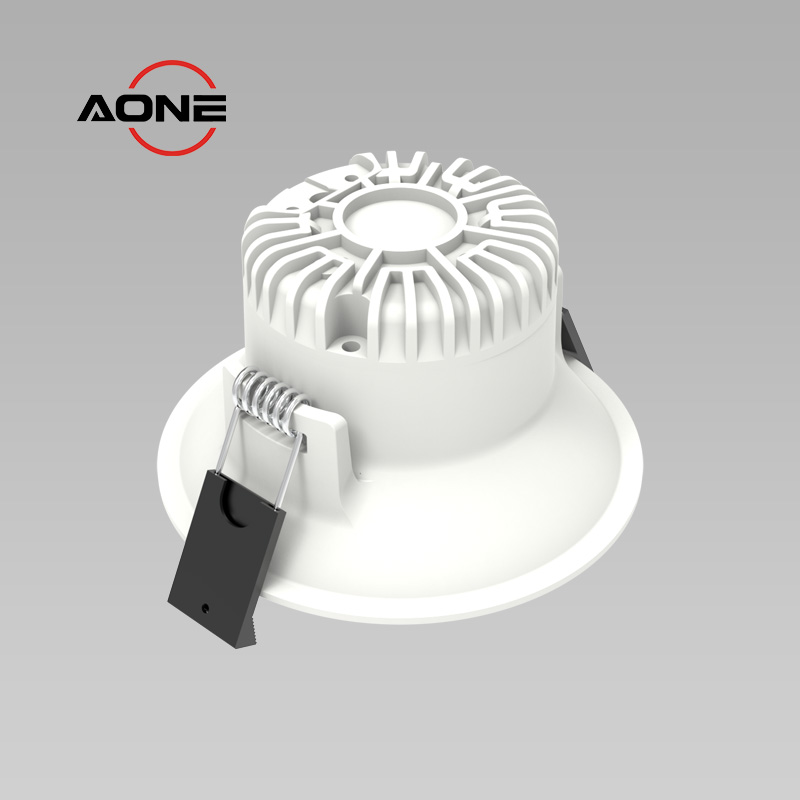

Metal Surface

Durable and attractive die-cast aluminum creates a solid surface

38° or 60° beam optional High quality of LED chip and lens, offering RA>80 or RA>90 version

38° or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast Installation via Loop in/out Terminal

2 power × 4CCT Dip switch, Plug-and-play driver reduces installation time by 50%

Technical Specifications

Model	DL87	Beam Angle	38° or 60°
Protection Class	Class II / IP65(Front) / IK08	Dimming	Trailing edge and leading edge
Power	5/8W	Color	White,Black
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	500/800lm	Size	Dia90mm, Cutout:82-85mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fixed or Tiltable	Fixed	Coverable	Yes

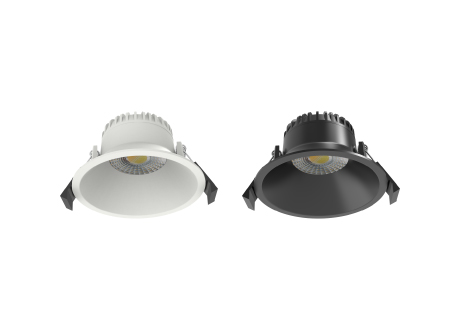

White, Black options

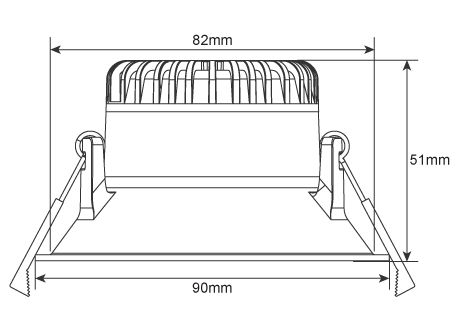

Diameter 90mm, height 51mm, hole opening range 82-85mm, recessed depth 36mm.

led downlight spotlight drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

Living

3CCT optional, freely choose warm light and natural light to bring soft comfortable optical experience.

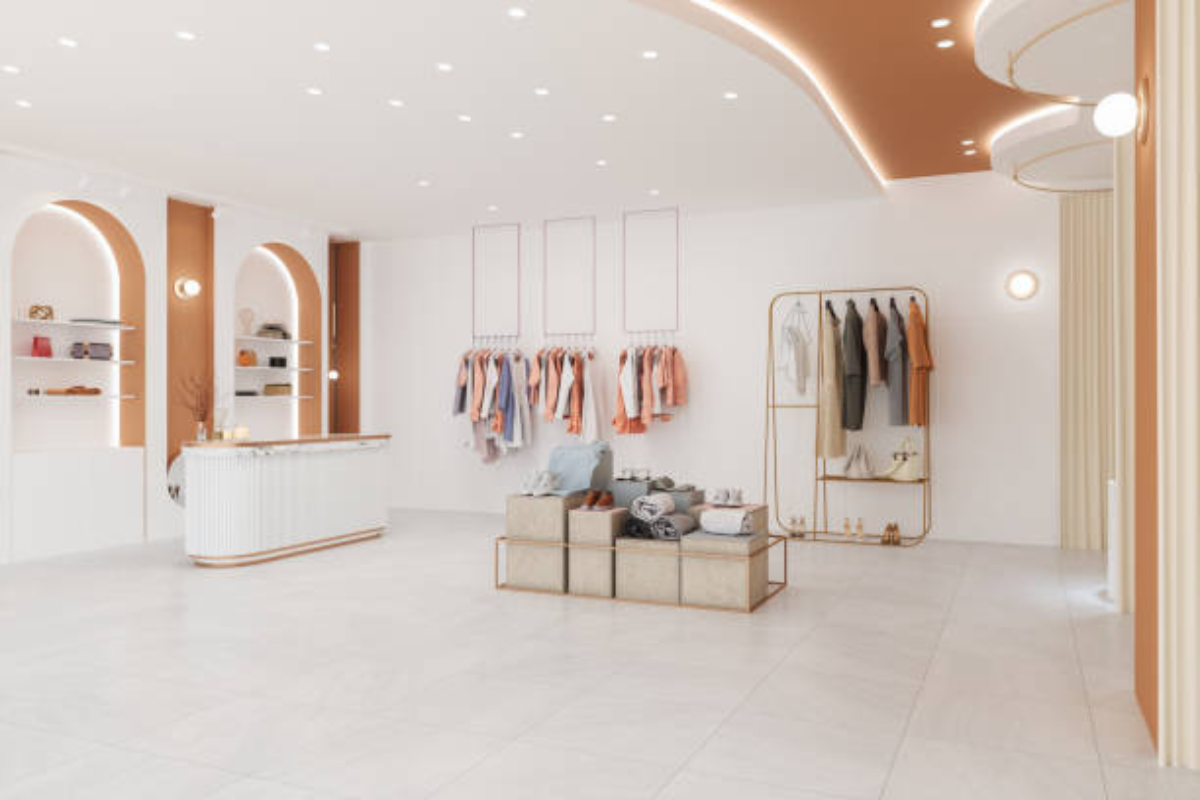

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

Kitchen

Waterproof & Dustproof, practical downlight/spotlight delivering soft anti-glare illumination to enhance visibility and productivity.

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

Production Process

A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

downlight production process

Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

downlight certification

Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

downlight testing

Installation Display

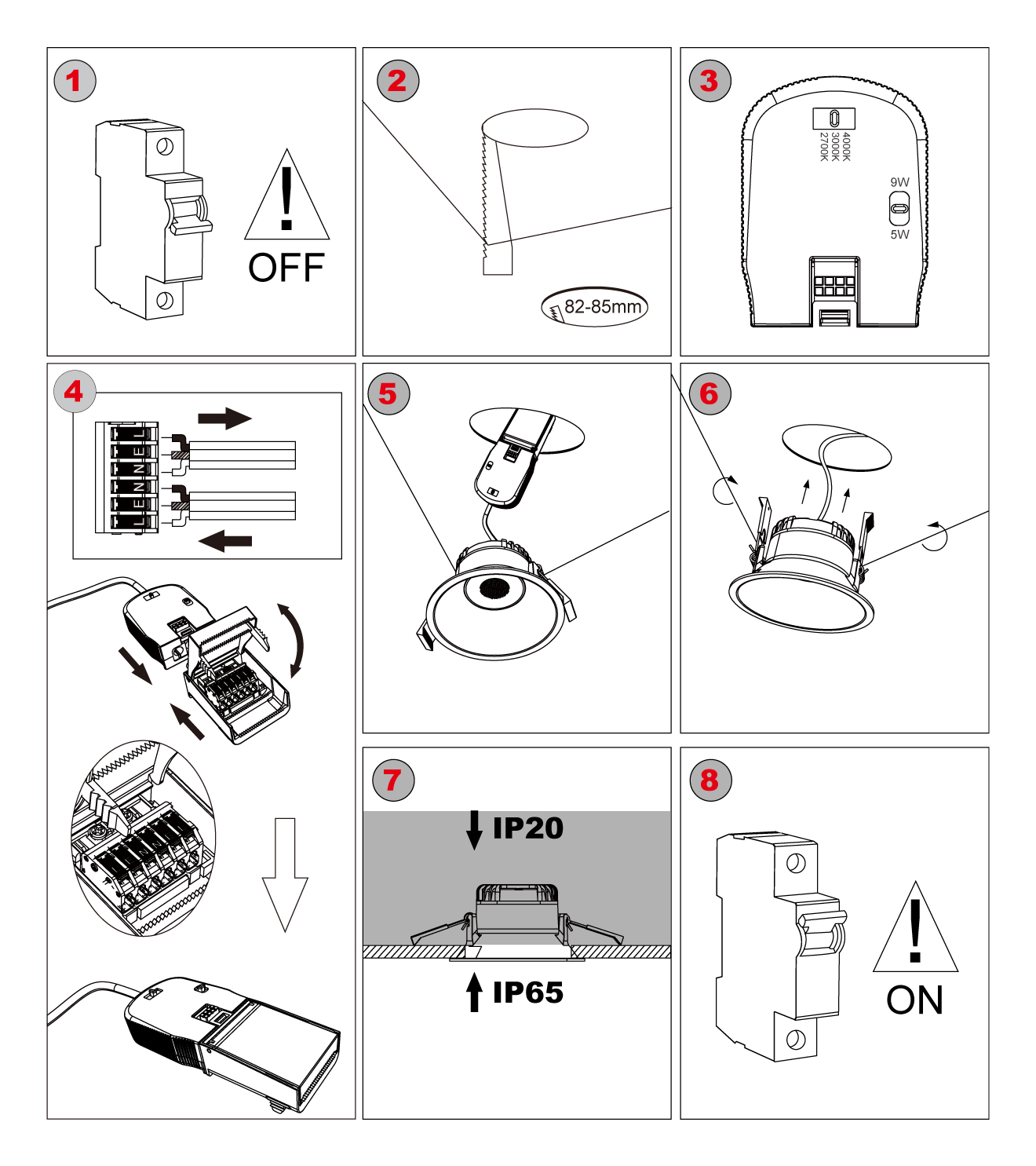

Turn off the power supply before installation, cut a hole (82-85mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
