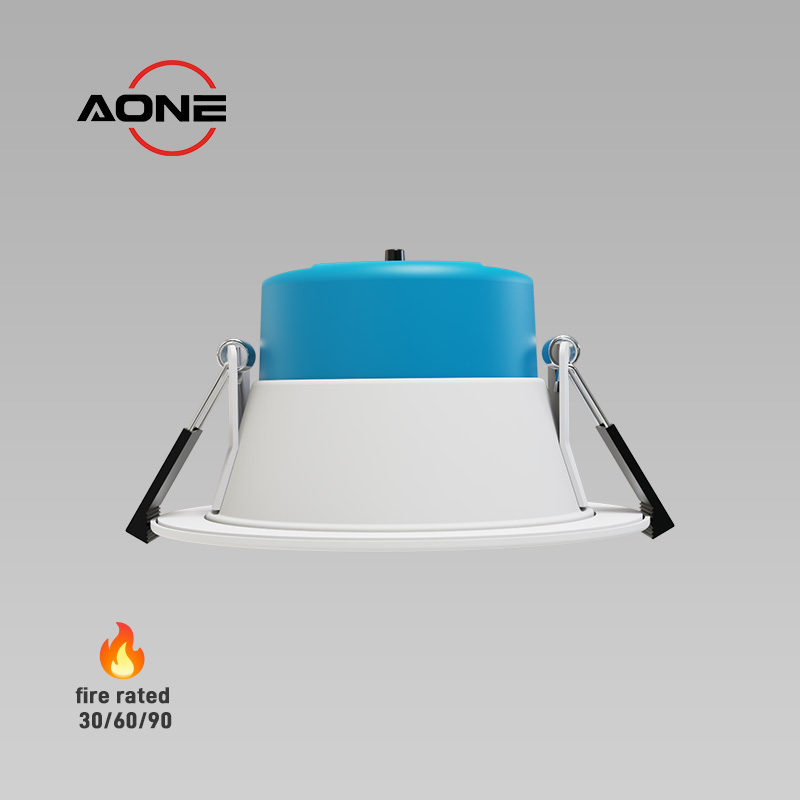

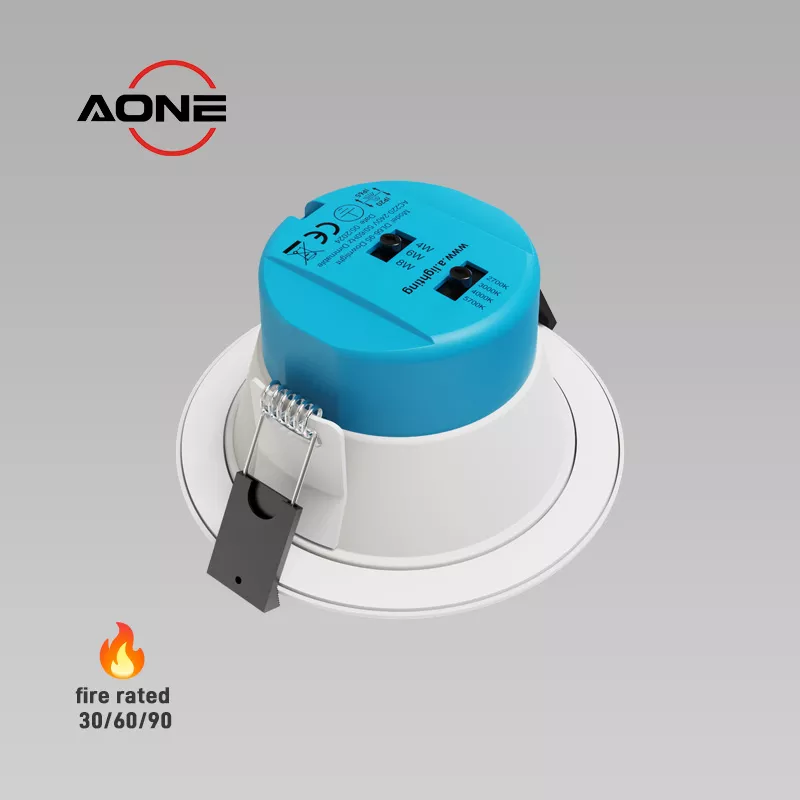

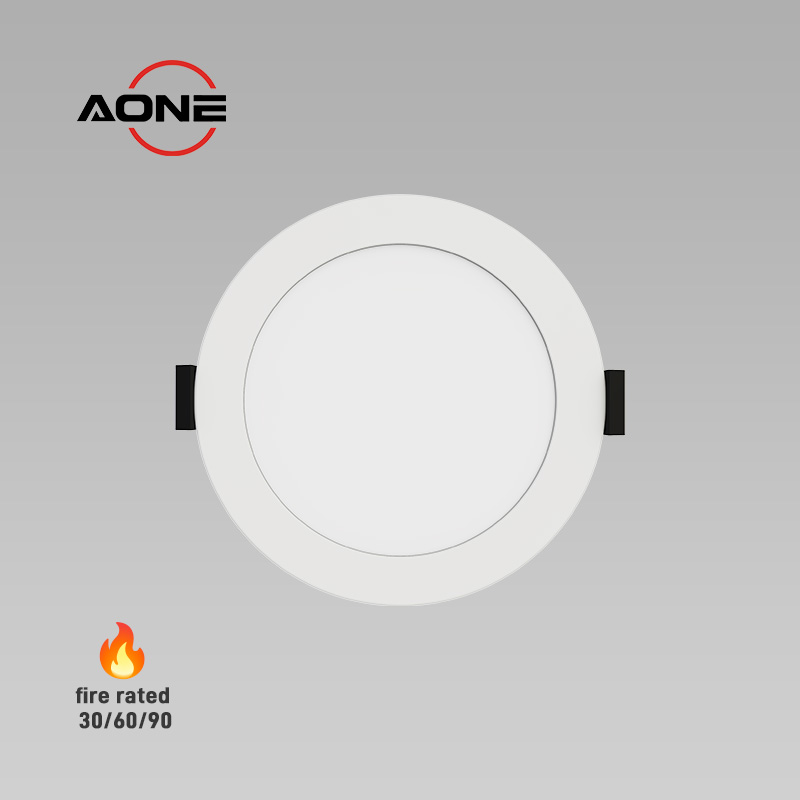

IP65 ECO Fire-Rated LED Multi-functional Downlight DL66-95

Low Budget Downlight：4W/6W/8W selectable and CCT selectable between 2700K, 3000K, 4000K and 5700K. IP65 heavy rain-proof +90min fire-rated certification. Tool-free interchangeable bezels (White/Black/Chrome/Bass/Nickel) with insulation contact design. OEM/ODM solutions for hotels/villas/commercial spaces.

Dimensions：

Ø95 x H52mm,cut-out 75-80mm

Power：

4W-6W-8W selectable

Color temperature：

4CCT 2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

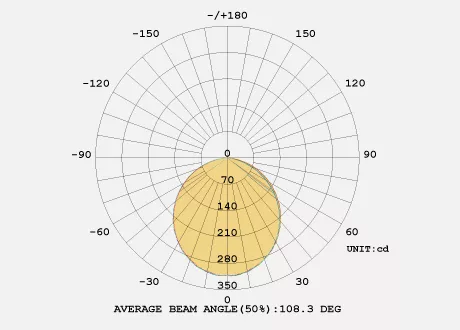

Beam angle：

120°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Low Budget

Low Budget

Energy-saving, environmentally friendly and economical

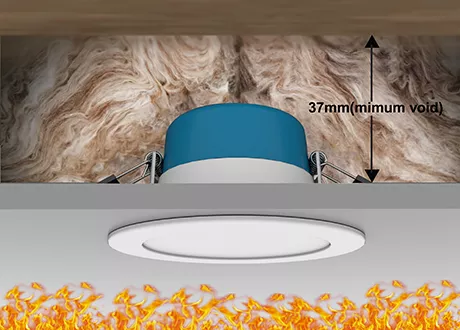

Fire-rated / Coverable

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, min void 37mm

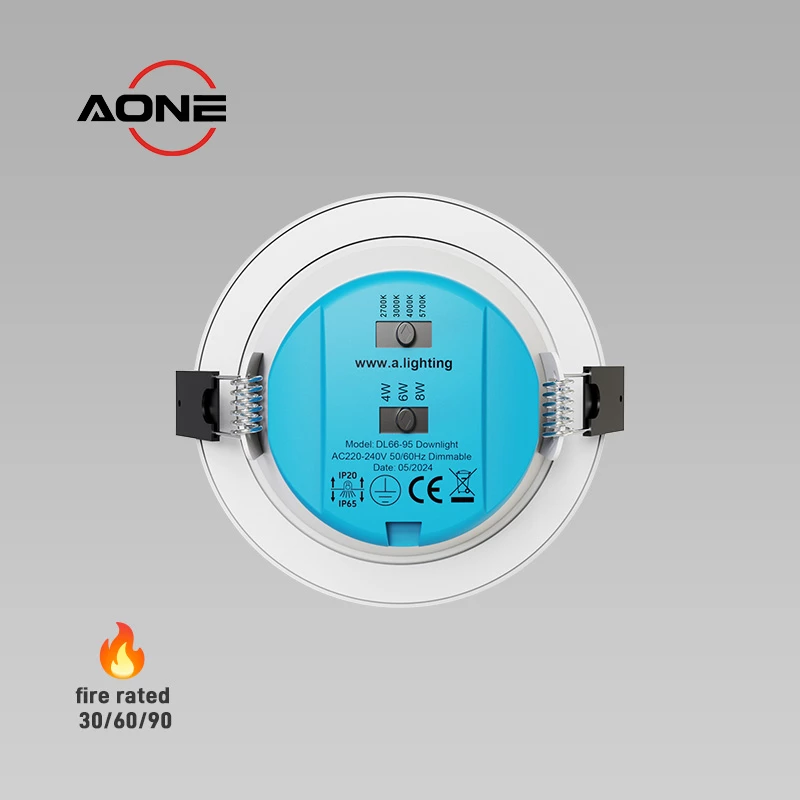

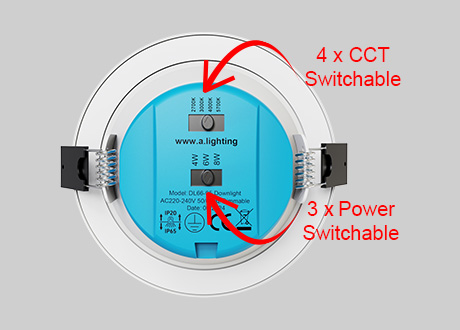

Power & CCT Switchable

Power & CCT Switchable

Wattage 4W/6W/8W and 4CCT easily change from below the ceiling

Tuya Smart Option

Tuya Smart Option

Select Tuya driver and select RGB

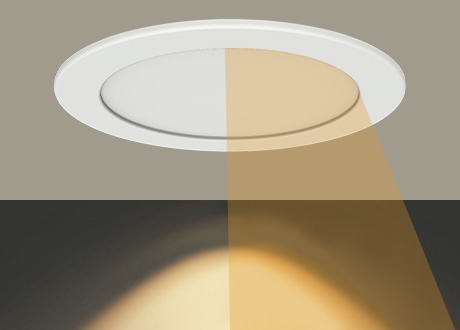

120° beam optional

120° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast installation via Loop in/out terminal

Fast Installation via Loop in/out Terminal

Plug-and-play junction box reduces installation time by 50%

Technical Specifications

Model	DL66-95	Beam Angle	120°
Protection Class	Class I / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	4W/6W/8W Switchable	Bezel Color	Black, chrome,brass,Brushed nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	480/720/960	Size	Dia95mm, Cutout: 75-80mm
Efficiency	120lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

bezel/trim interchangeable

Bezel/trim interchangeable: white, black, polished chrome, matt brass, brushed nickel

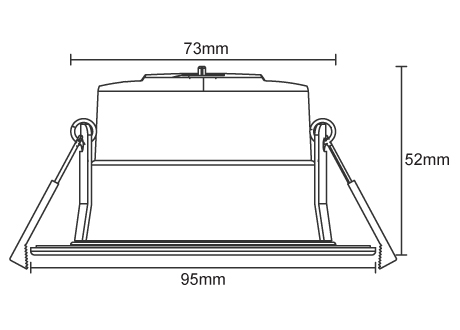

Size

Diameter 95mm, height 52mm, hole opening range 75-80mm

junction boxes

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation

Applicable Scenarios

Perfect for residential, hotel, commercial office applications

Living

The 120°-beam downlight provides broad, soft light, ideal for basic tasks, energy-efficient, and adaptable.

shopping

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

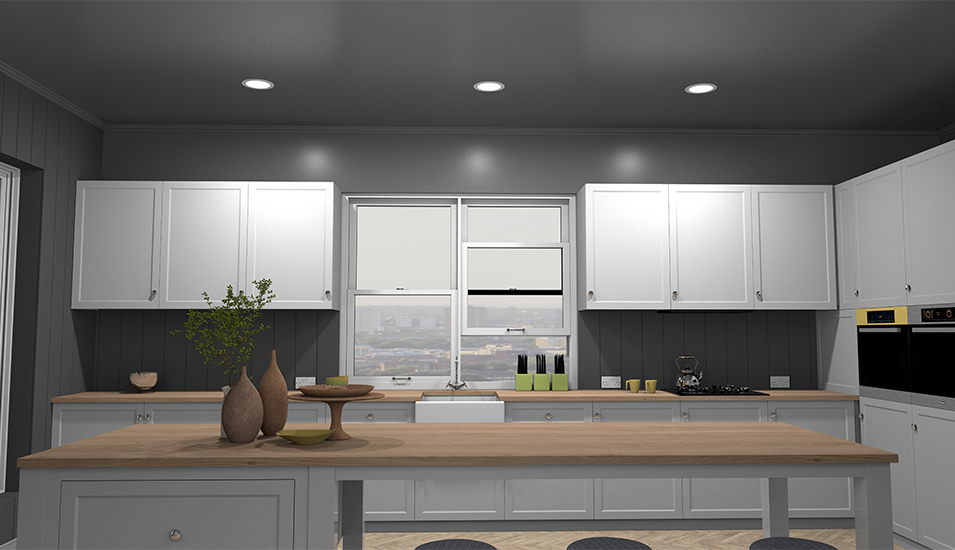

Kitchen

With a variety of color temperatures, Choose 5700K for bright task lighting (galleys/helm) or 2700K for warm ambiance (Kitchen).

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

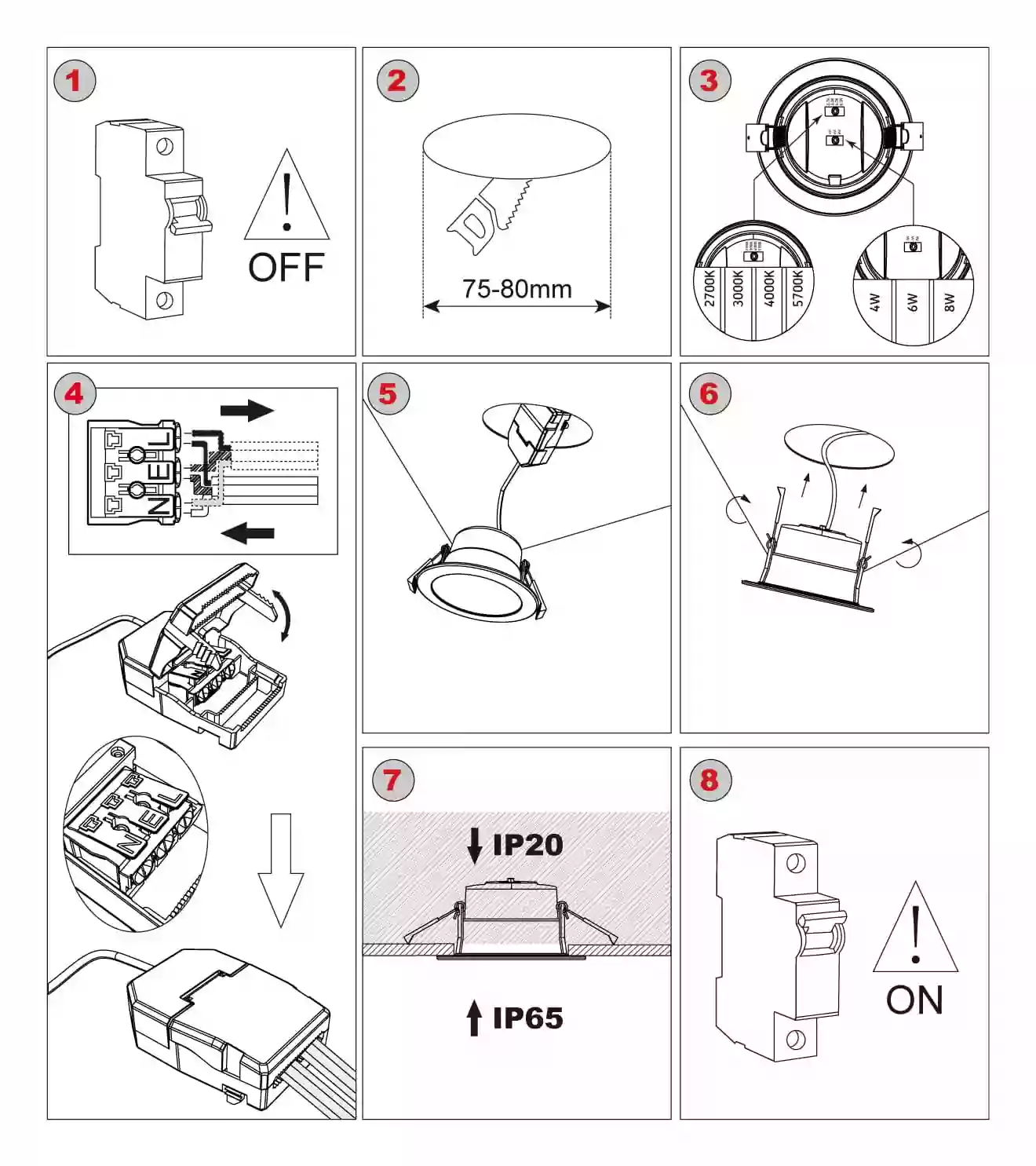

Installation Display

Turn off the power supply before installation, cut a hole (75-80mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight spotlight installation steps
