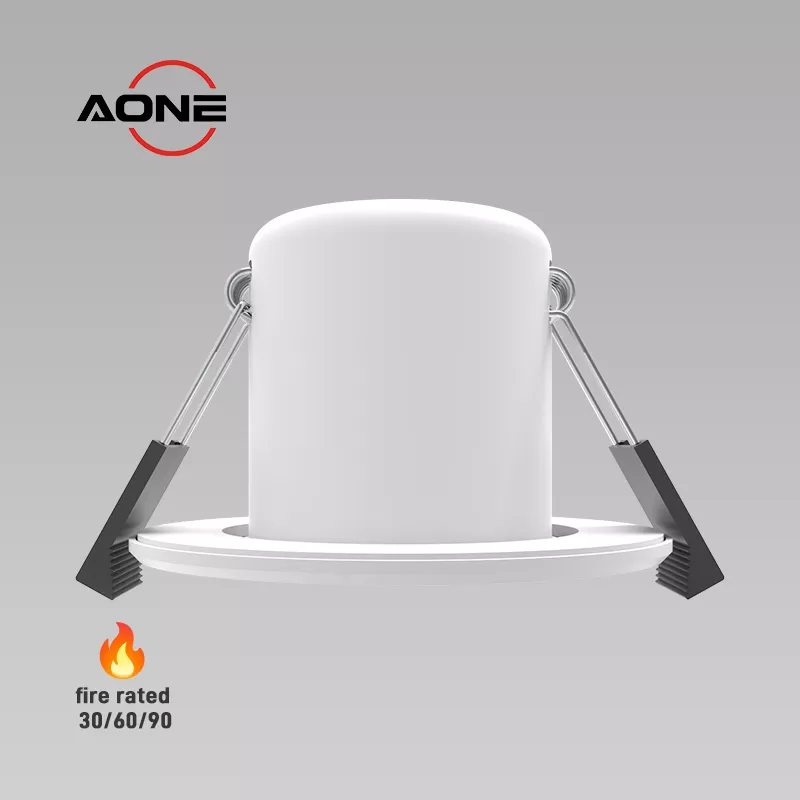

IP65 ECO Fire-Rated LED Multi-functional Downlight DL99-1CCT

All-in-One Smart Downlight：5W and 1CCT selectable between 2700K, 3000K, 4000K and 5700K. IP65 heavy rain-proof +90min fire-rated certification. Tool-free interchangeable bezels (White/Black/Chrome/Bass/Nickel) with insulation contact design. OEM/ODM solutions for hotels/villas/commercial spaces.

Dimensions：

Ø84 x H50mm,cut-out 60-75mm

Power：

Color temperature：

1CCT 2700K or 3000K or 4000K or 5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38°/60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Low Budget

Low Budget

Energy-saving, environmentally friendly and economical

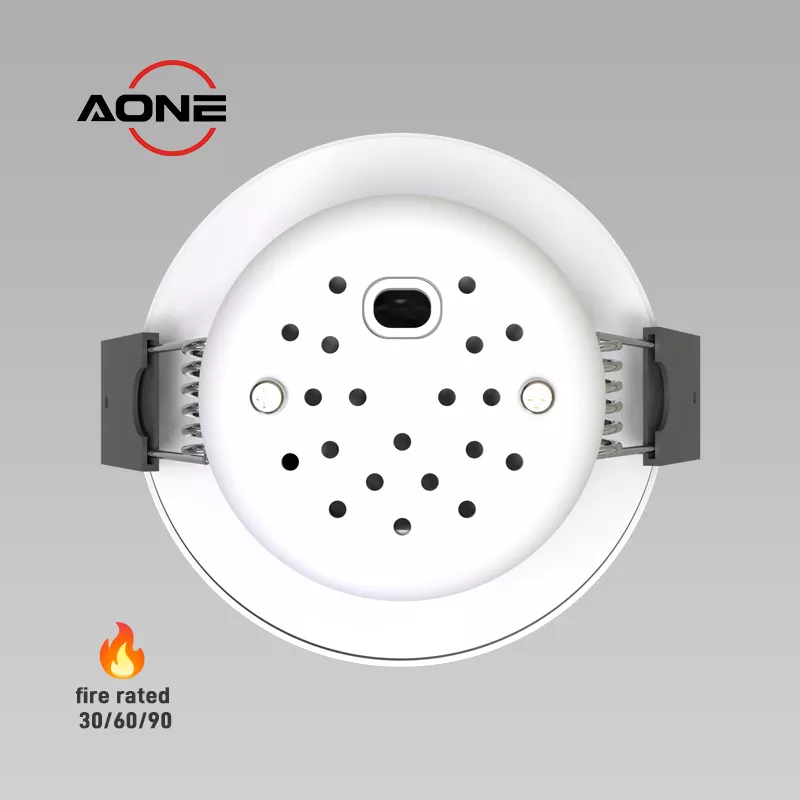

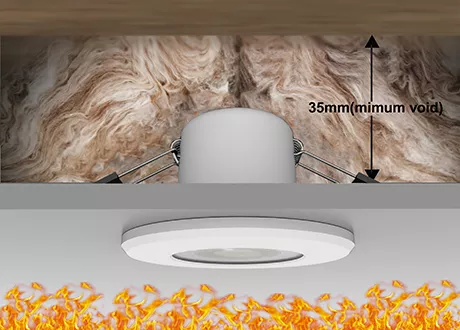

Fire-rated / Coverable

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, min void 35mm

Power & CCT Switchable

Power & CCT Switchable

Wattage 5W and single CCT

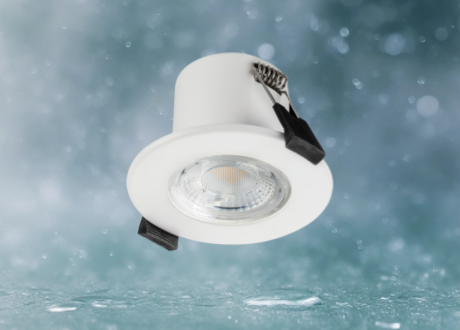

IP65 waterproof downlight·

Waterproof

The front reaches IP65 waterproof value

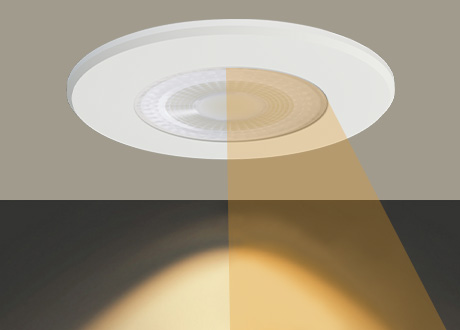

38°or 60° beam optional

38°or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast installation via Loop in/out terminal

Fast Installation via Loop in/out Terminal

Plug-and-play junction box reduces installation time by 50%

Technical Specifications

Model	DL99-1CCT	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	5W Switchable	Bezel Color	Black, chrome, brass,Brushed
Input	AC220-240V 50/60Hz	Color Temperature	2700K or 3000K or 4000K or 5700K
Lumen	550lm	Size	Dia84mm, Cutout: 60-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

bezel/trim interchangeable

Bezel/trim interchangeable: white, black, polished chrome, matt brass, brushed nickel

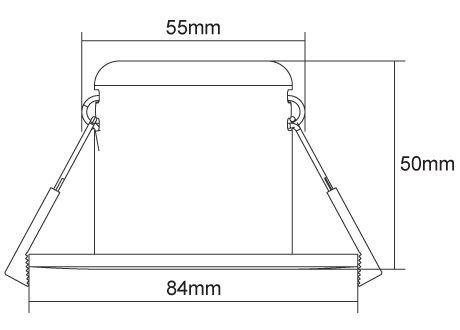

eco downlight Size

Diameter 84mm, height 50mm, hole opening range 60-75mm

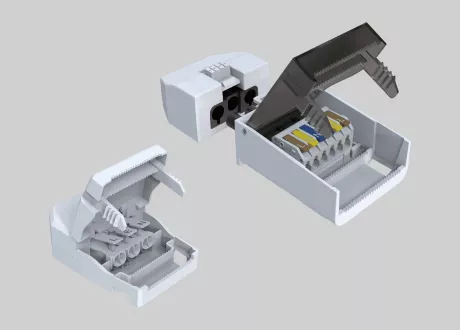

junction boxes

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation

Applicable Scenarios

Perfect for residential, hotel, commercial office applications

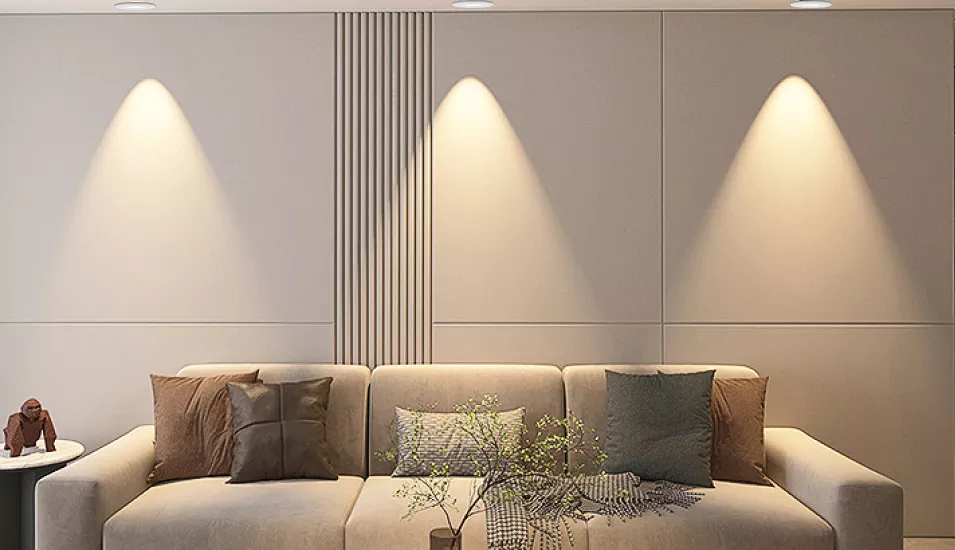

downlight in Living

living room

60-degree beam angle provides clear and focused lighting, avoiding light dispersion and visual fatigue.

downlight in shopping

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

downlight in Kitchen

Kitchen

With a variety of color temperatures, Choose 5700K for bright task lighting (galleys/helm) or 2700K for warm ambiance (Kitchen).

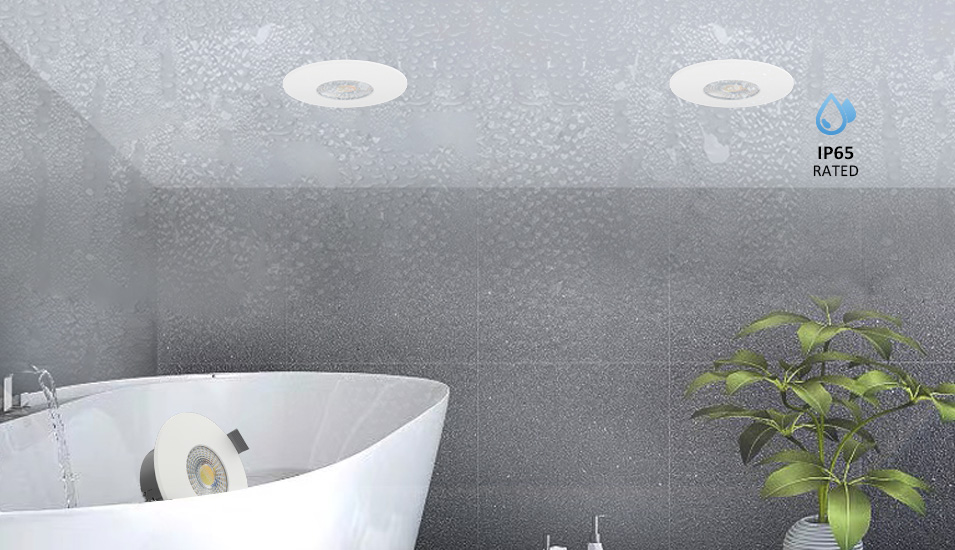

downlight in Bathroom

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

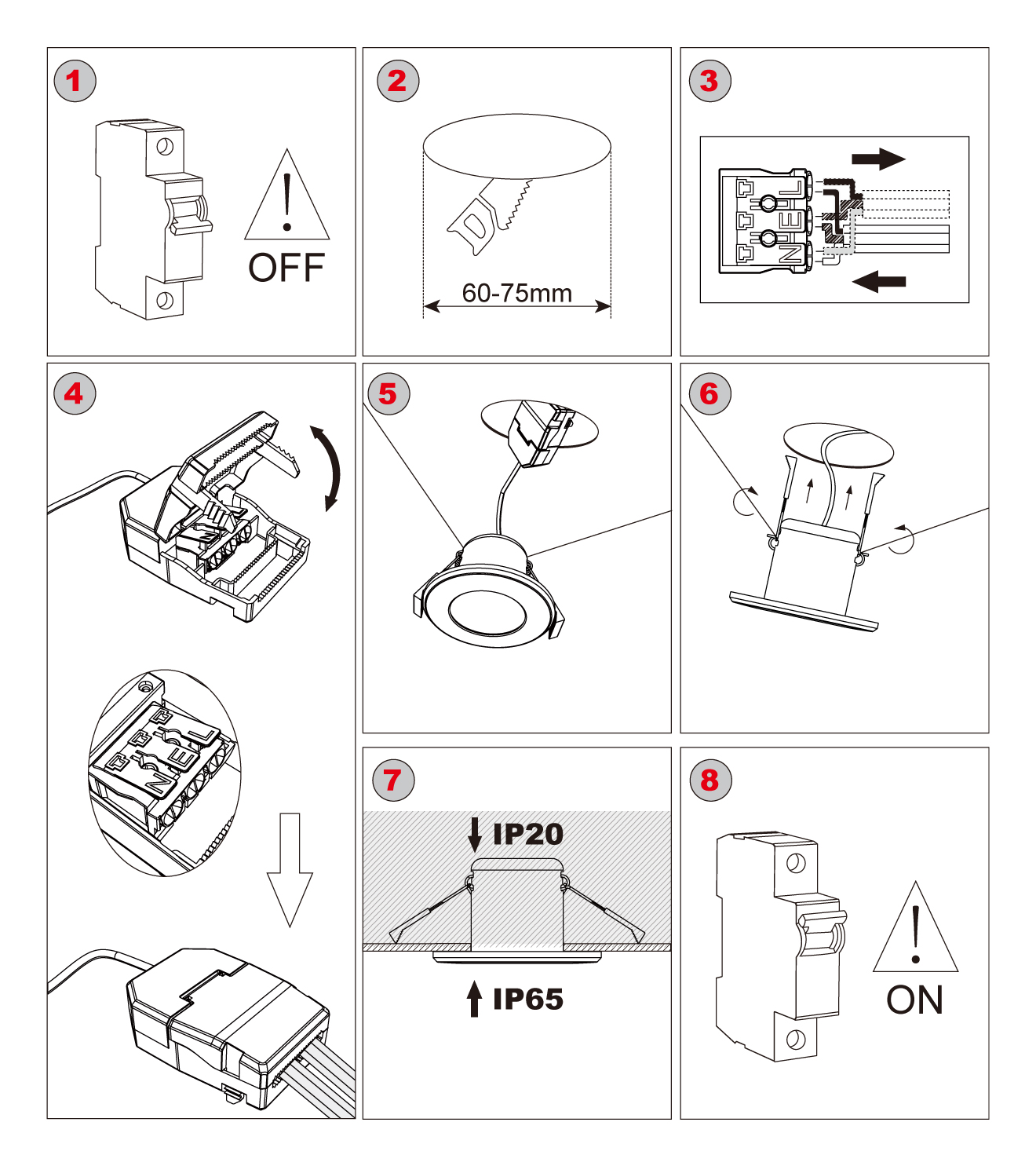

Installation Display

Turn off the power supply before installation, cut a hole (60-75mm diameter) in the ceiling for mounting, select color temperature: 2700K or 3000K or 4000K or 5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight spotlight installation steps
