Fire-Rated Round 5-8W 4CCT Dimmable LED Downlight Tilt IP65 DL127-7P/3
Dimensions：
Ø90 x H58mm,cut-out 68-75mm
Power：
5W-8W selectable
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
High Output
Deliver up to 550/880lm at 5/8W (110lm/W)

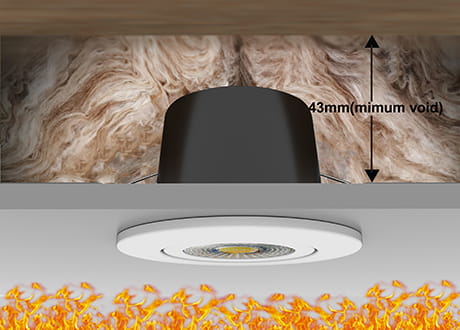

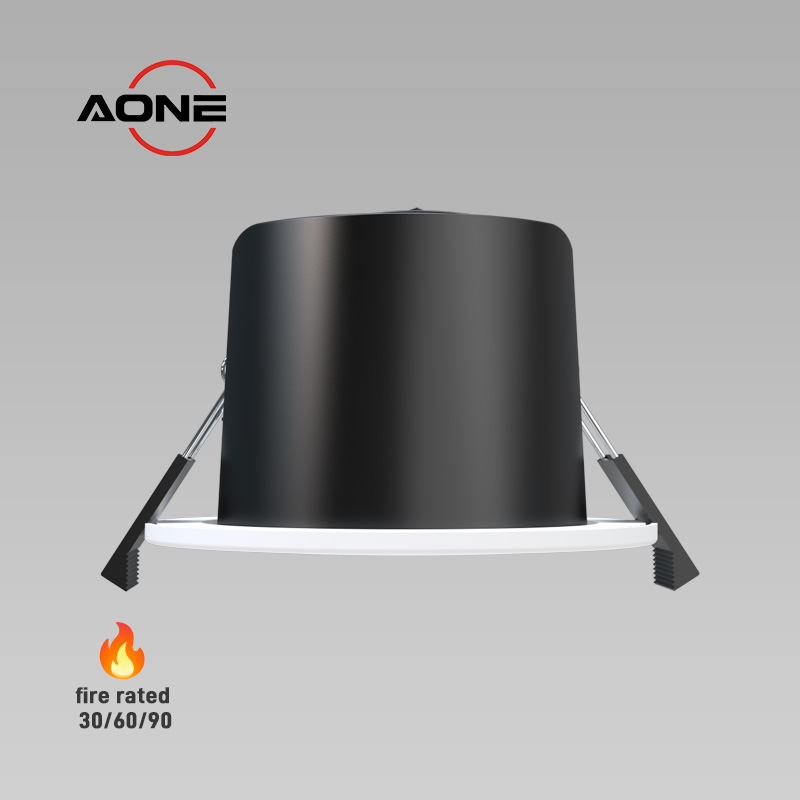

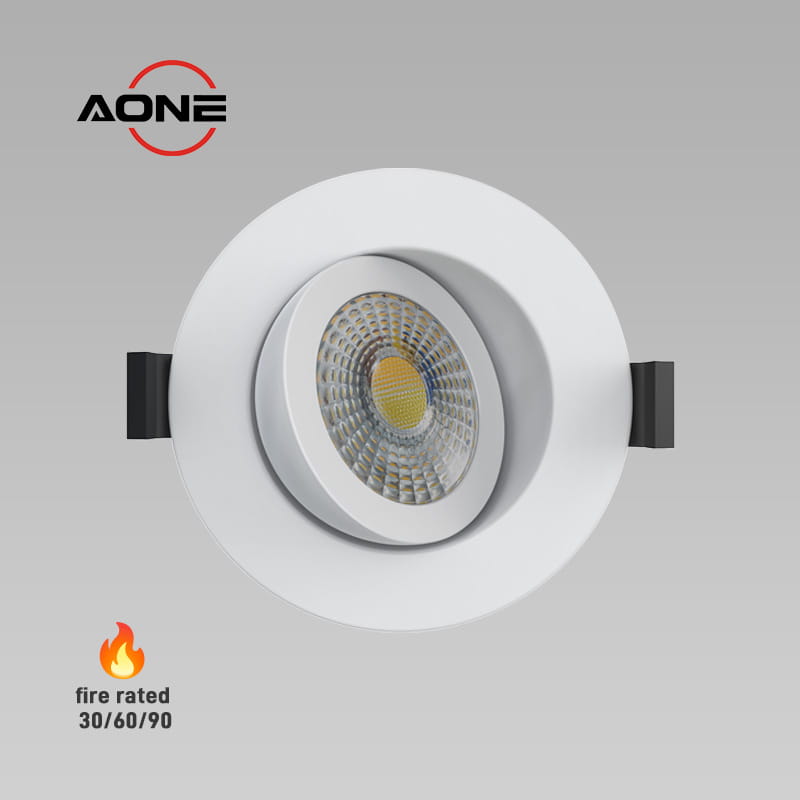

Fire-rated / Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, mini void 43mm

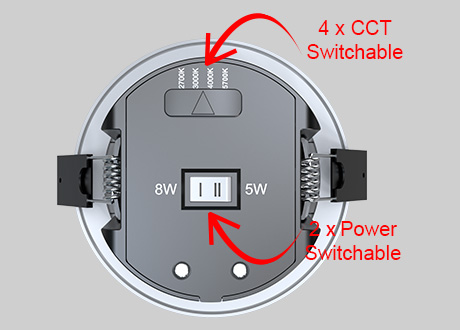

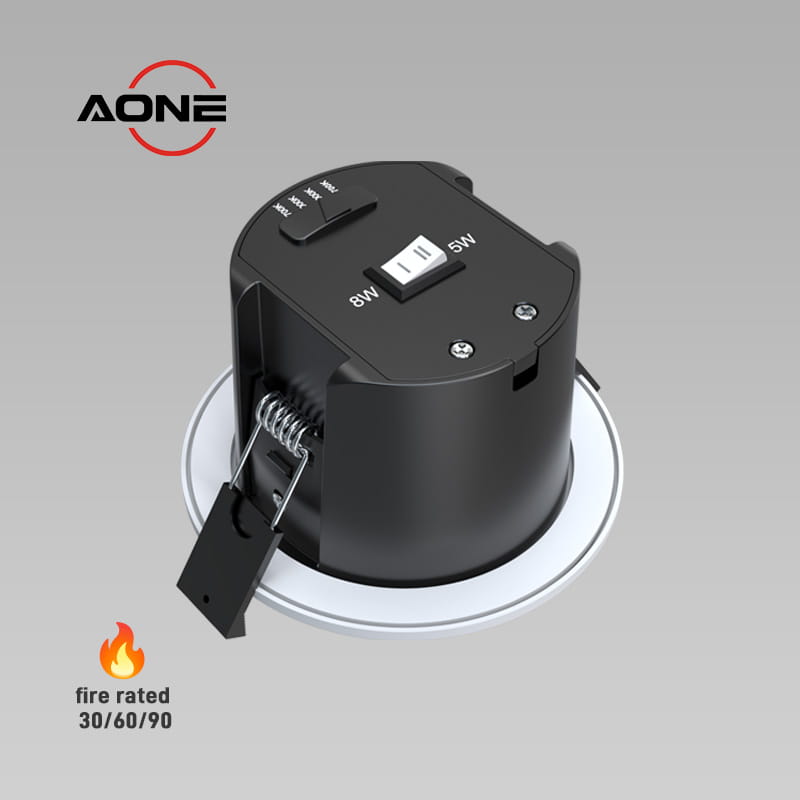

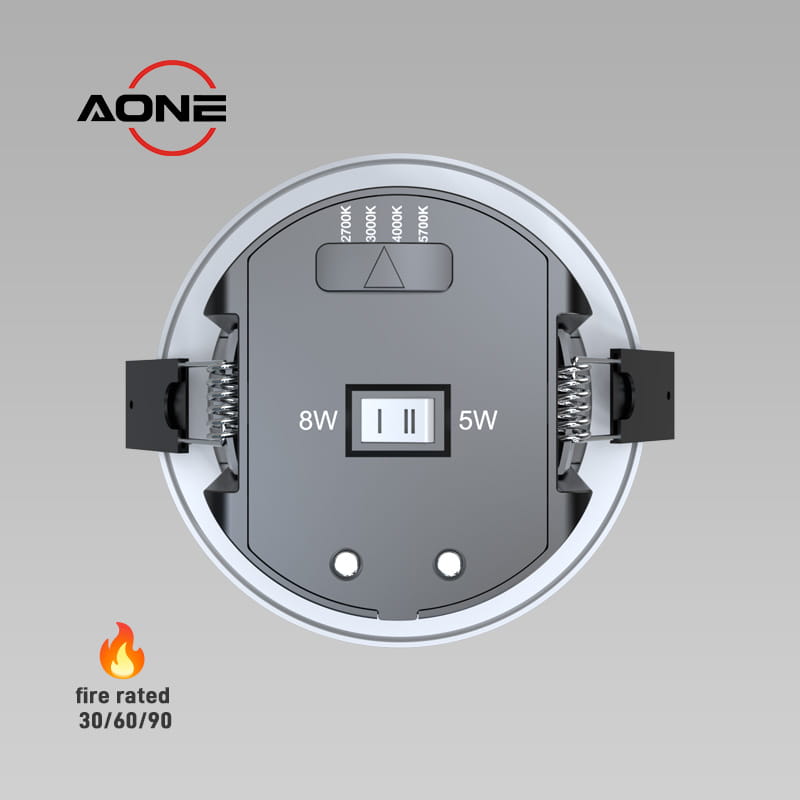

Power & CCT Switchable
Wattage 5W/8W and 4CCT easily change from below the ceiling

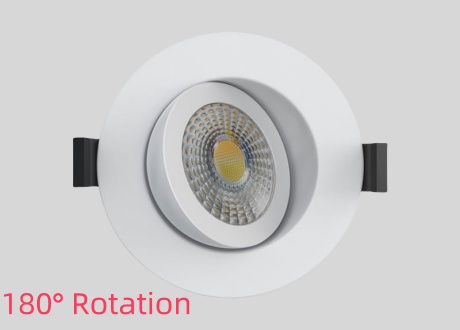

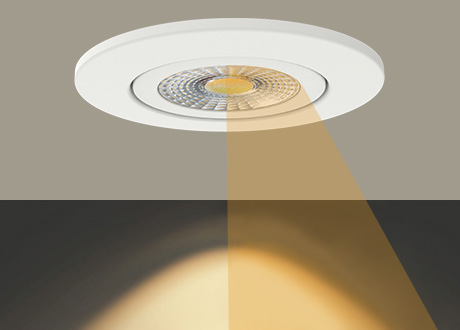

180° Rotation
Tiltable design greatly expands the coverage of the light
Fast Installation
Loop in/out terminal can reduces installation time by 50%.
38° or 60° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version
Technical Specifications
| Model | DL127-7P/3 | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 5W/8W Switchable | Finish Color | Black, White, Polished Chrome, Matt Brass, Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 550/880 | Size | Dia90mm, Cutout: 68-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

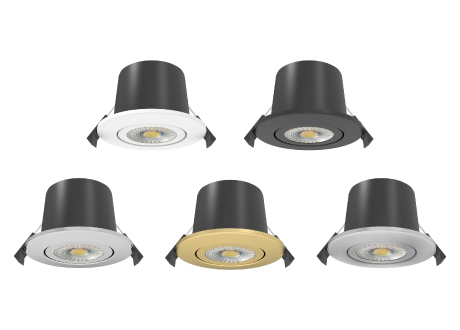

Finish color: white, black, polished chrome, matt brass, brushed nickel

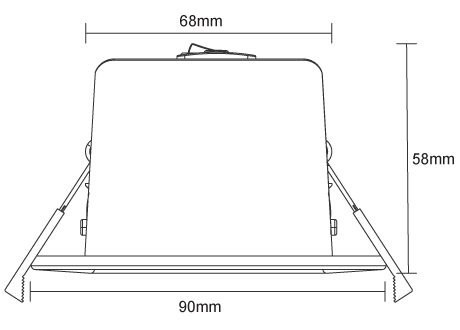

Diameter 90mm, height 58mm, hole opening range 68-75mm, recessed depth 43mm.
7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.
Smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

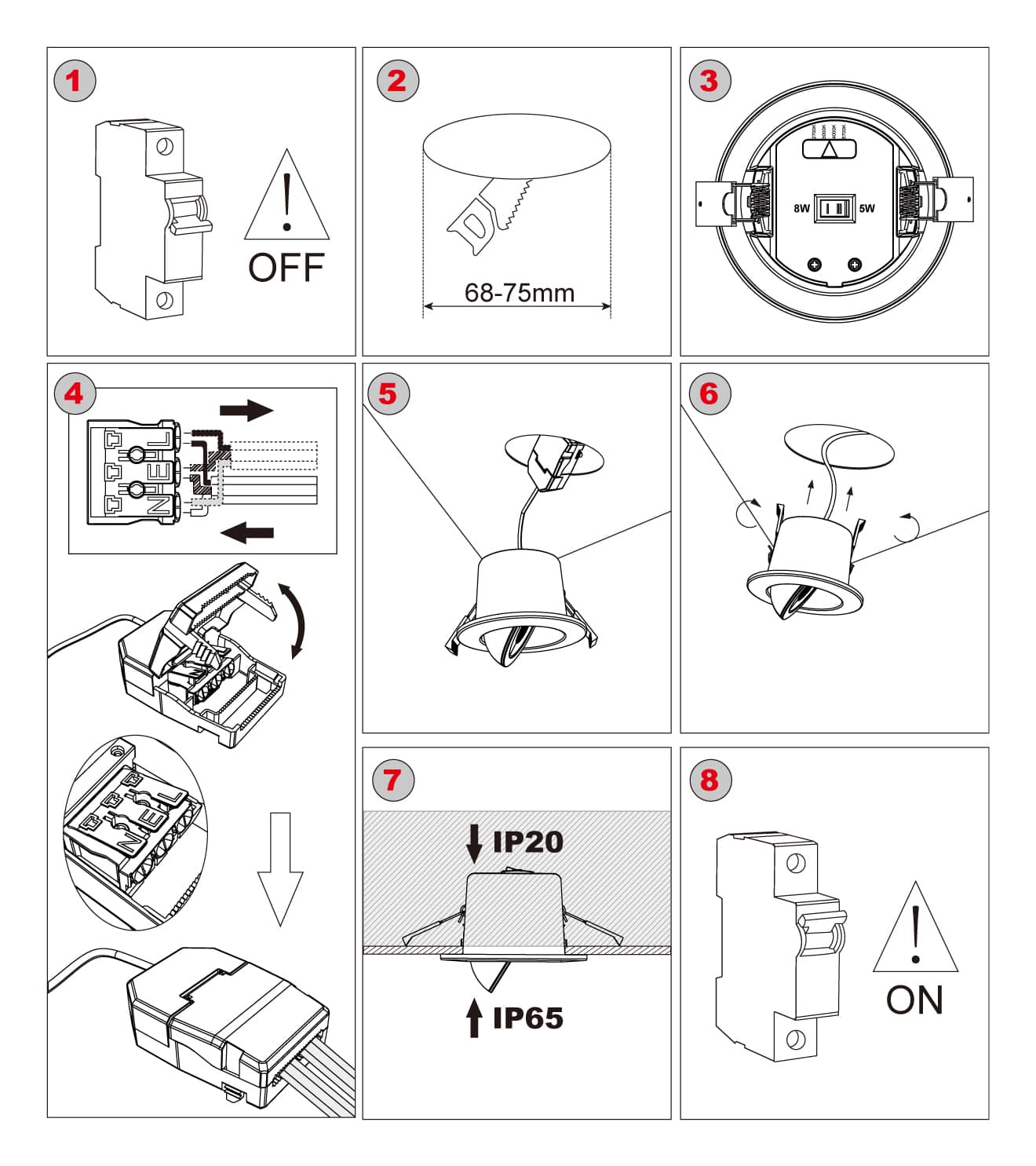

Installation Display
