Fire Rated Panel Downlight 4W-6W-8W Opal Diffuser PL88-4
Dimensions：
Ø120 x H40mm,cut-out 100-110mm
Power：
4W-6W-8W
Color temperature：
CCT 2700K/3000K/4000K5700K
Dimming or not：
Yes
Beam angle：
120°
Rated voltage：
AC220-240V
Key Features & Benefits
Opal Diffuser Design
Soft, even light with reduced glare
Full IP65 / Coverable
IP65 waterproof in the front and covered with insulation material

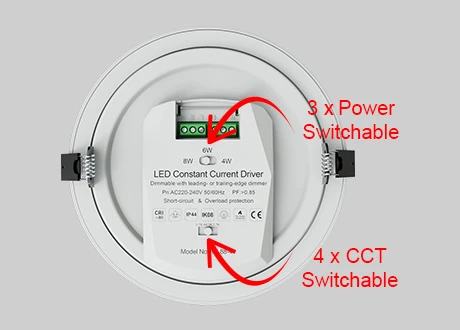

3 Powers and 4 CCT Switchable
4W-6W-8W and 2700K/3000K/4000K5700K changeable
Fire Rated Slim Design
Ultra thin, fire rated certificate for I Joist, web joist and solid timber
120° or 90° beam optional
High quality of LED chip and lens, offering RA>80 or RA>90 version
Fast Installation by Loop in/out, and DALI Terminal Available
Push-fit terminals-Loop in/out install to save costs
Technical Specifications
| Model | PL88-4 | Beam Angle | 120° |
| Protection Class | Class I / IP65 / IK08 | Dimming | Yes |
| Power | 4W-6W-8W | Surface Color | White RAL9016 |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K5700K |
| Lumen | 440lm-660lm-880lm | Size | Dia120mm, cut-out 100-110mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes, 30/60/90mins | Coverable | Yes |

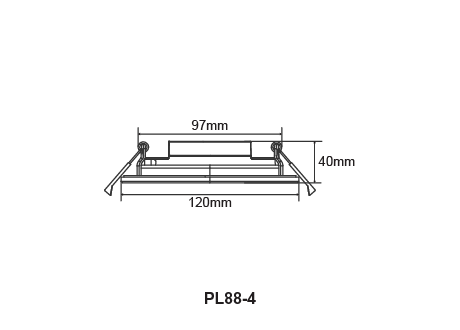

Other size 1 : Diameter 120 x Height 40mm, cut out 100-110mm
Another 2 Sizes : Diameter 170mm & Diameter 225mm
7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out provides a simple installation.
Deep cup anti-glare structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

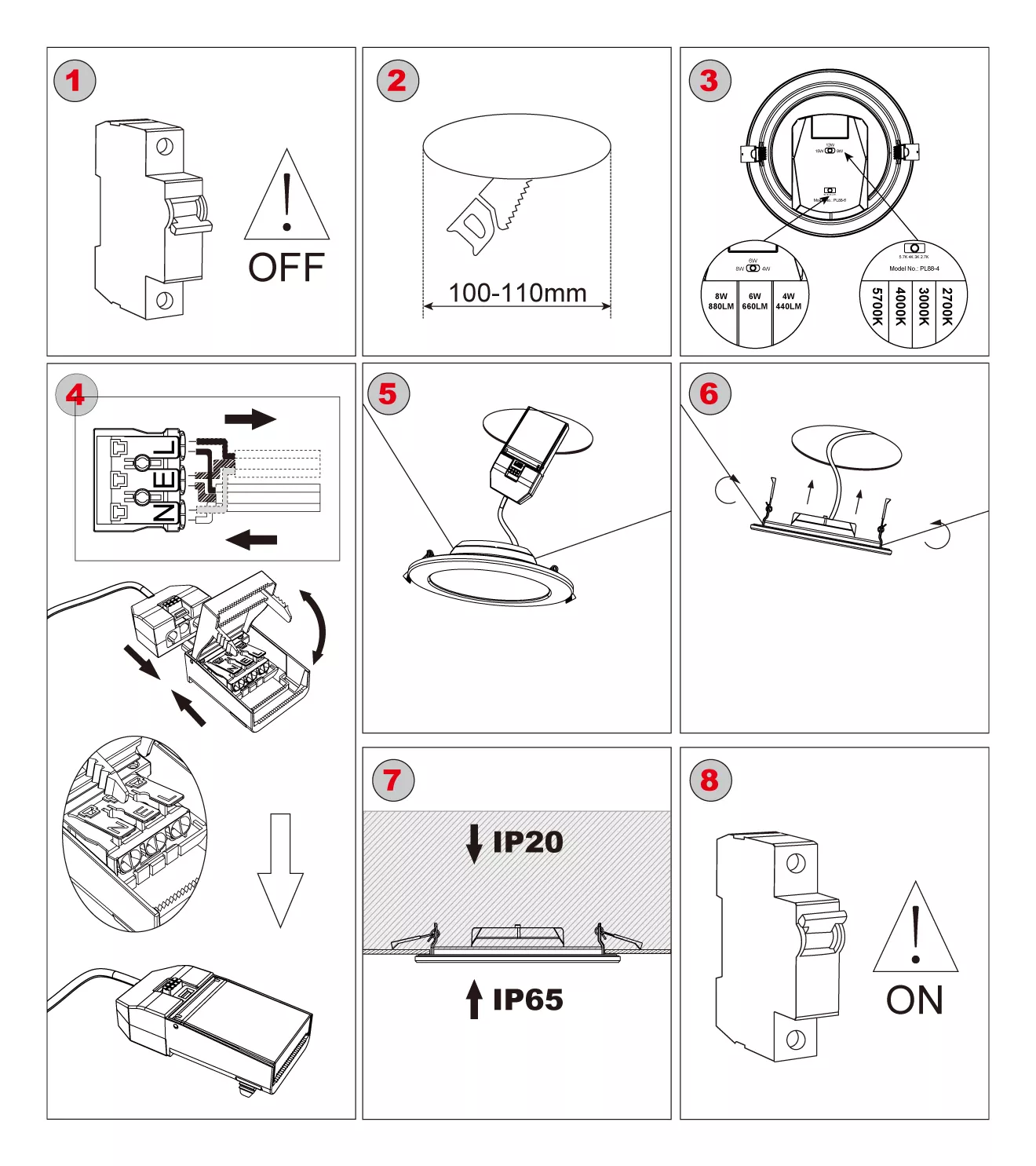

Installation Display
