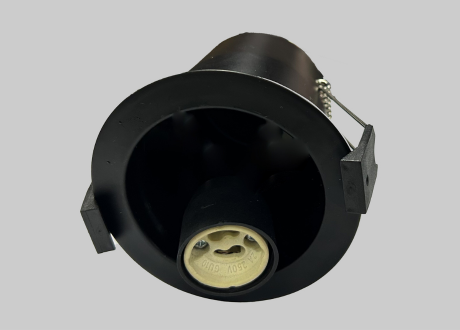

GU10 Lamp Holder IP20/65 Fixed/Swivel Fire-rated DL158 Closed model Picture 1.jpg

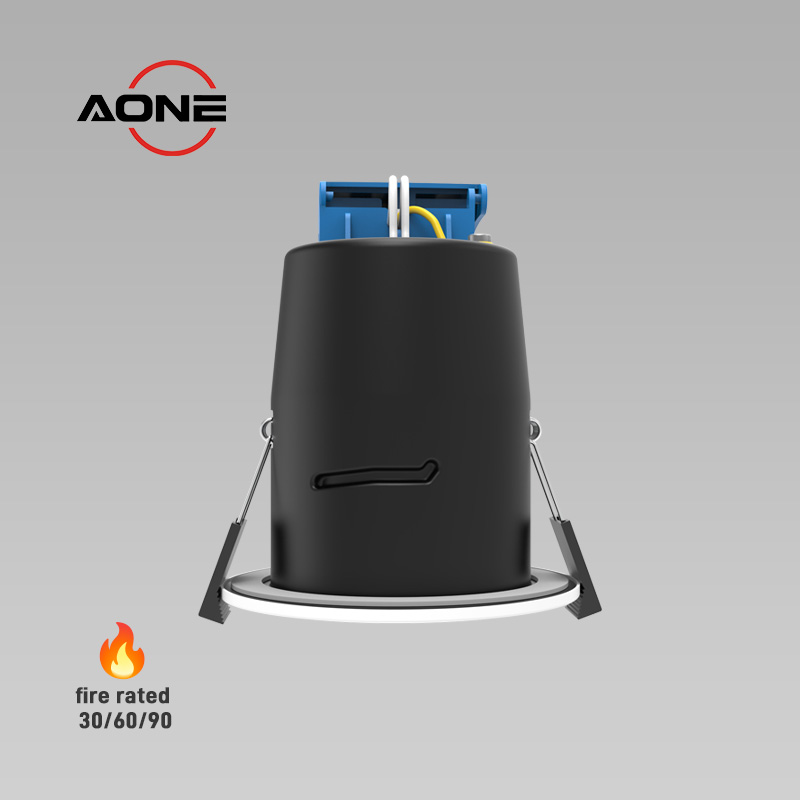

GU10 Lamp Holder IP20/65 Fixed/Swivel Fire-rated DL158 Closed model Picture 2

GU10 Lamp Holder IP20/65 Fixed/Swivel Fire-rated DL158 Closed model Picture 3

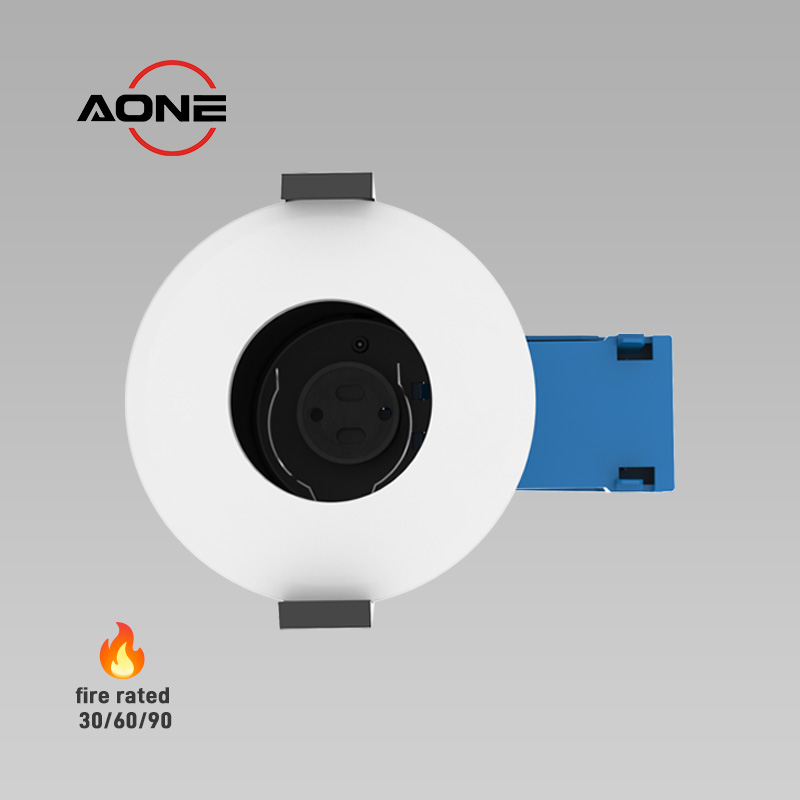

GU10 Lamp Holder IP20/65 Fixed/Swivel Fire-rated DL158 Closed model Picture 4

GU10 Lamp Holder IP20/65 Fixed/Swivel Fire-rated DL158 Closed model Picture 5

Air-tightness GU10 Lamp Holder IP65 Fixed/Tilt DL158 Closed

Fire Rated, air-tightness, GU10 Can IP65 Fixed & IP20 Tiltable Bezels option. tool-free clip-in installation & loop-in/out wiring. CE/UKCA/ROHS certified. Factory-direct supply, customizing OEM/ODM solutions available.

Dimensions：

Ø90 x H110mm,Cut-out 70-75mm

Power：

Max 50W

Houing：

Steel

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Fire-rated / Coverable

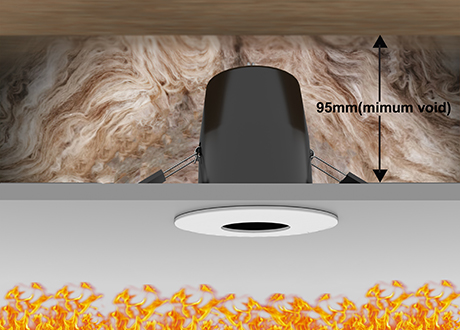

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 95mm

Bulb fixture

Strong clamp designed to hold GU10 bulbs.

Twist & Lock Lamp holder

GU10 lampholder features VDE-certified connectors, ensuring enhanced electrical safety, reliable performance

Technical Specifications

Model	DL158-Closed	Color	White,Black,Brushed Nickel
Protection Class	Class I / IK08	Size	Dia90mm, Cutout: 70-75mm
Power	Max. 50W	Certification	CE, UKCA, RoHS
Input	AC220-240V 50/60Hz	Warranty	5 Years
Life Time	>50000 hours	IP Rating	IP20 / IP65
Fire Rated	Yes	Coverable	Yes

white, black, polished chrome, matt brass, brushed nickel options

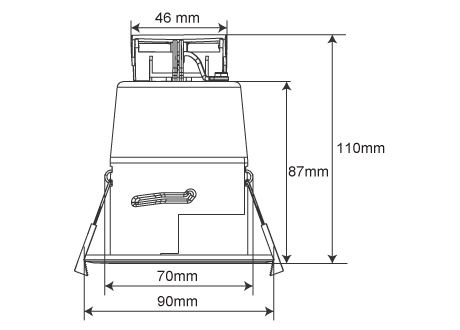

Diameter 90mm, height 110mm, hole opening range 70-75mm, recessed depth 95mm.

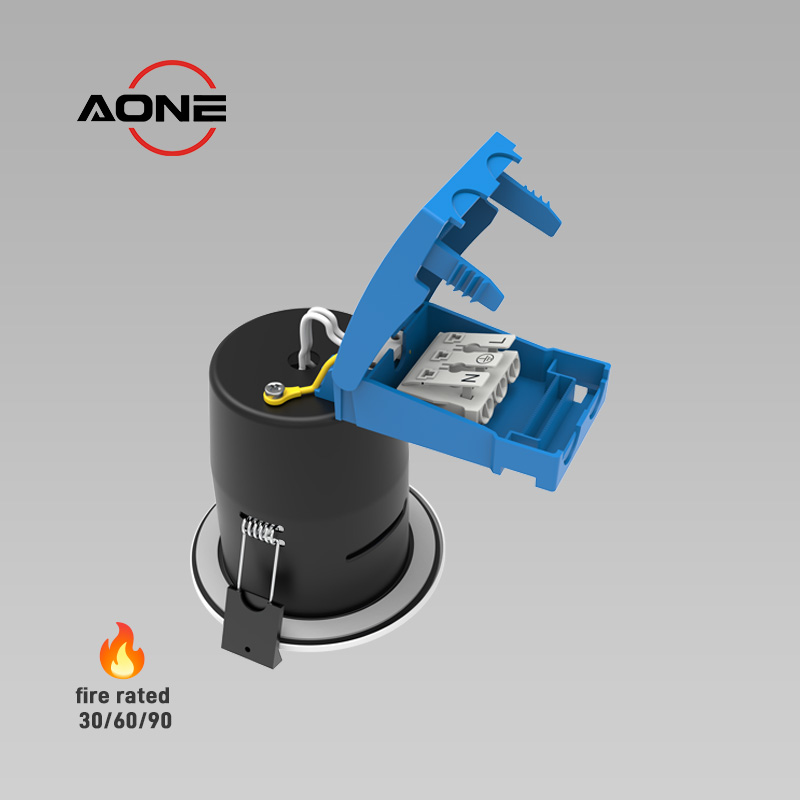

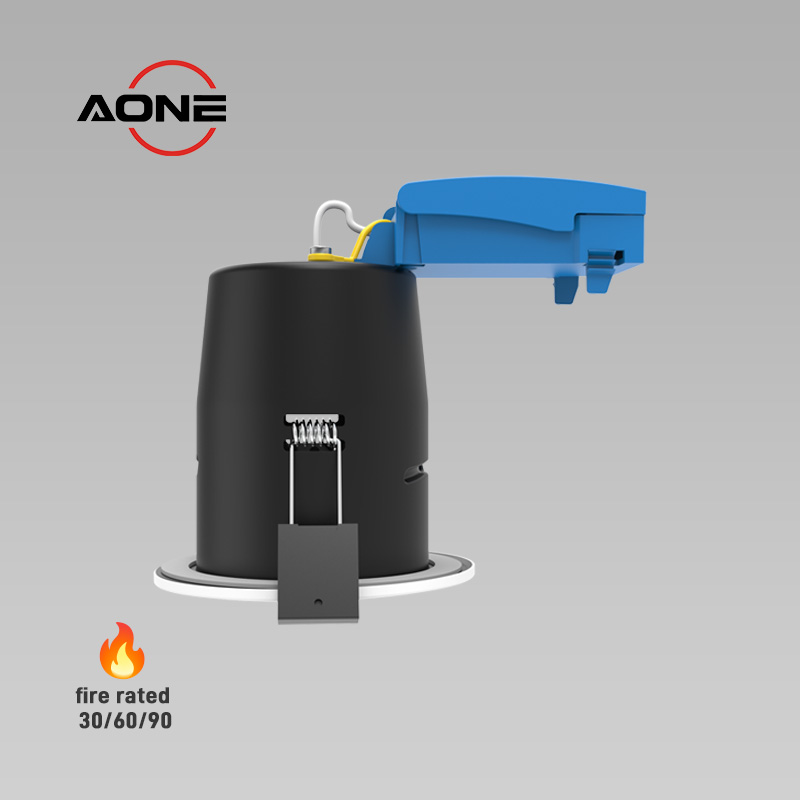

3-position tool-fee loop in/out terminal with movable wire buckle provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

Living

Equipped with standard GU10 bulbs, perfect indoor lighting

Shopping

Equipped with standard GU10 bulbs, perfect indoor lighting

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide beautiful lighting to kitchen island or worktops

Bathroom

Front bezel with IP65 waterproof to suit for wet locations, zone 2 and zone 3.

Installation Display

Turn off the power supply before installation, cut a hole (70-75mm diameter) in the ceiling for mounting, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
