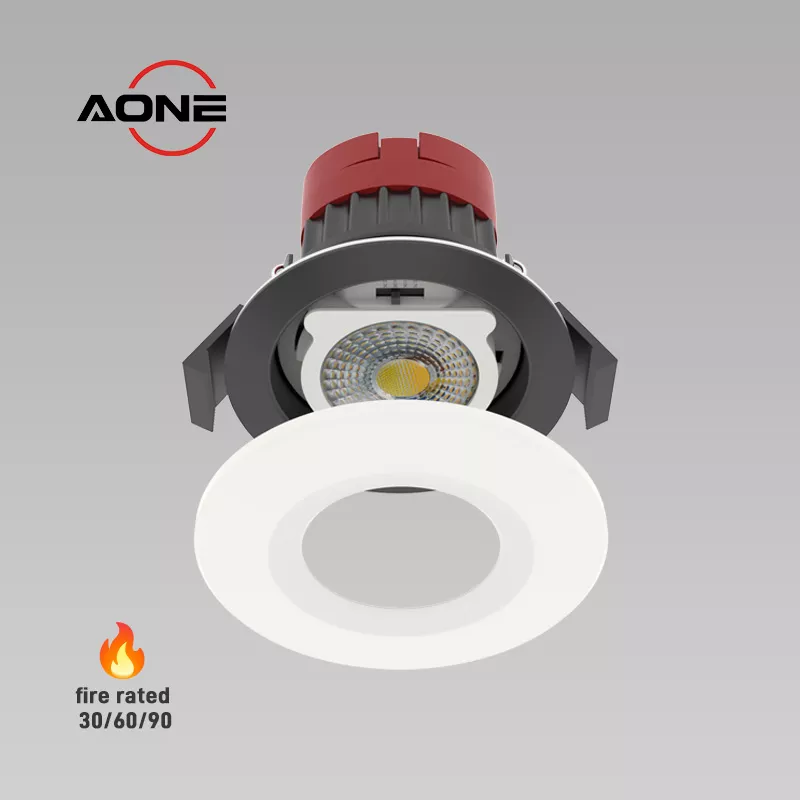

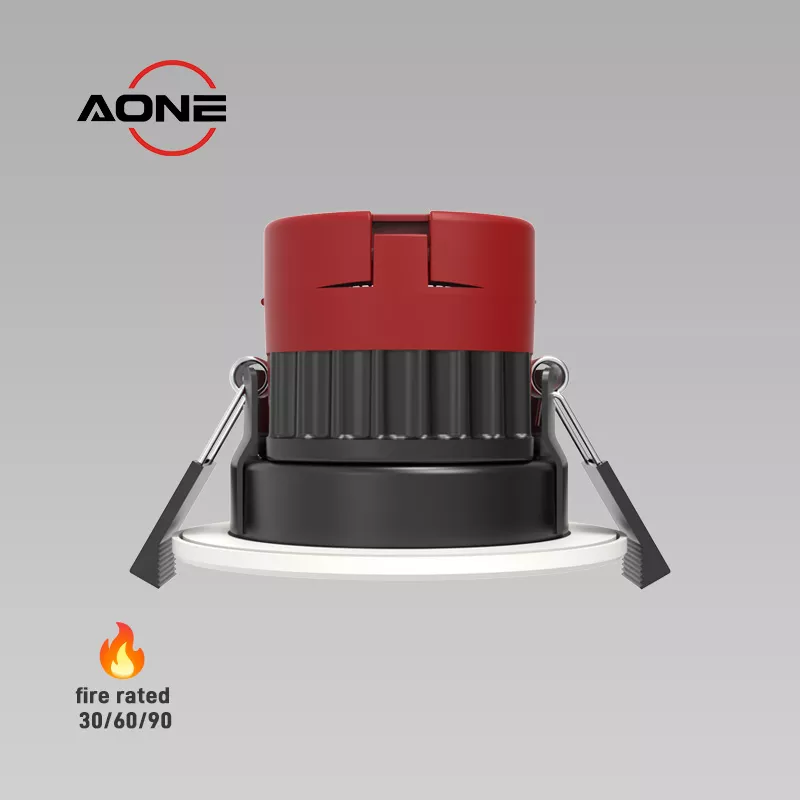

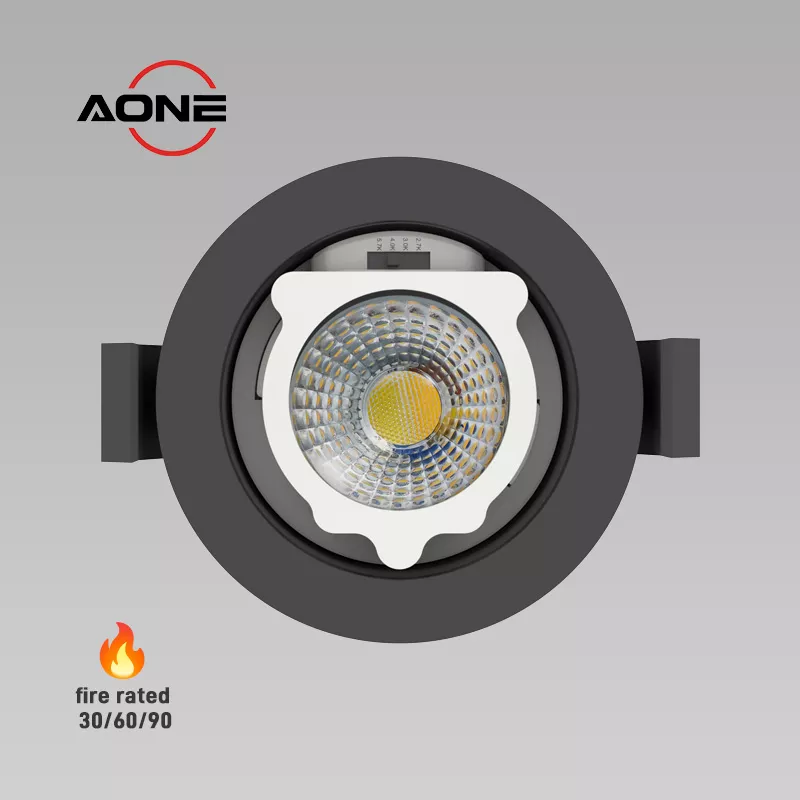

Integrated Fire Rated Recessed LED Downlights 8W 4CCT Dimmable IP65 Spotlight Lighting DL100C
Dimensions：
Ø87 x H62mm,cut-out 68-75mm
Power：
8W
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
Dimmable LED light
Dimmable recessed LED lights allow you to control light levels from soft ambient lighting to bright task lighting. Perfect for homes, offices and commercial spaces.

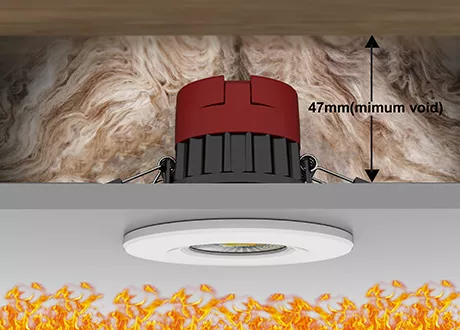

Fire-rated / Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, min void 47mm

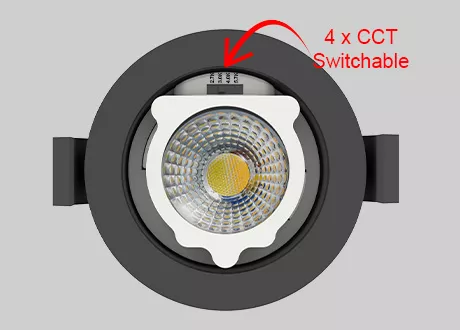

4CCT Switchable
The 8W power and 4CCT downlight are easily distinguished from the front of the LED downlight.
White/Black/Chrome/Brushed nickel/Gold Bezel
Innovative design supports multiple bezel colors-interchangeable bezel
38° or 60° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

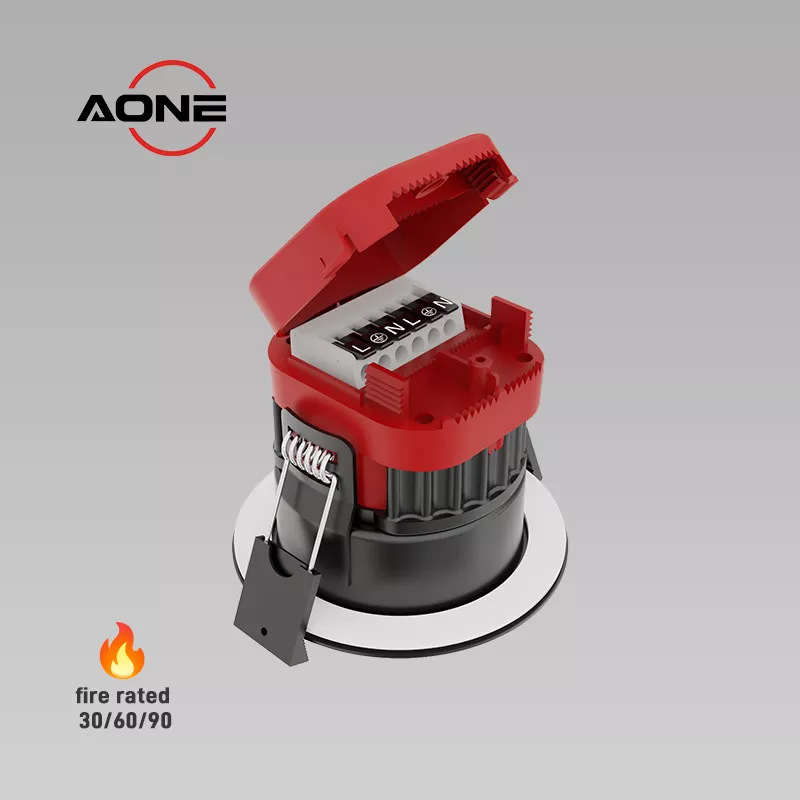

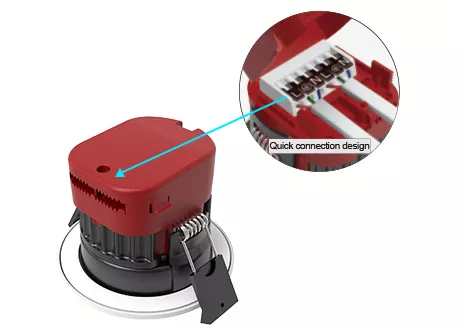

Fast Installation Via Loop In/Out Terminal
Plug-and-play junction box reduces installation time by 50%.
Technical Specifications
| Model | DL100C | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 8W | Color | Black, White, Chrome, Gold, Brushed nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 880 | Size | Dia 87mm, Cutout: 68-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

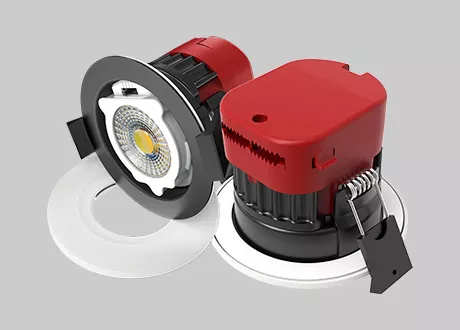

Interchangeable bezel downlights offer easy customization to match your decor, enhance finishes, or refresh a space without replacing the entire fixture. Simply swap out the trim ring (bezel) to change the look: white, black, polished chrome, matte bronze, polished nickel.

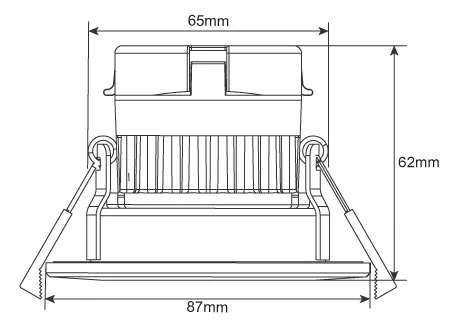

Diameter 87 mm, height 62 mm, hole opening range 68-75 mm, recessed depth 52 mm.
Discover high-performance Integrated LED Downlights with seamless recessed design. Our fire-rated, IP65 certified fixtures feature 4CCT tunable white & dimmable functionality for commercial/residential LED lighting solutions. Energy-efficient, long-lasting spotlights with hassle-free installation
4CCT downlight, downlight with adjustable color temperature, triple color temperature, dimmable LED downlight, smart lighting solution.
Warm light to cool light, with high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best showcases products.
Practical waterproof and dustproof spotlight/light that can provide directional lighting on the kitchen island or work surfaces.
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

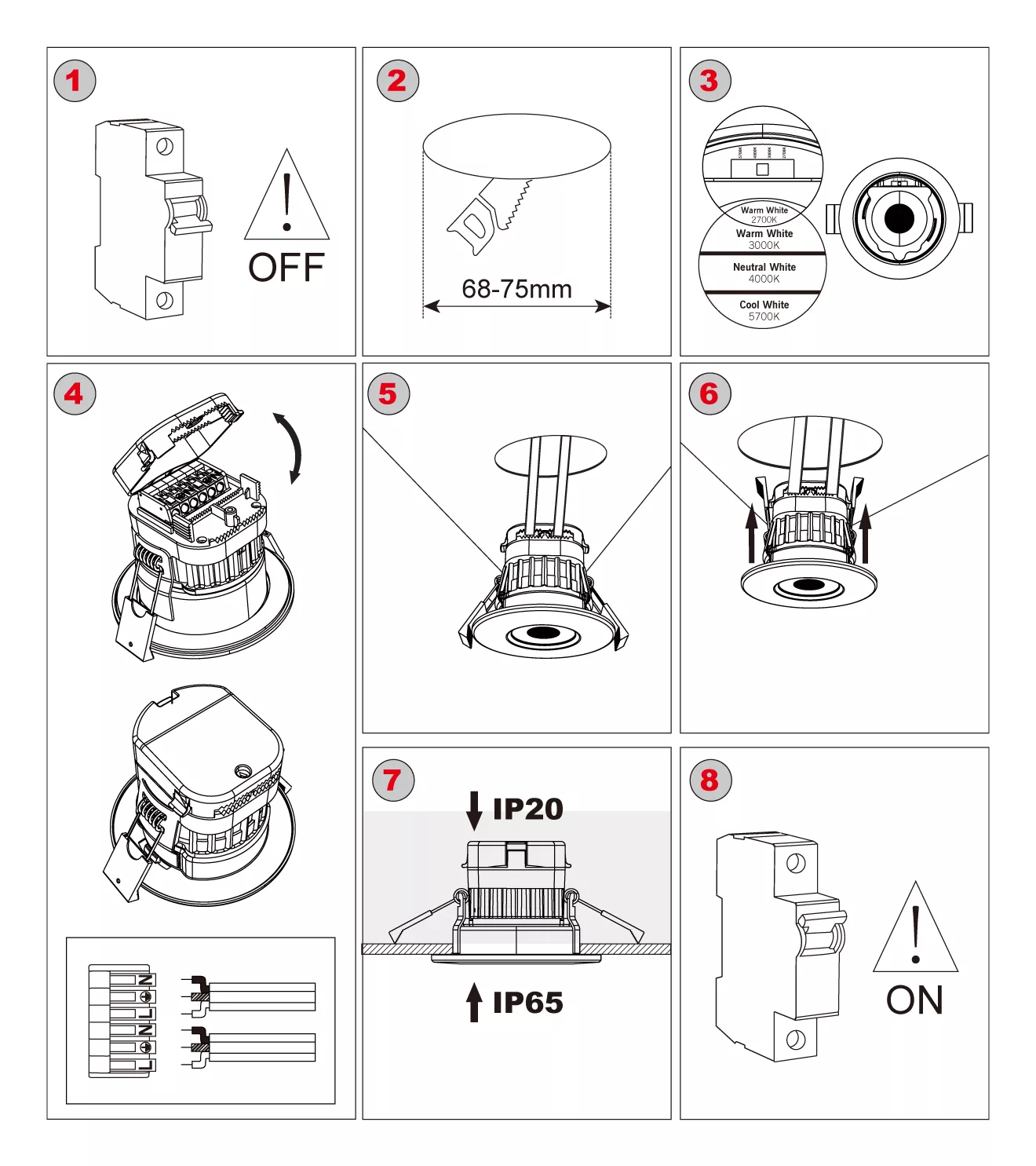

Installation Display
