Integrated IP65 Fireproof Recessed Downlight Multi-functional LED Lighting DL100P
Dimensions：
Ø88 x H60mm,cut-out 68-75mm
Power：
8W
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
High Output
110LM/W, high efficiency and energy saving

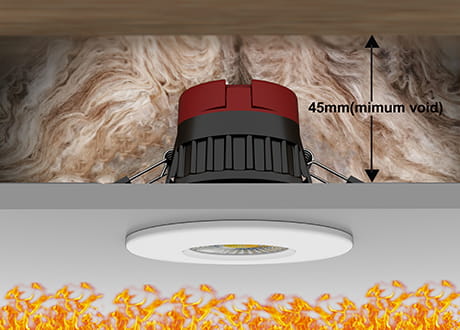

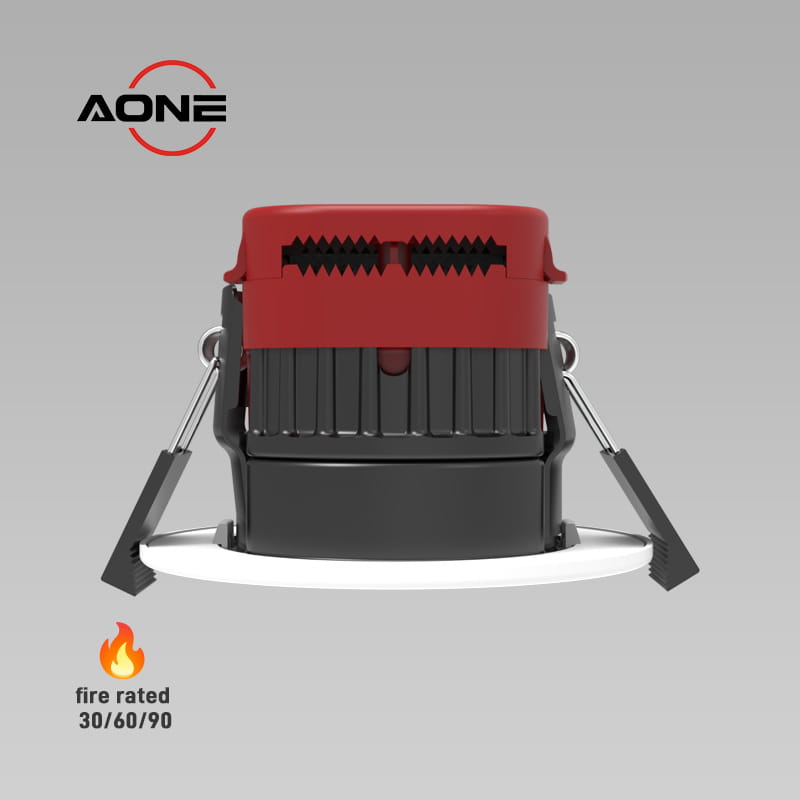

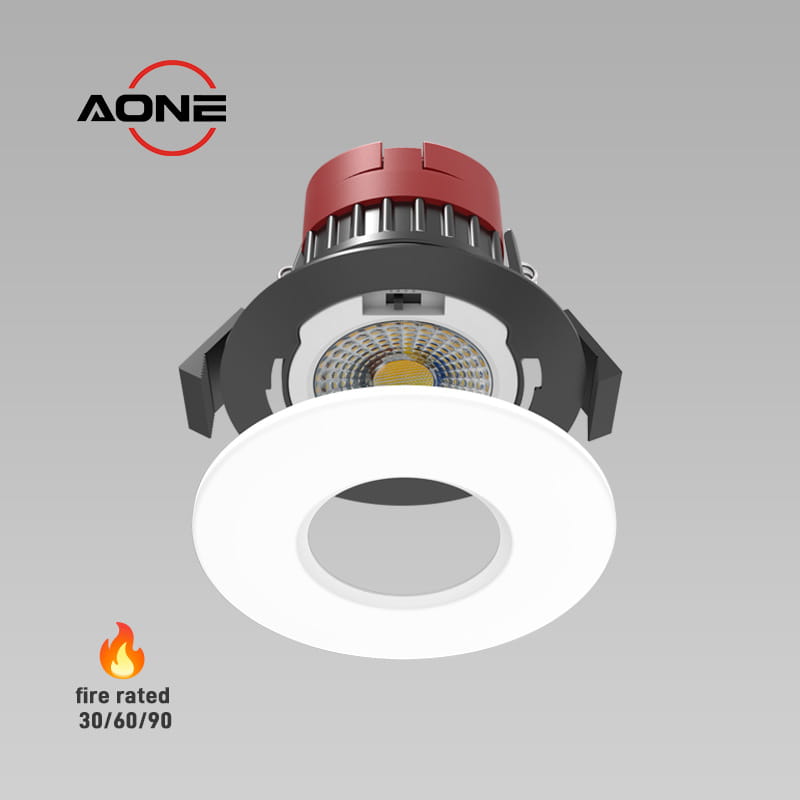

Fire-rated / Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, min void 45mm

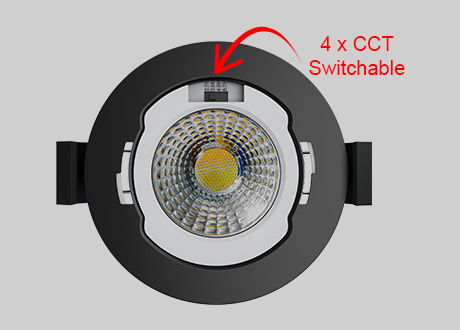

4CCT Switchable
Wattage 8W and 4CCT easily change from below the ceiling

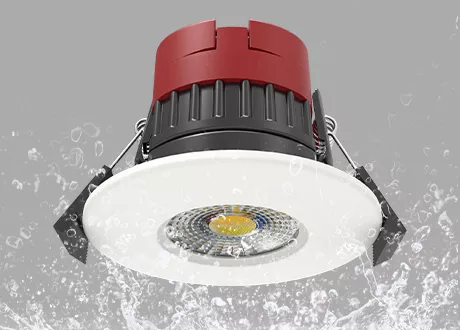

IP65 Waterproof
waterproof value IP65 in the front

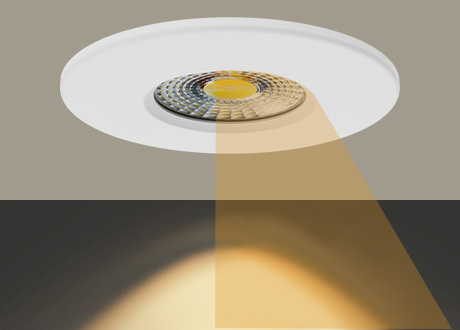

38° or 60° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

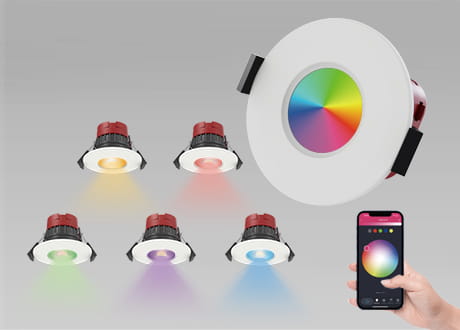

Tuya Smart Option
Optional with Tuya driver to design the color you want
Technical Specifications
| Model | DL100P 4CCT | Beam Angle | 38° or 60° |
| Protection Class | Class I / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 8W | Bezel Color | Black, Chrome, Gold, Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5000K |
| Lumen | 880lm | Size | Dia 88mm, Cutout: 68-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

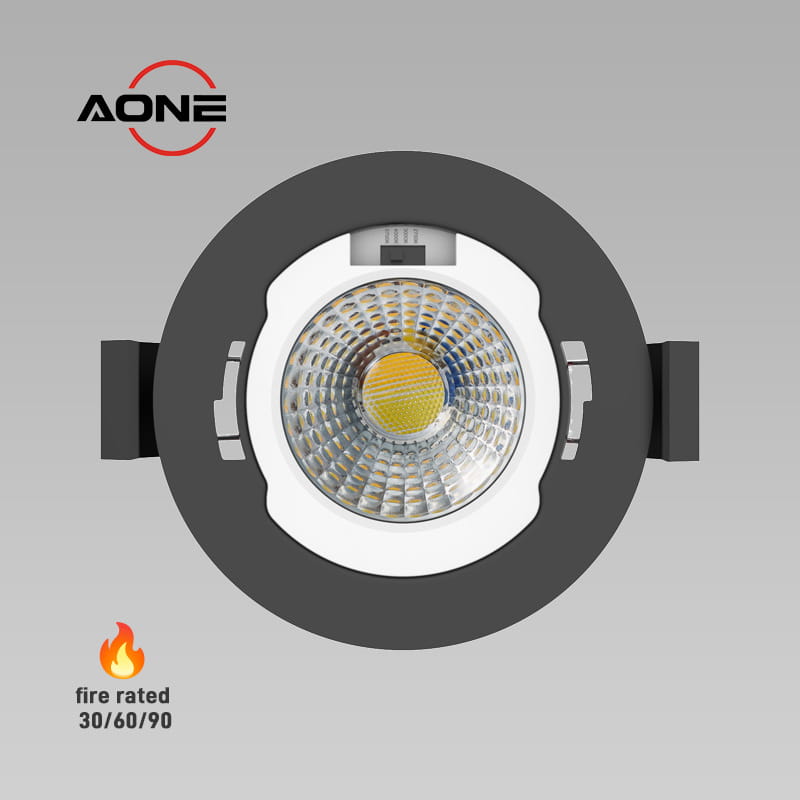

Bezel/trim interchangeable: white, black, polished chrome, matt brass, brushed nickel

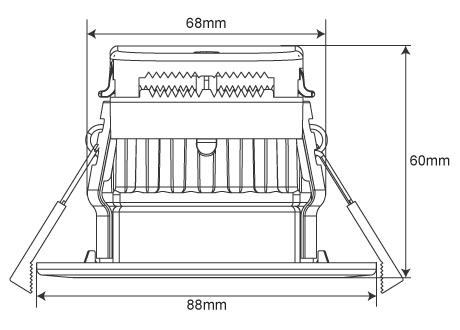

Diameter 88mm, height 60mm, hole opening range 68-75mm

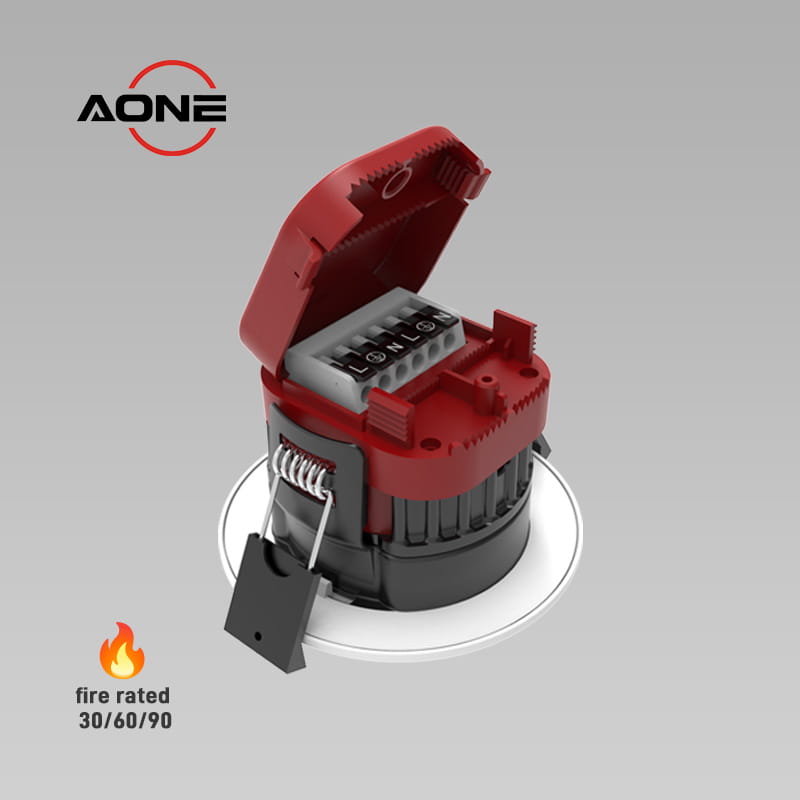

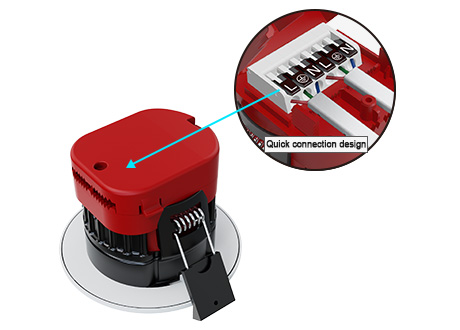

The wiring position is located on the top of downlight, more convenient to install and save maintenance cost
110lm/W, high lumen output ensures sufficient brightness while keep energy-saving
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

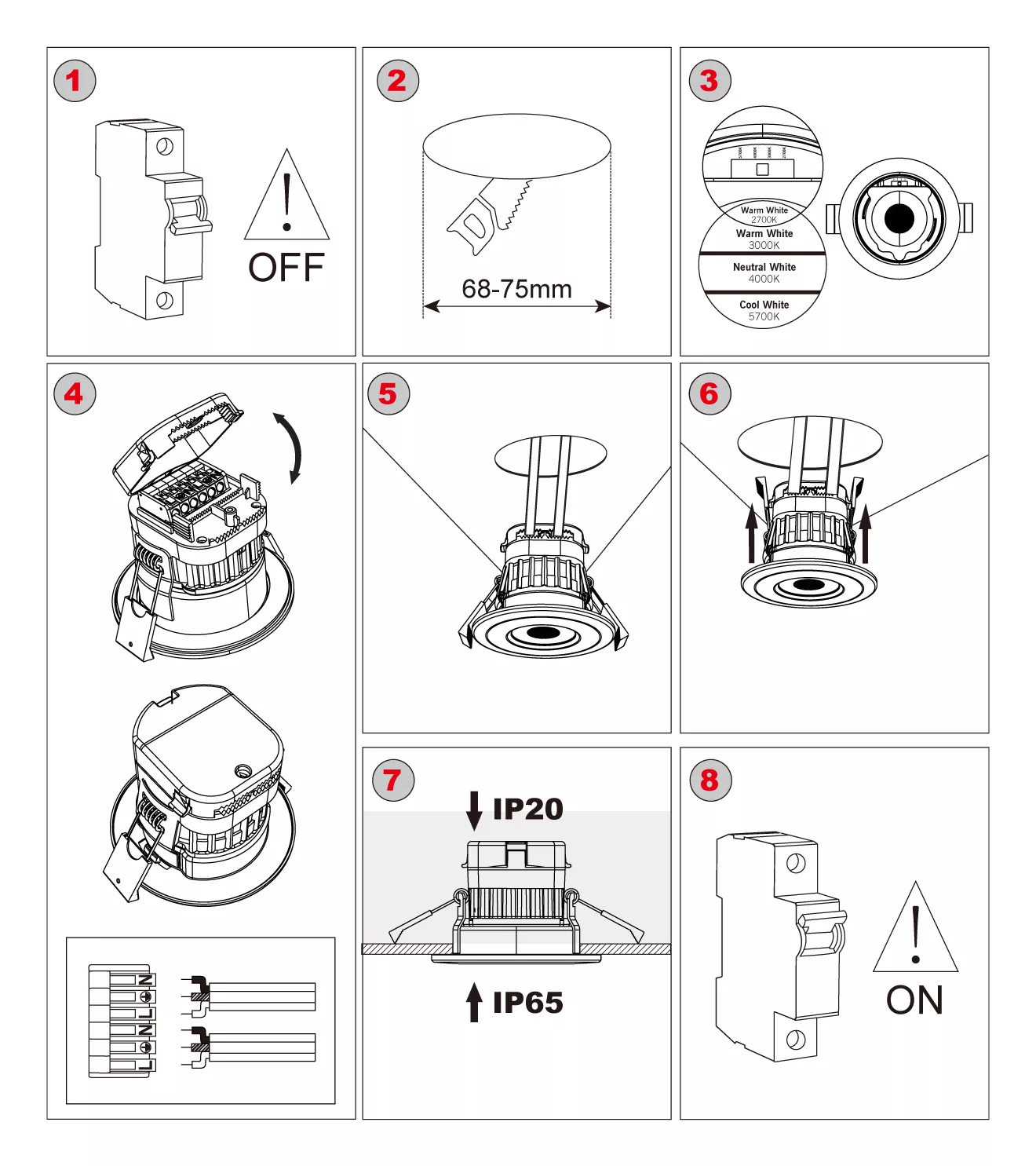

Installation Display
