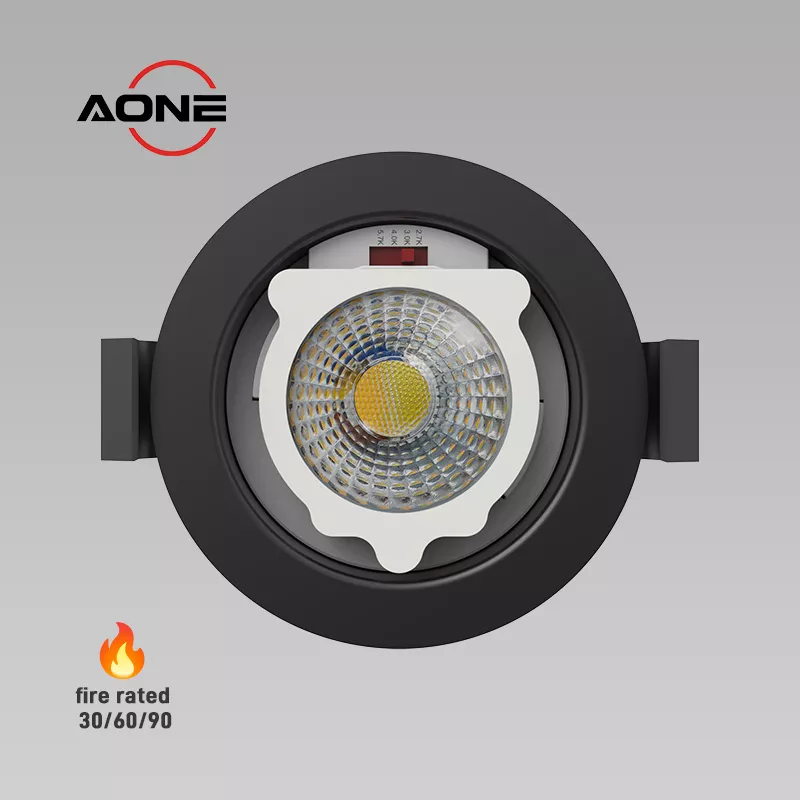

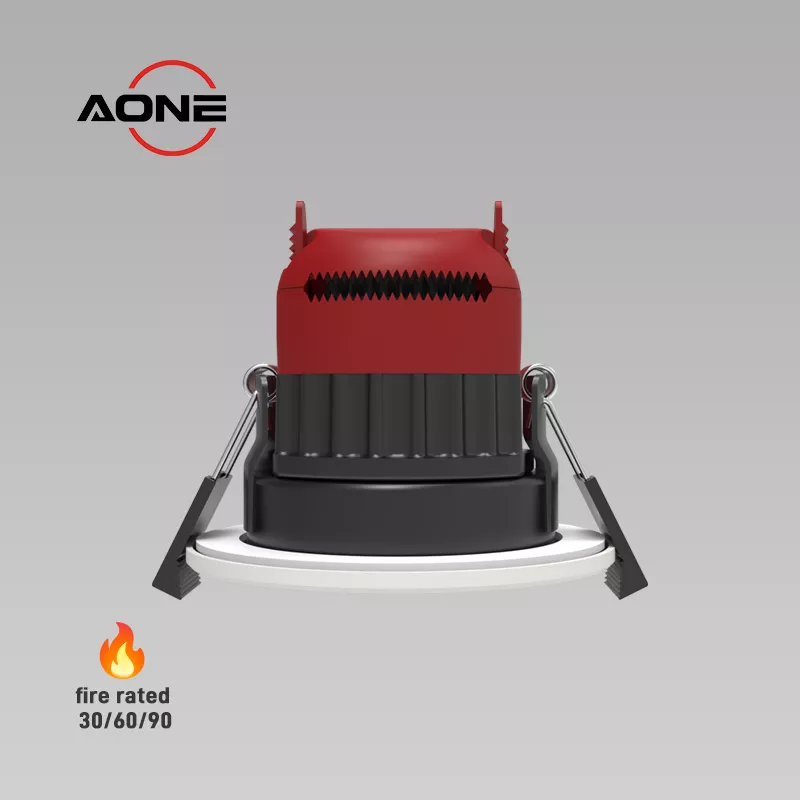

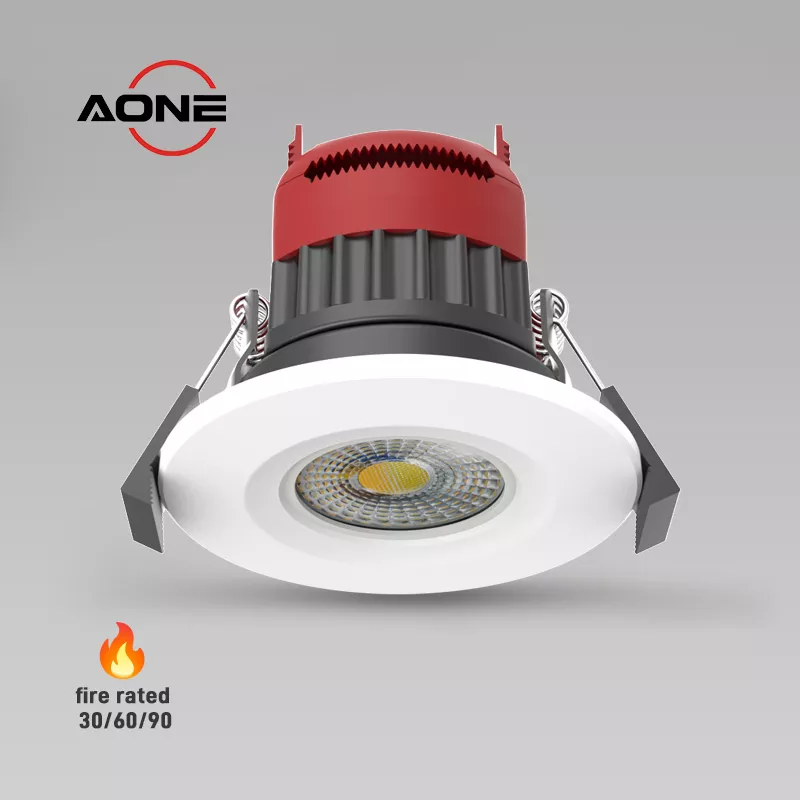

Integrated Fire Rated LED Downlights Dimmable IP65 8W 4CCT Recessed Spotlight DL100E

Waterproof IP65 Dimmable Fire Rated LED Downlight 8W - 4CCT Selectable (2700K-5700K) with Interchangeable Frames. Energy-Efficient Fire Rated 30/60/90min for Safe Commercial LED Lighting. OEM/ODM Solutions Available

Dimensions：

Ø87 x H72mm,cut-out 68-75mm

Power：

Color temperature：

4CCT 2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

integrated fire rated LED downlights LED Lighting 8w 4cct recessed spotlight ip65 dimmable

Dimmable LED light

Dimmable recessed LED lights allow you to control light levels from soft ambient lighting to bright task lighting. Perfect for homes, offices and commercial spaces.

Recessed fire Rated Integrated LED Downlights LED Lighting spotlight ip65 dimmable

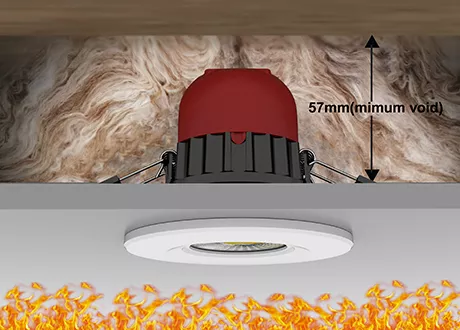

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, min void 57mm

4cct 8W fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

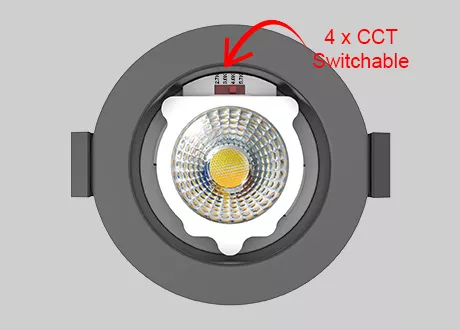

4CCT Switchable

The 8W power and 4CCT downlight are easily distinguished from the front of the LED downlight.

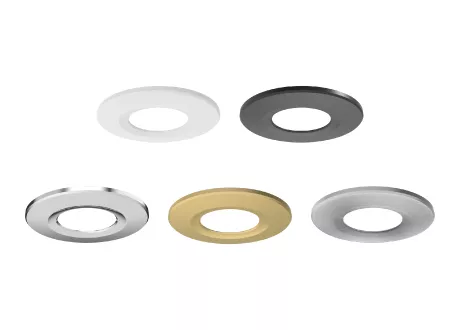

interchangable bezel fire Rated LED Downlights 4cct LED Lighting Recessed spotlight ip65 dimmable

White/Black/Chrome/Brushed nickel/Gold Bezel

Innovative design supports multiple bezel colors-interchangeable bezel

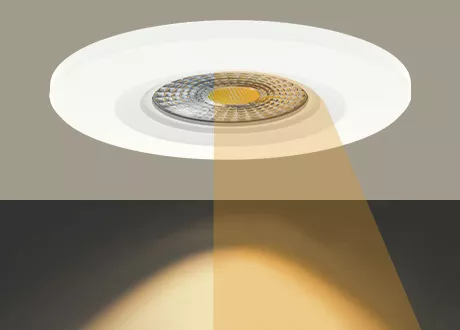

38° 60° beam angle fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

38° or 60° Beam Optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

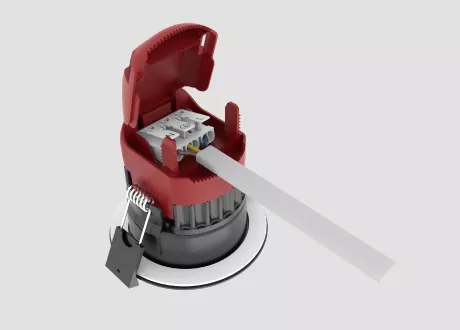

Integrated fire Rated LED Downlights 4cct LED Lighting Recessed spotlight ip65 dimmable driver

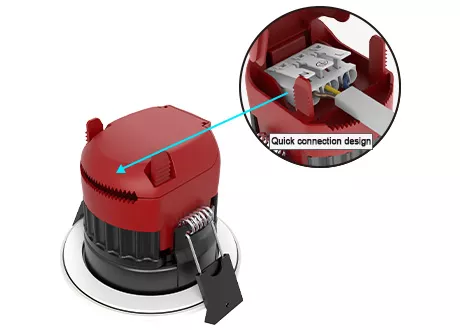

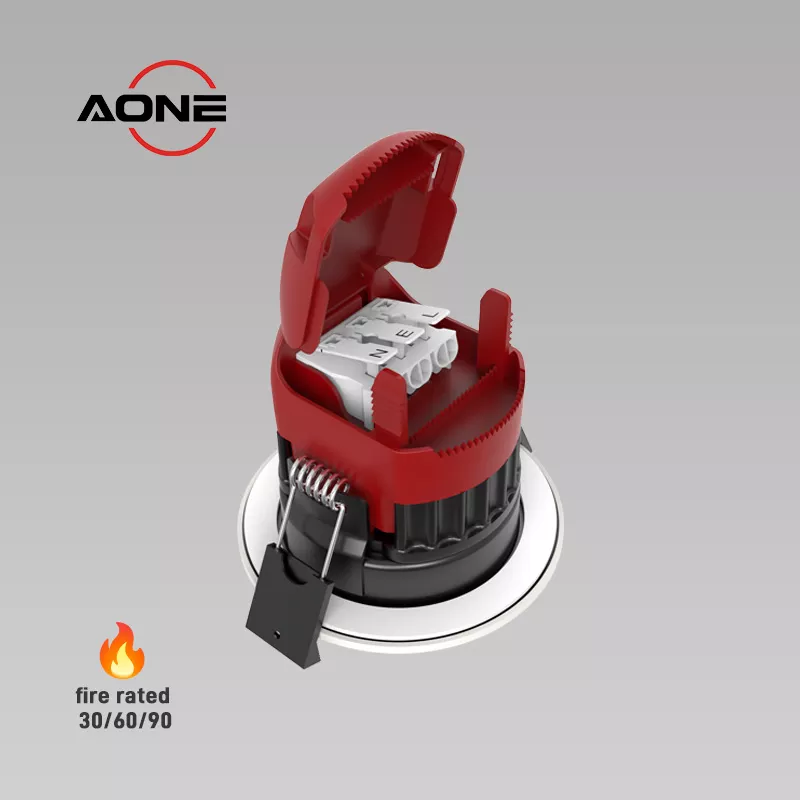

Fast Installation Via Loop In/Out Terminal

Plug-and-play junction box reduces installation time by 50%.

Technical Specifications

Model	DL100E	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	8W	Color	Black, White, Chrome, Gold, Brushed nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	880	Size	Dia 87mm, Cutout: 68-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

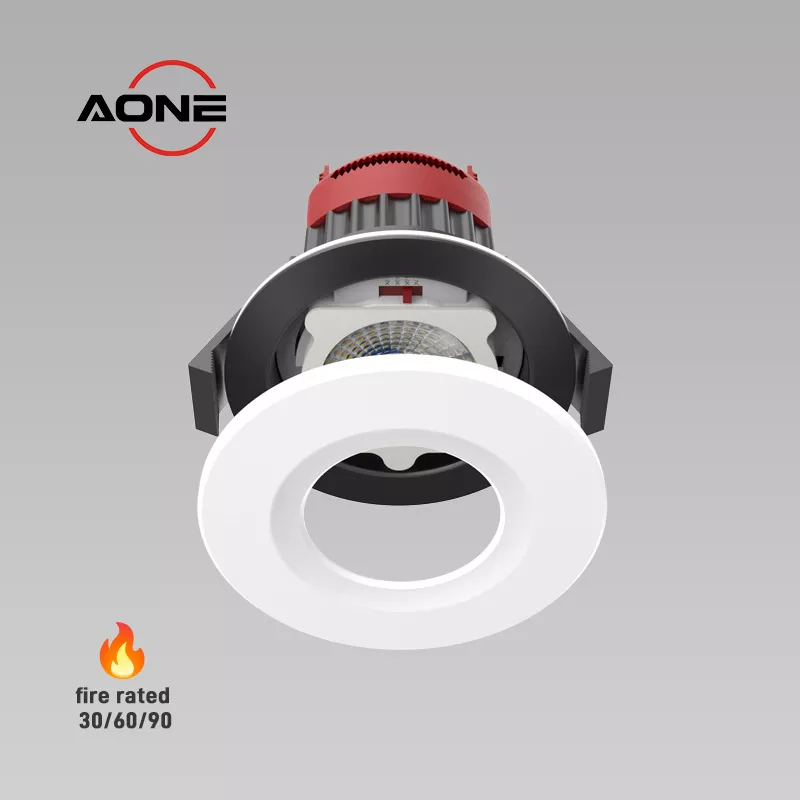

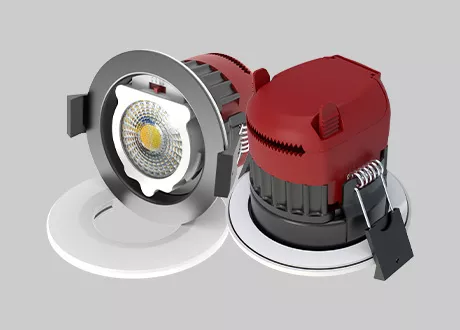

Bezel of fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable (3)

Interchangeable bezel downlights offer easy customization to match your decor, enhance finishes, or refresh a space without replacing the entire fixture. Simply swap out the trim ring (bezel) to change the look: white, black, polished chrome, matte bronze, polished nickel.

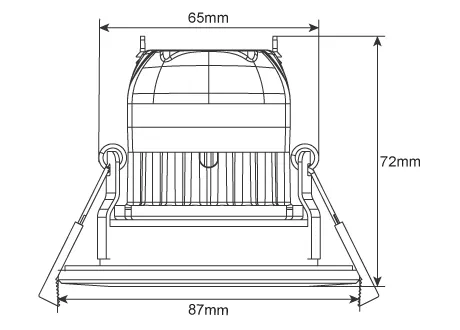

68mm cutout fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable (3)

Diameter 87 mm, height 72 mm, hole opening range 68-75 mm, recessed depth 62 mm.

Integrated 4cct 8w fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Premium Fire-Rated Integrated LED Downlights - IP65 waterproof, 4CCT tunable (2700K-5700K) & dimmable. Commercial/residential recessed lighting with 50,000hrs lifespan. Easy retrofit installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

For Living room fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Living

4CCT downlight, downlight with adjustable color temperature, triple color temperature, dimmable LED downlight, smart lighting solution.

For shopping fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Shopping

Warm light to cool light, with high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best showcases products.

For kitchen room fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Kitchen

Practical waterproof and dustproof spotlight/light that can provide directional lighting on the kitchen island or work surfaces.

For bathroom fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

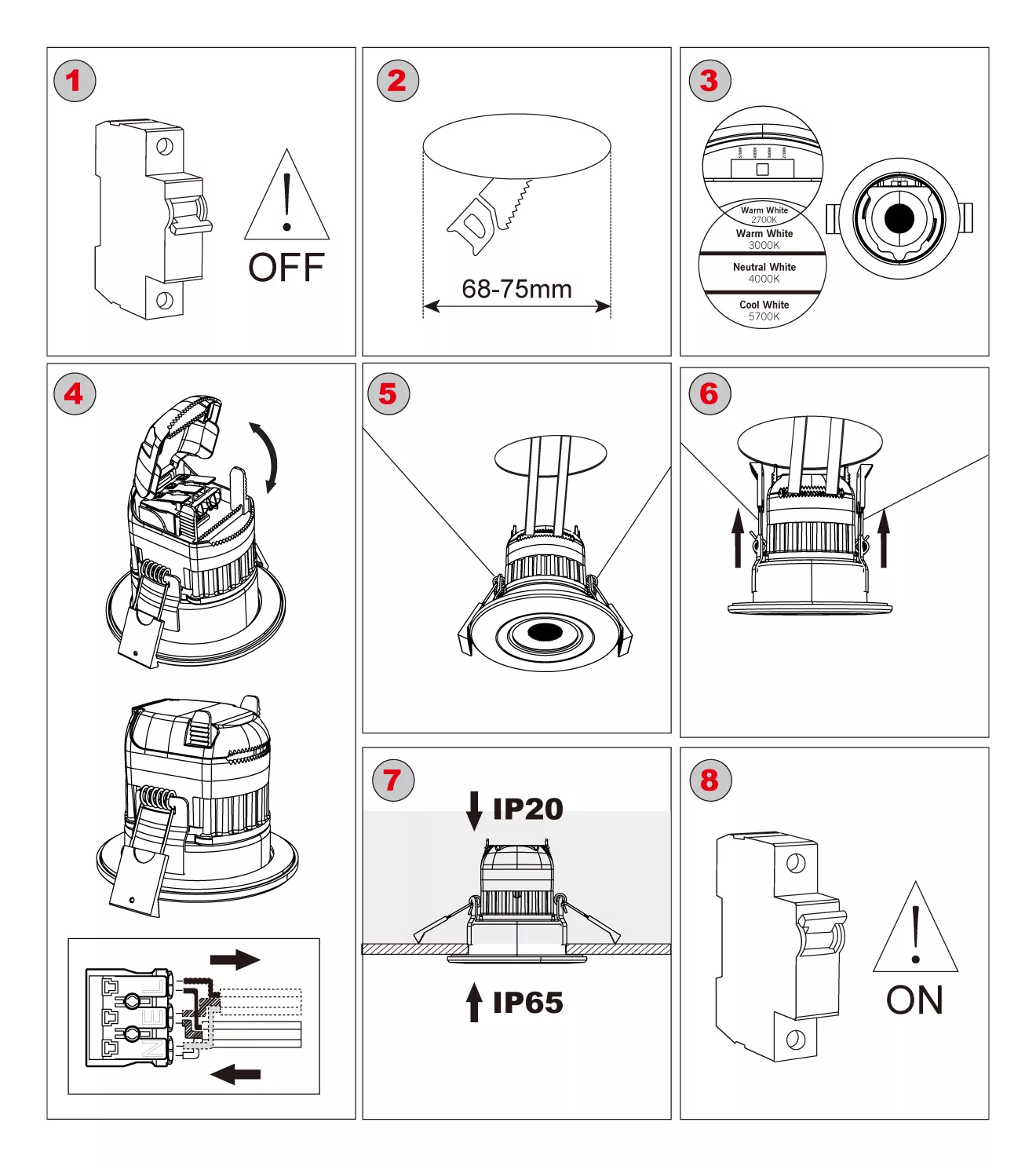

Installation Display

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select the color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires well, insert the light into the hole and fix it, adjust the direction if necessary, check the IP rating for the installation areas, turn on the wall switch and test the light, make sure all steps are followed for a safe and proper installation.

Installation steps integrated fire Rated LED Downlights LED Lighting Recessed spotlight ip65 dimmable
