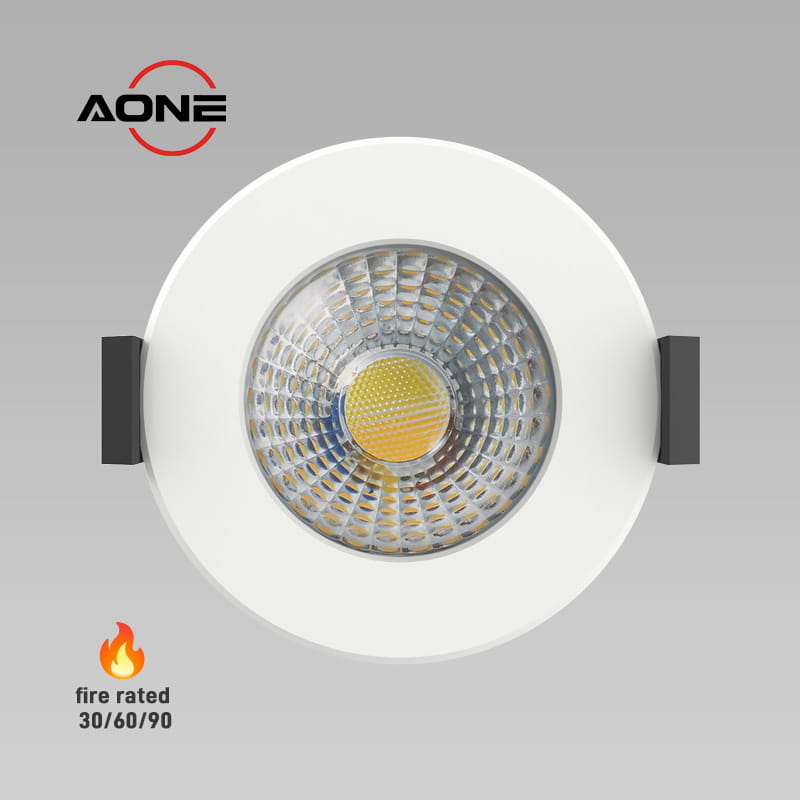

IP65 ECO Fire-Rated LED Downlight DL99C
Dimensions：
Ø84 x H70mm,cut-out 60-75mm
Power：
5W
Color temperature：
1CCT 2700K/3000K/4000K/5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits

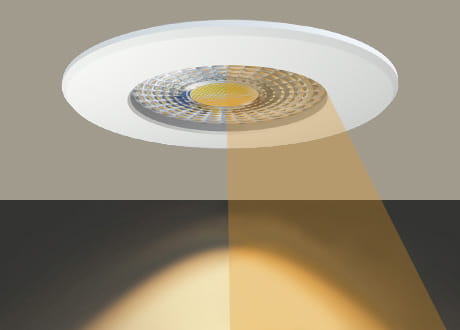

High LM Output
Delivering up to 550lm at 5W （110lm/W）

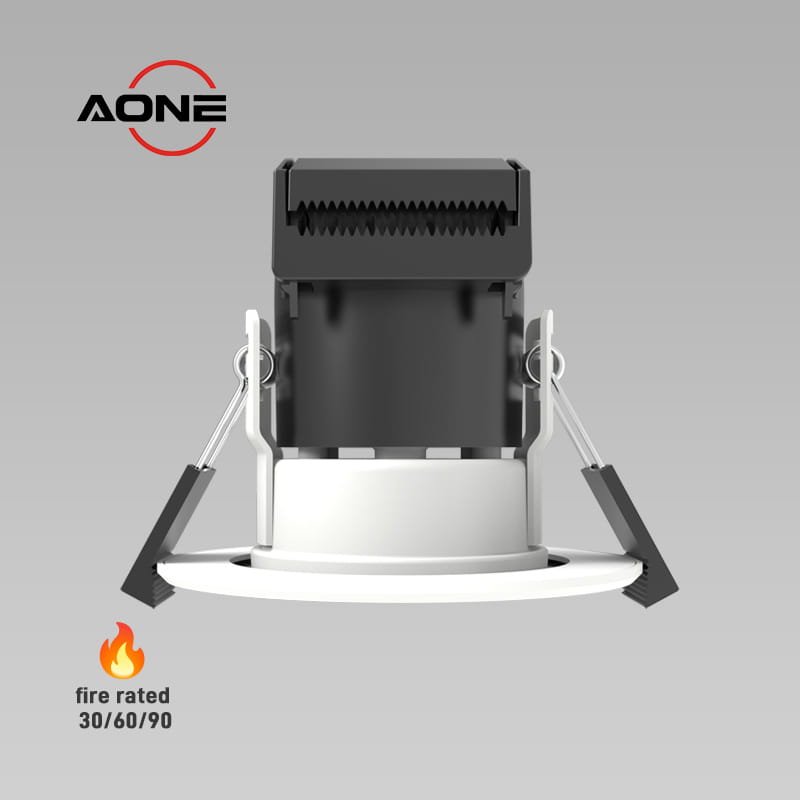

Fire-rated / Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, mini void 55mm

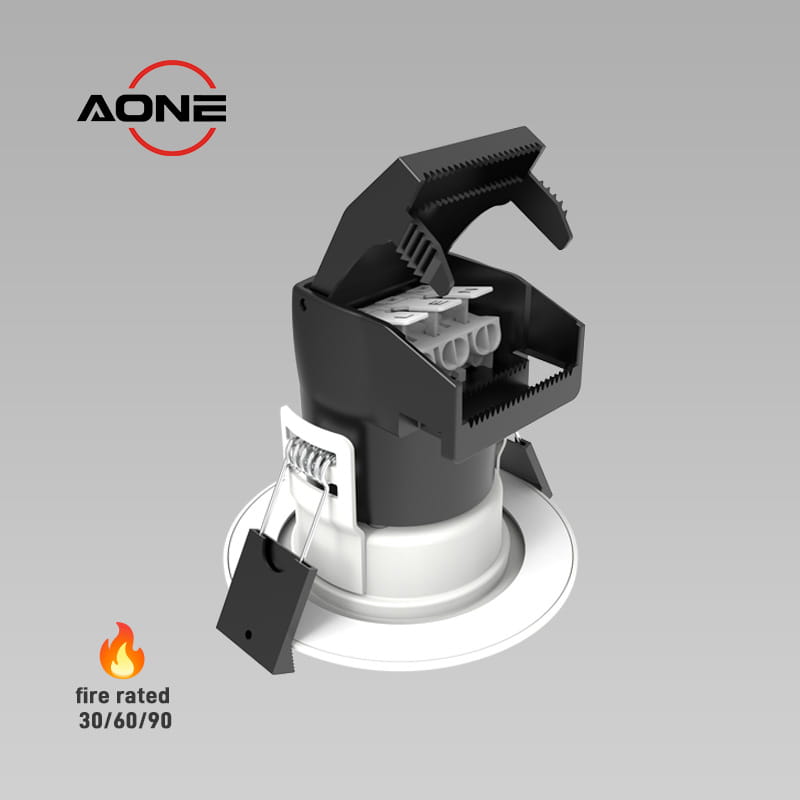

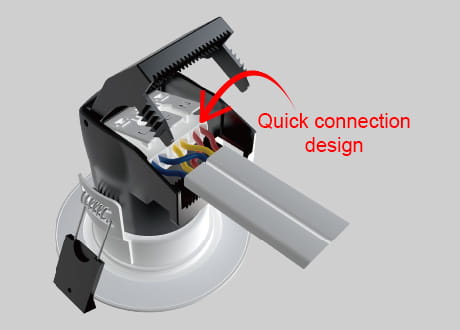

Quick Connection Design
Easy installation and labor saving

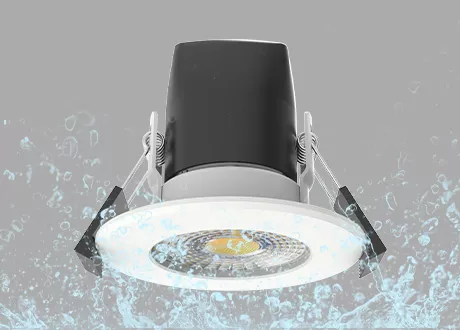

Waterproof Function
IP65 rated from the front making it ideal for bathrooms as well as living spaces

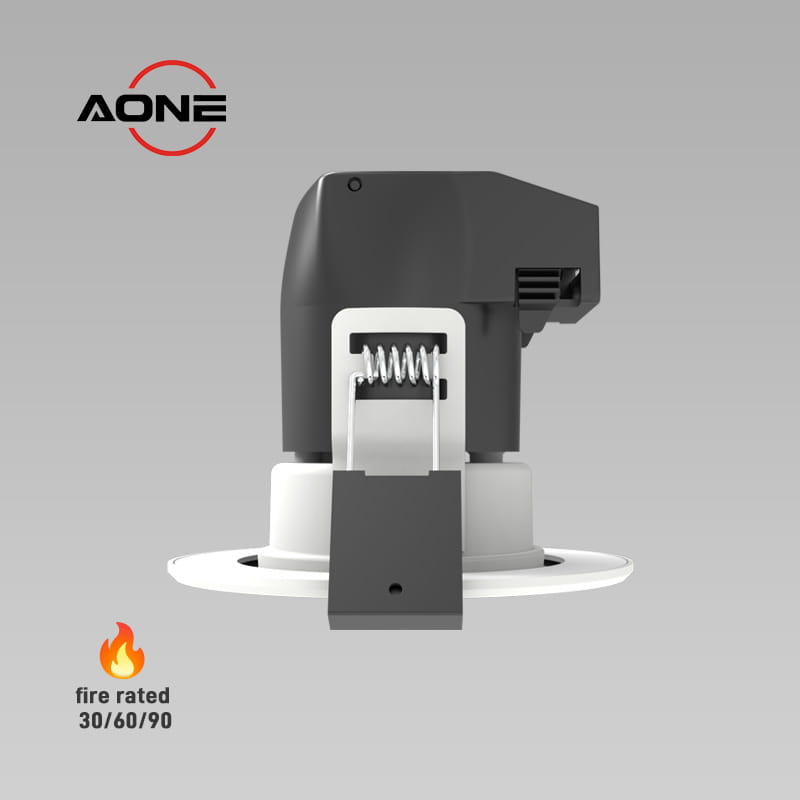

Strong Protected Spring Clips
Reduce complexity and improve efficiency during assembly
38° or 60° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version
Technical Specifications
| Model | DL99C | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 5W | Bezel Color | Black, White, Polished Chrome, Brushed Nickel, Matt Brass |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 550 | Size | Dia84mm, Cutout: 60-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

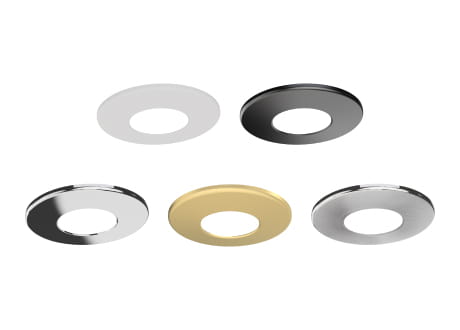

Bezel/trim interchangeable: white, black, polished chrome, matt brass, brushed nickel

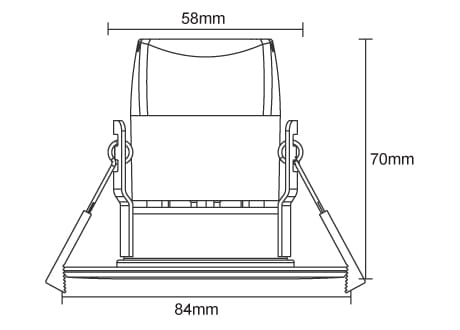

Diameter 84mm, height 70mm, hole opening range 60-75mm, recessed depth 55mm.

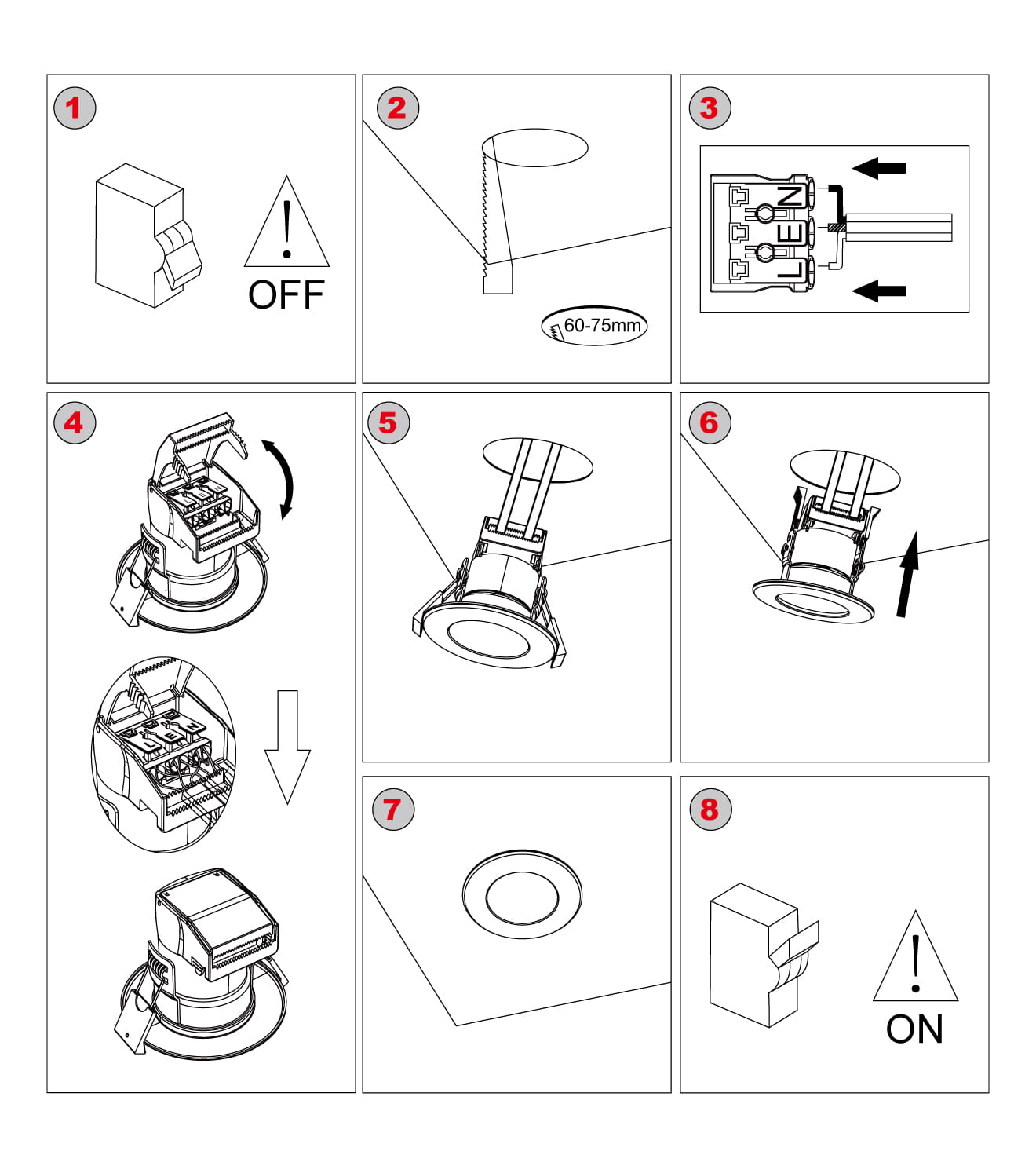

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.
Smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Installation Display
