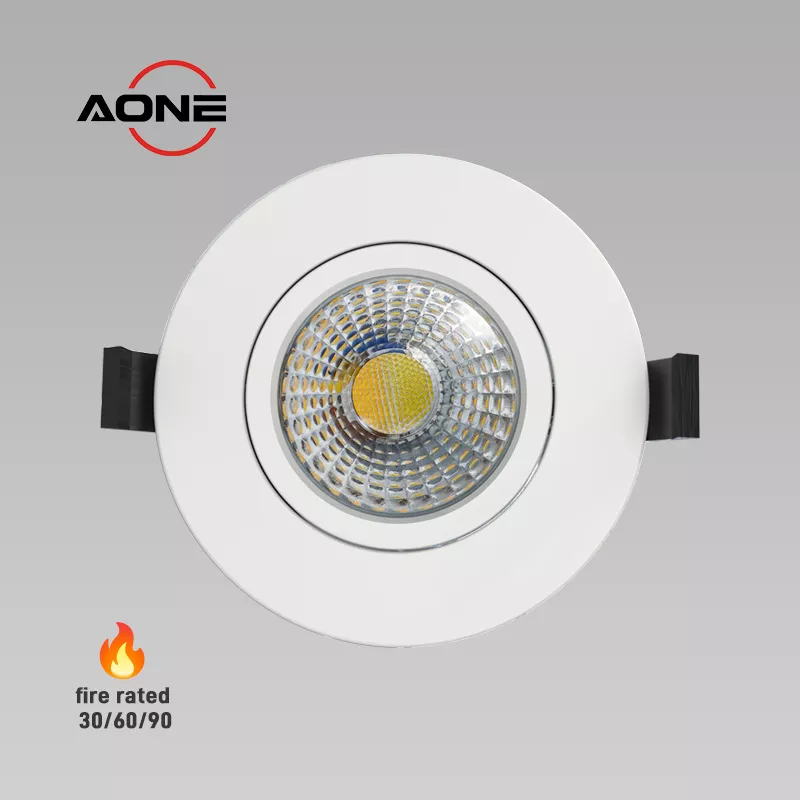

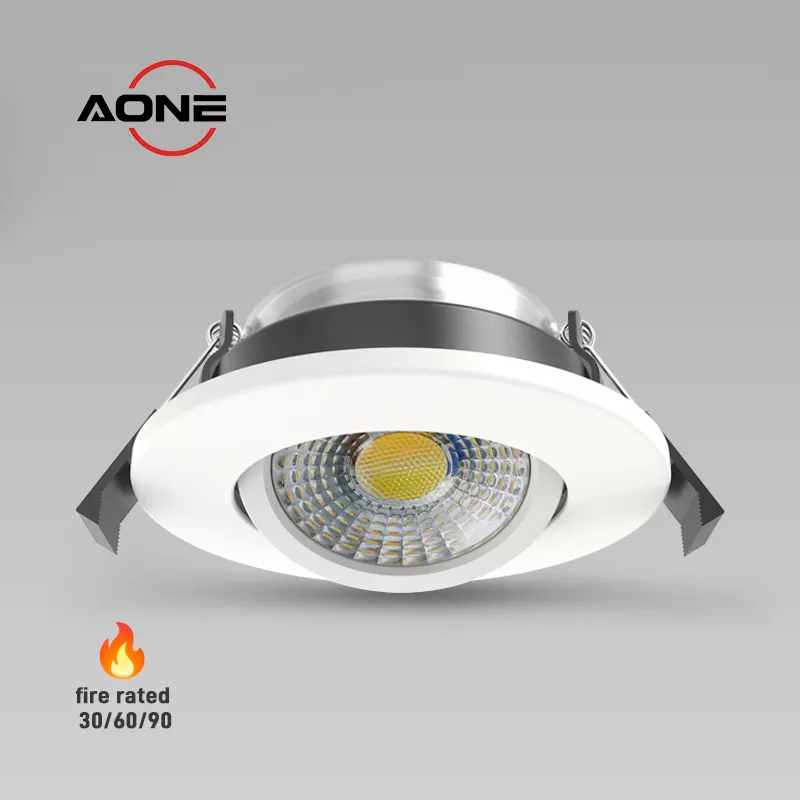

IP65 Tiltable Fire-Rated LED Downlight 3 Selectable Wattage 4W/6W/8W and 4CCT DL98Bpro

Dimmable IP65 waterproof downlight, Power 4W/6W/8W and CCT selectable between 2700K, 3000K, 4000K and 5700K. Adjustable design, wide range of bezel color interchangeable, fully fire rated tests for 30, 60 and 90 minute approval, coverable with insulation material, OEM/ODM Manufacturing give customized lighting solutions.

Dimensions:

Ø88 x H32mm,cut-out 68-75mm

Power:

4W-6W-8W selectable

Color temperature:

4CCT 2700K-3000K-4000K-5700K

Dimming or not:

Yes, triac dimmable

Beam angle:

38° or 60°

Rated voltage:

AC220-240V

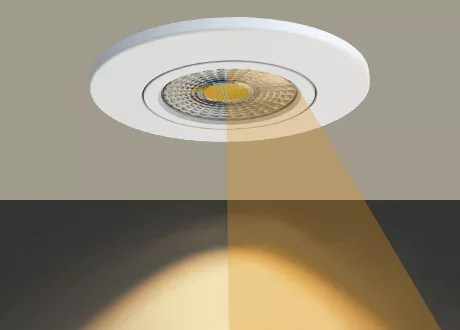

IP65 downlight tiltable



Key Features & Benefits



High efficiency downlight tiltable

High Efficiency 120lm/W

5%-100% smooth dimming gives perfect lighting for your space

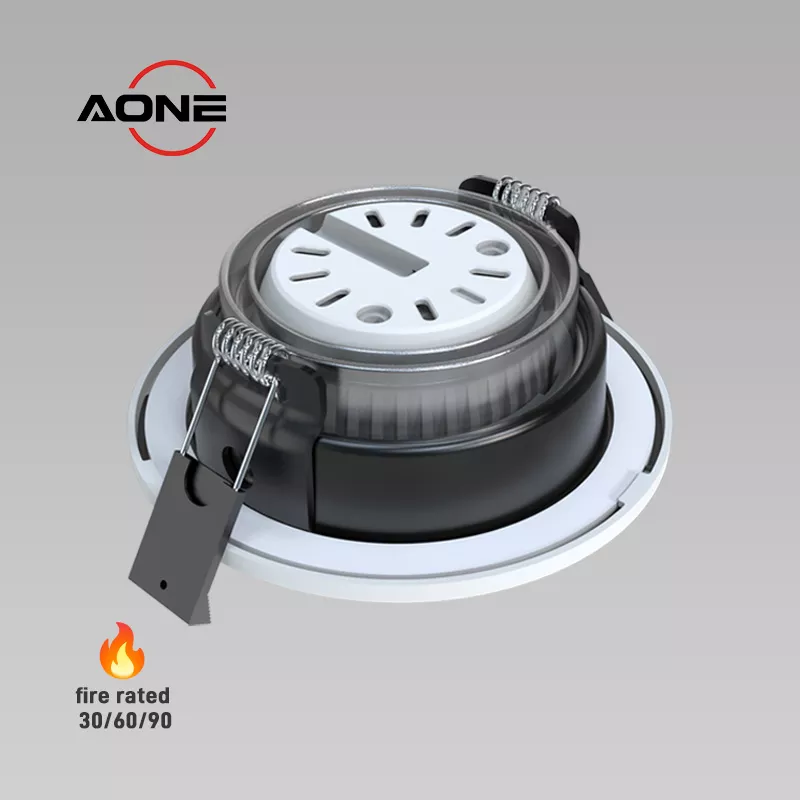

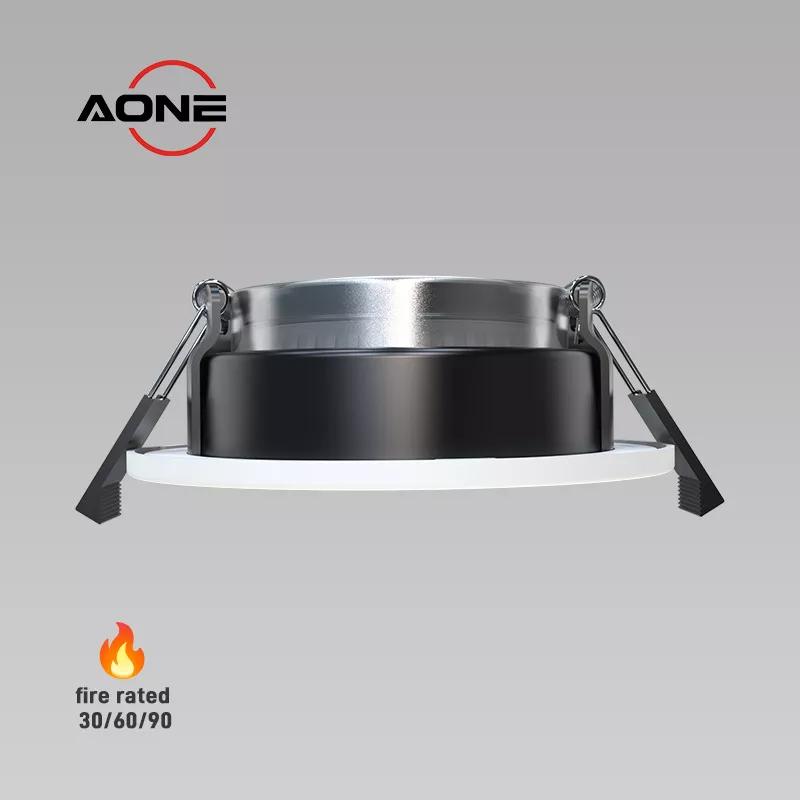

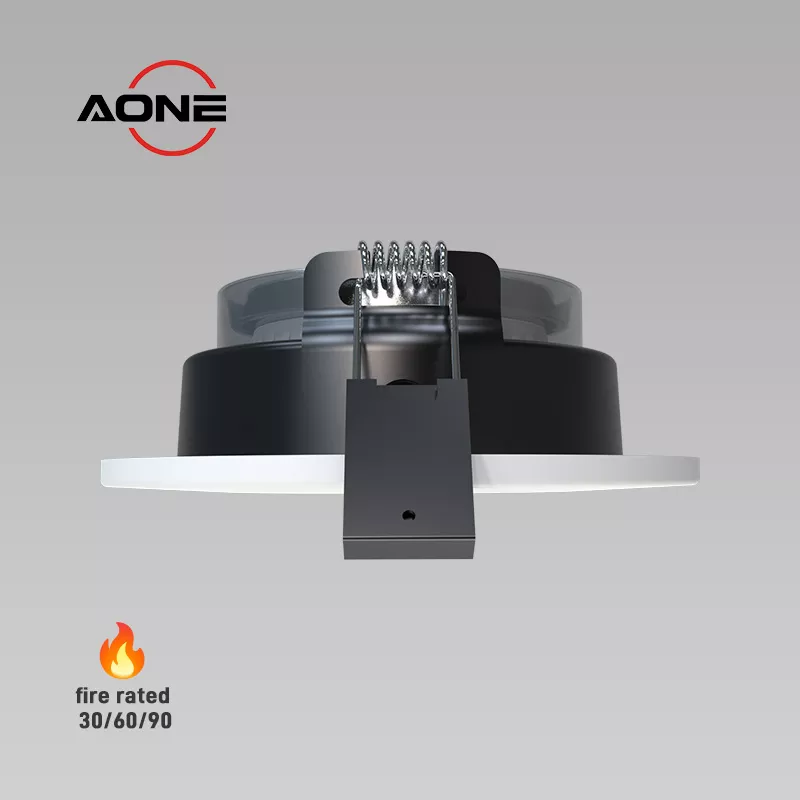

fire rated and coverable downlight

Fire-rated / Coverable

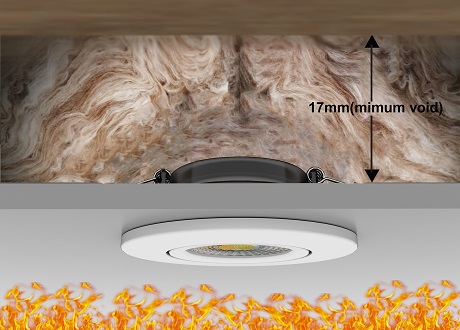

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 17mm

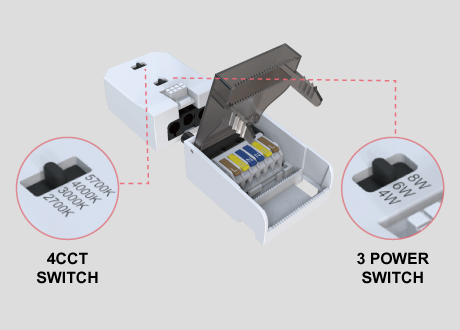

downlight, power and CCT switchable

Power & CCT Switchable

3 selectable wattage 4W/6W/8W and 4CCT easily changeable

DL98BPRO IP65 WATERPROOF

IP65 Waterproof

IP65 tiltable version for indoor using

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

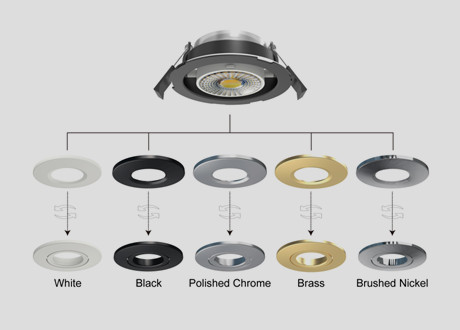

bezel changeable

Wide range of bezels

Interchangeable flat and adjustable bezels are available in a range of colour finishes





Technical Specifications



Model DL98Bpro Beam Angle 38° or 60°
Protection Class Class II / IP65 / IK08 Dimming Trailing edge and leading edge
Power 4W/6W/8W Switchable Color Black, White, Brushed, Chrome, Brass
Input AC220-240V 50/60Hz Color Temperature 2700K/3000K/4000K/5700K
Lumen 440/660/880 Size Dia88mm, Cutout: 70-75mm
Efficiency 110lm/W Certification CE, UKCA, RoHS
Life Time >50000 hours Warranty 5 Years
Fire Rated Yes Coverable Yes

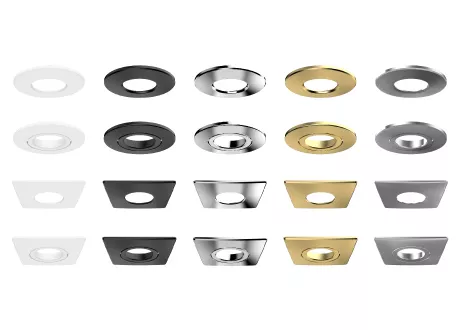

bezels changeable and colorful

Interchangeable: white, black, polished chrome, matt brass, brushed nickel

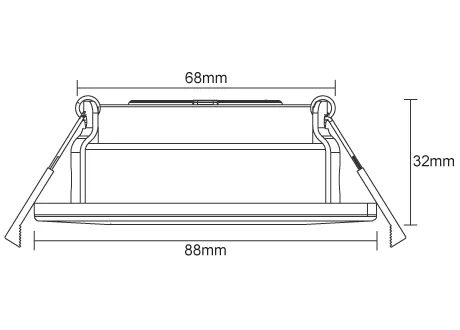

Diameter 88mm, height 32mm, hole opening range 70-75mm, recessed depth 30mm.

8 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.



Applicable Scenarios
Perfect for residential, hospitality, commercial office applications

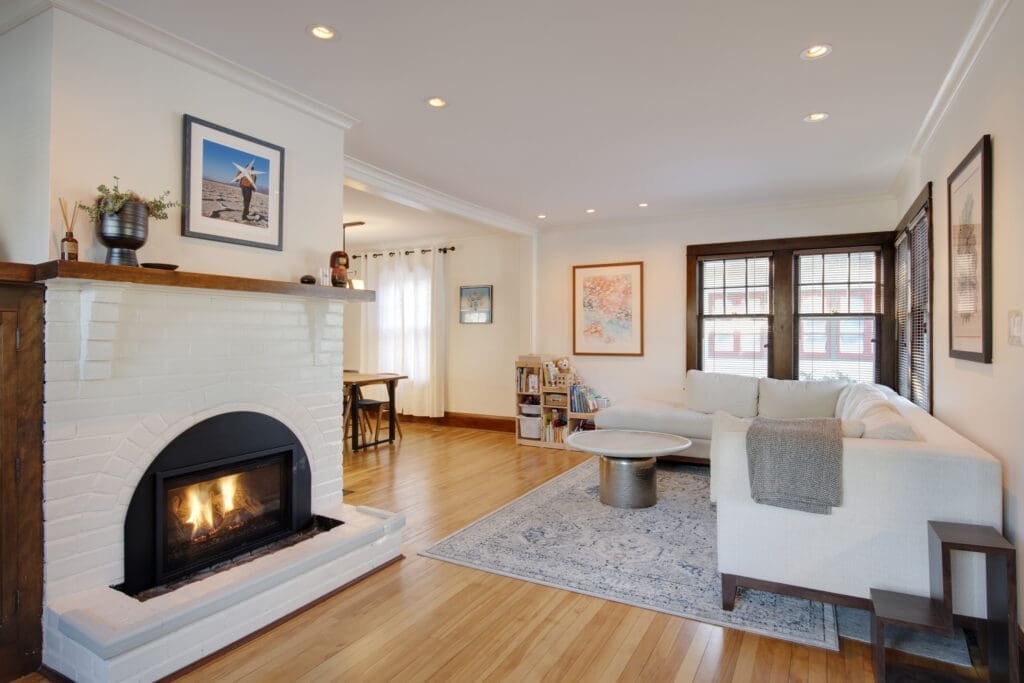

Living

Lamp adjustable structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

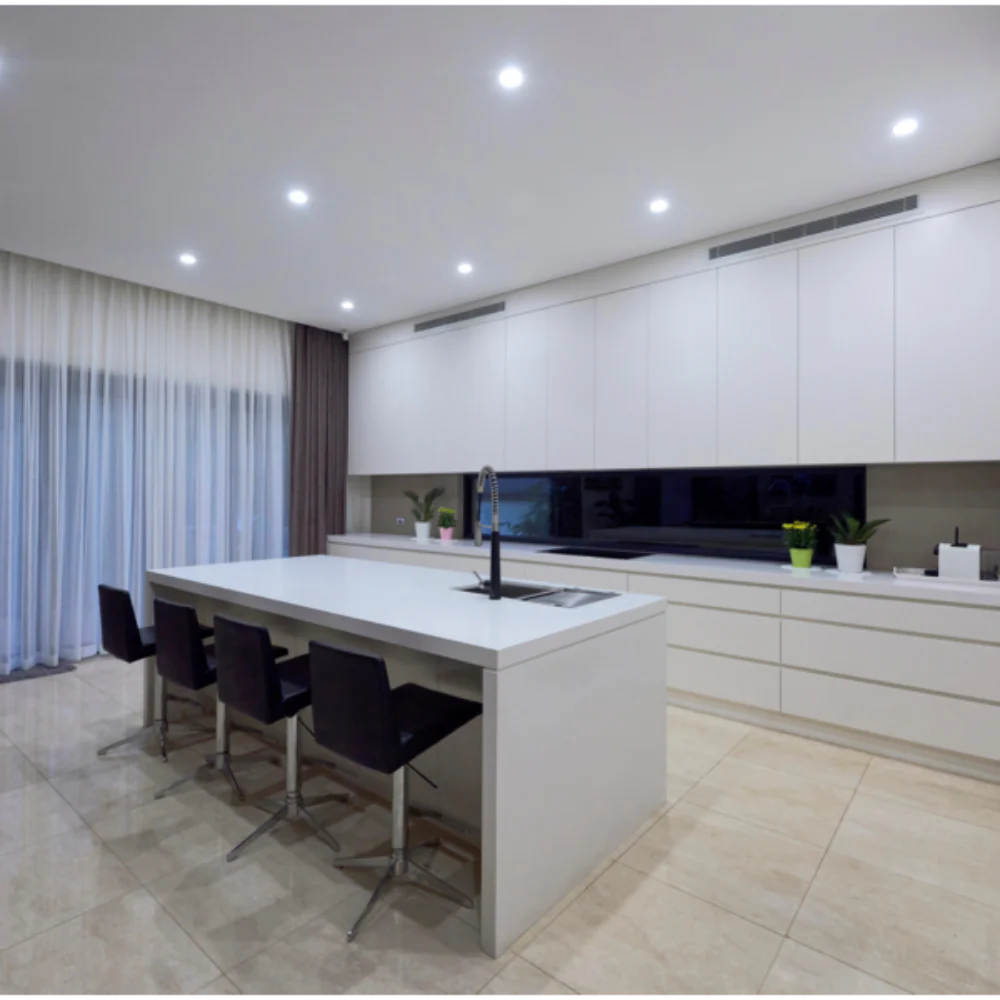

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

bath room application downlight titlable

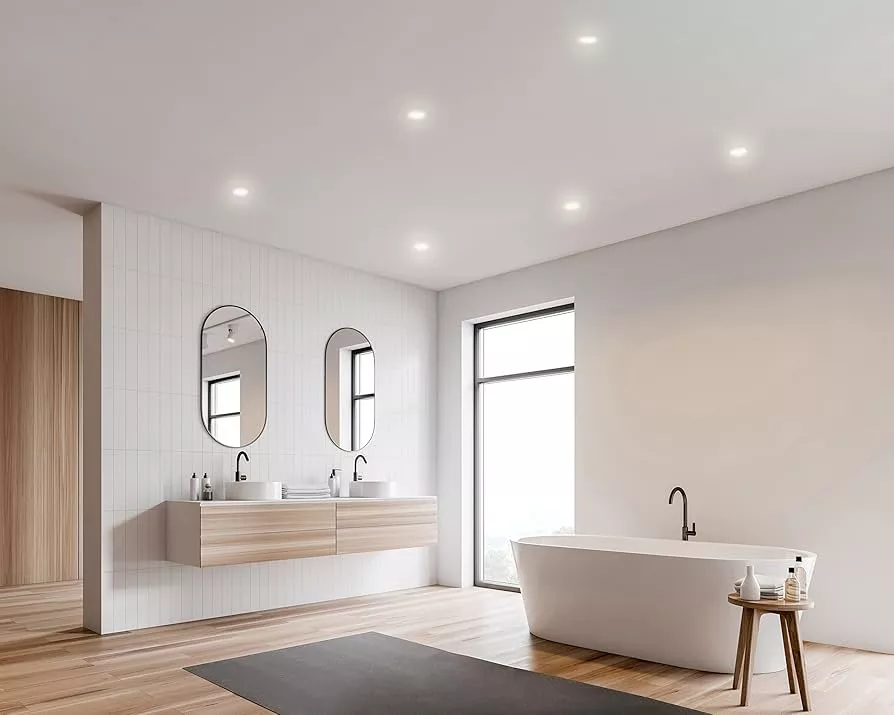

Bathroom

Tiltable IP65 waterproof cover is suitable for wet locations, zone 2 and zone 3.

Production Process

  A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.

downlight production process



  Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.

downlight certification



  Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

downlight testing center



Installation Display

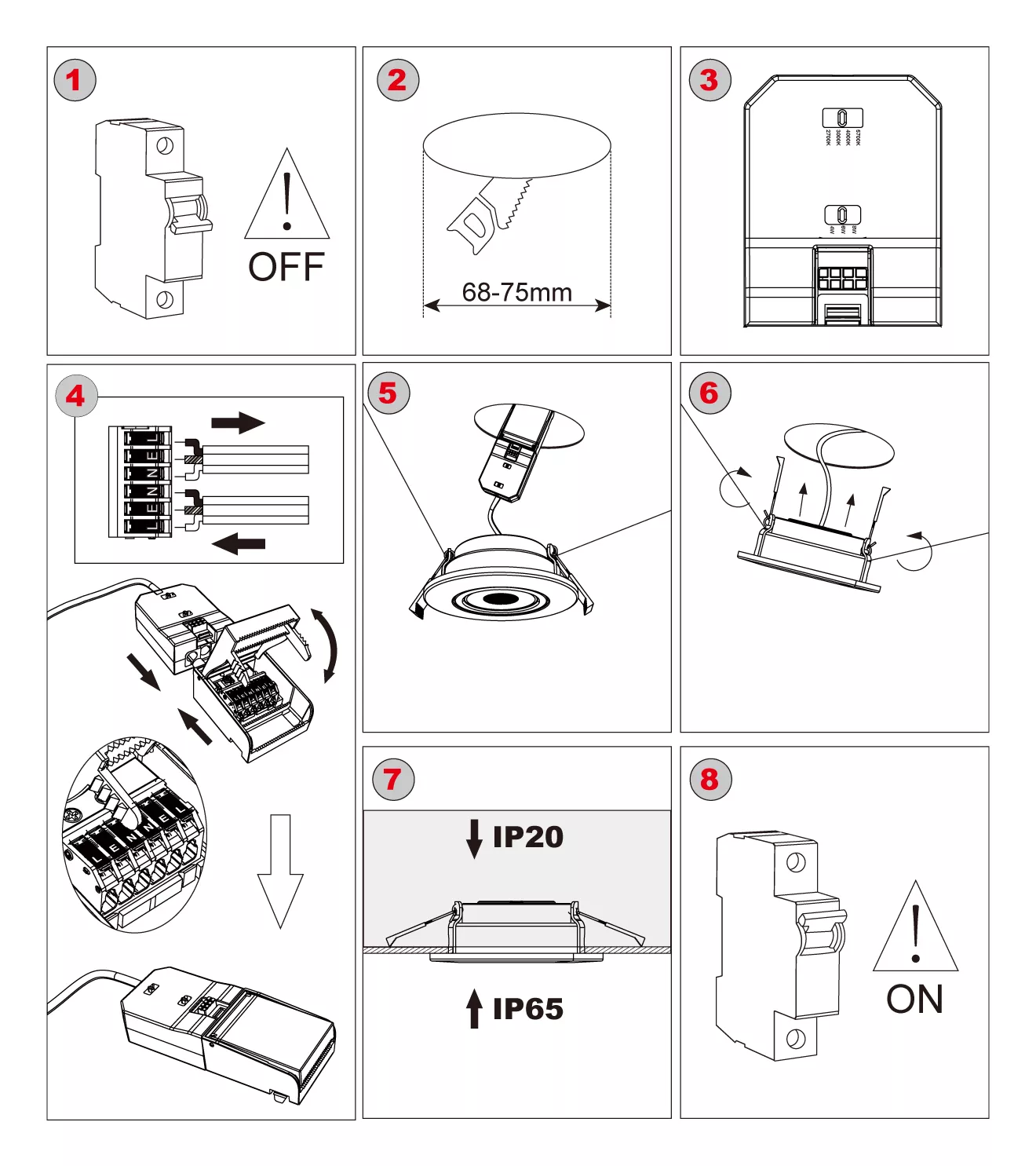

Turn off the power supply before installation, cut a hole (68-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.





installation steps
