Mini Aluminum Spotlight Tiltable Dimmable 5W IP44 Cutout 55mm DL86C-M
Dimensions：
Ø65 x H25mm,Cut-out 55-60mm
Power：
5W
Color temperature：
2700K-3000K-4000K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
CRI : 92 + , SMD LED ：
Rated voltage：
AC220-240V
Key Features & Benefits
LED Recessed Spotlight
5W 500lumens100lm/W Energy Saving 2700K/3000K/4000K
Ultra-Thin Depth Void of 10mm
Lens Adjustable +/-25 degree, Void Depth 10mm to Suit Any Spaces

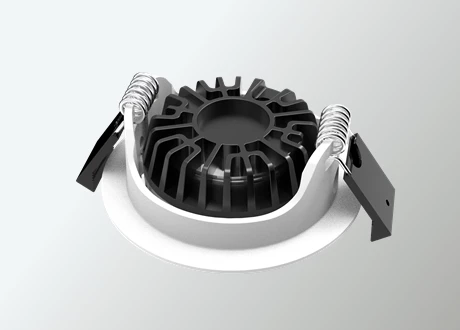

High Aluminum Lamp Body
Made of Full Aluminum Material for Good Heat Dissipation

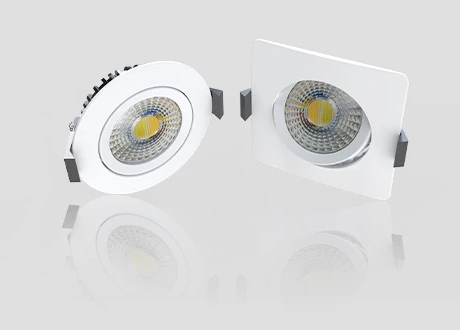

Round & Square Surface
Choose Freely between Round and Square Shapes for Decor
38° or 60° beam optional
High quality of LED chip and lens, offering CRI>80 or CRI>90 version

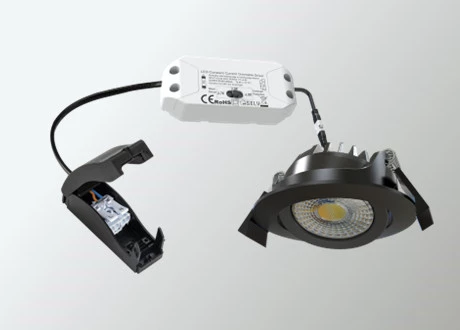

CE Dimmable Certificated Driver & Tool Free Junction Box
Connector with Loop in/out terminal reduces installation time by 50%.
Technical Specifications
| Model | DL86C-M | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP44 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 5W | Color | White,Black,Brushed Nickel,Brass |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K |
| Lumen | 500 | Size | Dia 65mm, Cutout: 55-60mm |
| Efficiency | 100lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | No | Coverable | Yes |
White, Black, Polished Chrome, Brushed Nickel, Brass

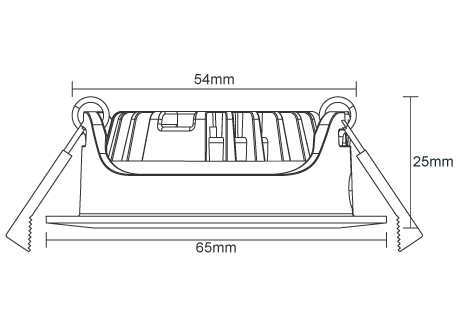

Diameter 65mm, height 25mm, hole opening range 55-60mm, recessed depth 15mm.
LED Lens IP Rating of 44
✔️ 4CCT Selectable Color Temperatures (2700K/3000K/4000K): Switch between Warm White, Soft White, Cool White, and Daylight to match any mood or application.
✔️ Tool-Free Installation – Snap securely into place in seconds. No tools, no hassle, saving time and effort on any project.
✔️ Easy Loop-In/Out Wiring: Streamlined connectivity for quick daisy-chaining, ideal for multi-light setups in residential or commercial projects.
✔️ High-Quality CE Certified Driver – Guarantees reliable performance, safety, and a long lifespan with European compliance standards.
✔️ Ultra-Slim Design (25mm Height): Super thin profile for a sleek, modern look that blends seamlessly into any ceiling or cabinet.
✔️ Minimal Void Depth (15mm): Requires only 15mm of clearance, perfect for tight spaces or shallow ceiling installations.
✔️ Options of Beam Angle (38/60 Degrees): Flexible illumination for focused or broad lighting, ideal for cabinets, displays, or workspaces.
Large tilt angle and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

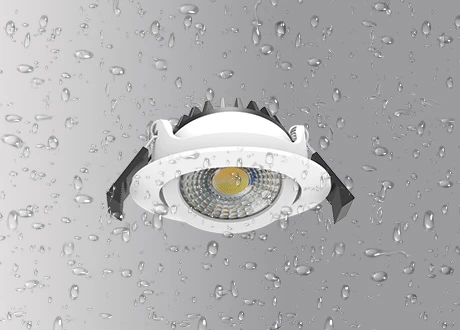

Waterproof & Dustproof, practical downlight/spotlight can provide beautiful lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

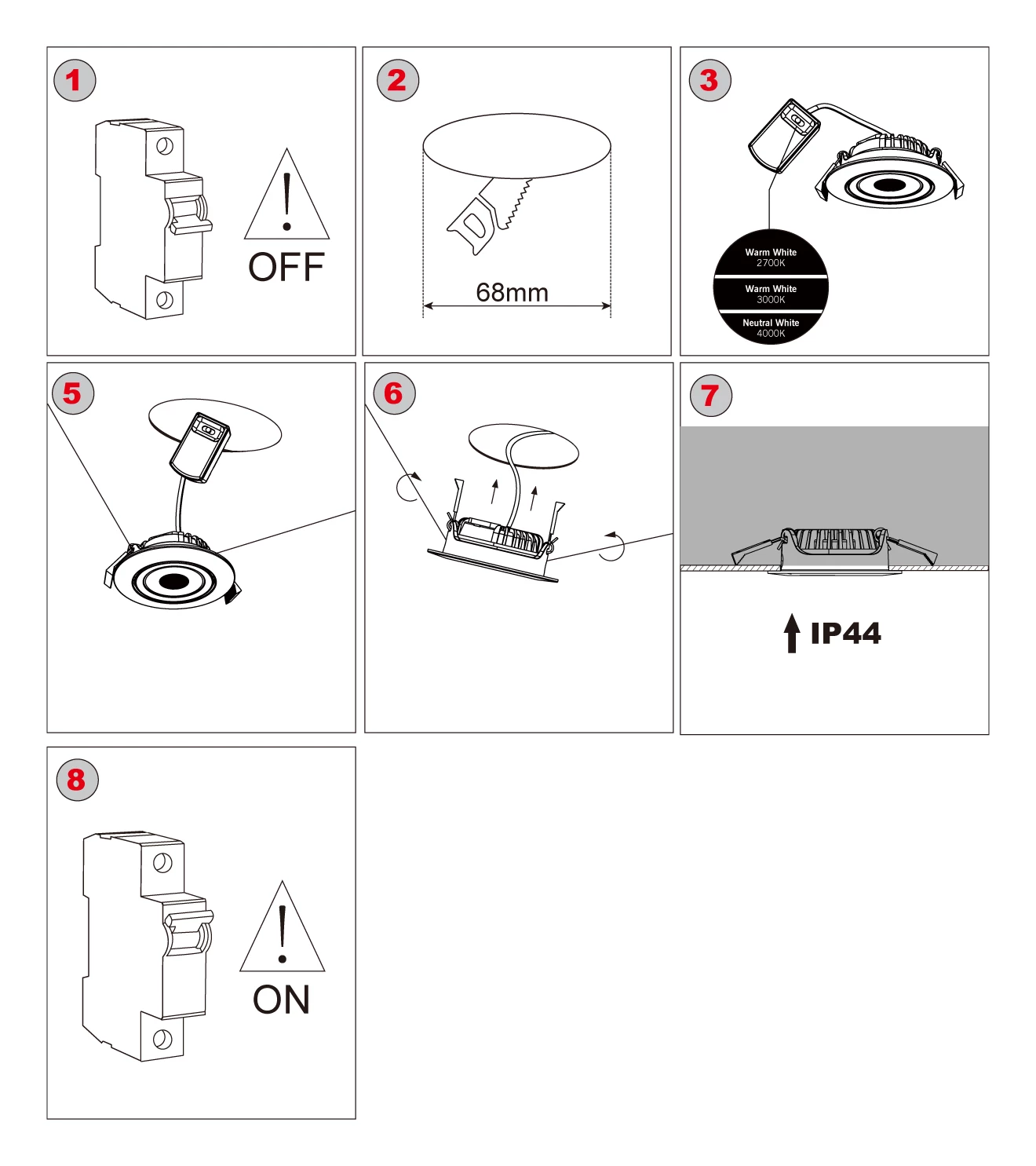

Installation Display
Mini Aluminum Recessed Spotlight – Frequently Asked Questions (FAQs)
1. What makes the Mini Aluminum Recessed Spotlight easy to install?
The Mini Aluminum Recessed Spotlight features a tool-free installation design, allowing you to quickly set up without specialized equipment. Its innovative loop-in/out wiring supports fast daisy-chaining, simplifying electrical connections for both DIY homeowners and professional electricians.
2. How does the ultra-slim design benefit my lighting project?
With an ultra-slim profile—only 25mm in height and 15mm void depth—this recessed spotlight is perfect for tight spaces, low ceilings, and cabinets. Its sleek look integrates smoothly into modern interiors without sacrificing lumens or performance.
3. Can I customize the lighting color temperature?
Absolutely! The spotlight offers 4CCT selectable color temperatures (2700K, 3000K, 4000K), enabling you to easily switch between warm, neutral, or cool lighting to perfectly match any ambiance or decor style in your home or business.
4. What cut hole size is required for installation?
For easy recessed mounting, you’ll need a cut hole size of 55-60mm. This standard dimension ensures a precise fit with minimal modification to ceilings, walls, or cabinetry.
5. How adjustable is the beam angle for different lighting needs?
The Mini Spotlight features an adjustable beam angle (38°–60°), letting you highlight artwork, create accent lighting, or brighten large spaces like kitchens or offices with broader coverage.
6. Is the Mini Aluminum Recessed Spotlight safe and reliable?
Definitely! Each unit is powered by a CE-certified driver, complying with European electrical safety and quality standards, delivering stable, long-lasting performance you can trust.
7. Is the spotlight energy-efficient?
Yes, it uses advanced LED technology of 100lm/W. This helps lower power use and reduce electricity bills. It also provides bright, long-lasting light for homes, offices, and stores.
8. Can I order the spotlight for custom or bulk projects?
The Mini Spotlight is ideal for OEM/ODM applications, MOQ 200pcs, price $4.5-6.5, allowing large-scale customization for branding or bulk lighting projects, making it perfect for wholesalers, contractors, and business owners.
9. Where is the Mini Aluminum Recessed Spotlight best used?
This versatile spotlight is excellent for cabinet lighting, residential homes, and commercial environments like offices, galleries, and retail spaces—delivering style, efficiency, and superior lighting performance.
10. How does the loop-in/out wiring simplify installation?
Loop-in/out wiring means you can easily connect multiple spotlights in series, streamlining the installation process and reducing wiring time—ideal for projects involving many lights.
