Aluminum surface Mini Downlight IP65 Multi-functional DL169

32mm Ultra-Thin LED Downlight: IP65 rated for wet areas, 4-step CCT (2700K-5700K). Tool-free clips enable 60-second installations, while quick connector & loop-in/out terminals simplify wiring. CE/ROHS certified aluminum build.Custom OEM/ODM solutions available.

Dimensions：

Ø75 x H32mm,Cut-out 50-70mm

Power：

Color temperature：

2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Recessed LED Downlight

High efficacy of 100lm/W, equivalent to 30W Halogen Bulb

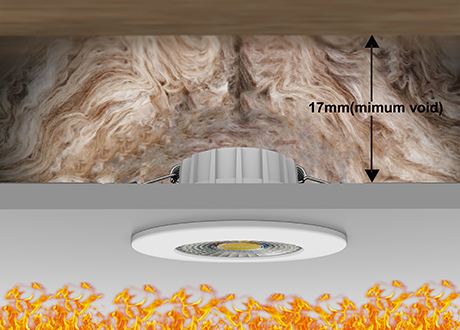

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 21.5mm

4-CCT Setting

Adjust Color Temp → Slide the DIP Switch

Metal Surface

Durable and attractive metal material creates a solid surface

38° or 60° beam optional High quality of LED chip and lens, offering RA>80 or RA>90 version

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast installation via Isolated Driver

Loop in/out terminal driver reduces installation time by 50%.

Technical Specifications

Model	DL169	Beam Angle	38° or 60°
Protection Class	Class II / IP65(Front) / IK08	Dimming	Trailing edge and leading edge
Power	6W	Color	White,Black,Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	600	Size	Dia75mm, Cutout: 50-70mm
Efficiency	100lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

White, Black, Polished Chrome, Brushed Nickel options

Diameter 75mm, height 32mm, hole opening range 50-70mm, recessed depth 17mm.

Unique V-shaped design driver, quick cable connector with loop-in /out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

Living

Large tilt angle and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide beautiful lighting to kitchen island or worktops

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

Installation Display

Turn off the power supply before installation, cut a hole (50-70mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
