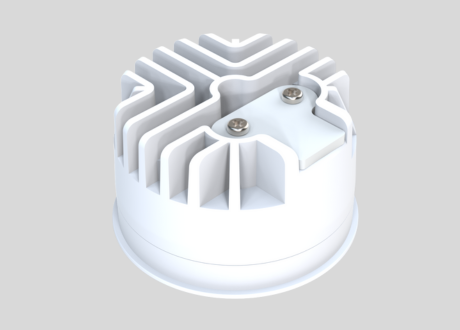

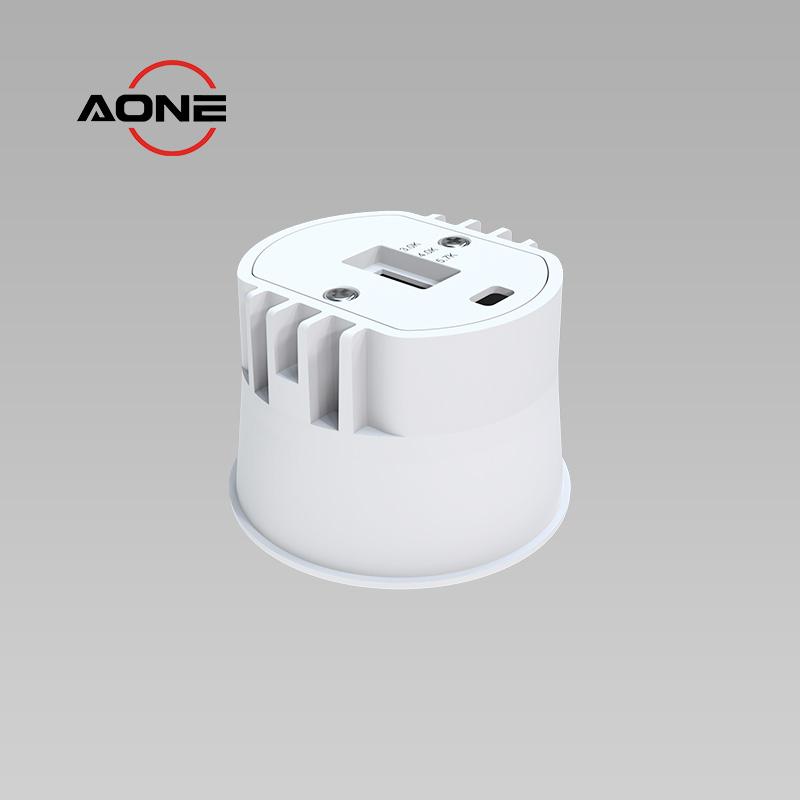

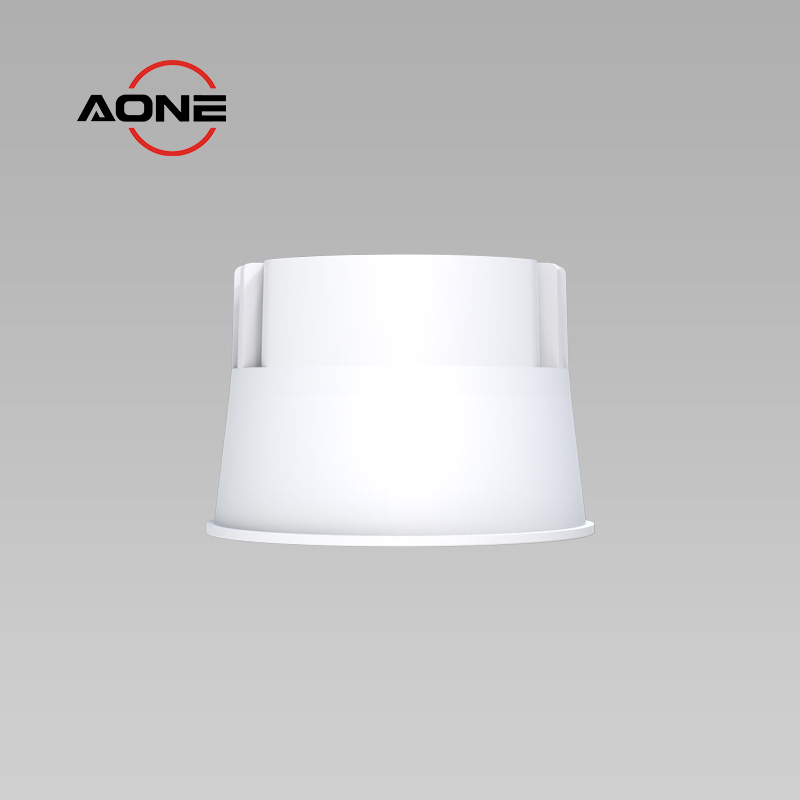

Module Spotlight Triac Dimmable 3CCT DL69

This ultra-adaptable LED module light delivers 4 configurations in 1 unit: With 110lm/W efficiency, IP20 rating. 5W, 2700K-3000K-4000K CCT, CE/UKCA/ROHS certified. Factory-direct supply, customizing OEM/ODM solutions available.

Dimensions：

Ø50 x H30mm

Face ring：

Ø86 x H21mm, Ø87 x H39mm, Ø90 x H43mm, Ø92 x H43mm

Power：

Color temperature：

2700K-3000K-4000K or 3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Recessed LED Modular Downlight

High efficiency of 110lm/W. Equivalent to 65W halogen lamp

Full Aluminum Material

30mm shallow, save space

Quick DC Connector on Cable

Quick-connect modular design: Tool-free light engine/driver replacement minimizes service interruptions

Modular compatibility

Select round facing ring for seamless integration or square profiles for contemporary aesthetics without compromising optical performance

38° or 60° beam optional High quality of LED chip and lens, offering RA>80 or RA>90 version

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

Fast installation via Loop in/out terminal

3CCT dip switch, plug-and-play driver reduces installation time by 50%.

Technical Specifications

Model	DL69	Beam Angle	38° or 60°
Protection Class	Class II / IK08	Dimming	Trailing edge and leading edge
Power	5W	Color	White
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K
Lumen	550 lm	Facing Ring Size	D86 x H21mm, D87 x H39mm, D90 x H43mm, D92 x H43mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Modular	Yes	Coverable	Yes

Modular - 4 universal face ring options

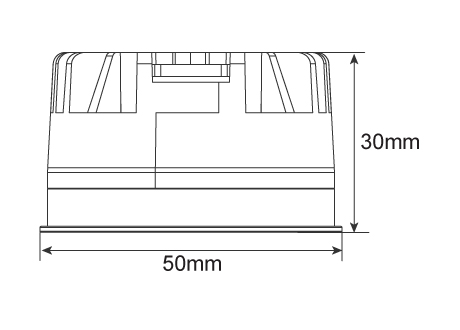

Diameter 50mm, height 30mm

led downlight spotlight drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

Living

Anti-glare with deep-recessed optics eliminates eye strain during night activities.

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide beautiful lighting to kitchen island or worktops

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

Installation Display

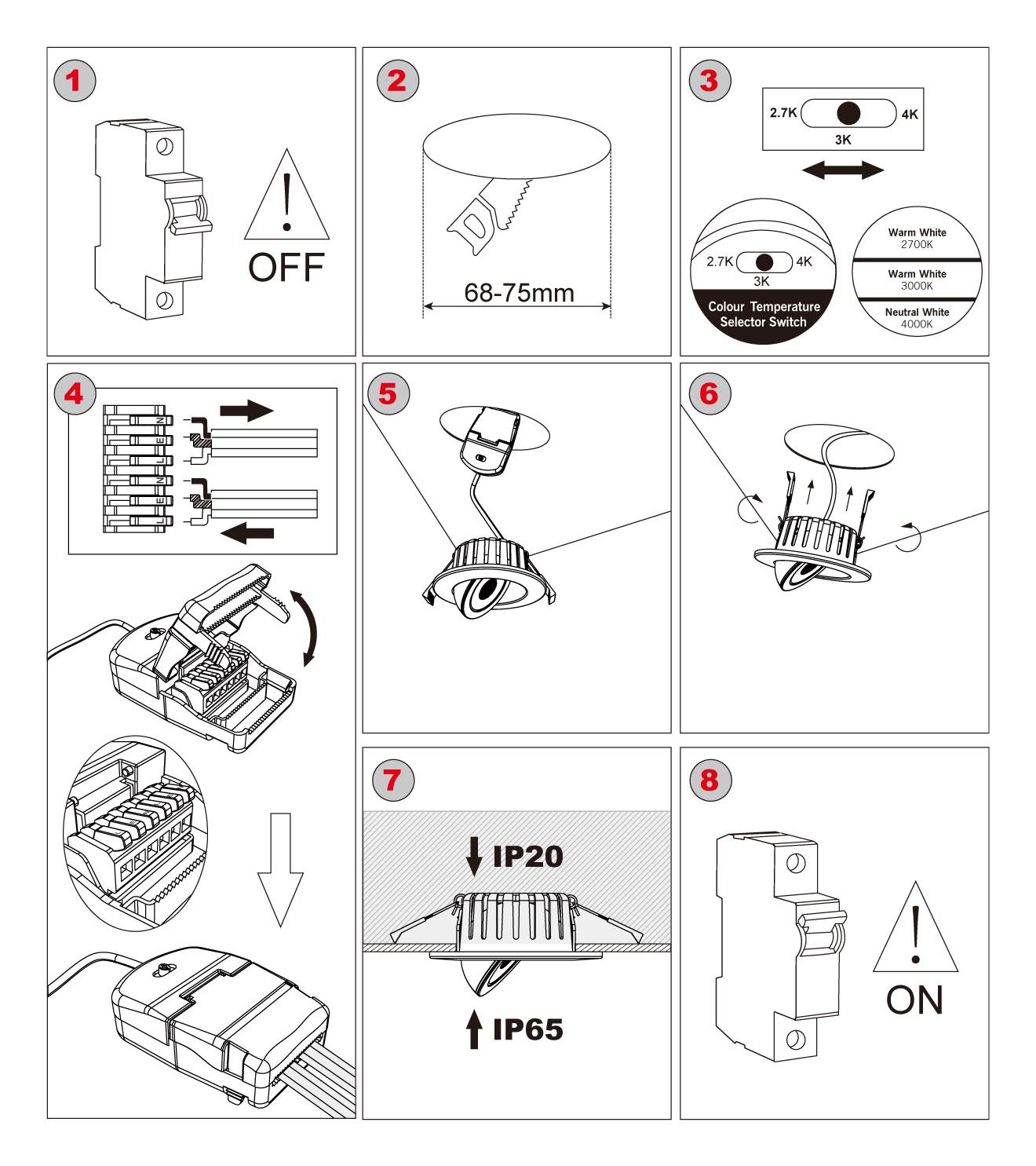

Turn off the power supply before installation, cut a hole in the ceiling for mounting, select color temperature: 2700K/3000K/4000K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.
