Modular downlight Multi-functional 3CCT DL69
Dimensions：
Ø50 x H30mm
Face ring：
Ø86 x H21mm, Ø87 x H39mm, Ø90 x H43mm, Ø92 x H43mm
Power：
5W
Color temperature：
2700K-3000K-4000K, 3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
Recessed LED Modular Downlight
High efficiency of 110lm/W. Equivalent to 65W halogen lamp
Compact Structure
30mm ultra-thin, save space
Quick Connector on Wires
Quick-connect modular design: Tool-free light engine/driver replacement minimizes service interruptions
Modular Compatibility
Select round facing ring for seamless integration or square profiles for contemporary aesthetics without compromising optical performance
38° or 60° Beam Optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

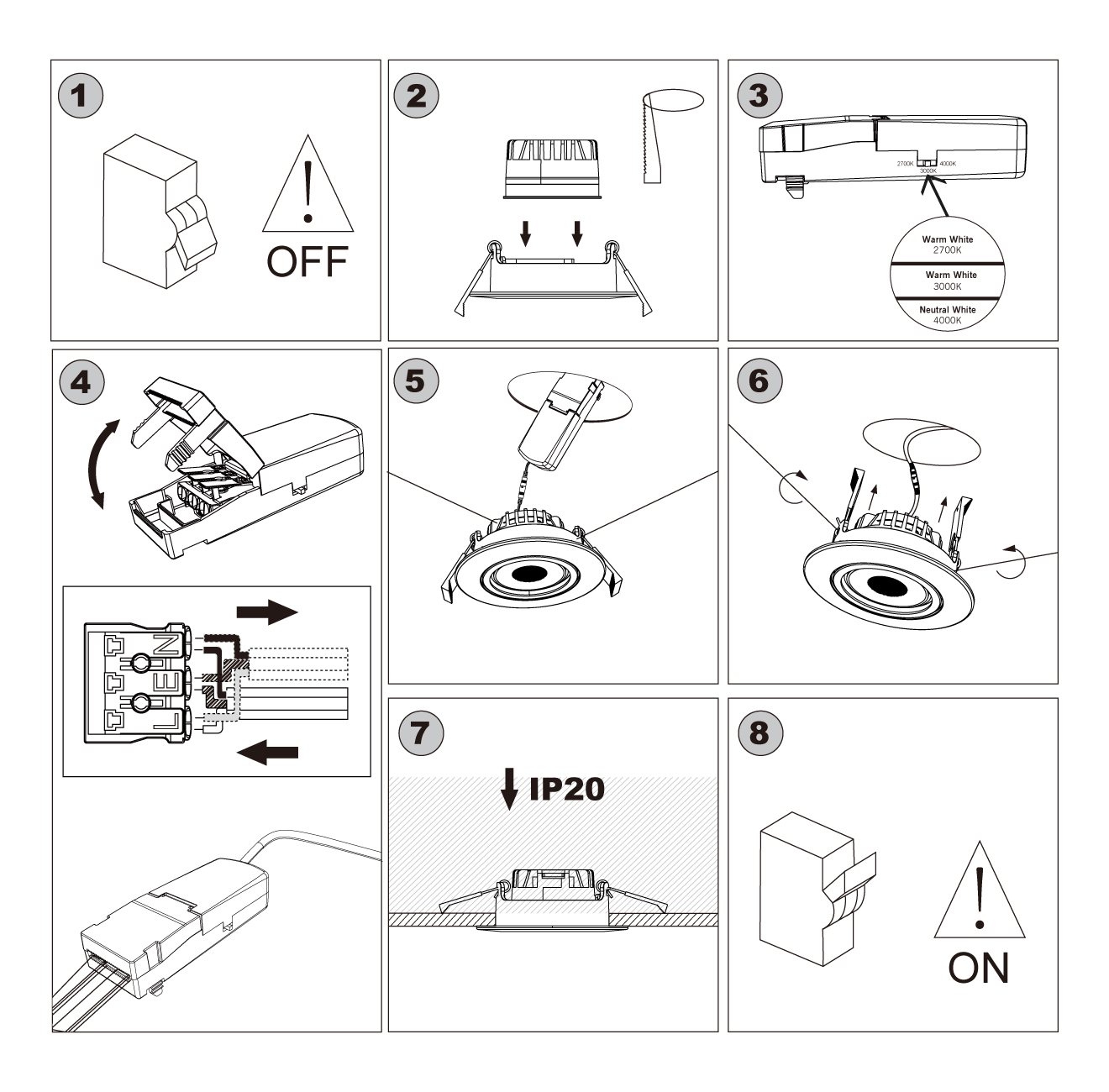

Fast Installation via Loop in/out Terminal
3CCT dip switch, plug-and-play driver reduces installation time by 50%.
Technical Specifications
| Model | DL69 | Beam Angle | 38° or 60° |
| Protection Class | Class II / IK08 | Dimming | Trailing edge and leading edge |
| Power | 5W | Color | White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K |
| Lumen | 550 lm | Facing Ring Size | D86 x H21mm, D87 x H39mm, D90 x H43mm, D92 x H43mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Modular | Yes | Coverable | Yes |
Modular - 4 universal face ring options
Diameter 50mm, height 30mm
8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.
Anti-glare with deep-recessed optics eliminates eye strain during night activities.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide beautiful lighting to kitchen island or worktops

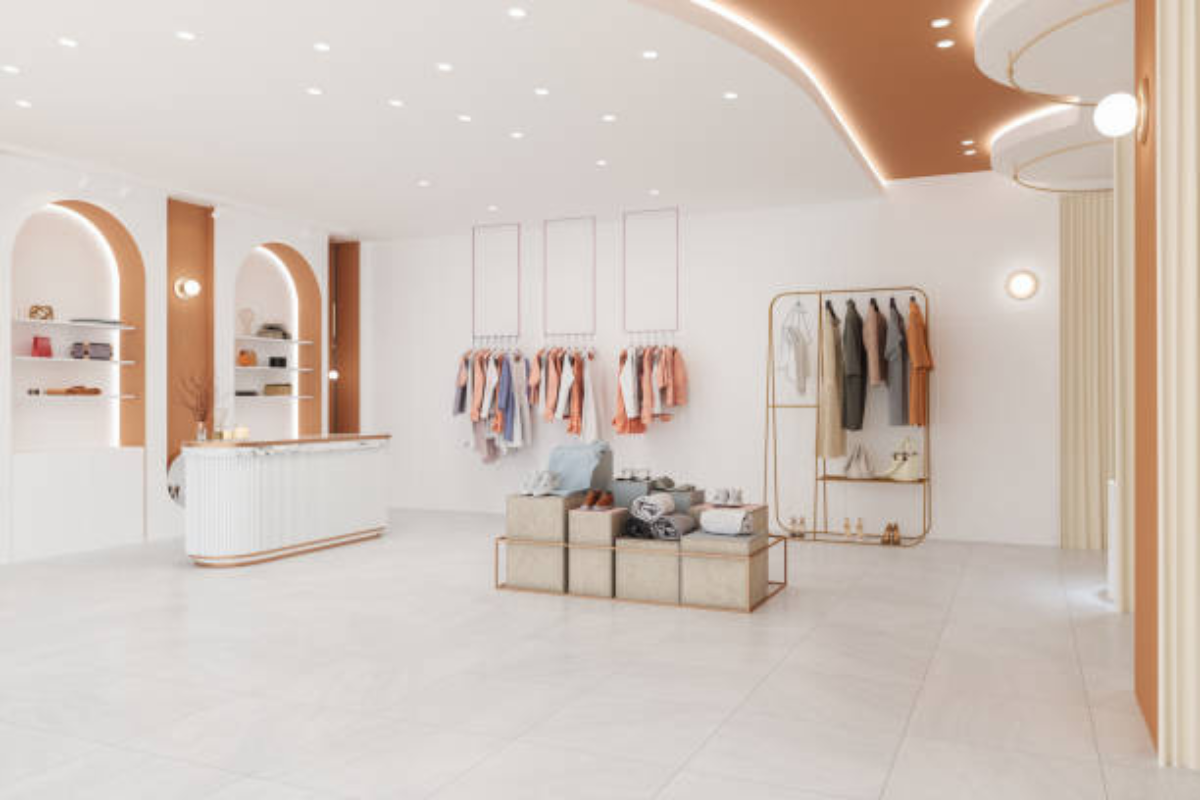

Ultra-thin downlights vanish into ceilings, bathing shelves in shadow-free light. Shoppers see products – not fixtures.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Installation Display
