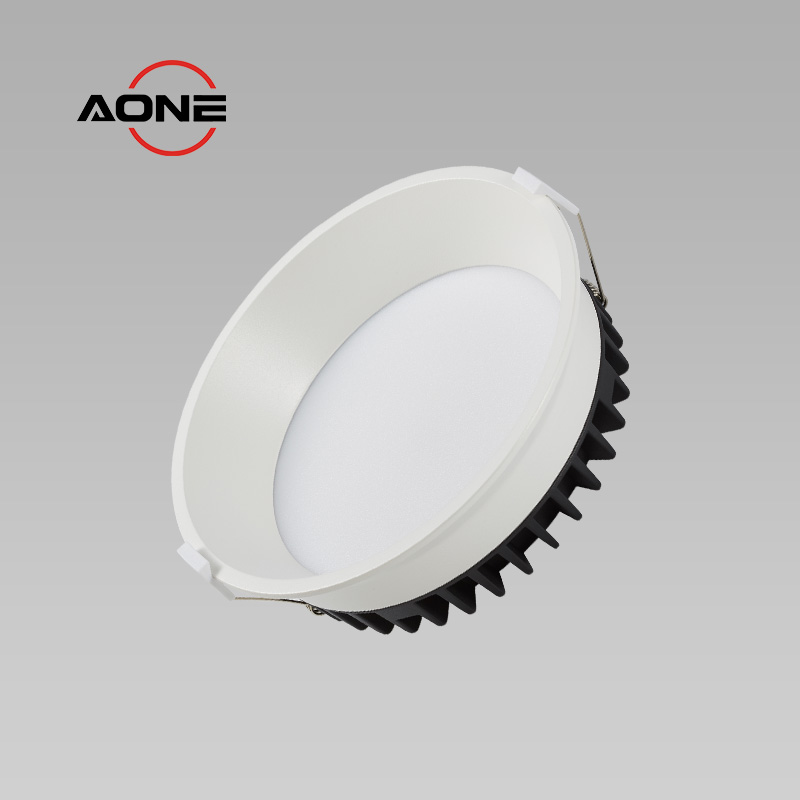

New 8W, 12W and 20W LED downlight with 3CCT switchable diffuser DL110

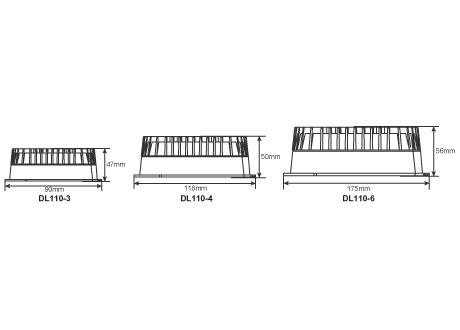

Dimensions：
Ø90 x H47mm,cut-out 80-85mm; Ø118 x H50mm,cut-out 110-115mm; Ø175 x H56mm,cut-out 165-170mm
Power：
8W, 12W, 20W selectable
Color temperature：
3CCT 2700K-3000K-4000K
Dimming or not：
Yes, triac dimmable

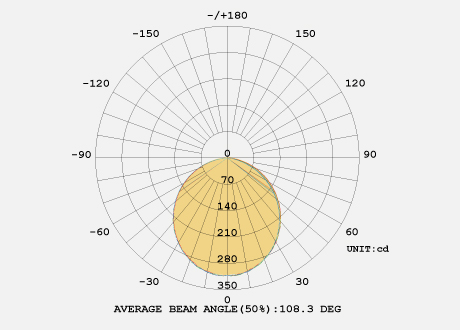

Beam angle：
120°
Rated voltage：
AC220-240V
Key Features & Benefits

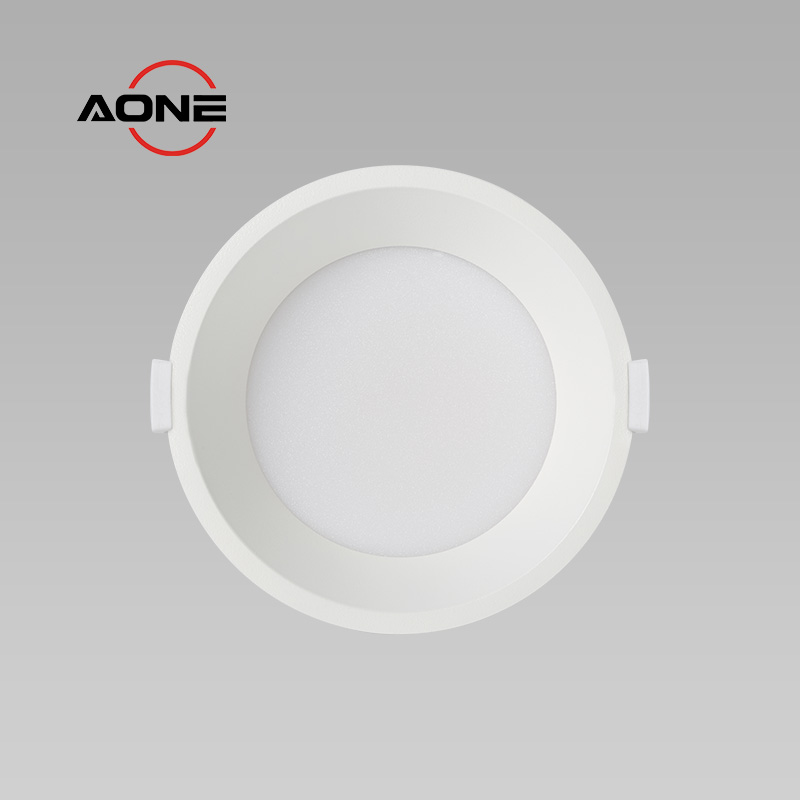

Anti-glare Design with Opal Diffuser
Low glare design to create visual comfort.
Full IP54 / Coverable
Full IP54 waterproof and covered with insulation material
High Quality Diffuser and Aluminum die-cast housing
Three different sizes are available to meet various needs.
120° beam angle
High quality of LED chip and lens, offering RA>80 or RA>90 version

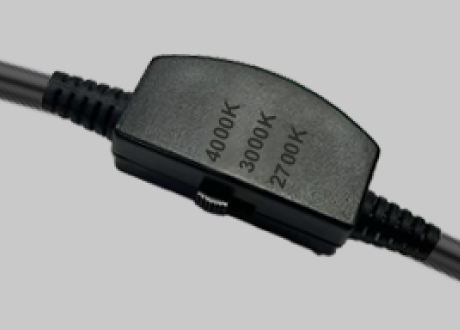

Color temperature switch setting on the wire
Technical Specifications
| Model | DL110 | Beam Angle | 120° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 8W, 12W, 20W options | Color | Black, White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K |
| Lumen | 960lm, 1440lm, 2400lm | Size | Three different sizes |
| Efficiency | 120lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

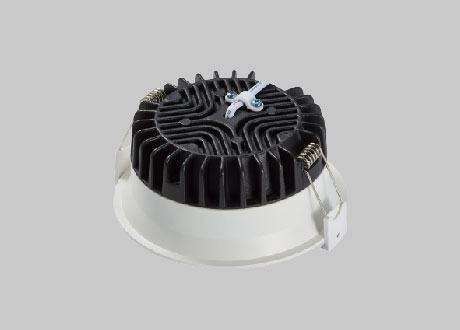

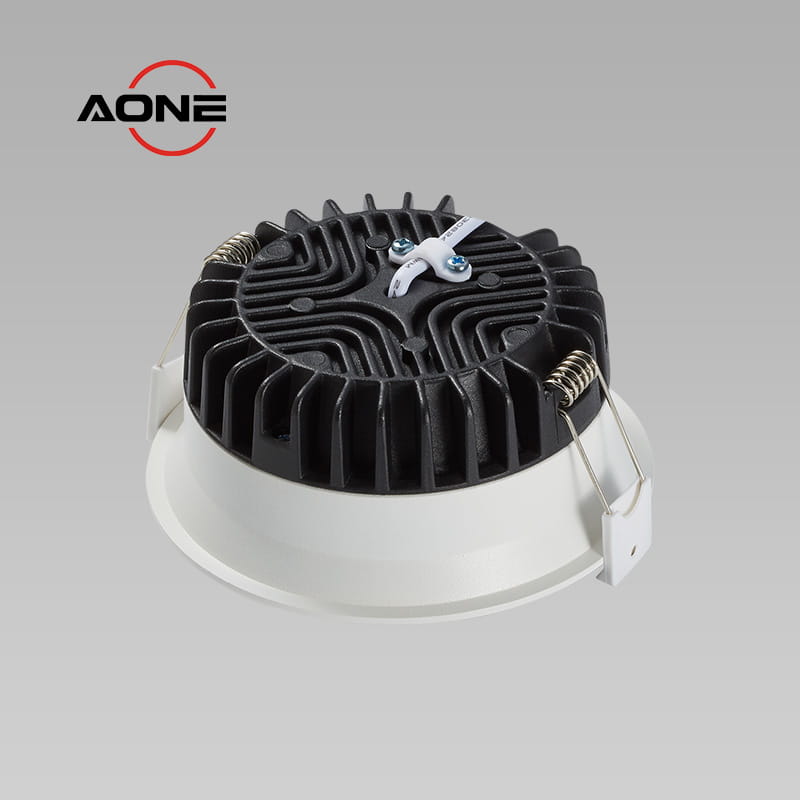

Aluminum die-cast housing with good heat dissipation

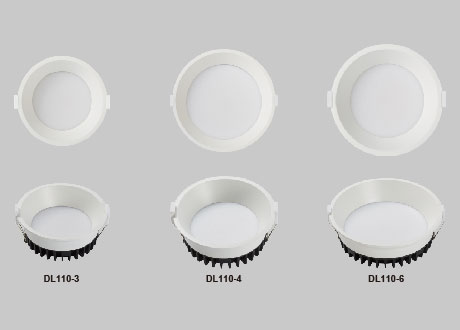

Three size options

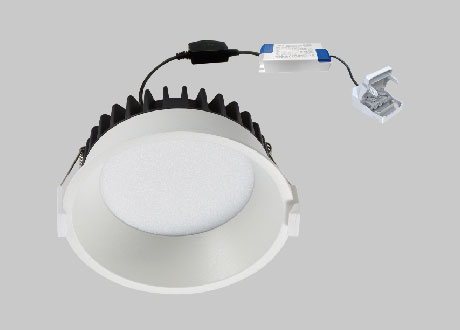

7 choice of junction boxes, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.
Deep cup anti-glare structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

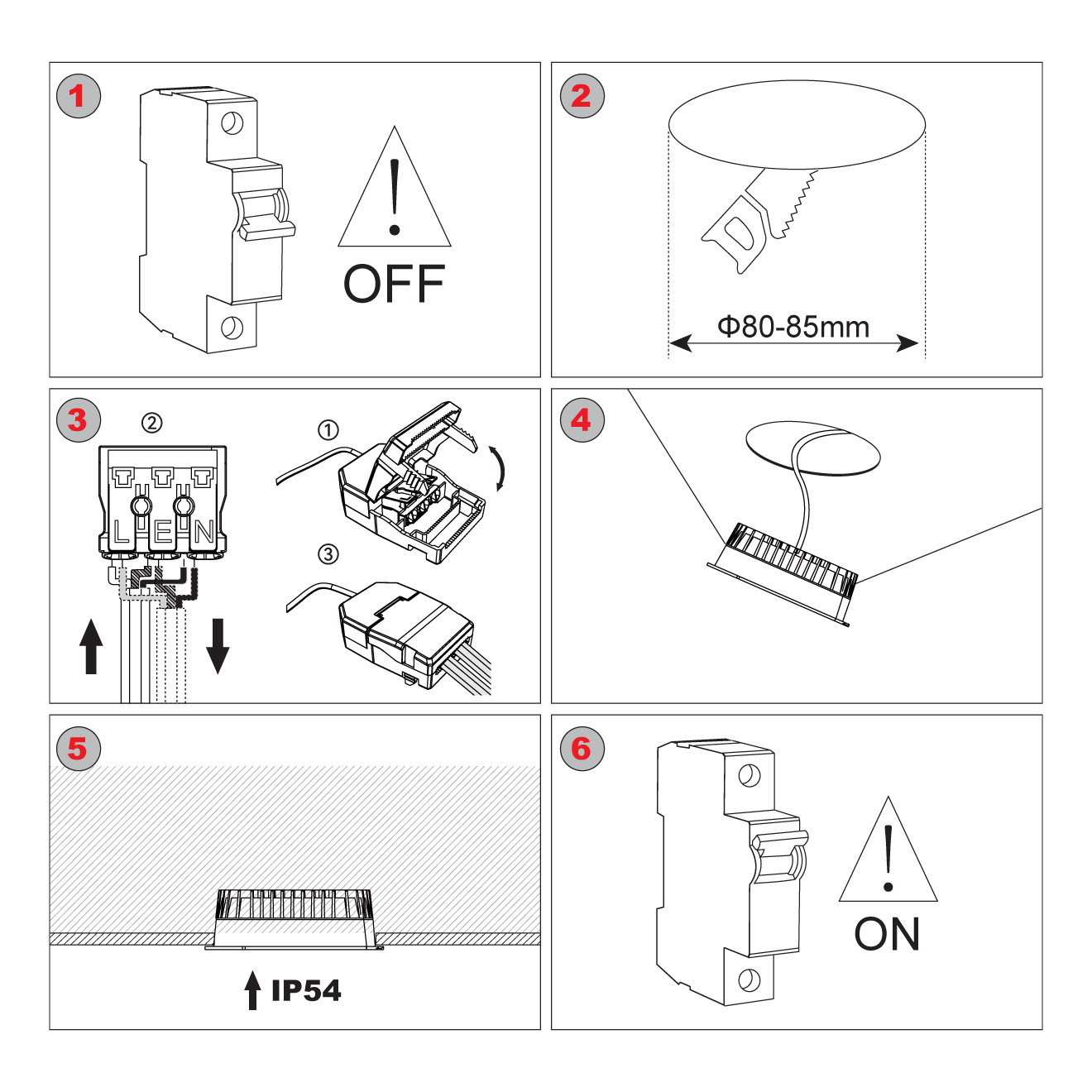

Installation Display
