PIR Downlight Smart Sensing 7W 700Lumen Fire Rated in Magnetic Bezels DL187S
Dimensions：
Ø85 x H43mm,cut-out 68-75mm
Power：
7W
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits
Smart Automation
Built-in PIR sensor, energy-saving solution
IC Rated & Fire Rated

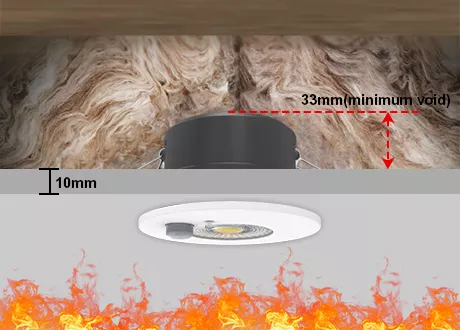

Coverable + Fire rated 30/60/90 min, 33mm Depth Void
Versatile Lighting & Flexibility
Time, Detection Area,Daylight Sensor (Lux), Easy Set

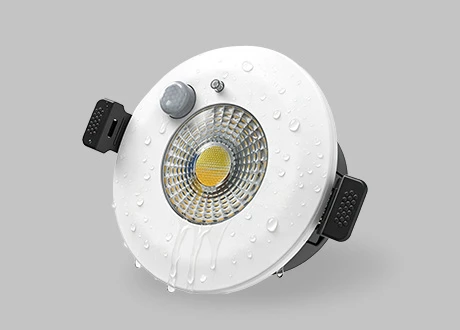

IP65 Waterproof below the Ceiling
IP65 rating for wet & damp locations
Master-Slave Control - 200W max load
Drive up to 200W of additional standard downlights

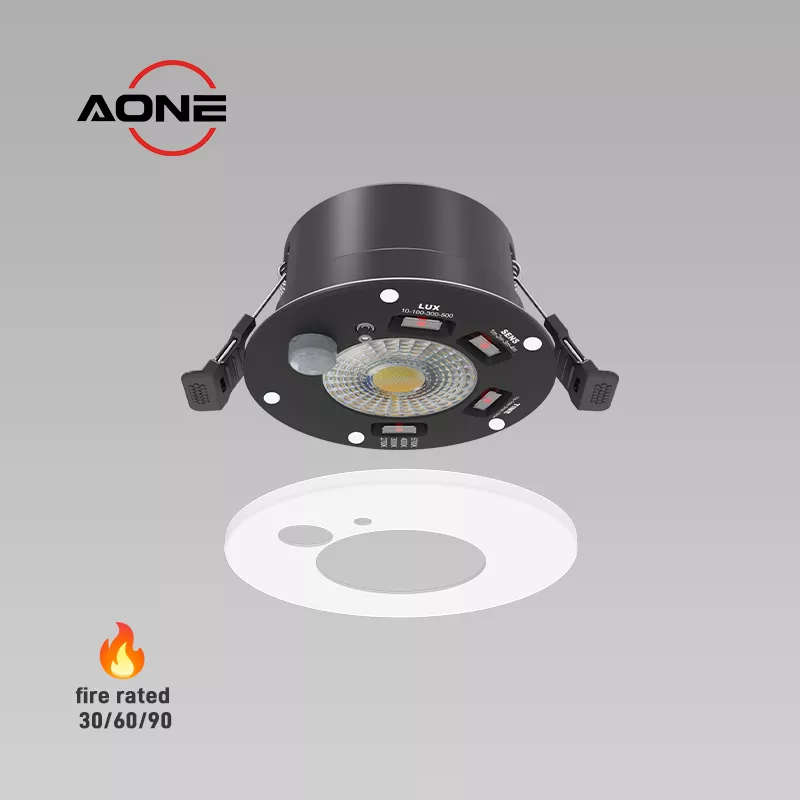

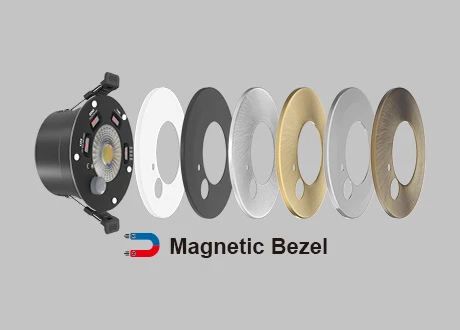

6 Colorways of Snap-on Magnetic Bezels
Architectural Design & Easy Suit any architectural style
Technical Specifications
| Model | DL187S | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 7W | Bezel Color | White, Black, Chrome, Gold, Nickel, Antique |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 700 | Size | Dia85mm, Cutout: 68-75mm |
| Efficiency | 100lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

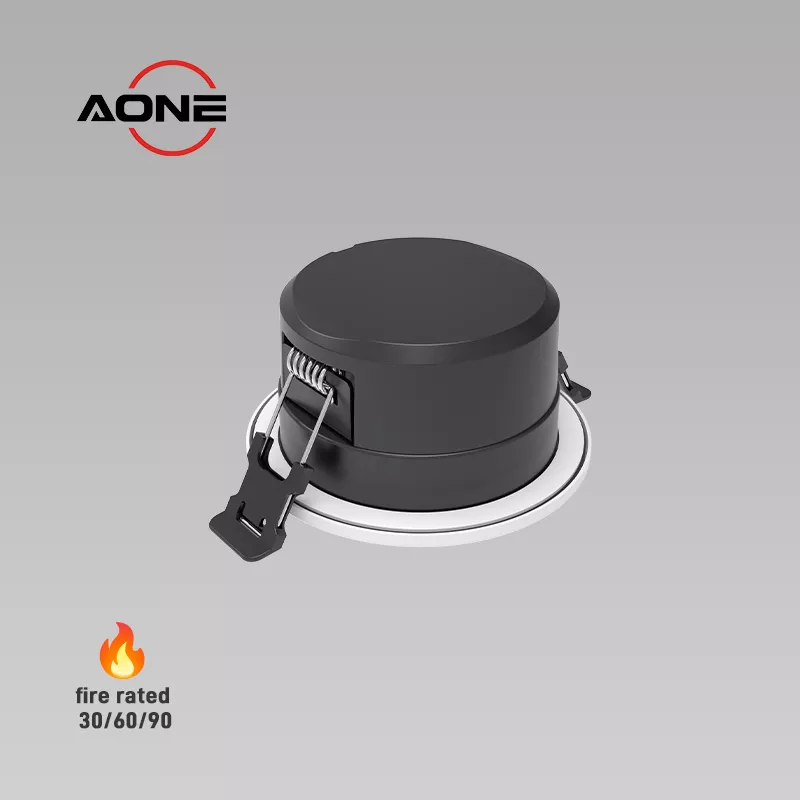

Diameter 85mm, 68-75mm cutout holes

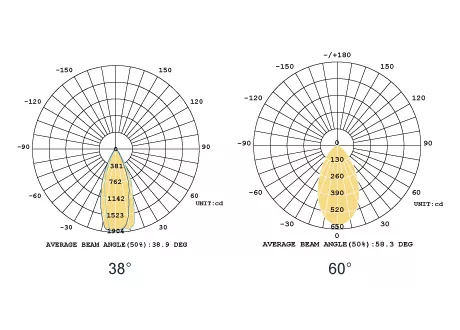

38 degree or 60 degree beam angle optional, CRI can be 90+

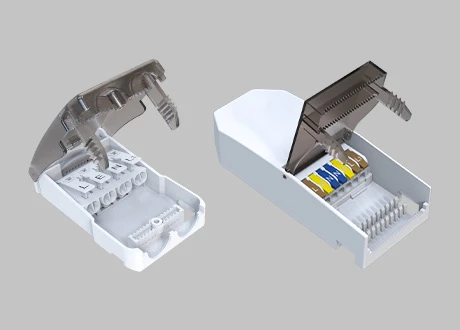

1st- 2nd fixing connectors, loop-in & loop-out terminal for simple wiring
✔️Ultimate SKU Reduction : 4 CCT light color selectable (2700K-3000K-4000K-5700K) + 6 interchangeable magnetic bezels minimize inventory while maximizing project adaptability
✔️ Smart Master-Slave Control : Built-in PIR sensor drives up to 200W of additional slave load, creating synchronized lighting zones for commercial corridors and stairwells

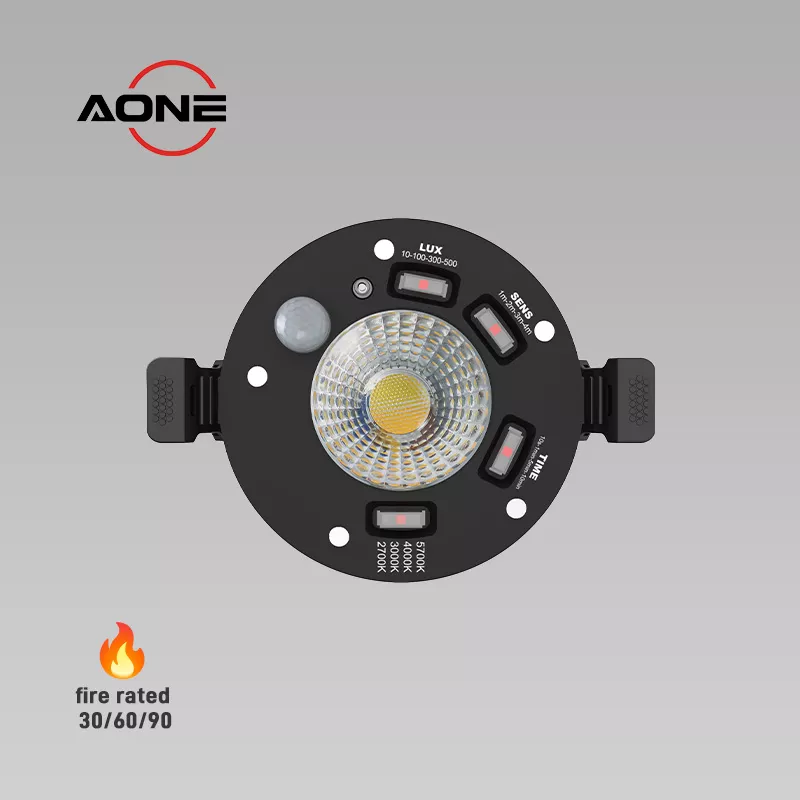

✔️ Precise Tool-Free Setup : Easy DIP switch configurations for Time (10s/1min/5min/10min), Detection Area Sensor (1m/2m/3m/5m), and Daylight Lux (10/100/300/500)
✔️ Architectural Optics: Exceptional color rendering (CRI90+) with optional 38° or 60° beam angles and smooth Triac/Phase dimming for tailored illumination
✔️ UK & EU Fully Compliant : 30/60/90-min Fire Rated for strict building codes. IP65 waterproof, CE, ErP certified, and RE2020 compliant.
✔️ Contractor-Friendly Fit : Designed with a standard 68-75mm cutout, perfect for fast retrofits or new builds in lobbies, porches, and damp environments
1. What is the MOQ and lead time for this PIR downlight ?
For B2B wholesale, distributors, and project orders, our MOQ is 200 pcs. The standard production lead time is 40 to 50 days, depending on your total order quantity.
2. How do I adjust the sensor on this PIR downlight ?
It is very simple. There is a tool-free DIP switch on the back. You can quickly set the Time (10s/1min/5min/10min), Sensitivity (1m/2m/3m/5m), and Daylight Lux (10/100/300/500) right on the spot
3. Why is this PIR downlight great for commercial projects ?
It saves you money and inventory. One PIR downlight does it all. It has a Master-Slave function that can control up to 200W of normal downlights. It also features 4 color temperatures and 6 magnetic bezels to fit any project.
4. Does this PIR downlight meet UK and EU standards ?
Yes, it is 100% compliant. This PIR downlight is 30/60/90-minute Fire Rated and IP65 waterproof. It is also CE approved, ErP certified, and RE2020 compliant for top safety
5. What is the lifespan and warranty of this PIR downlight ?
This PIR downlight is built to last with a 50,000-hour lifespan. It comes with a reliable 5-year warranty. If the product fails within the warranty period, A-ONE will offer free replacements to fully protect your business.
Reduces hardware and labor costs for your contractor clients. One master sensor can drive a daisy-chain of standard downlights, making you highly competitive in bidding for large commercial corridor projects.
Strict UK Building Regulations (Part B) with a certified 30/60/90-minute Fire Rating, this fixture safely maintains ceiling integrity in multi-story apartments and commercial fire escapes.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Eliminate the hygiene risks of shared manual switches and the energy waste of lights left on. By tweaking the adjustable Timing and Sensor Sensitivity, the light stays on exactly as long as needed

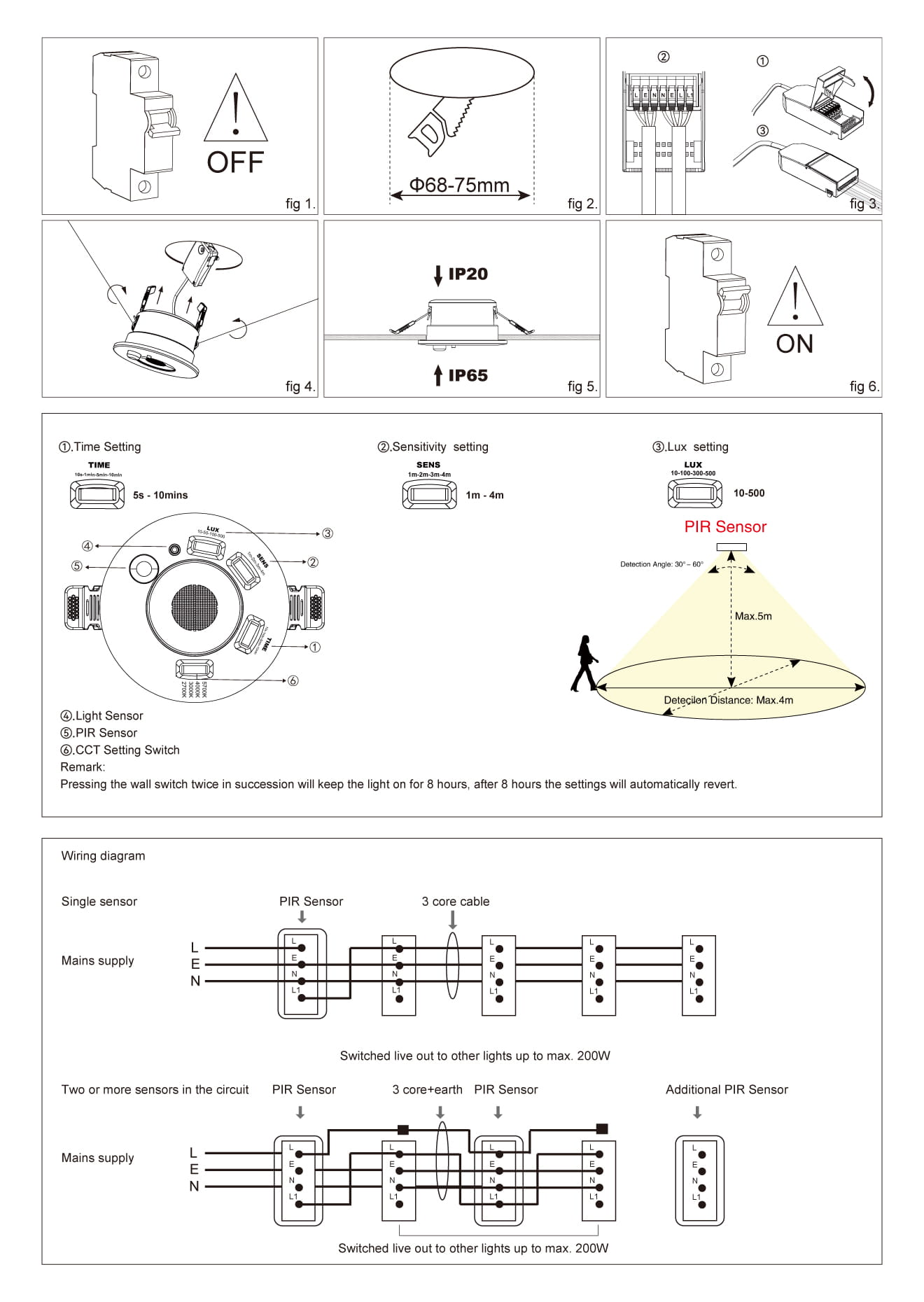

Installation Display
1. Power Off: Always turn off the mains power at the circuit breaker first (Fig 1).
2. Cut Hole: Cut a precise Φ68-75mm hole in the ceiling (Fig 2).
3. Connect Wires: Open the push-fit terminal box. Connect Live (L), Earth (E), and Neutral (N). If using the Master-Slave function, connect the L1 terminal to your other downlights (Max 200W) (Fig 3 & Wiring Diagram).
4. Set Preferences: Adjust your CCT color switch and PIR sensor dials (Time, Sensitivity, Lux) on the back of the fitting (Fig 4).
5. Insert Fitting: Push the spring clips upwards and snap the downlight into the ceiling. This creates a secure IP65 waterproof seal from below (Fig 4 & 5).
6. Power On: Turn the power back on and test the sensor (Fig 6).
