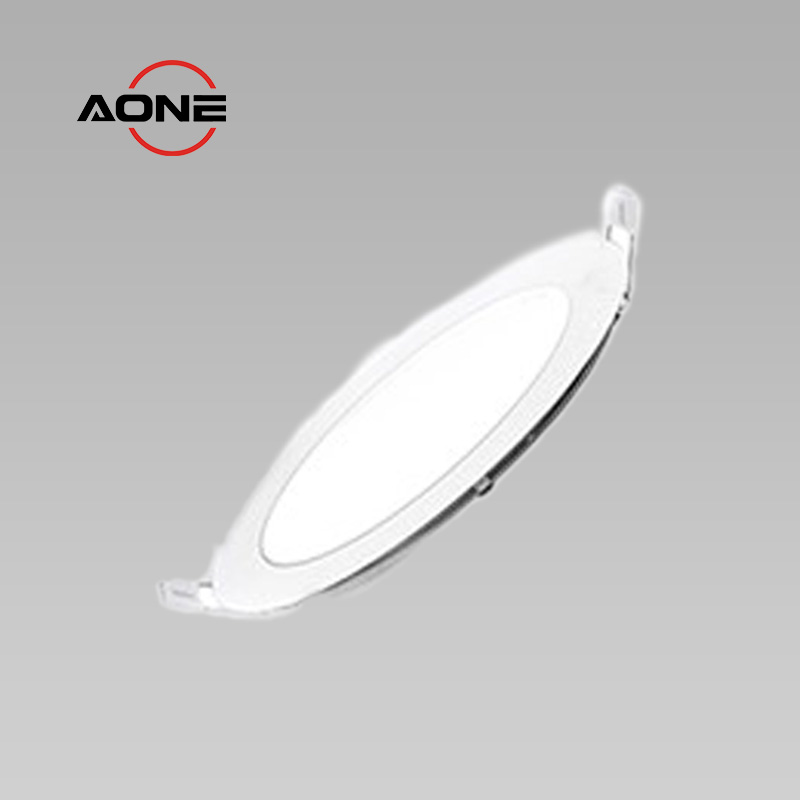

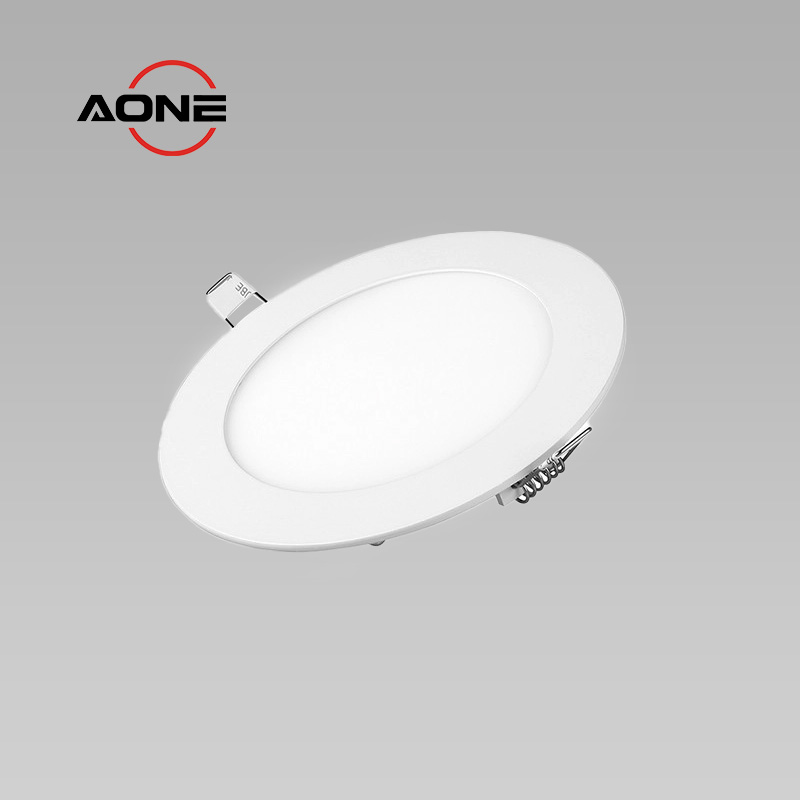

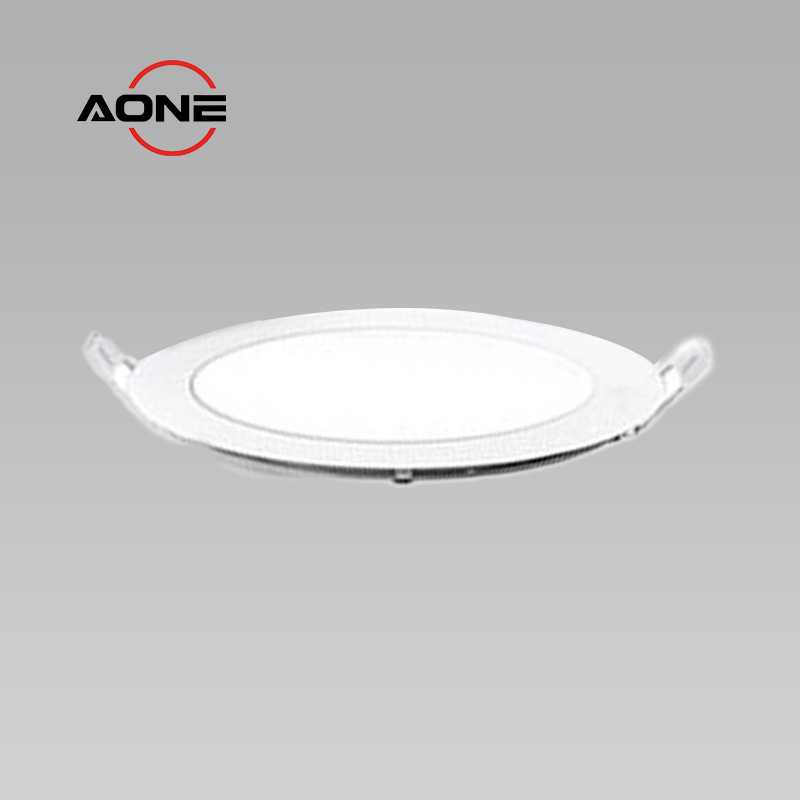

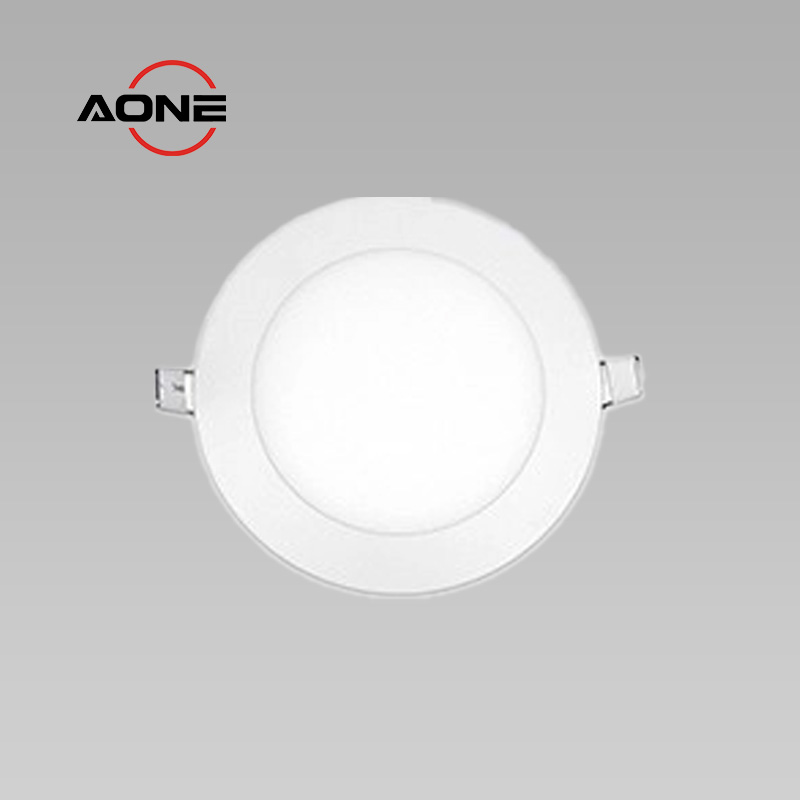

Slim Panel Downlight 6W-24W Opal Diffuser RP Series
Dimensions：
Ø120mm - Ø300mm, height 12mm
Power：
6W-24W
Color temperature：
single CCT 2700K or 3000K or 4000K or 5700K
Dimming or not：
NO
Beam angle：
120°
Rated voltage：
AC220-240V
Key Features & Benefits

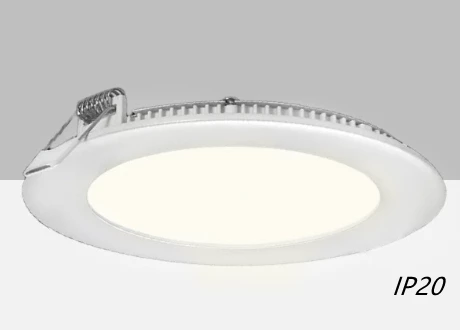

Opal Diffuser Design
SMD light source, IP20

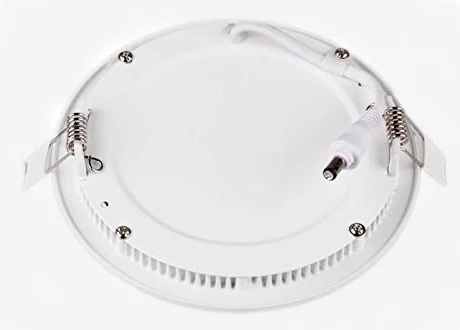

Ultra Slim
Aluminum shell, height only 13mm

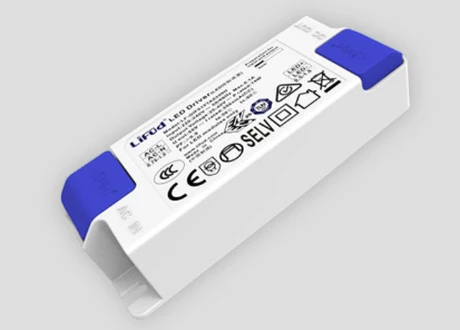

CE & CB Certificated Driver
Power 6W/9W/12W/15W/18W/20W/24W for different sizes

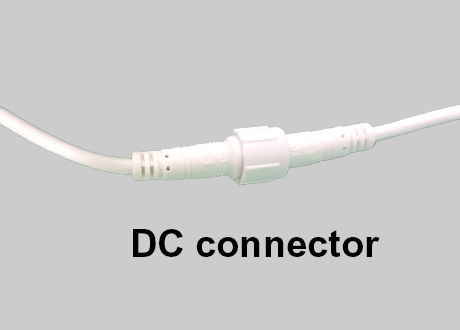

DC Connector
Safety DC connector between Luminaire and Driver
120° or 90° beam optional
High quality of LED chip and lens, offering RA>80 or RA>90 version

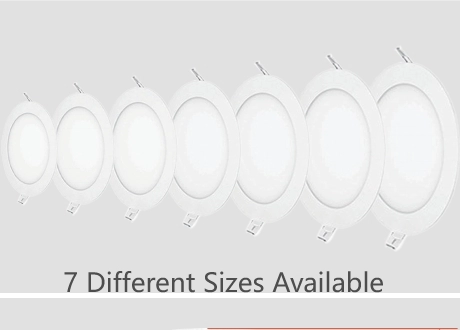

Diameter from 120mm to 300mm
Ø120mm-Ø150mm-Ø170mm-Ø195mm-Ø225mm-Ø240mm-Ø300mm

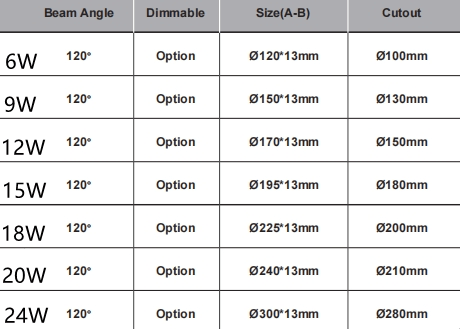

Technical Specifications
| Model | RP series | Beam Angle | 120° |
| Protection Class | Class I / IP65 / IK08 | Dimming | Yes |
| Power | 6/9/12/15/18/20/24W | Surface Color | White |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K or 3000K or 4000K or 5700K |
| Lumen | 660lm-2640lm | Cut-out(:mm) | Ø100-130-150-180-200-210-Ø280 |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Not applicable | Coverable | Not applicable |
Height 13mm, 7 different diameters from 120mm to 300mm
Deep cup anti-glare structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
