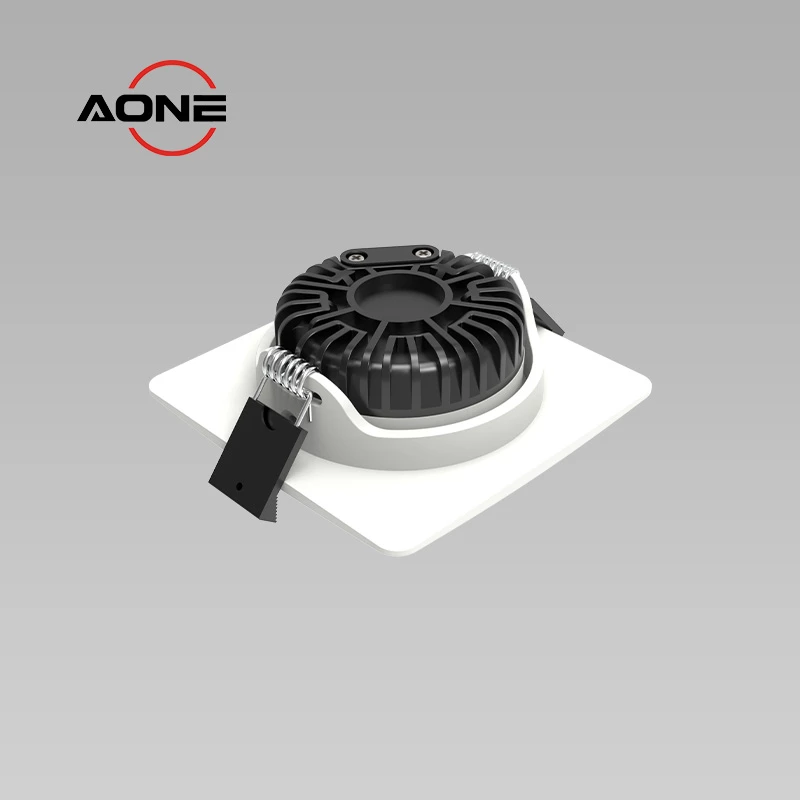

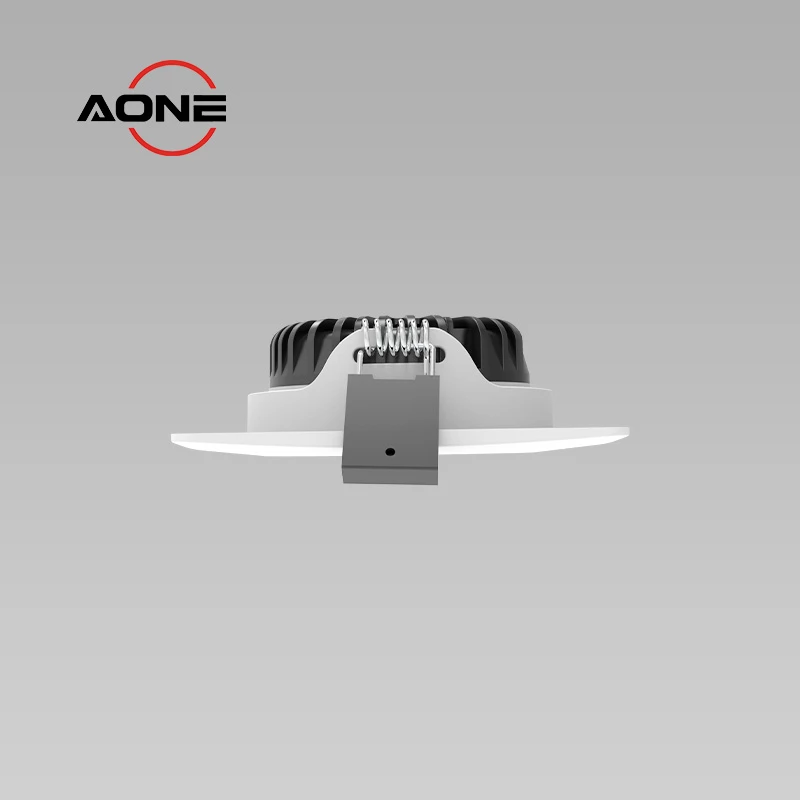

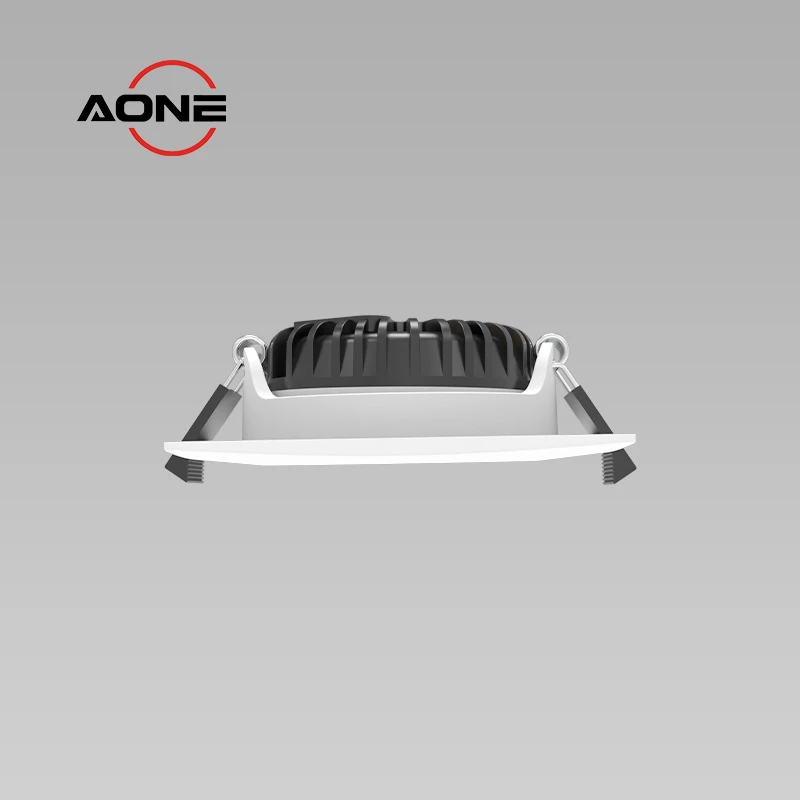

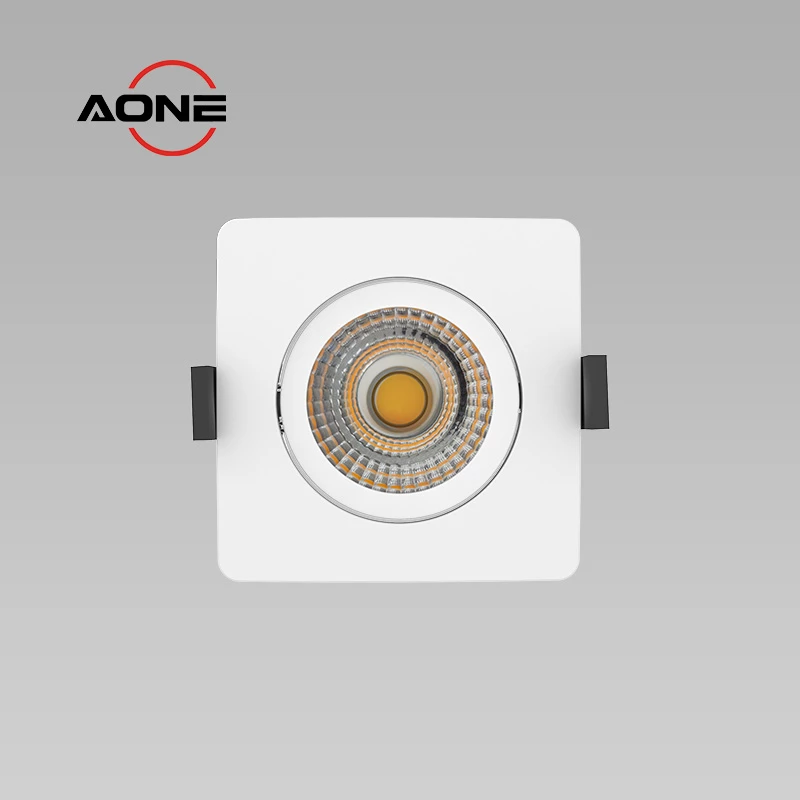

Ultra Slim Square COB Downlight Adjustable Full Aluminum Triac Dimmable 3CCT IP44 6W DL86F COB
Dimensions：
Ø82 x H27mm,Cut-out 68-75mm
Power：
6W
Color temperature：
CRI>80, 2700K-3000K-4000K
Dimming or not：
Yes, triac dimmable
Beam angle：
38° or 60°
Rated voltage：
AC220-240V
Key Features & Benefits

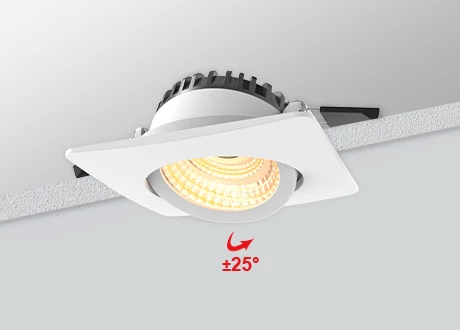

COB Light Source & Tiltable
±25° Adjustment - direct the light where it's needed

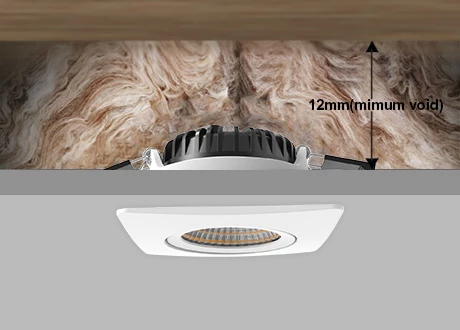

Ultra Slim & Coverable
Install depth ≥ 12mm, suit for any limited ceiling void

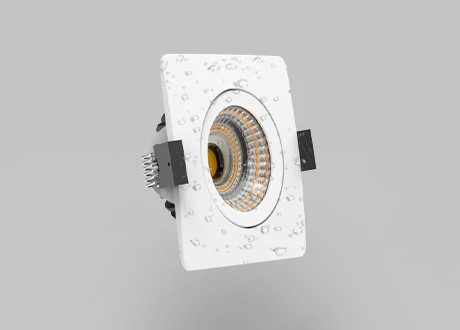

IP44 Waterproof
IP44 rating for indoor use, resistant to dust & water

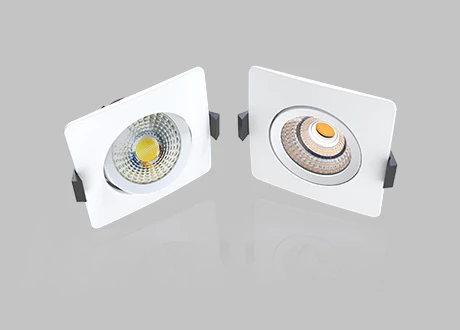

SMD & COB Light Source
SMD & COB Optional, work for different architectural and design requirement

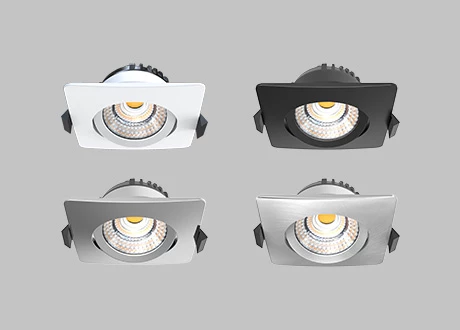

4 Kinds of Surface Color
Surface finish color available in White/Black/Chrome/Polished
Triac Dimmable Driver & 3CCT Select
Triac dimmable extrnal driver, with 3CCT Dip switch + Easy Connector
Technical Specifications
| Model | DL86F COB | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP44(Front) / IK08 | Dimming | Trailing edge and leading edge |
| Power | 6W | Color | White,Black,Polished Chrome,Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K |
| Lumen | 600 | Size | Dia82mm, Cutout:68-75mm |
| Efficiency | 100lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fixed or Tiltable | ±25° Adjustable | Coverable | Yes |

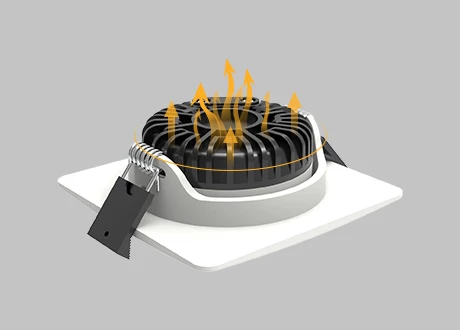

Made of Full Aluminum Housing & Heat Sink for

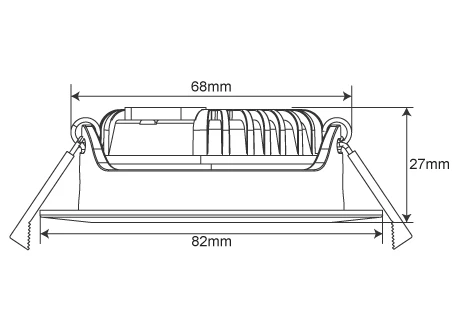

Diameter 82mm, height 27mm, hole opening range 68-75mm, recessed depth 12mm.

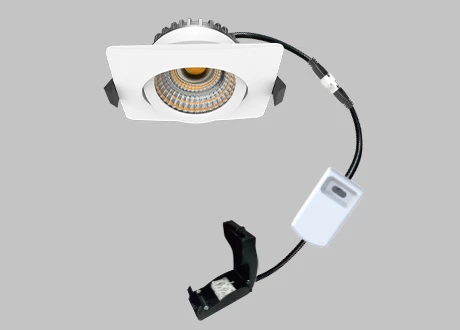

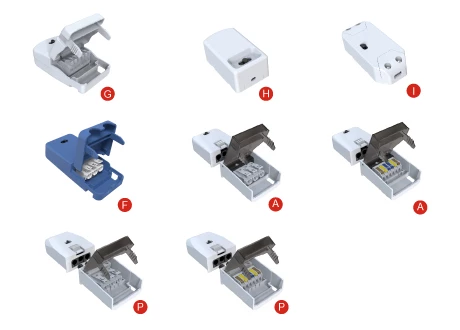

8 choice of drivers, 1st- 2nd fixing connectors, loop-in & loop-out terminal provides a simple installation.
3CCT optional, freely choose warm light and natural light to bring soft comfortable optical experience.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight delivering focused, energy-efficient illumination to highlight countertops, cooking zones, and work surfaces, improving visibility and productivity.
Front bezel IP44 waterproof, providing robust protection against splashes and dust while ensuring reliable, efficient lighting in bathrooms, laundries, and other moisture-prone environments.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

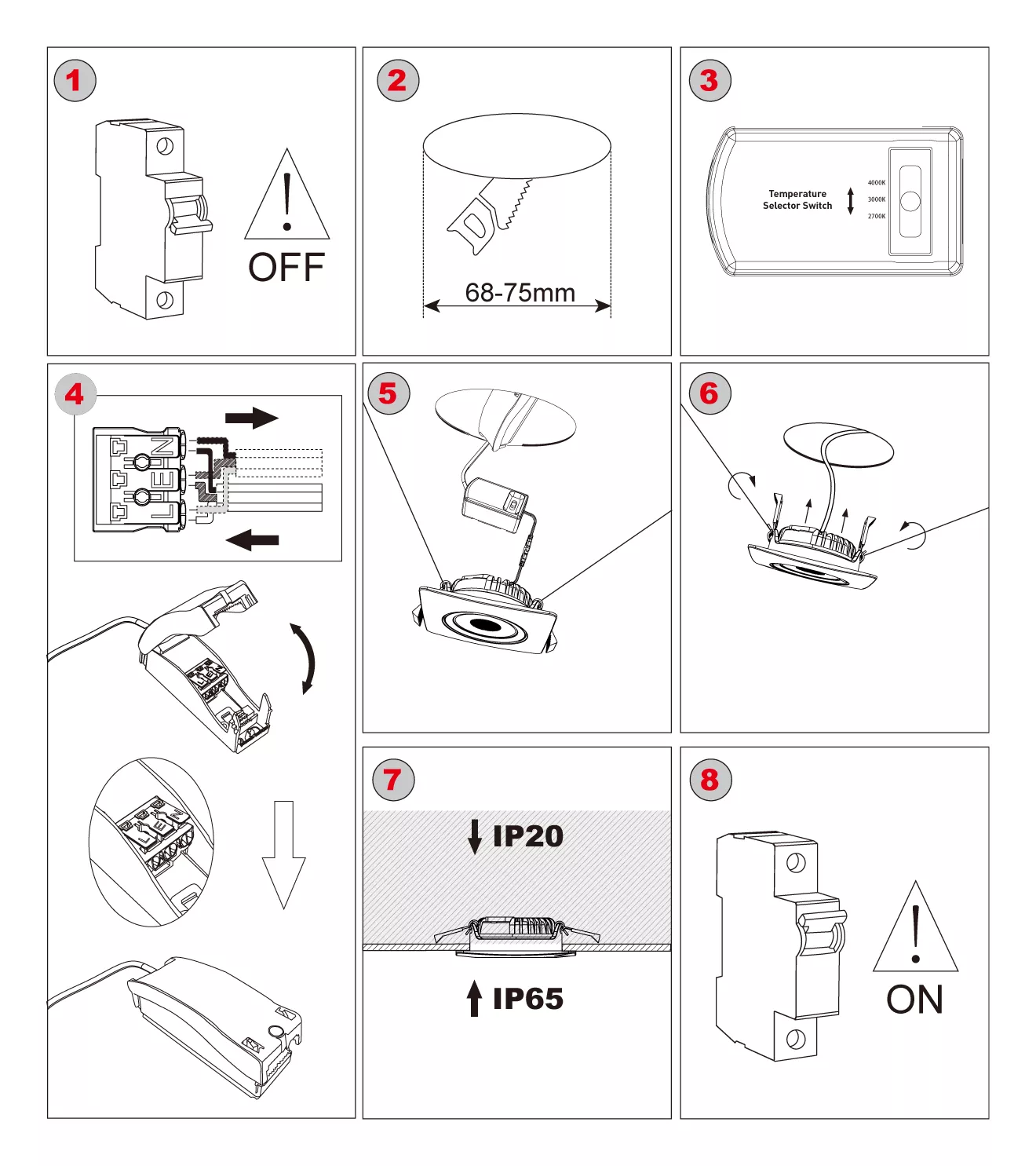

Installation Display
