Small Recessed Lights IP65 Triac Dimmable 3W/4W/5W CCT Selectable DL93M-1F
Dimensions：
Ø67 x H36mm,cut-out 55-60mm
Color temperature：
CRI>80, 3CCT 2700K-3000K-4000K
Dimming or not：
Yes, triac dimmable
Power：
3W~5W
Rated voltage：
AC220-240V
Key Features & Benefits
Small Recessed Lights
3W/4W/5W for precise beam direction & visual focus
Fire Rated 30/60/90mins + Insulation Coverable

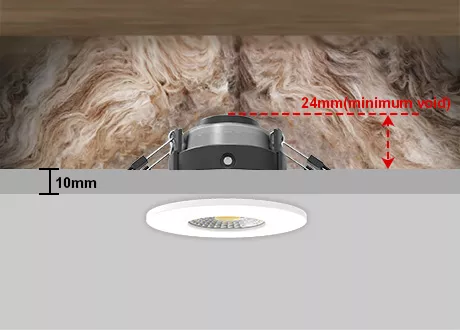

TUV fire tests, Airtightness, Installed depth ≥ 24mm
Selectable Light Color
Dip switch 2700K / 3000K / 4000K color temperature
IP65 Waterproof for Every Space
IP65 rating good for kitchen, bathrooms & cabinet
4 Kinds of Surface Cover Changeable
White, Black, Chrome, Nickel, Gold Colors Optional

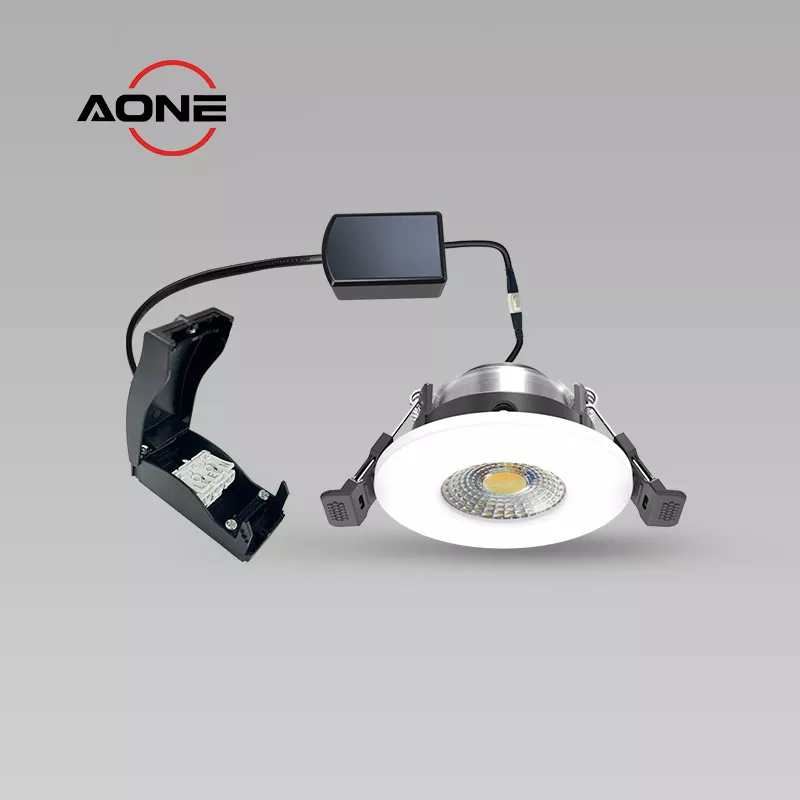

Triac Dimmable Driver with Quick Junction Box
Phase dimming, loop in/out quick wiring terminals for easy installation
Technical Specifications
| Model | DL93M-1F | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 3W~5W | Bezel Color | Black, White, Polished Chrome, Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K |
| Lumen | 315lm~525lm | Size | Dia67mm, Cutout: 55-60mm |
| Efficiency | 105lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours L70B10 | Warranty | 5 Years |
| Fixed or tiltable | Fixed | Coverable | Yes |
Diameter 67mm, height 36mm, hole opening 55-60mm
38 or 60 degree beam angle optional, CRI can be 90+
Different driver optional, OEM/ODM service
✔️ IP65 Waterproof: Resists moisture from below, ideal for bathrooms, kitchens, or covered outdoor areas.
✔️ 105 lm/W Efficiency: Bright, uniform light with low energy costs.
✔️ Premium LED Source: Flicker-free, 50,000+ hour lifespan.
✔️ 38° or 60° Beam Angle:
- 38°: Focused beam for precise accent lighting (e.g., artwork, retail displays).
- 60°: Wider beam for ambient lighting (e.g., living rooms, hallways).
✔️ Tool-Free Install: Tool-less L, E, N, N, E, L terminals for loop-in loop-out wiring.
✔️ Certification : CE, ROHS, UKCA, CB certificated with 5-year warranty
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.
Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Recessed Downlight Installation
1- Turn off the main power supply.
2- Cut a ceiling hole of 55–60 mm.
3- Select the CCT using the DIP switch before installation.
4- Wire the driver to the mains power correctly.
5- Connect the light fitting to the driver.
6- Compress the spring clips and insert the fitting into the ceiling cutout.
7- Ensure correct installation position: IP65 from below the ceiling, IP20 from above.
- Restore power and check the luminaire operates properly
✔️ Why settle for ordinary lighting? Choose this IP65 LED downlight for vibrant, eye-safe illumination that lasts.
✔️ Where can it shine? Perfect for bathrooms, kitchens, retail spaces, or anywhere needing waterproof, high-quality light.
✔️ Who benefits? Homeowners, designers, and businesses seeking energy efficiency and style.
✔️ What sets it apart? Its CRI >92, RG1 safety, and 38° or 60° beam options ensure precision or ambiance, all backed by CE, RoHS, fire-rated certifications, and a 5-year warranty.
✔️ Ready to elevate your lighting? Shop the 8W COB LED Downlight at AoneLED today!
