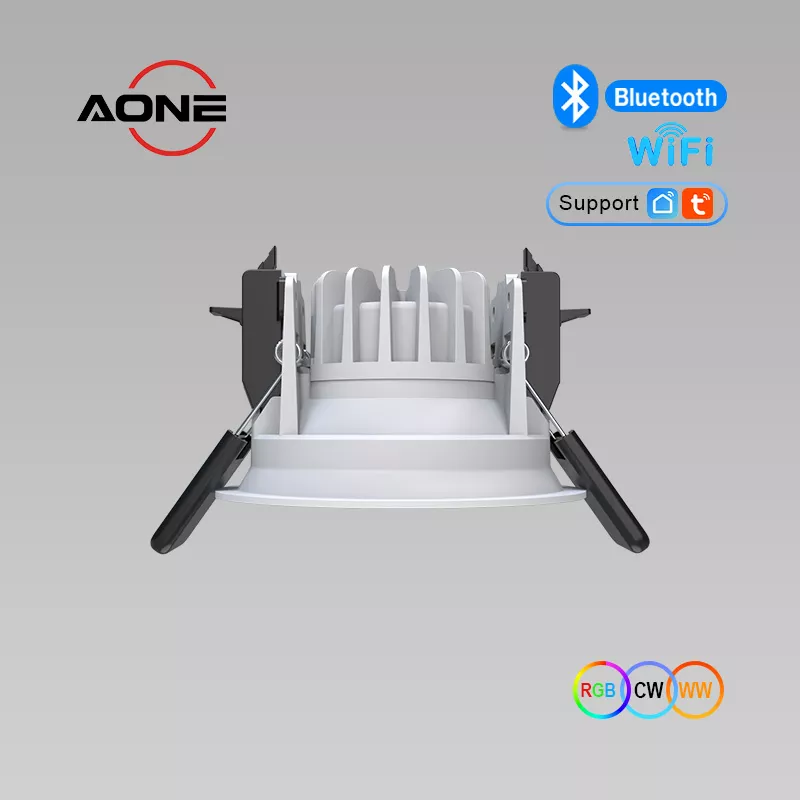

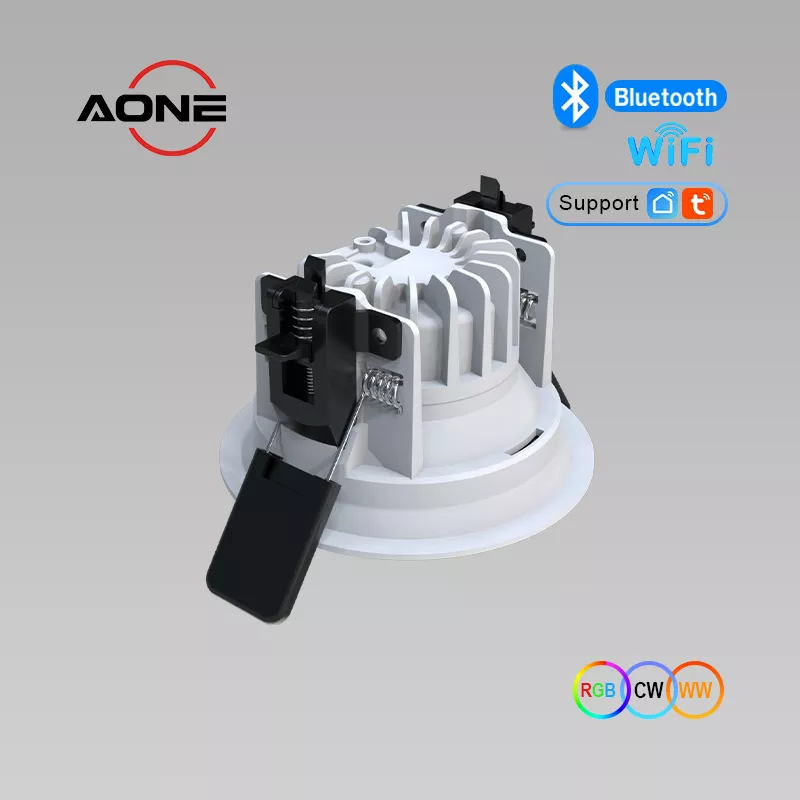

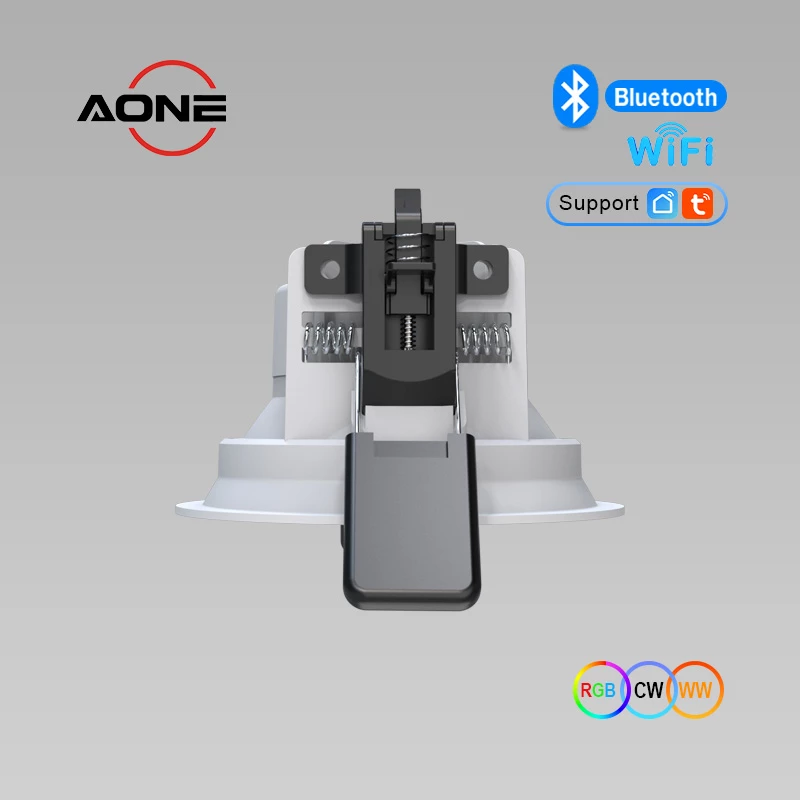

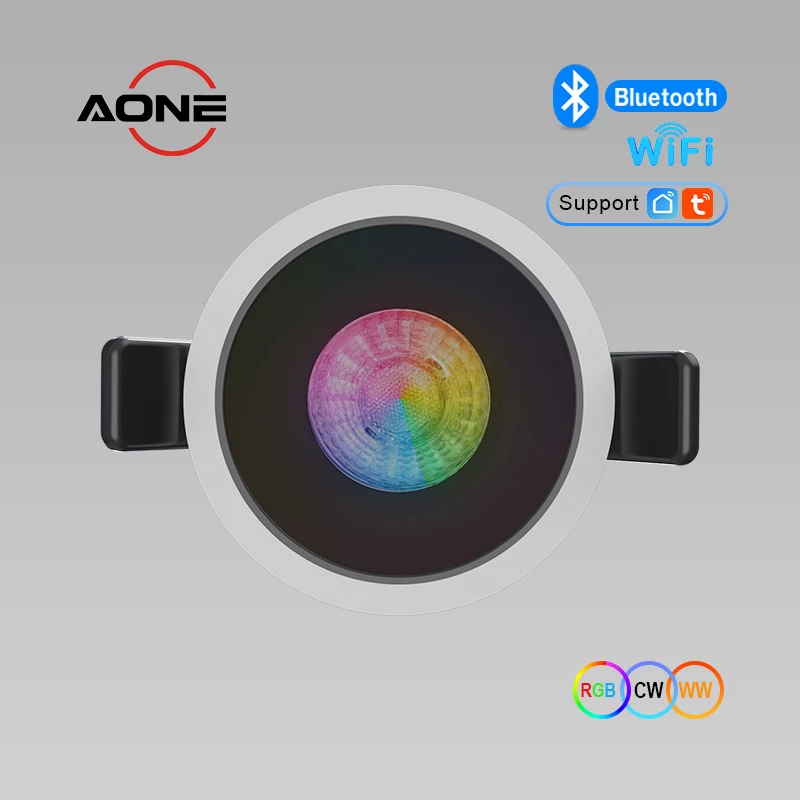

Smart Control WiFi/ Bluetooth RGB Downlight Fast-Install Anti-Glare UGR<19 DL90
Dimensions：
Ø90 x H54mm,cut-out 80-85mm
Power：
7W
Function：
RGB and Warm Light to Daylight support
Dimming or not：
Yes, PWM Dimming
Beam angle：
38°
Rated voltage：
AC220-240V
Key Features & Benefits

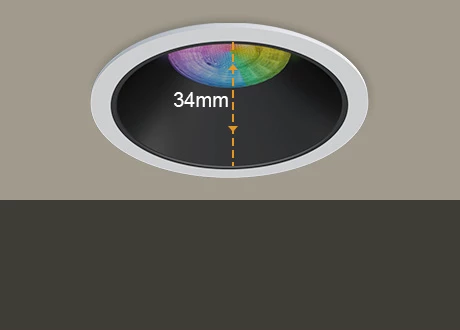

Anti-glare UGR<19
Deep Reflector and High-Quality Lens Design, Eyes Friendly

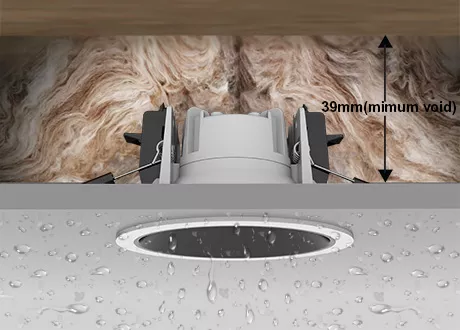

Insulation Coverable
Insulation Material Coverable, depth void >=39mm
Smart RGB & CCT Tuning Control
Easily Choose from millions of lighting colors and dimming via Phone App

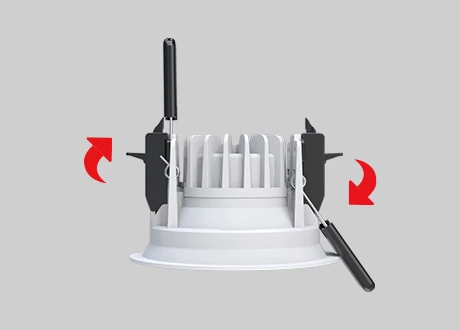

Smart Quick-Lock Springs, Press Steel Material
Quick-Lock Springs Make Recessed Lights Installation a Breeze, Save Cost

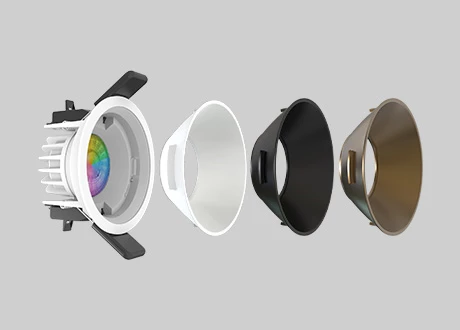

Kind of Reflectors Color Interchangeable
Stylish Color, White, Black, Brass

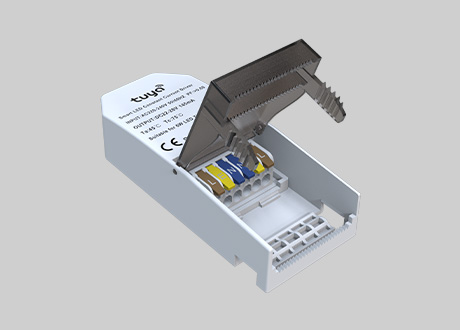

Smart Certificated Driver and Fast Installation
Loop in / loop out colorful terminal for easy wiring, tools free
Technical Specifications
| Model | DL90 Smart | Beam Angle | 38° |
| Protection Class | Class II / IP65 / IK08 | Dimming |
PWM Dimming |
| Power | 7W | Frame Deco | White, Black, Brushed Chrome, Polished Chrome, Brass |
| Input | AC230V 50Hz | Color Temperature | 2700K-5700K tuning |
| Lumen | 700lm | Size | Dia 90mm, Cutout: 80-85mm |
| Efficiency | 100 lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

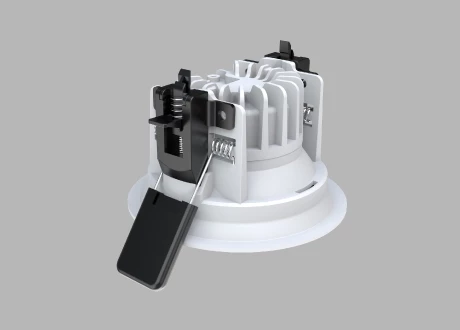

Made of Full Aluminum Material for High Quality

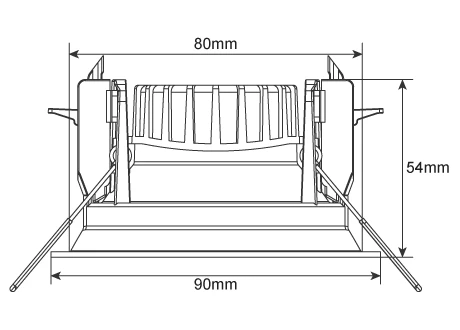

Diameter 90mm, height 54mm, hole opening range 68-75mm
Good LED chips of 150lm/W output, 60° Beam angle
100lm/W, high-uniformity lighting ensures sufficient brightness, giving visual comfort. Tuya Smart, suitable for different dynamic scenes like party, movie watching, romantic dinner.
RGB+CCT adjustable via App making different colors lighting switchable,CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops.
IP65 waterproof below the ceiling, suitable for wet locations, zone 2 and zone 3, making your lighting more safe and durable.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

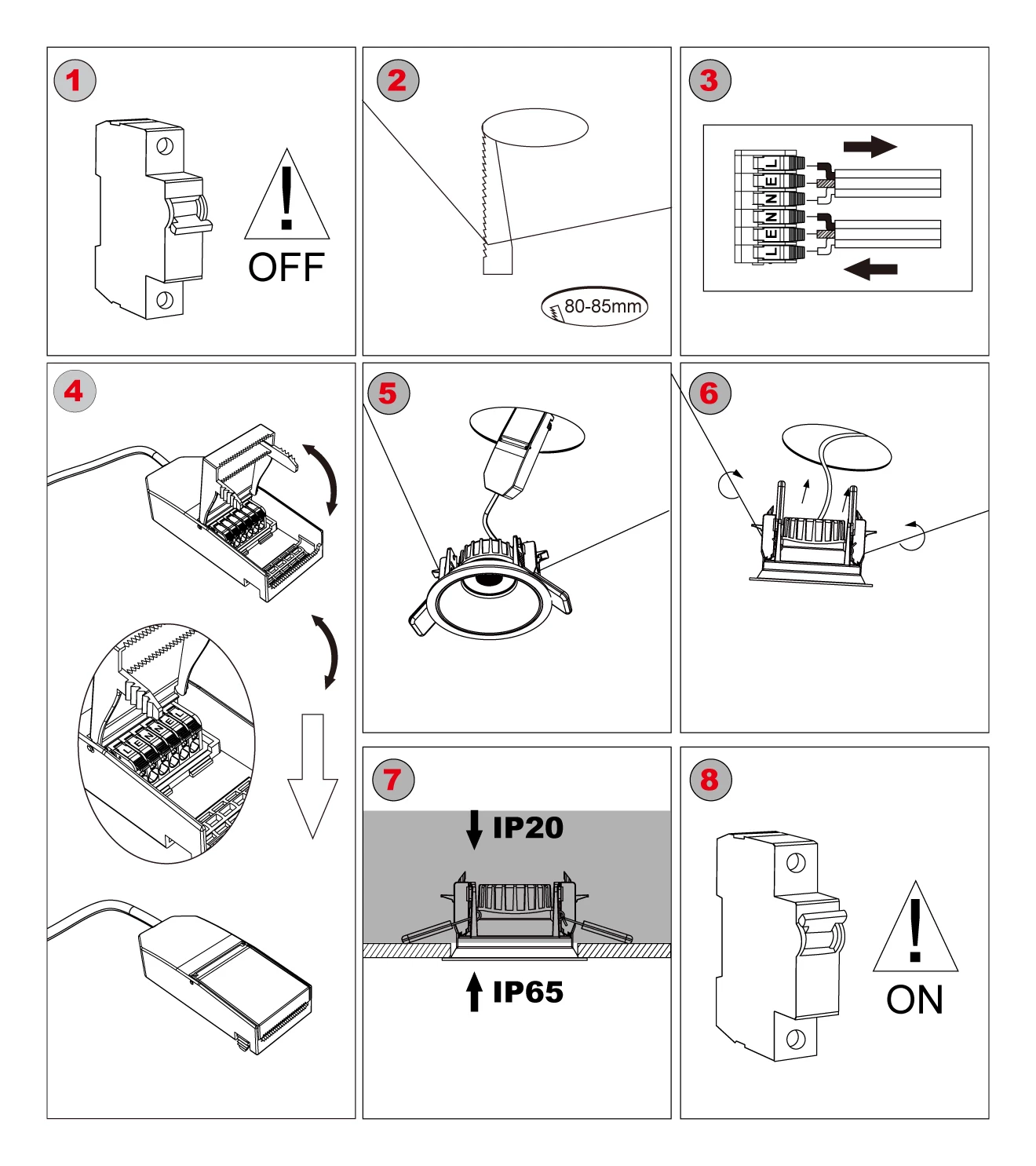

Installation Display
