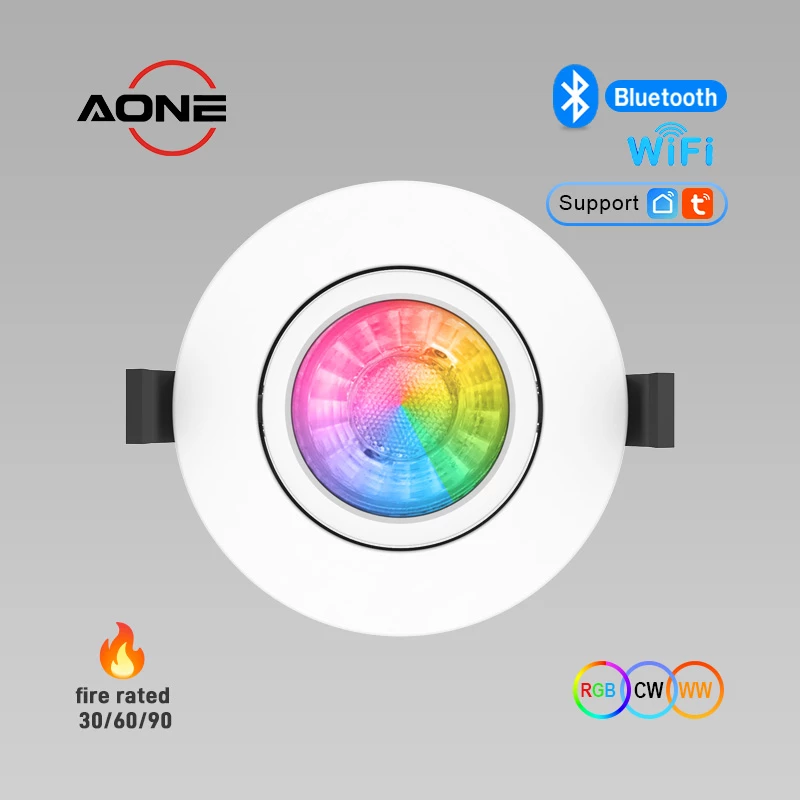

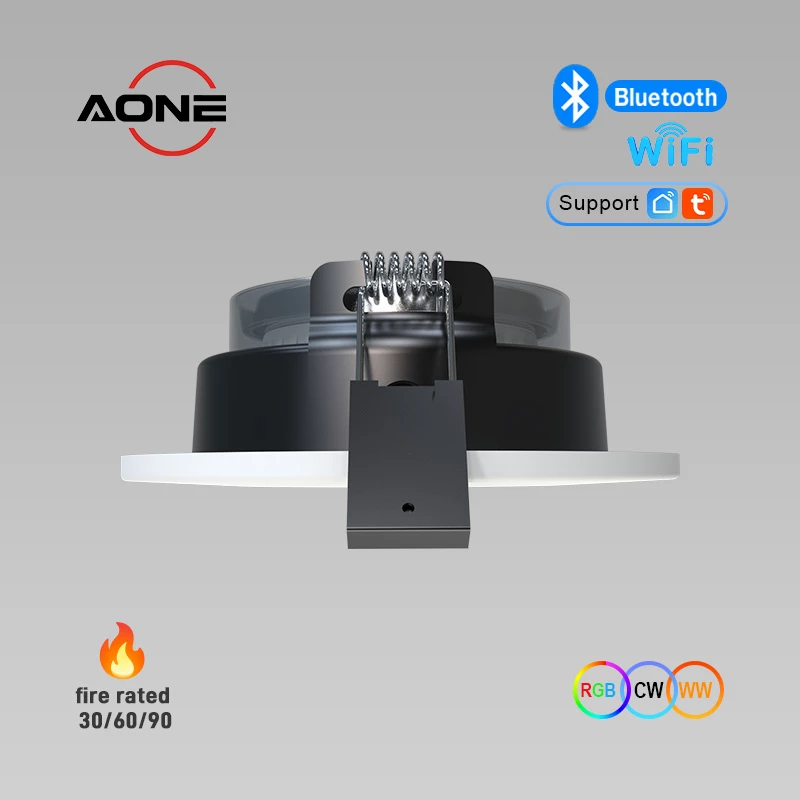

Smart Control Tuya RGB × Firerated Downlight Tilt IP65 DL98Bpro
Dimensions：
Ø88 x H32mm,cut-out 68-75mm
Power：
7W
Function：
RGB and CCT tuning
Dimming or not：
Yes, PWM Dimming
Beam angle：
60°
Rated voltage：
AC220-240V
Key Features & Benefits
7W 700 lumen Lighting Output
100 lm/W uniformity ideal for home and retail lighting – maintain visibility while slashing energy costs.

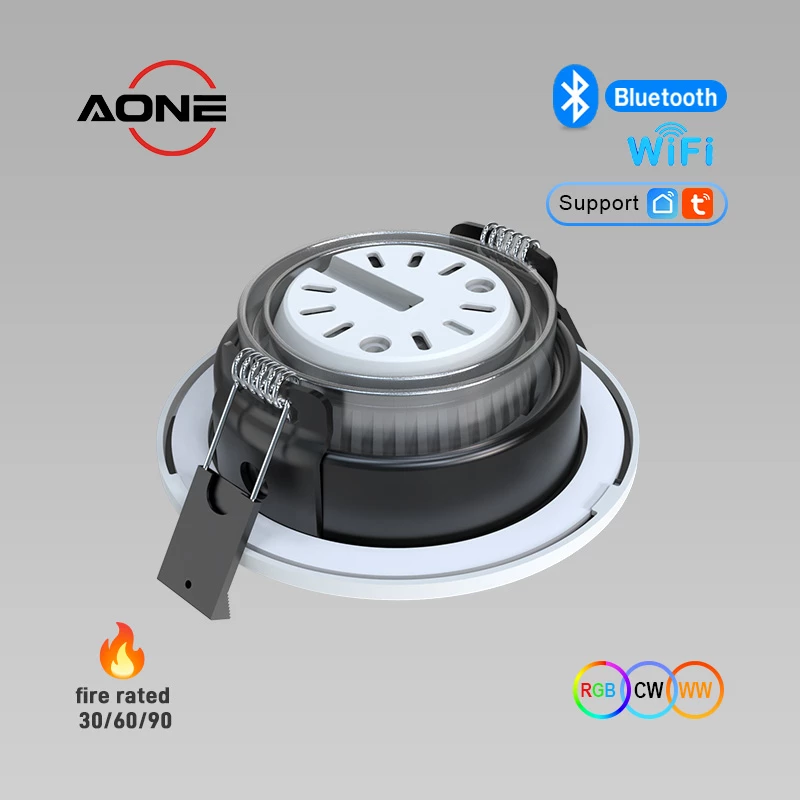

Fire-rated / Coverable
30,60,90min Fire Rated in timber, web and staircraft i-joists, coverable, depth void >=17mm

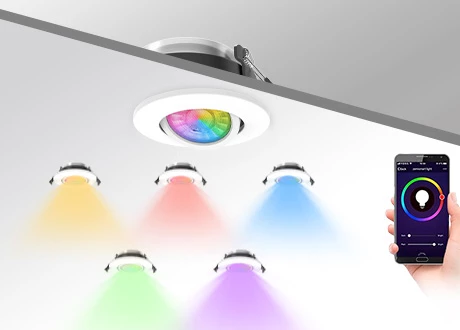

Smart RGB & CCT Tuning Control
Easily Choose from millions of lighting colors and dimming via Phone App
Colorful Bezel Interchangeable
5 × colorways and shape cover interchangeable to suit different decoration styles.

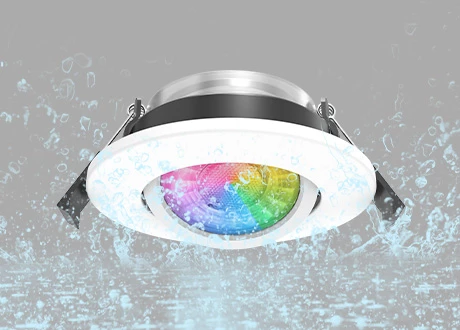

IP65 Tiltable Waterproof and Dustproof
IP65 waterproof below the ceiling, suitable for wet areas, indoor use only.
Smart Certificated Driver and Fast Installation
Loop in / loop out colorful terminal for easy wiring, tools free
Technical Specifications
| Model | DL98Bpro Tuya | Beam Angle | 60° |
| Protection Class | Class I / IP65 / IK08 | Dimming |
PWM Dimming |
| Power | 7W | Bezel Color | White, Matt Black, Polished Chrome, Brushed Chrome, Brushed Brass, Antique Brass |
| Input | AC230V 50Hz | Color Temperature | 2700K-5700K tuning |
| Lumen | 700lm | Size | Dia 88mm, Cutout: 68-75mm |
| Efficiency | 100 lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |

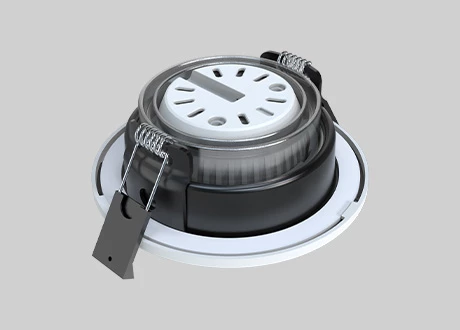

High Quality Outer Shell, made of Iron Steel
Diameter 88mm, height 32mm, hole opening range 68-75mm
Good LED chips of 170lm/W, 60° Beam angle

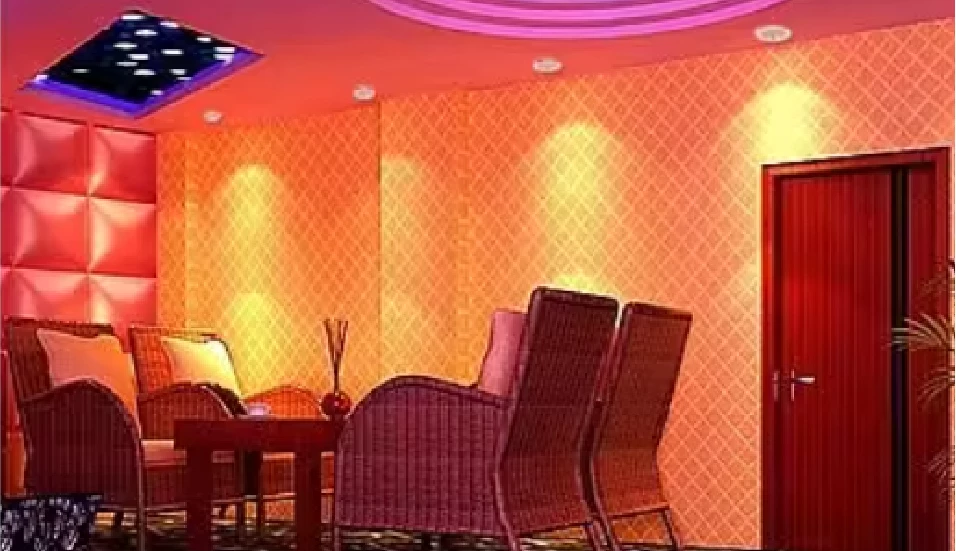

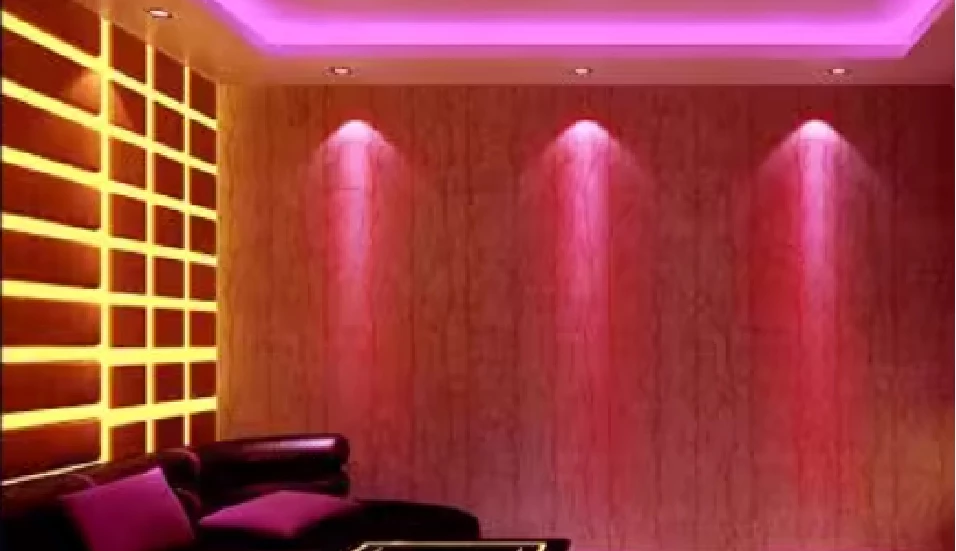

RGB smart downlights with RGB and CCT adjustment, perfect for various hotel themes. They create a premium, comfortable guest room ambiance, enhancing the stay experience.
High efficacy (100 lm/W) for uniform, bright lighting. Adjustable color temperature (warm to cool white) meets daily home needs, creating a cozy atmosphere.

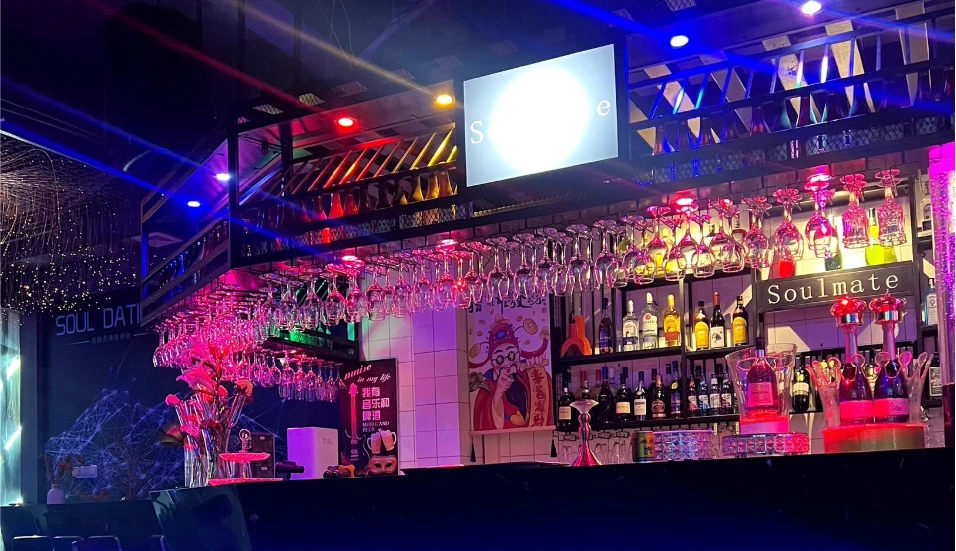

16 million colors for freely adjustable mood lighting, highlighting bottles or decor. Creates a mysterious, romantic vibe to encourage guests to stay longer.
RGB downlights enhance light shows with disco mode—lights sync to music for a more thrilling, immersive singing experience.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

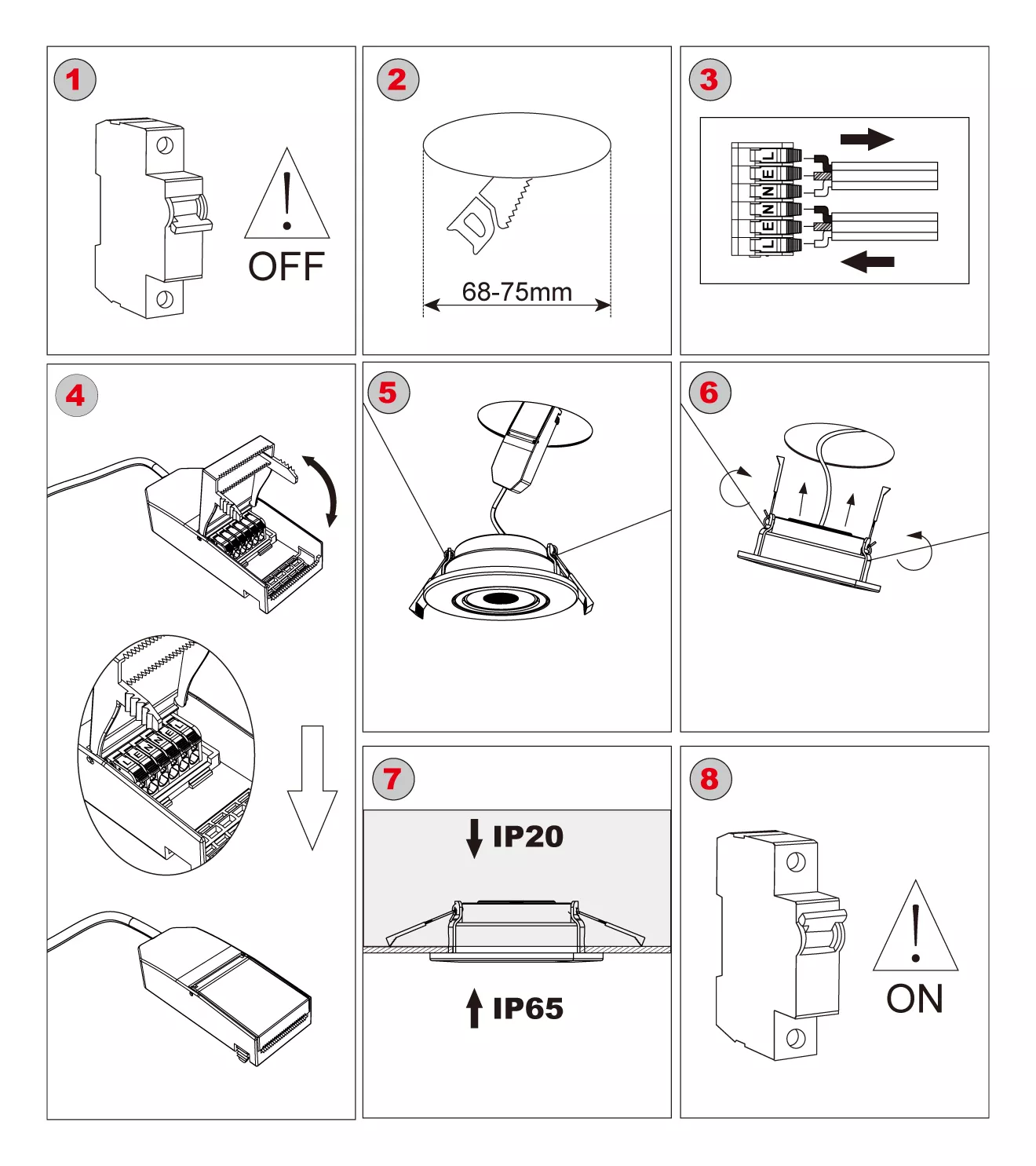

Installation Display
