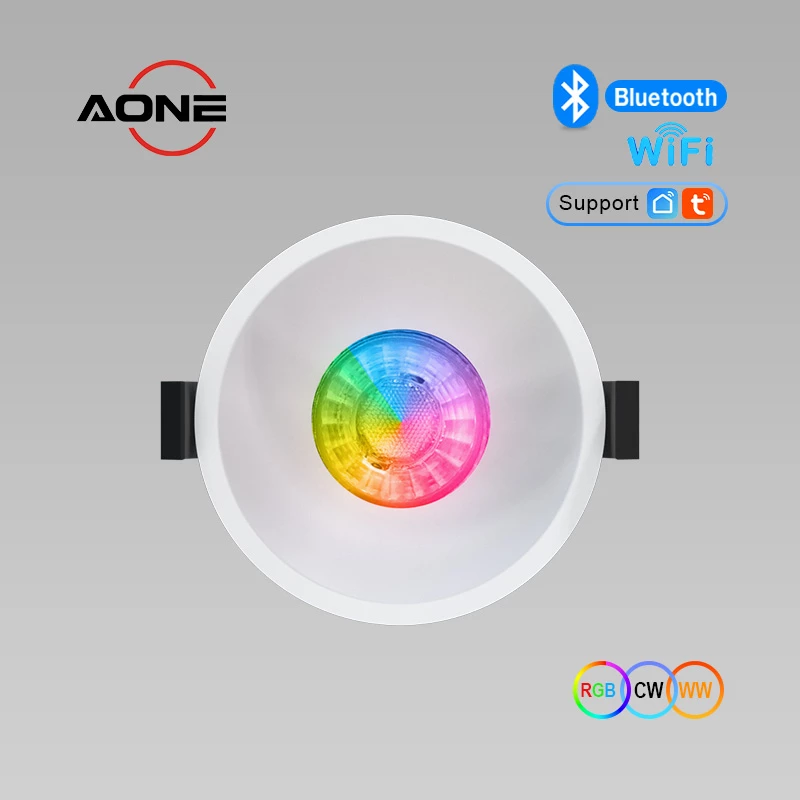

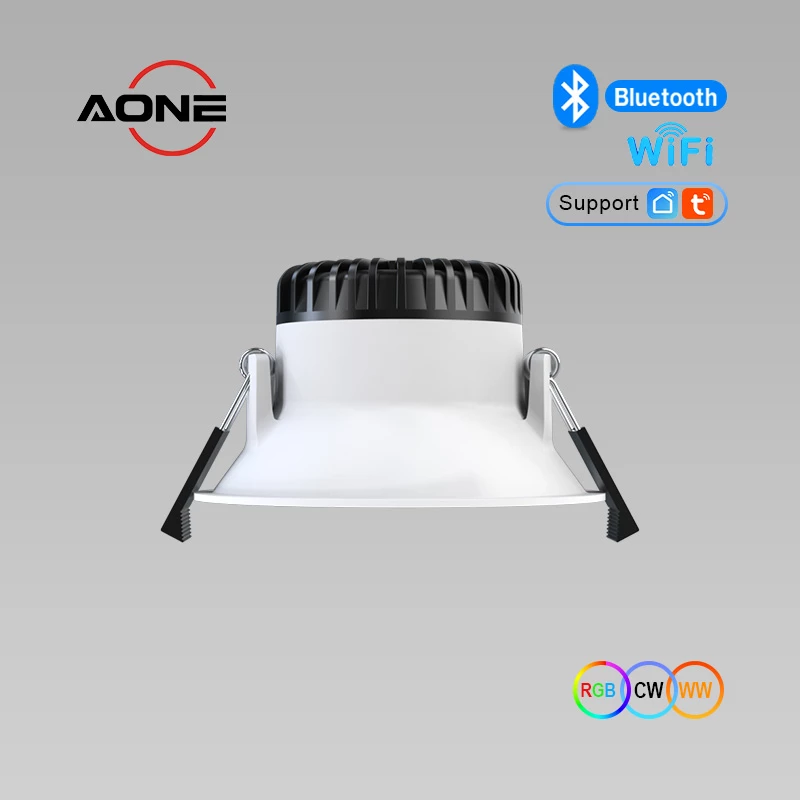

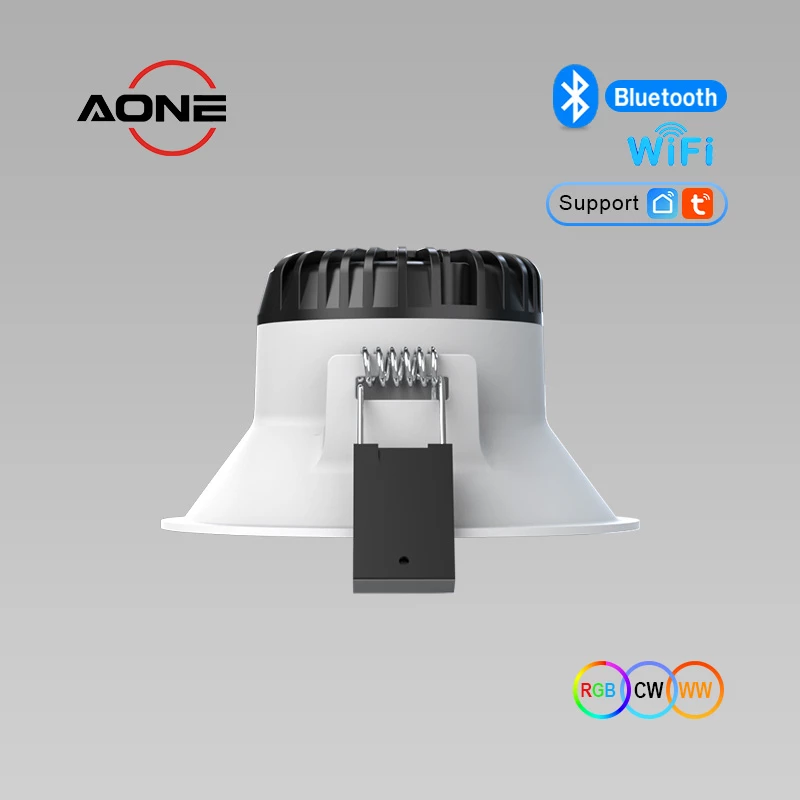

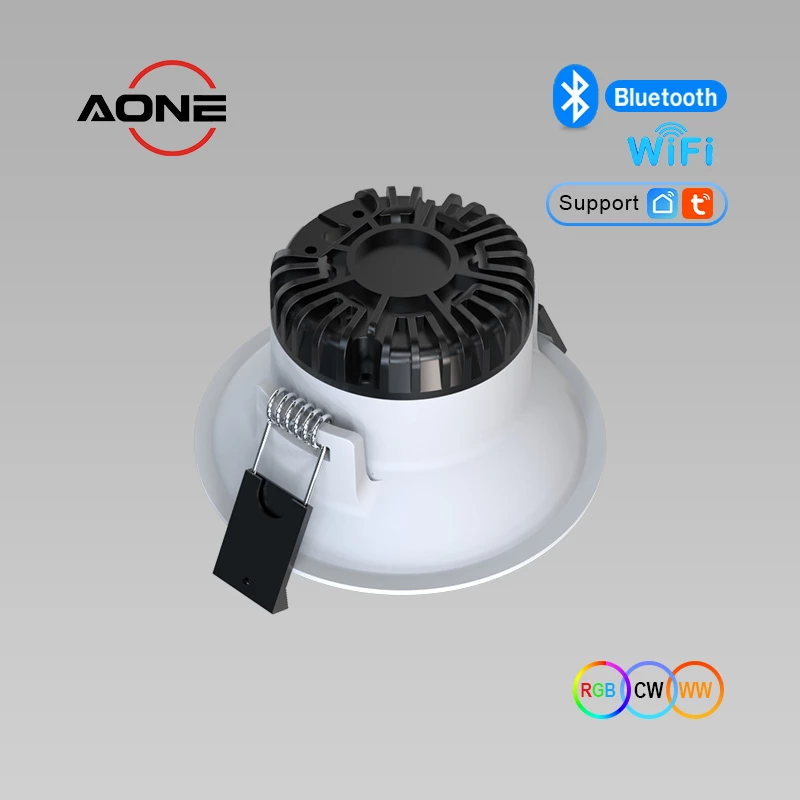

Smart Control & RGB CCT Tuning Downlight IP65 Glare Free, support WiFi & Bluetooth 7W DL87
Dimensions：

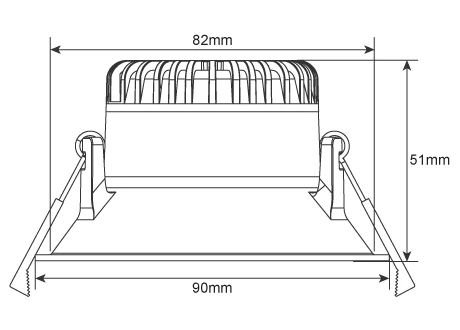

Ø90 x H51mm,cut-out 83-85mm
Power：
7W
Function：
RGB and CCT tuning
Dimming or not：
Yes, PWM Dimming
Beam angle：
38°
Rated voltage：
AC220-240V
Key Features & Benefits
7W 700 lumen Lighting Output
100 lm/W Glare Free for office and retail lighting – maintain visibility while slashing energy costs.
Insulation Coverable

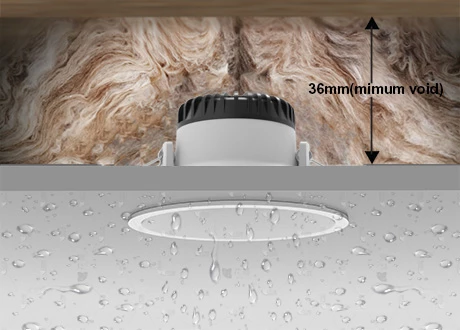

Insulation overable, recessed depth void >=36mm

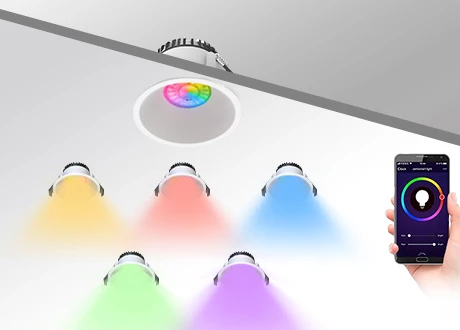

Smart RGB & CCT Tuning Control
Easily Choose from millions of lighting colors and dimming via Phone App

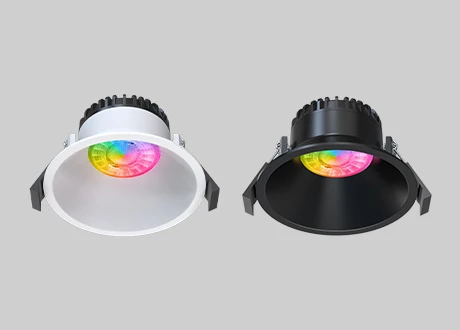

2 Finish Colors Optional
White or Black Finish to suit different decoration styles.

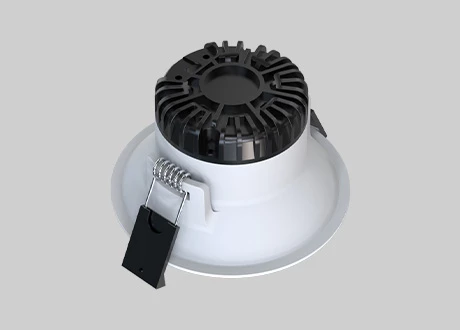

Full Aluminum Materials
Made of die-cast aluminum, excellent heat dissipation
Smart Certificated Driver and Fast Installation
Loop in / loop out colorful terminal for easy wiring, tools free
Technical Specifications
| Model | DL87 Smart | Beam Angle | 38° |
| Protection Class | Class II / IP65 / IK08 | Dimming |
PWM Dimming |
| Power | 7W | Outer Color | White, Matt Black |
| Input | AC230V 50Hz | Color Temperature | 2700K-5700K tuning |
| Lumen | 700lm | Size | Dia 90mm, Cutout: 83-85mm |
| Efficiency | 100 lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |

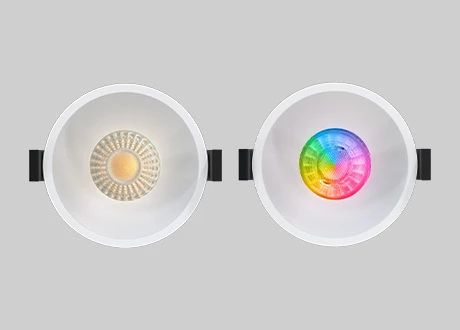

| Fire Rated | Yes | Coverable | Yes |

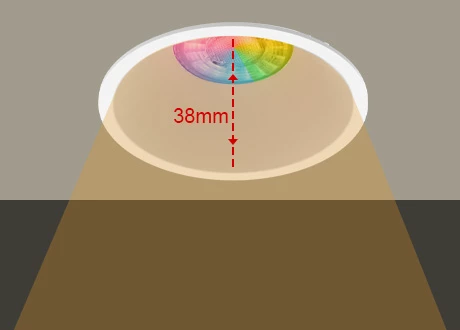

Deep Cup of 38mm for comfortable lighting
Diameter 88mm, height 32mm, hole opening range 68-75mm
Good LED chips of 170lm/W, 38° Beam angle
100lm/W, high-uniformity lighting ensures sufficient brightness, giving visual comfort. Tuya Smart, suitable for different dynamic scenes like party, movie watching, romantic dinner.
RGB+CCT adjustable via App making different colors lighting switchable,CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops.
IP65 waterproof below the ceiling, suitable for wet locations, zone 2 and zone 3, making your lighting more safe and durable.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

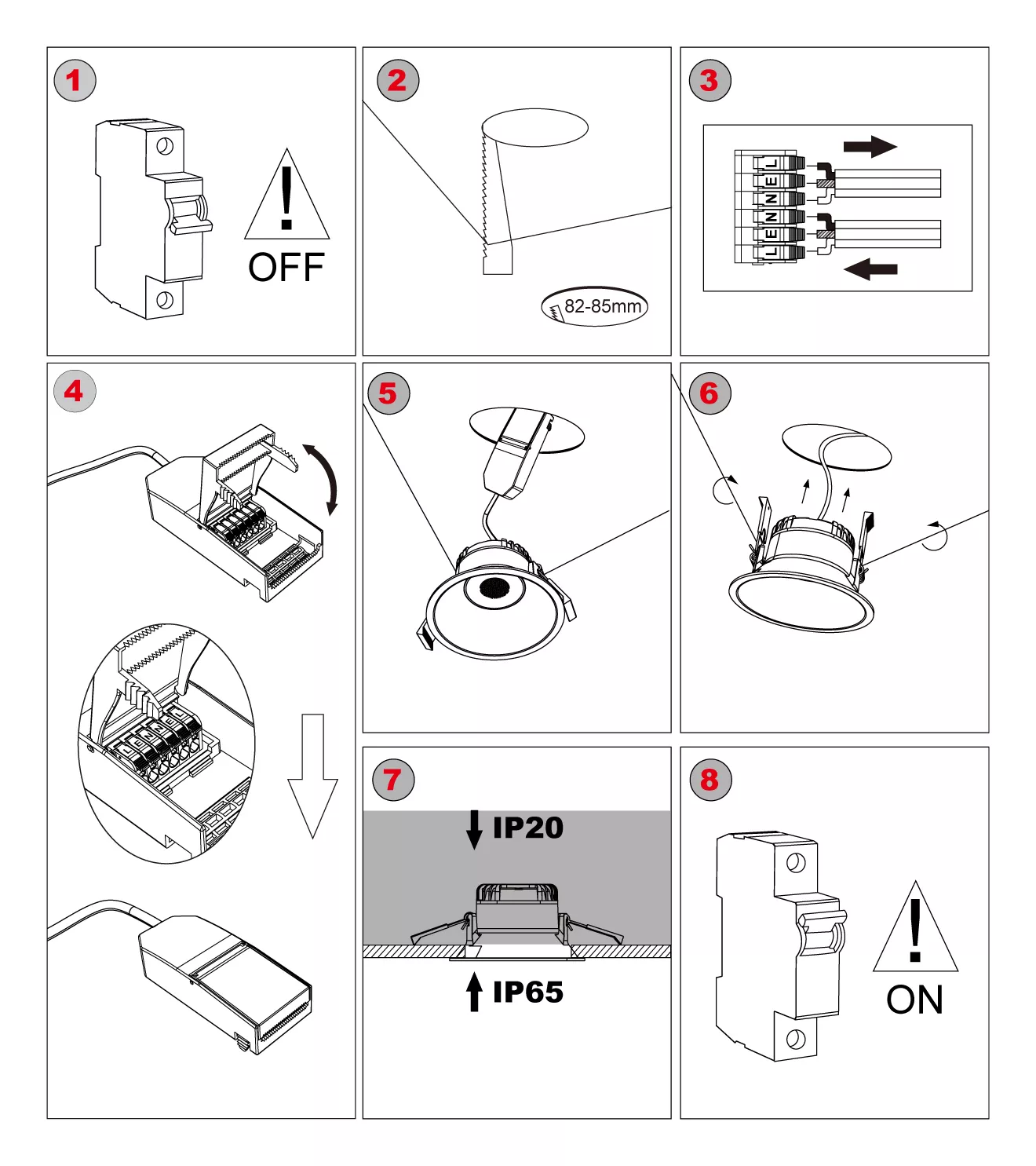

Installation Display
