Smart Spring Fire Rated LED Downlight 4W/6W/8W 4CCT DL98S
Dimensions：
Ø88 x H54mm,cut-out 70-75mm
Color temperature：
4CCT 2700K-3000K-4000K-5700K
Dimming or not：
Yes, triac dimmable
Power：
4W-6W-8W selectable
Rated voltage：
AC220-240V
Key Features & Benefits
High lm output
Brightness, up to 440lm/660lm/880lm
Fire-rated / Coverable
30,60,90min for timber, web and staircraft i-joists, coverable, mini void 53mm
Power & CCT Switchable
Wattage 4W-6W-8W and 4CCT easily change from below the ceiling
Smart Spring Clips
Innovative design provides more convenient installation
38° or 60° beam optional
High quality of LED chip and lens, offering RA>80 or RA>90 version
Fast installation via Loop in/out terminal
Plug-and-play junction box reduces installation time by 50%.
Technical Specifications
| Model | DL98S | Beam Angle | 38° or 60° |
| Protection Class | Class II / IP65 / IK08 | Dimming | Trailing edge and leading edge |
| Power | 4W/6W/8W Switchable | Bezel | Black, White, Polished Chrome, Brushed Nickel |
| Input | AC220-240V 50/60Hz | Color Temperature | 2700K/3000K/4000K/5700K |
| Lumen | 440/660/880 | Size | Dia88mm, Cutout: 70-75mm |
| Efficiency | 110lm/W | Certification | CE, UKCA, RoHS |
| Life Time | >50000 hours | Warranty | 5 Years |
| Fire Rated | Yes | Coverable | Yes |
Bezel/Trim interchangeable: white, black, polished chrome, matt brass, brushed nickel
Diameter 88mm, height 54mm, hole opening range 70-75mm
8 choice of junction boxes, 1st- 4th fixing connectors, loop-in & loop-out terminal provides a simple installation.
Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.
Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.
Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops
Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.
Production Process
A-ONE is a professional LED lighting factory with 17 years of manufacturing experience. We feature independent R&D, offering free mold opening, test certifications. Equipped with automated & scientific production lines, each light undergoes 100% aging tests and strict quality checks. Enjoy 5-7 years warranty. Our process covers communication, design, sampling, quality/testing, material prep, production, function/EMC tests, aging, packaging & OQC. Ideal for reliable, high-quality LED lighting solutions.
Quality is our lifeline. We strictly enforce comprehensive testing and certification for every new product in collaboration with top-tier laboratories (SGS/TUV/DEKRA), covering CE-LVD, CE-EMC, CB, IP waterproof, SGS fire-rated, RED, SGS air-tightness, 850°C glow-wire, IK rating, Acoustic Rating, 50,000+ hours lifespan, ErP, ROHS, REACH. As a professional LED lighting manufacturer, we guarantee superior product quality through rigorous testing procedures and international certification standards.
Beyond third-party certifications with SGS/TUV/DEKRA, our in-house laboratory features 14+ advanced testing devices including EVERFINE Integrating Sphere, IES Test Equipment, EMC Chamber, IP6X waterproof Checking, Climate Chamber, Computer Aging System, and specialized equipment for dielectric, insulation, salt spray, surge, vibration and drop tests. This comprehensive testing capability ensures every finished product meets the highest quality standards from development to delivery.

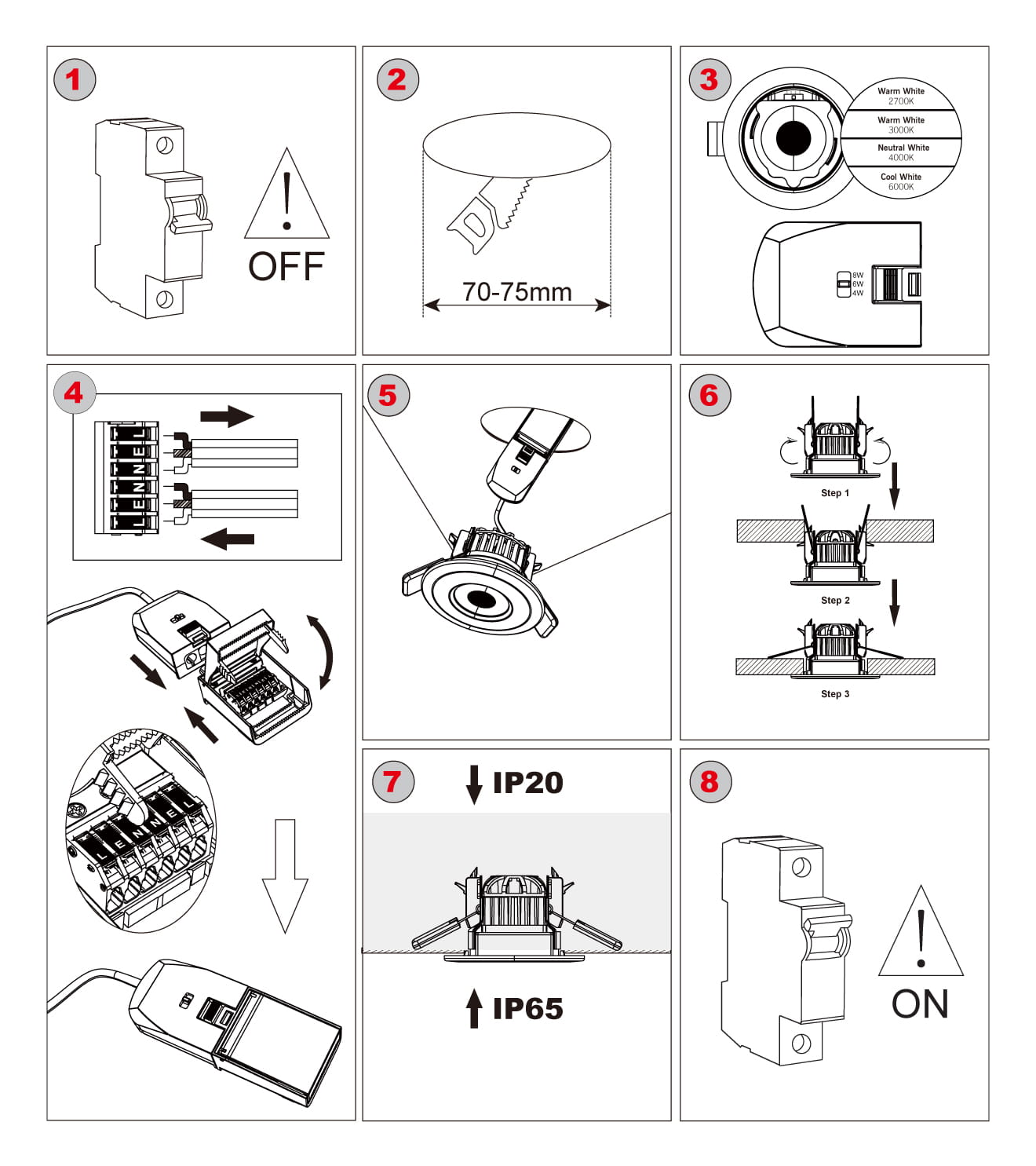

Installation Display
