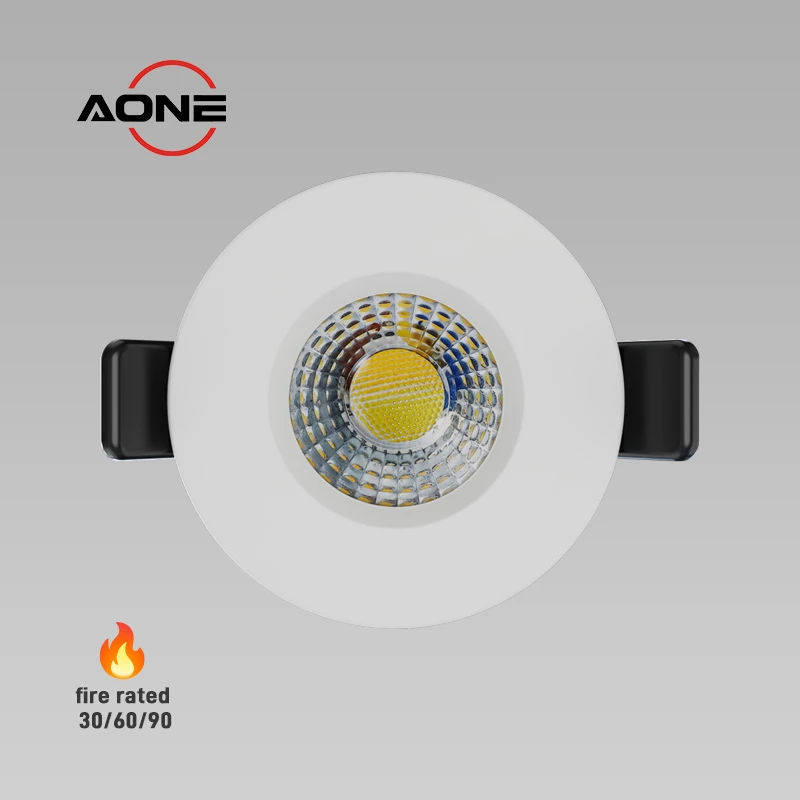

Smart Spring Fire Rated Downlight 5W/7W 4CCT DL160S

This Downlight combines smart springs, delivering a bright 550/770 lumens output for exceptional energy effciency. Featuring interchangeable bezels (white/black/polished chrome/brushed nickel) along with adjustable CCT (2700K-3000K-4000K-5700K), it allows you to tailor both aesthetics and ambiance to suit any space. Designed for safety, it offers fire rated protection (30/60/90 minutes) and IP65 rated, making it ideal for use in bathrooms or another moisture-prone areas.

Dimensions：

Ø88 x H59mm,cut-out 68-75mm

Color temperature：

4CCT 2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Power：

5W/7W selectable

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

Downlight Lumen

High Lumen Output

Up to 5W-550lm and 7W-770lm

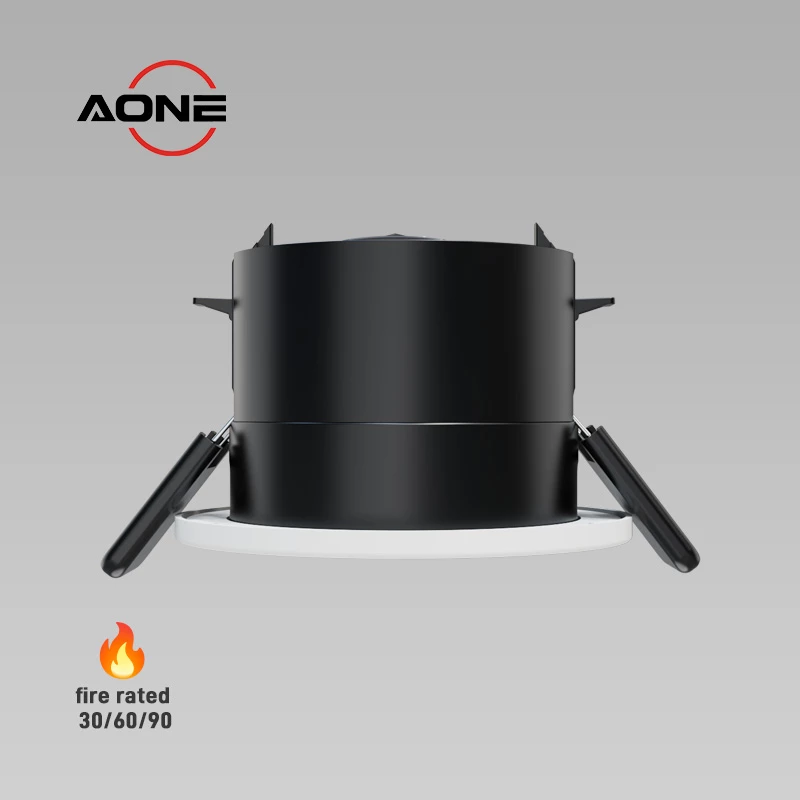

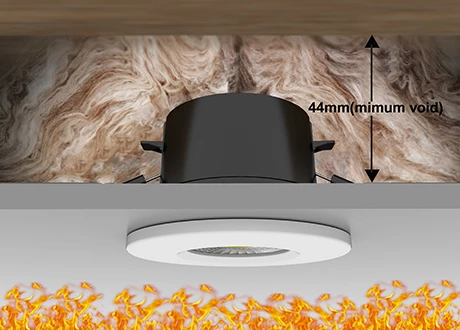

fire rated downlight

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 44mm

4CCT Switch Downlight

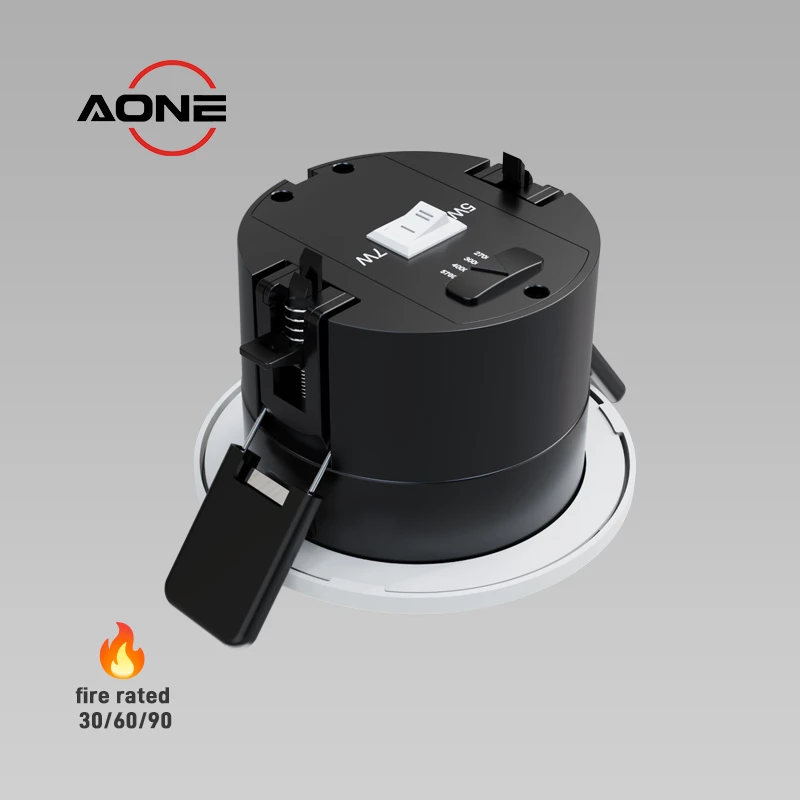

Smart Spring Clips

Innovative clip design provides a more quick installation

smart spring downlight

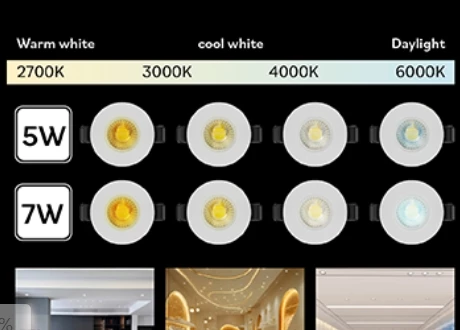

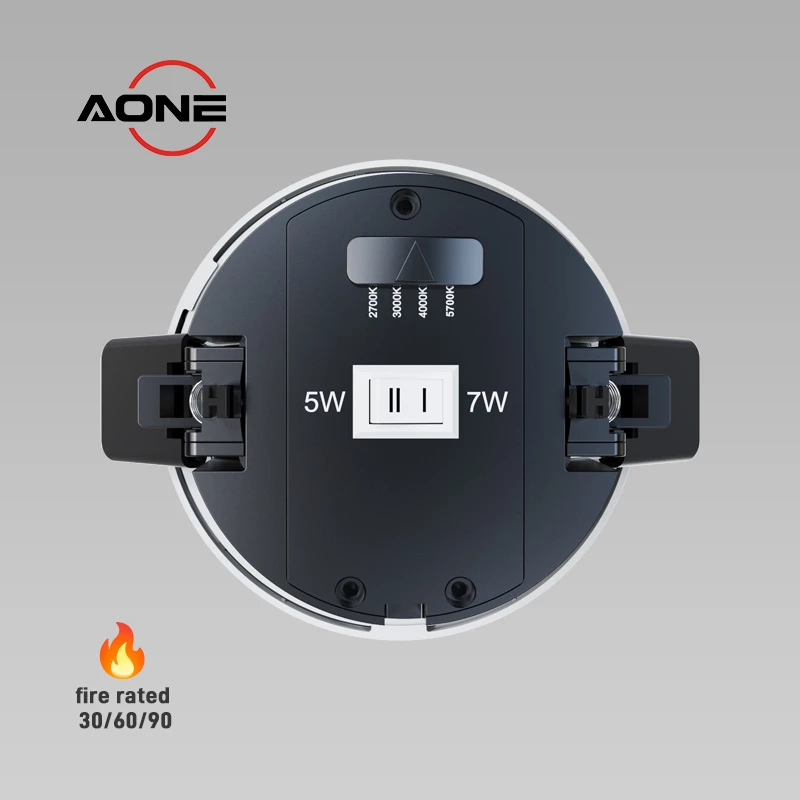

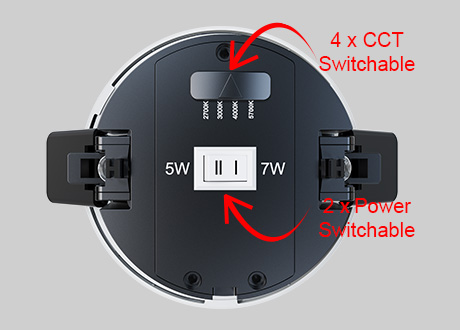

Power and CCT Switchable

5W/7W and CCT 2700K-3000K-4000K-5700K changeable in 1 fixture

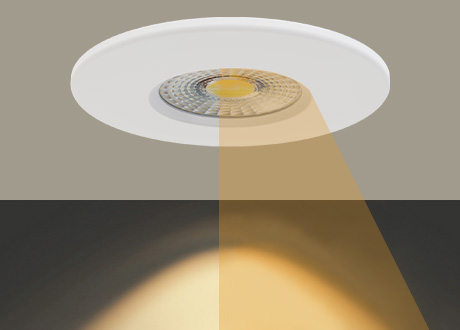

downlight beam angle

38° or 60° beam optional

High quality of LED chip and lens, offering RA>80 or RA>90 version

downlight loop in/out terminal

Fast installation via Loop in/out terminal

Plug-and-play junction box reduces installation time by 50%.

Technical Specifications

Model	DL160S	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	5W/7W Switchable	Bezel Color	Black, White, Polished Chrome, Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	550lm/770lm	Size	Dia88mm, Cutout: 68-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

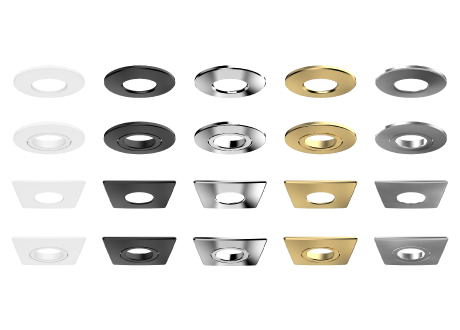

downlight bezel interchangeable

Round and Square Bezel Interchangeable: white, black, polished chrome, brass, brushed nickel

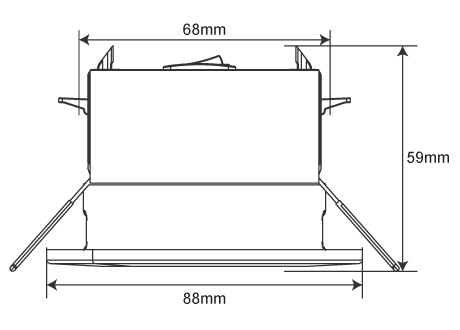

downlight diameter

Diameter 88mm, height 59mm, hole opening range 68-75mm

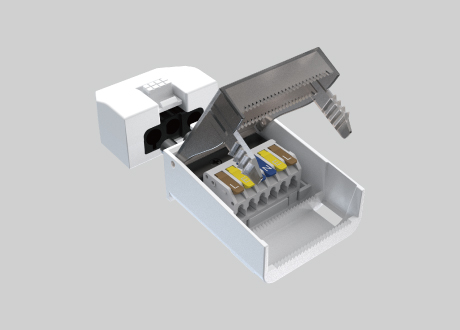

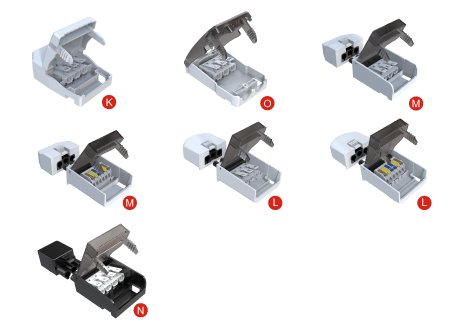

downlight junction box

7 choice of junction boxes,1st- 2nd fixing connectors, loop-in & loop-out provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

downlights for living areas

Living

Recessed structure and smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

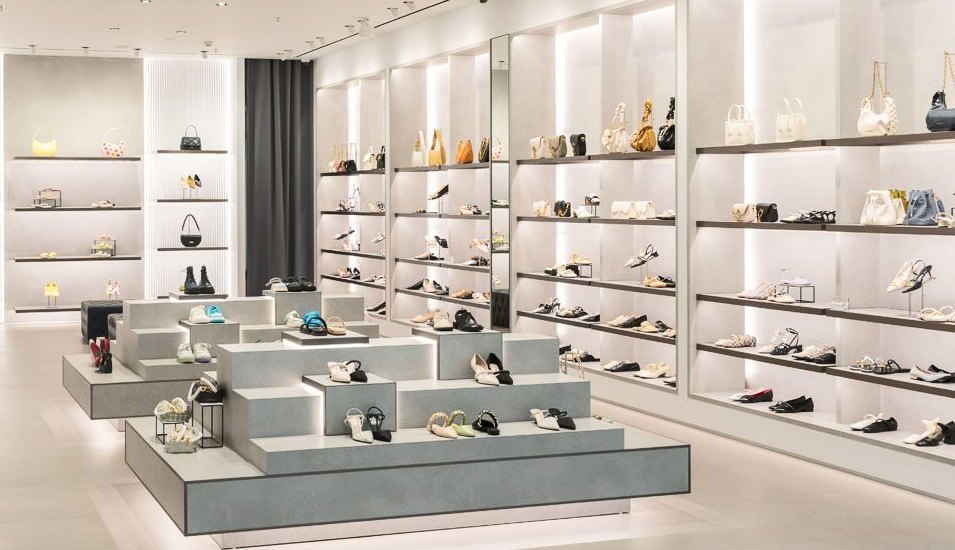

downlights for shopping areas

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

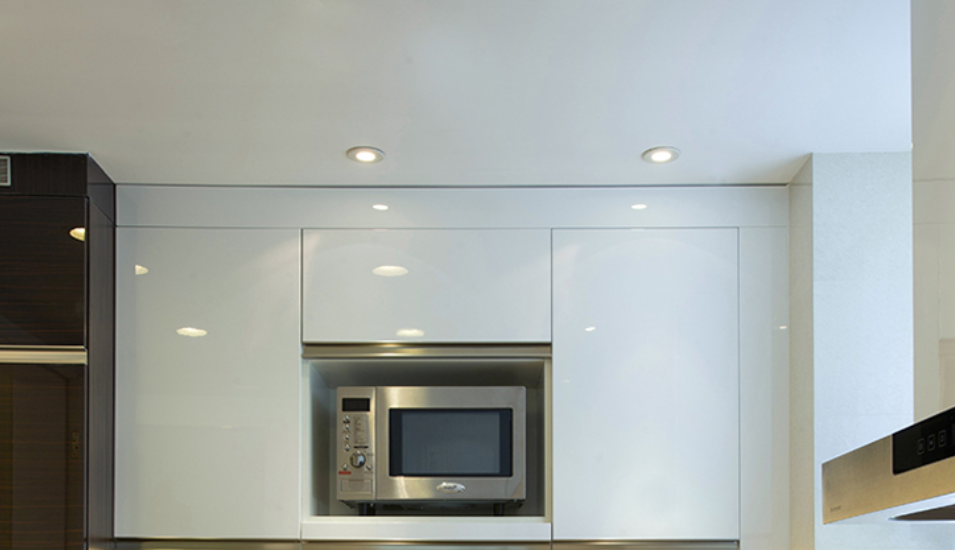

downlights for kitchen areas

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen or worktops

downlights for bathroom areas

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

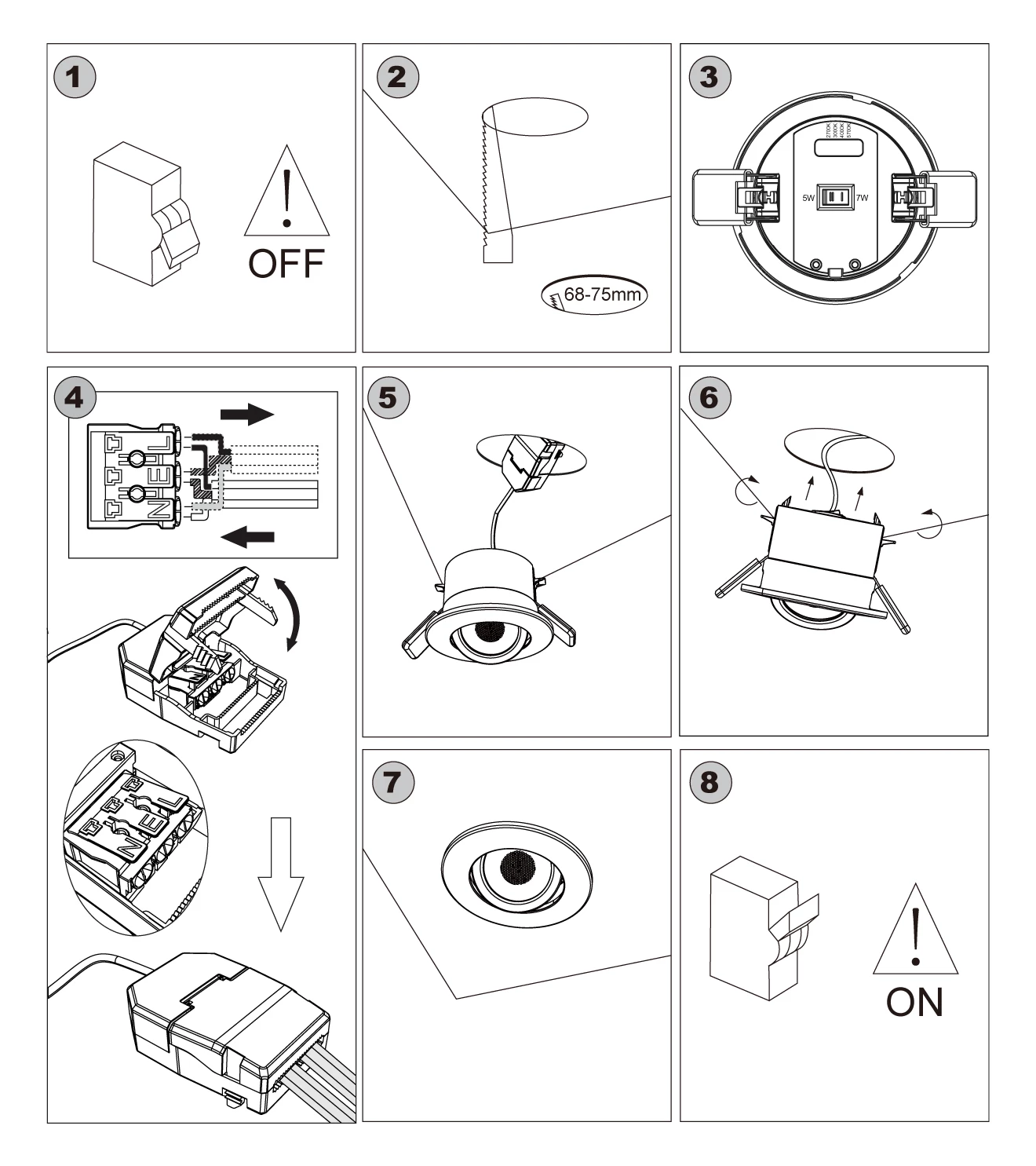

Installation Display

Turn off the power supply before installation, cut a hole (70-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm white to cool white, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

downlight installation steps
