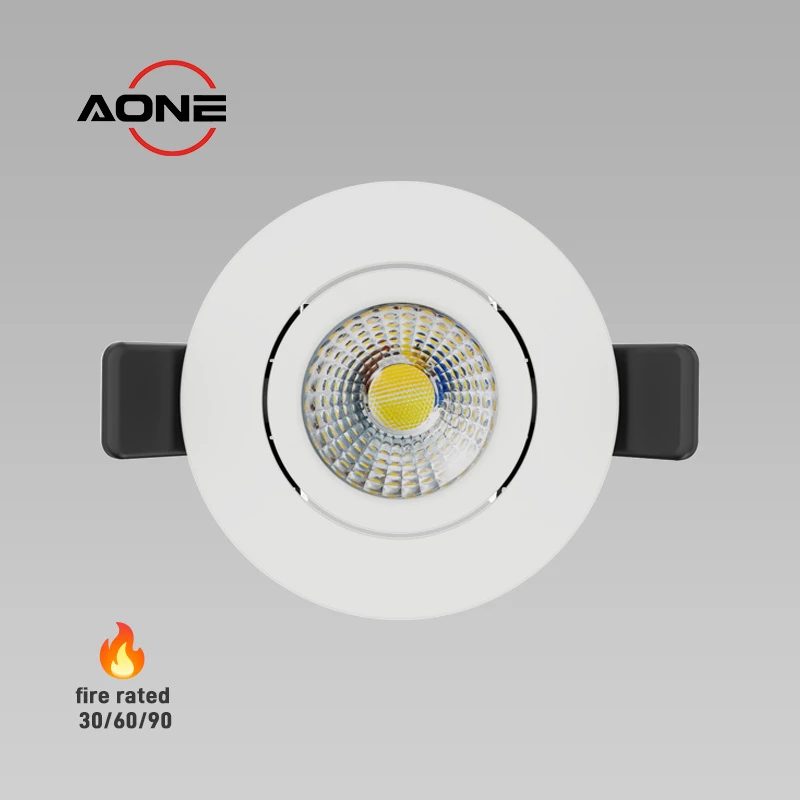

4W-6W-8W Smart Spring IP65 Tiltable Fire-Rated LED Downlight 4CCT DL98BB

25° rotation, dimmable IP65 waterproof downlight with a smart spring, 110lm/W, tri-power 4W/6W/8W and 4CCT selectable between 2700K, 3000K, 4000K and 5700K, white/black/brass/polished chrome/brushed nickel covers interchangeable, fully fire rated tests for 30, 60 and 90 minutes approval, coverable with insulation material, OEM/ODM Manufacturing factory to customize your lighting solutions.

Dimensions：

Ø88 x H53mm,cut-out 70-75mm

Power：

4W-6W-8W selectable

Color temperature：

4CCT 2700K-3000K-4000K-5700K

Dimming or not：

Yes, triac dimmable

Beam angle：

38° or 60°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

downlight spotlight mounting surface

High Efficiency

110lm/W high output features enough brightness while keep energy-saving.

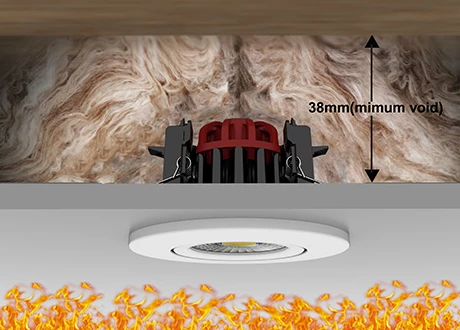

downlight installation depth

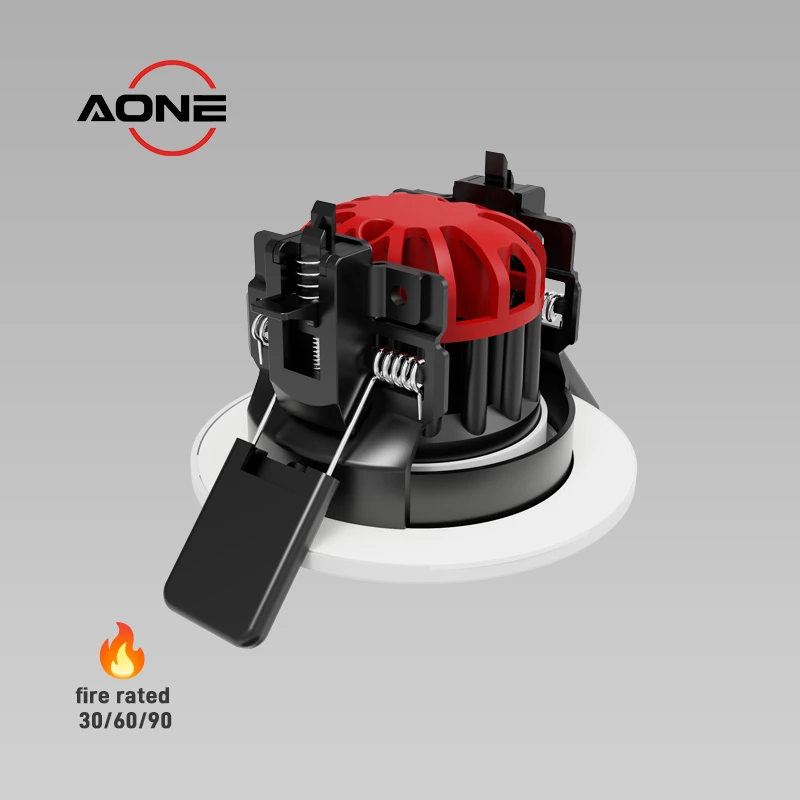

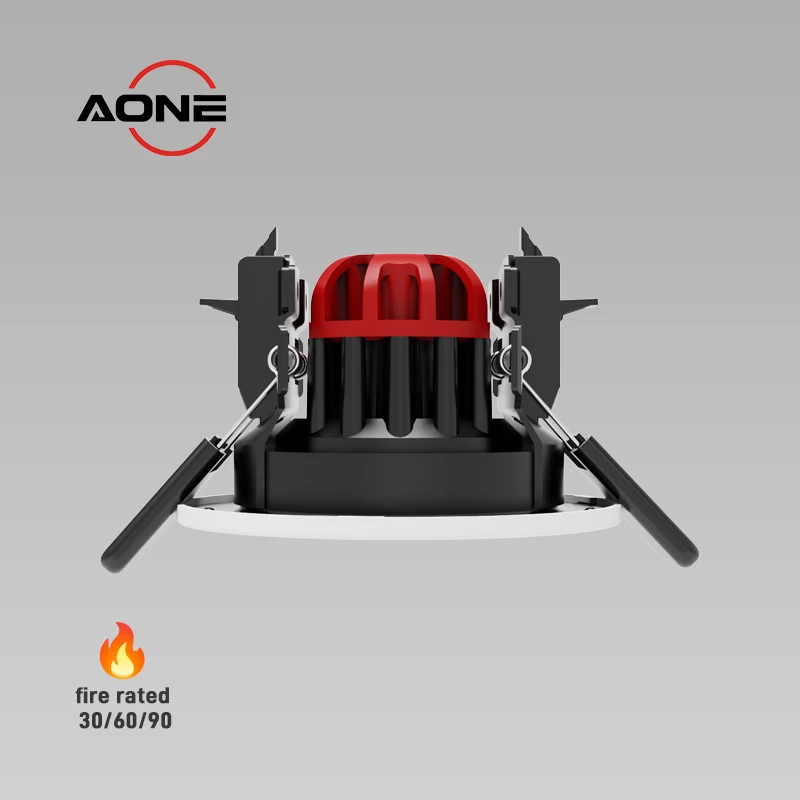

Fire-rated / Coverable

30,60,90min for timber, web and staircraft i-joists, coverable, mini void 38mm

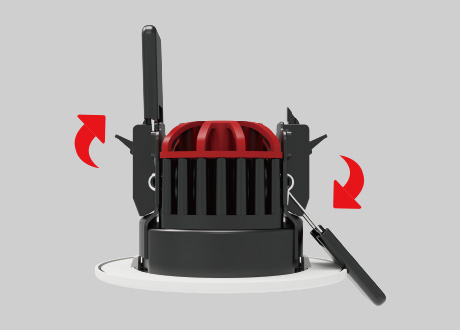

tiltable smart spring downlight spotlight

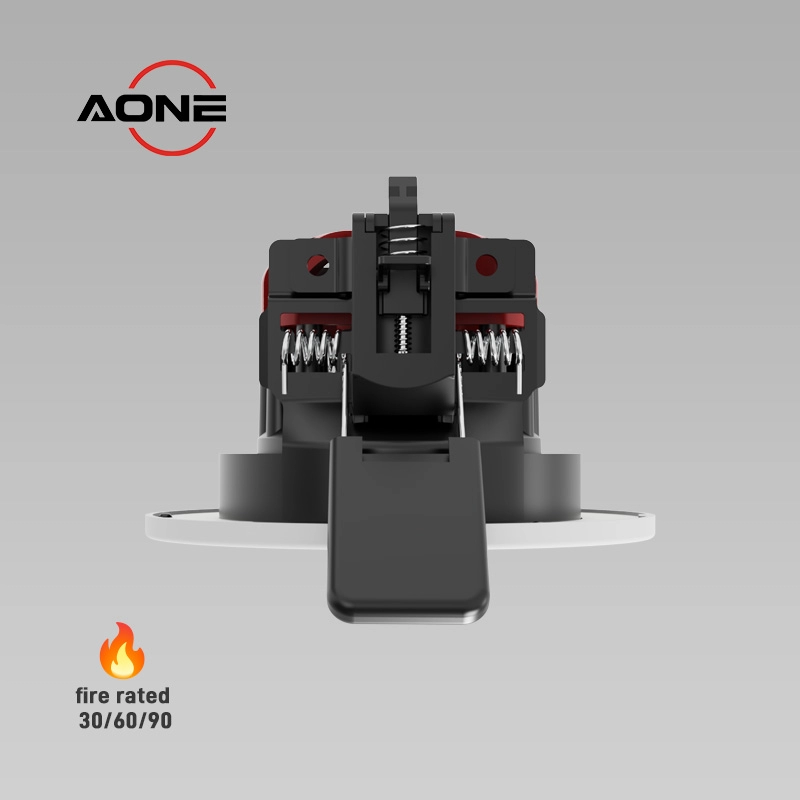

Smart Spring

Innovative smart spring design provides more convenient installation.

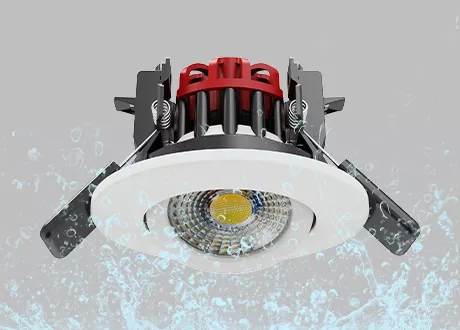

IP65 smart spring downlight spotlight

IP65 Waterproof Rating

IP65 rating below the ceiling, suitable for use in bathroom.

downlight spotlight connector

Fast installation via Loop in/out terminal

Plug-and-play junction box reduces installation time by 50%

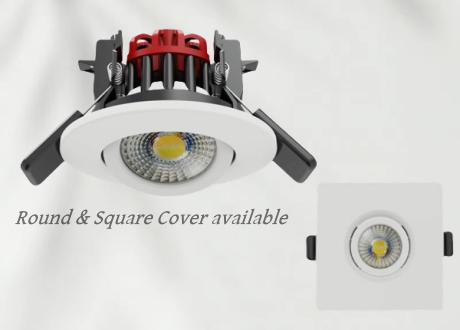

downlight spotlight round and square bezel cover

Round and Square Downlight Cover

Round and square cover for your preference, meeting your different design needs.

Technical Specifications

Model	DL98BB	Beam Angle	38° or 60°
Protection Class	Class II / IP65 / IK08	Dimming	Trailing edge and leading edge
Power	4W/6W/8W Switchable	Bezel Color	Black, White, Brass, Polished Chrome, Brushed Nickel
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K/5700K
Lumen	440/660/880	Size	Dia88mm, Cutout: 70-75mm
Efficiency	110lm/W	Certification	CE, UKCA, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Yes	Coverable	Yes

downlight spotlight cover interchangeable

5 color options square and round cover interchangeable: white, black, polished chrome, matt brass, brushed nickel.

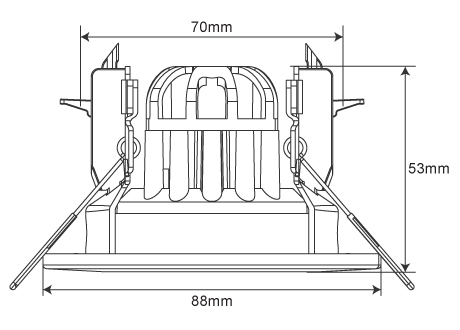

downlight spotlight size

Diameter 88mm, height 53mm, hole opening range 68-75mm.

downlight spotlight junction box

8 choice of junction boxes, loop-in & loop-out terminal provides a simple installation.

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

downlight spotlight used in living room

Living

Smooth dimming 10%-100% come out an artistic atmosphere and create your individual LED recessed luminaire.

downlight spotlight used in shopping center

Shopping

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 best display the products.

downlight sppotlight used in kitchen

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

downlight spotlight used in bathroom

Bathroom

Front bezel is IP65 waterproof to suit for wet locations, zone 2 and zone 3.

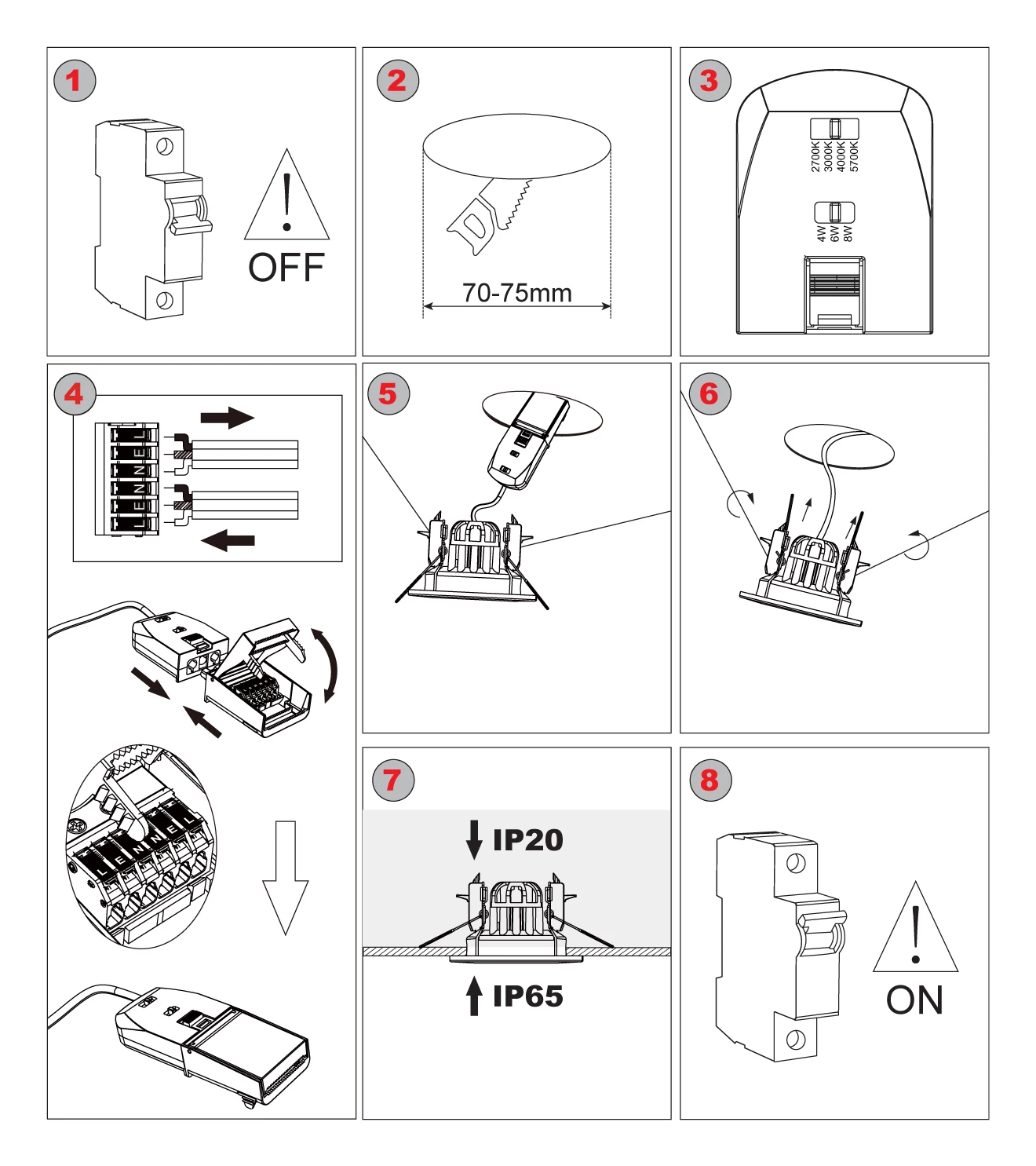

Installation Display

Turn off the power supply before installation, cut a hole (70-75mm diameter) in the ceiling for mounting, select color temperature: 2700K/3000K/4000K/5700K from warm light to cool light, connect the wires securely, insert the light into the hole and secure it, adjust the direction if needed, check the IP rating for installation zones, turn on the wall switch and test the light, ensure all steps are followed for safe and proper installation.

spotlight downlight installation steps
