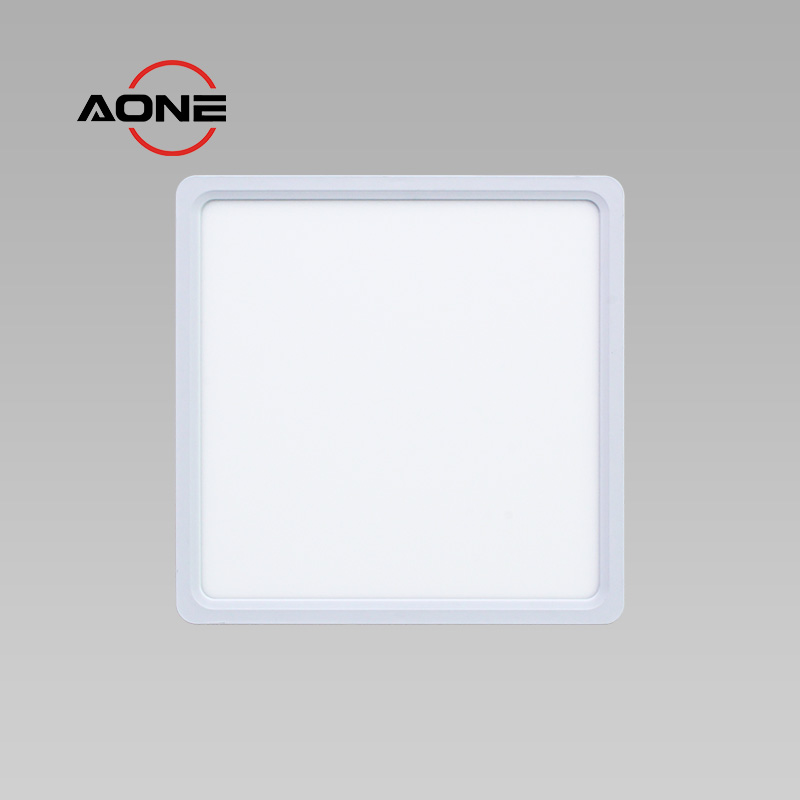

Square Ceiling Light Power 18W-24W-30W and 3xCCT Selectable SCL86-400

Surface mounting light & Panel Recessed Downlight with cut-out adjustable bracket, 3 selectable power 18W-24W-30W by dip switch and CCT between 2700K, 3000K, 4000K (or 3000K/4000k/5700K) changeable, diameter 400mm. High efficiency up to 100lm/W, IP20, white base color, CE and ErP certificated, OEM/ODM Manufacturing, direct Factory source give customized lighting solutions.

Dimensions：

Ø400 x H25mm

Power：

18W-24W-30W

Color temperature：

3CCT 2700K-3000K-4000K(or 3000K-5700K)

Microwave sensor：

Yes

Beam angle：

120°

Rated voltage：

AC220-240V

0086 153 6211 8442

Whatsapp: +86 153 6211 8442

lily@aoneled.eu

lnquiry Now

Key Features & Benefits

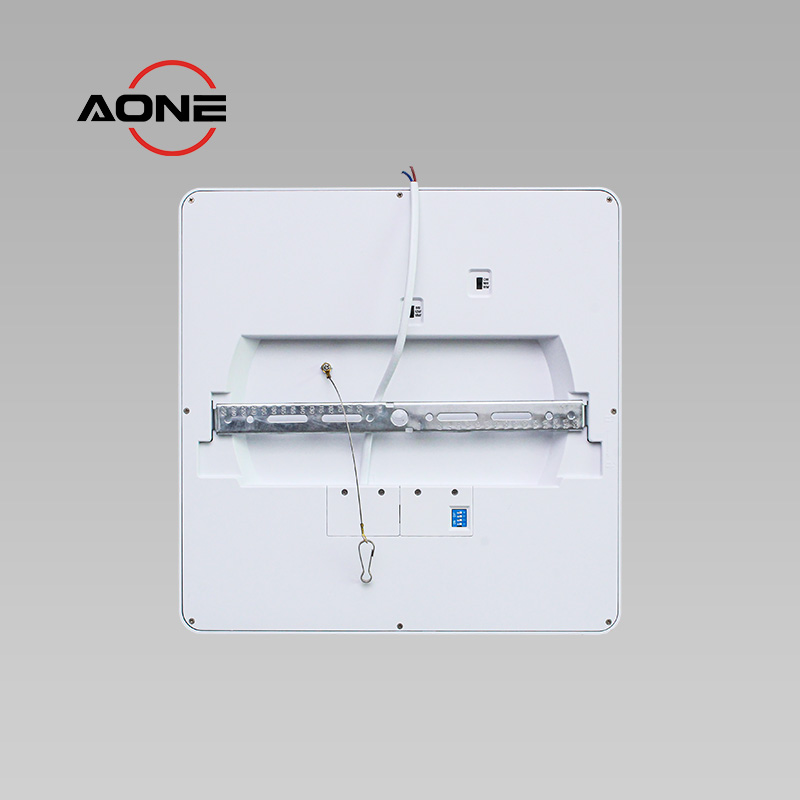

ceiling light microwave sensor

Microwave Sensor Built-in

Up to 100lm/W, energy-efficient and easy to set

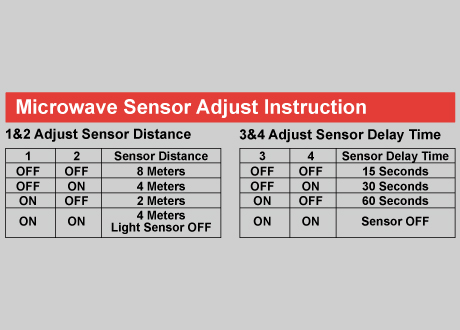

microwave sensor adjustment instruction

Microwave Sensor Instruction

Distance sensitivity and time settings can be configured via the DIP switches

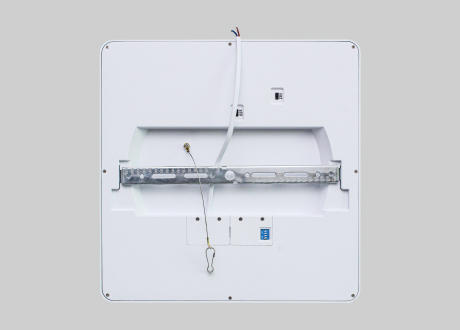

ceiling light & panel downlight sensor

Multi-functional and High Quality

Power 9W-12W-18W and CCT between 2700K, 3000K, 4000K by Dip Switch

ceiling light different diameters

Slim Shallow 25mm only

Featuring square design and offering 3 different diameters option

panel light and ceiling lights

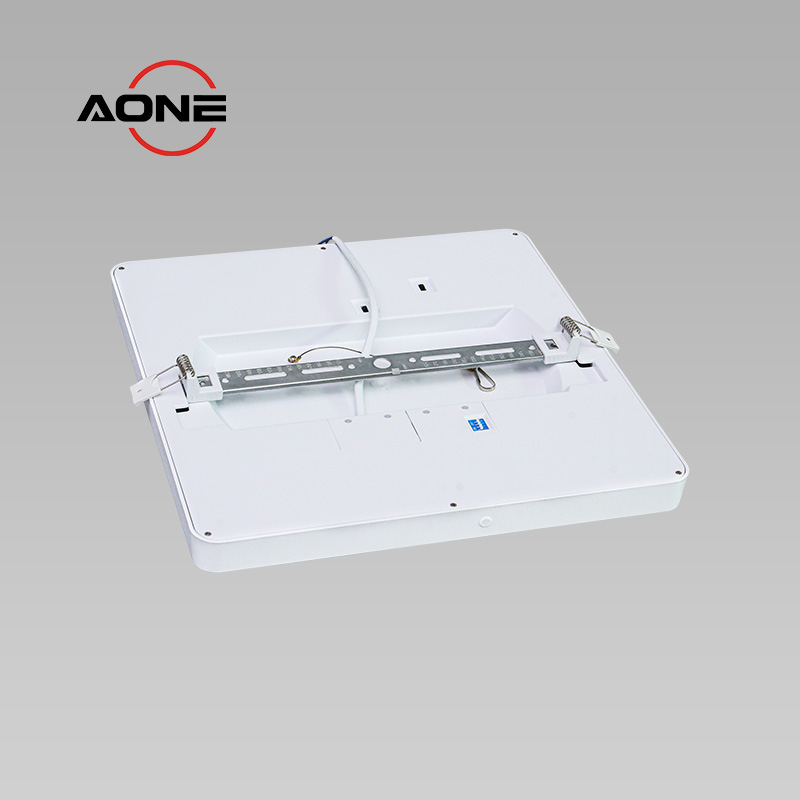

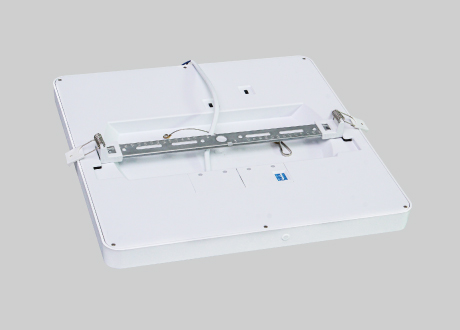

Surface Mounting Optional

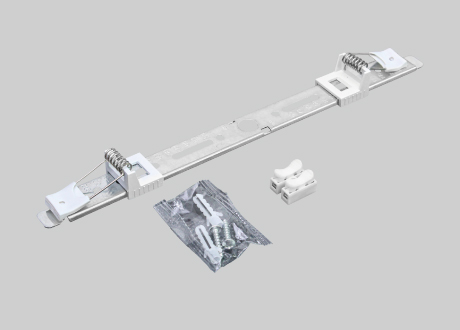

Movable bracket, easy to remove the spring for surface mounting

panel light and ceiling lights

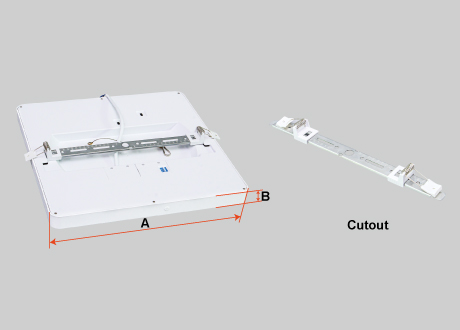

Opening Adjuster for Recessed Panel

With aluminum opening regulator, it becomes recessed ultra-thin panel light

Technical Specifications

Model	SCL86-400	Beam Angle	120°
Protection Class	Class II / IP20/ IK10	Dimming	Not applicable
Power	18W-24W-30W	Base Color	White
Input	AC220-240V 50/60Hz	Color Temperature	2700K/3000K/4000K or 3000K/4000K/5700K
Lumen	1800lm-2400lm-3000lm	Size	Dia 400mm height 25mm
Efficiency	100lm/W	Certification	CE, ErP, RoHS
Life Time	>50000 hours	Warranty	5 Years
Fire Rated	Not applicable	Coverable	Not applicable

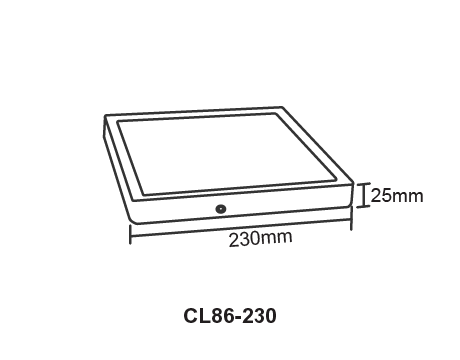

diameter 230mm ceiling lights

Size 1 ： Diameter 230 x Height 25mm

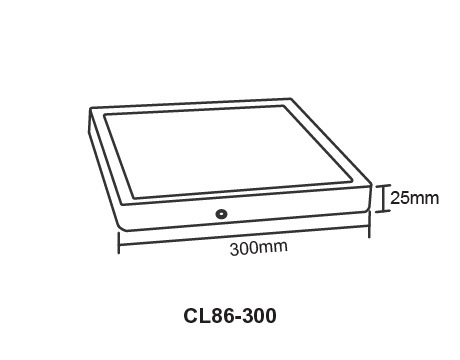

ceiling light diameter 300mm

Size 2 ： Diameter 300 x Height 25mm

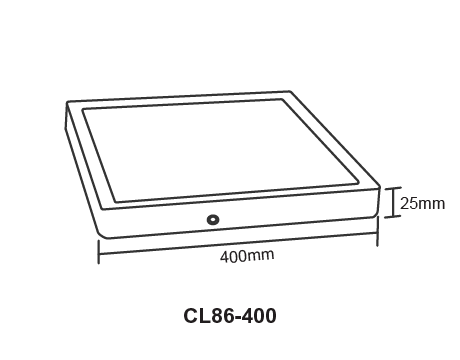

ceiling light diameter 400mm

Size 3 ： Diameter 400 x Height 25mm

Applicable Scenarios

Perfect for residential, hospitality, commercial office applications

balcony ceiling lights

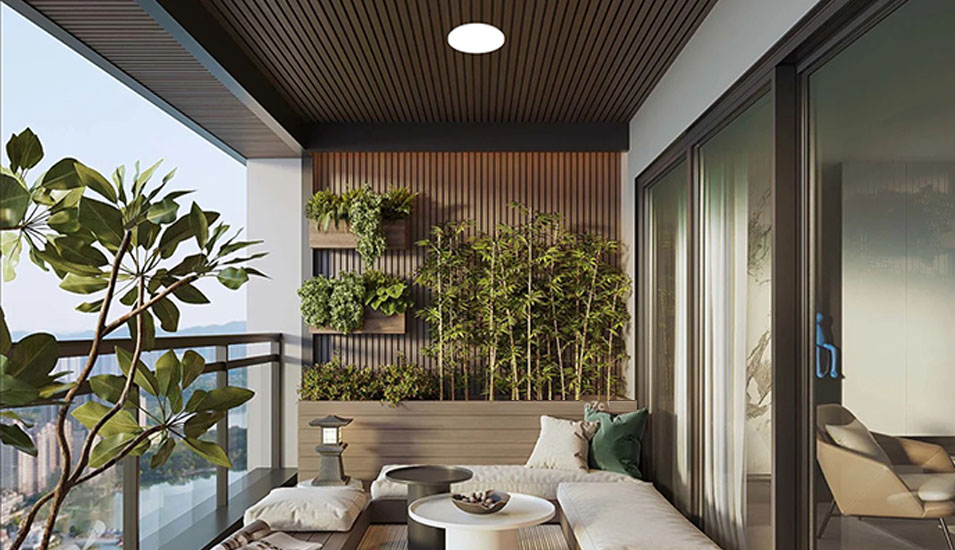

Balcony

Triac dimmable, slim IP54 design (CE-certified) crafts tailored ambiance

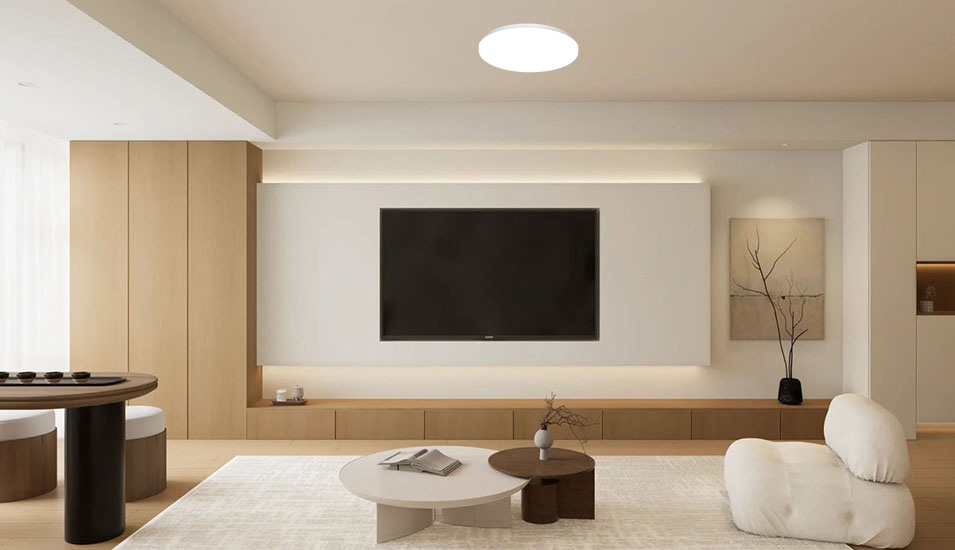

living ceiling lights

Living

Warm light to cool light, high efficiency CRI(RA) 80+ or 90+ MacAdams<6 give a perfect lighting for the room.

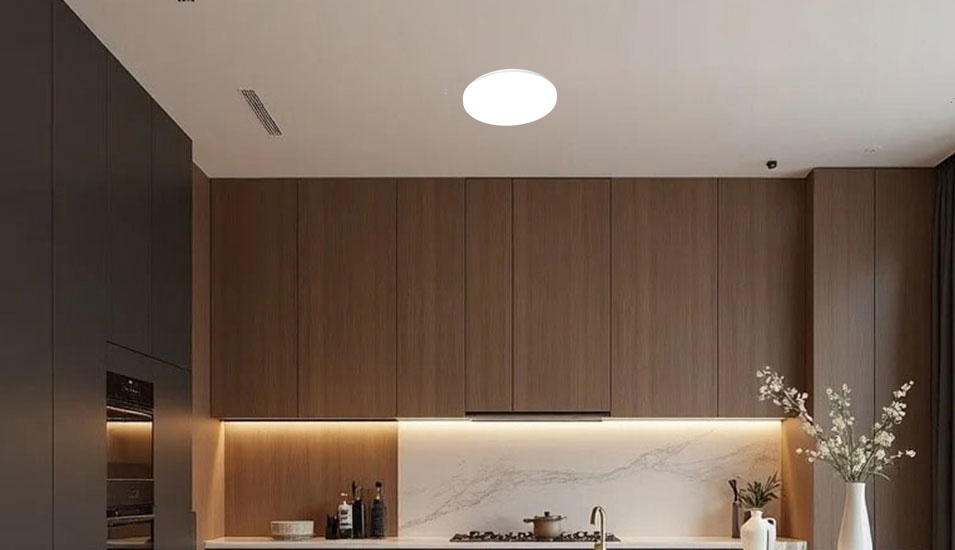

kitchen downlight spotlight

Kitchen

Waterproof & Dustproof, practical downlight/spotlight can provide directional lighting to kitchen island or worktops

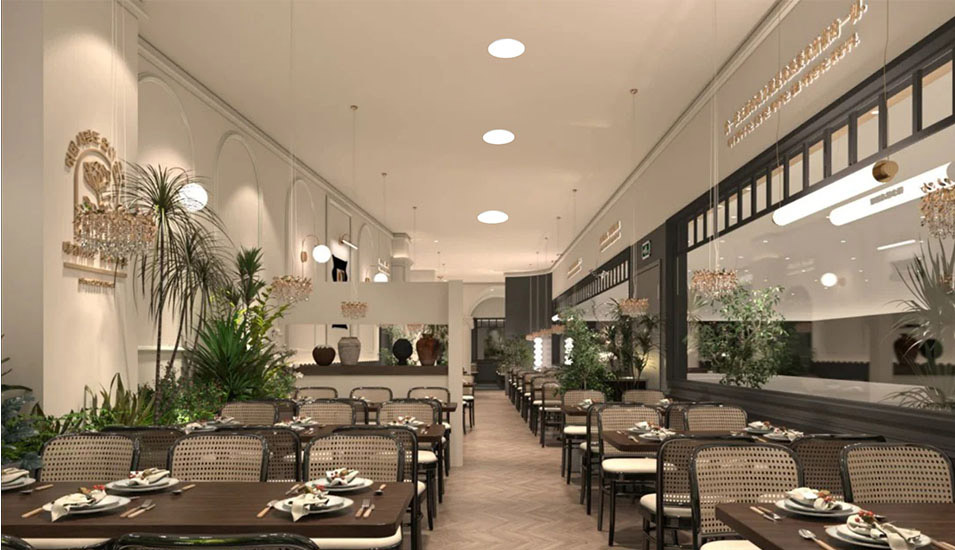

Restaurantceiling lights

Restaurant

Upscale thin-profile design with IP54 protection, 3 power/color temp choices

Installation Display

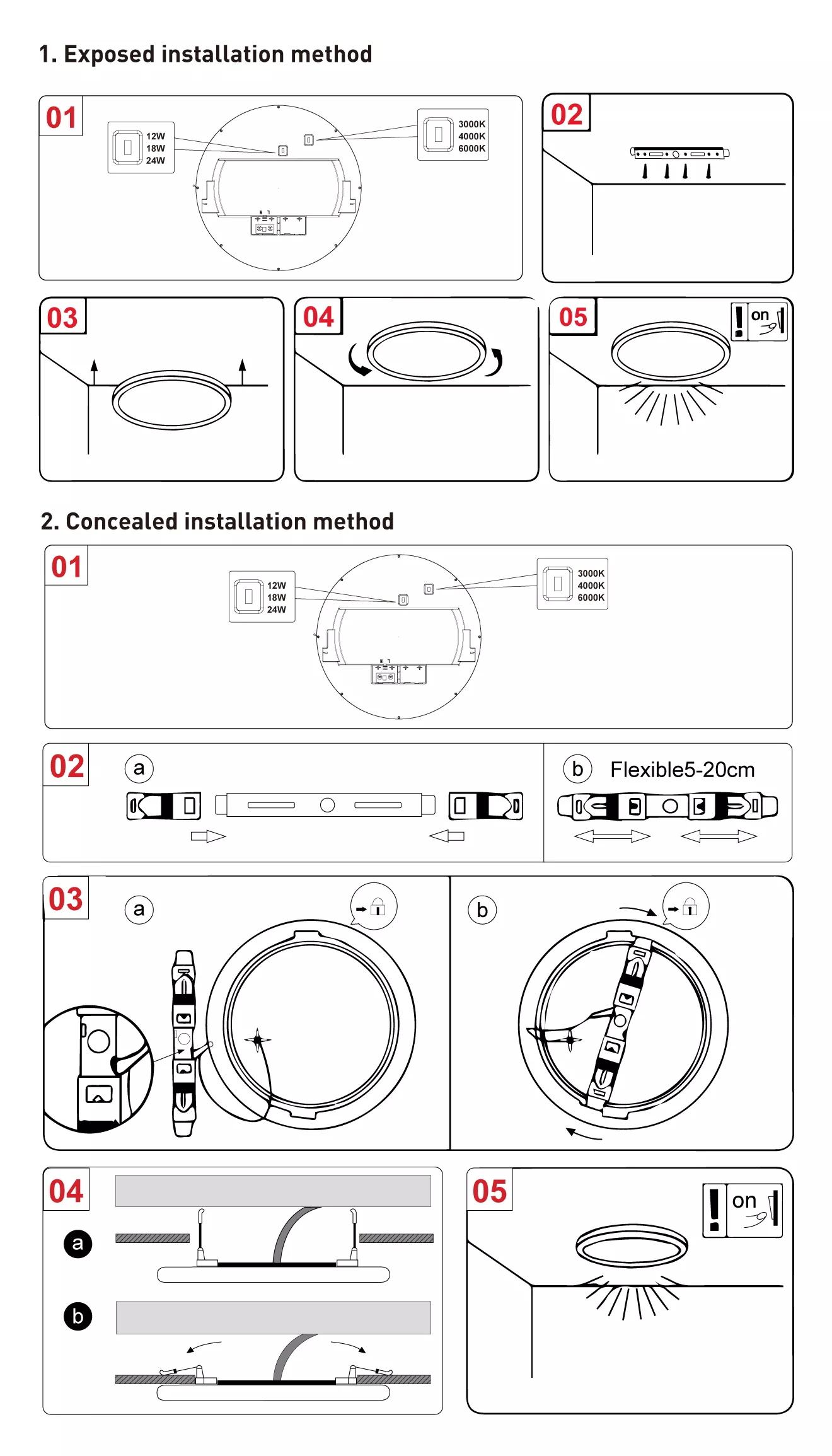

For Exposed Installation: Check wattage (12W/15W/24W) and color temp (3000K/4000K/6000K) labels, position the light housing on the ceiling, align and press - fit the frame until it clicks, rotate to secure, then switch “ON” to test. For Concealed Installation: Verify wattage/color temp labels first, connect the flexible cable (5 - 20cm) to the driver, fold out the mounting brackets and lock them, insert the light into the ceiling cutout, adjust brackets to fix, then switch “ON” to confirm operation.

ceiling lights panel lights installation steps
